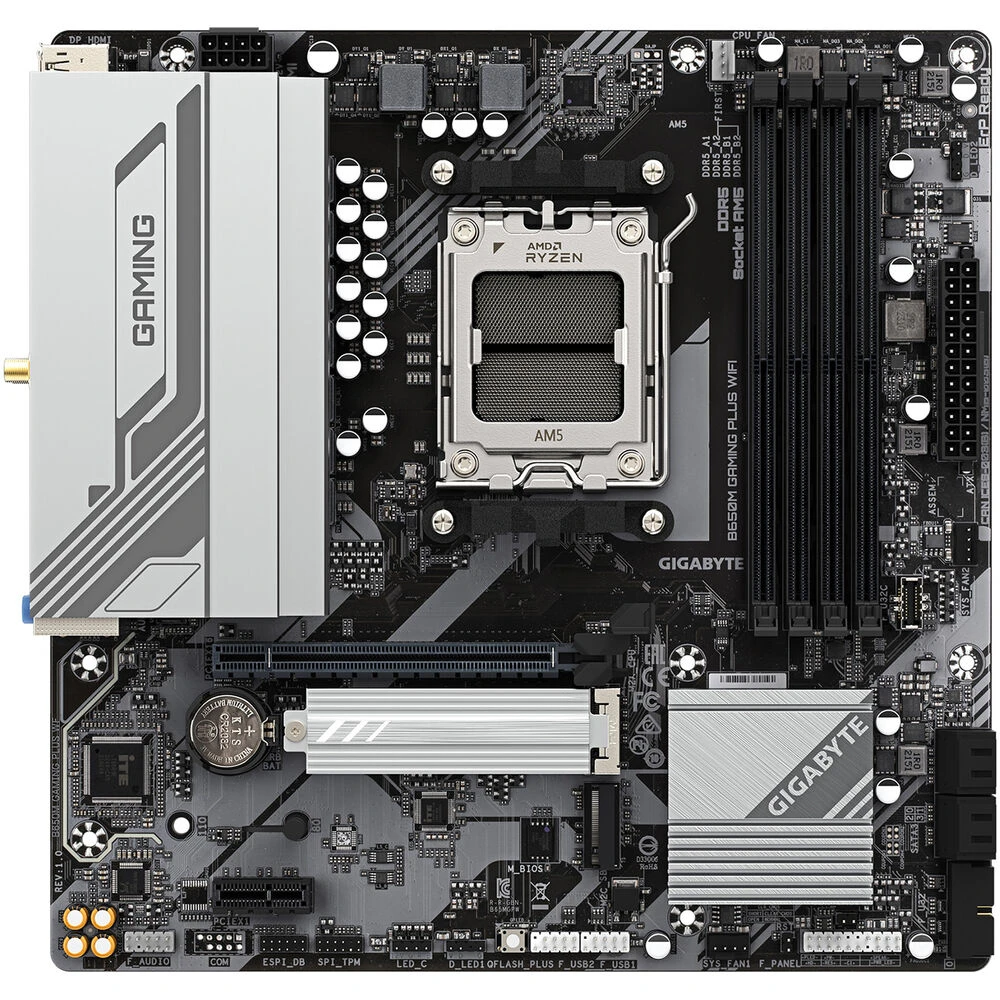

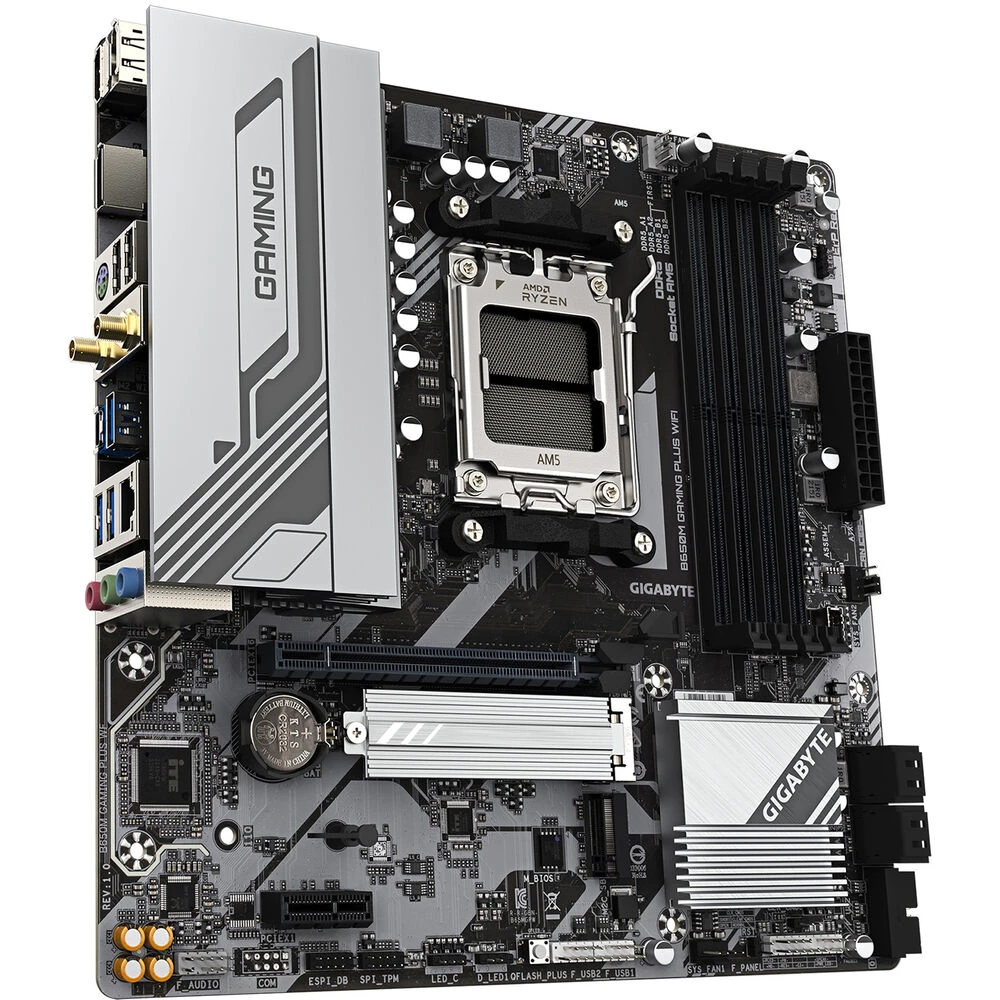

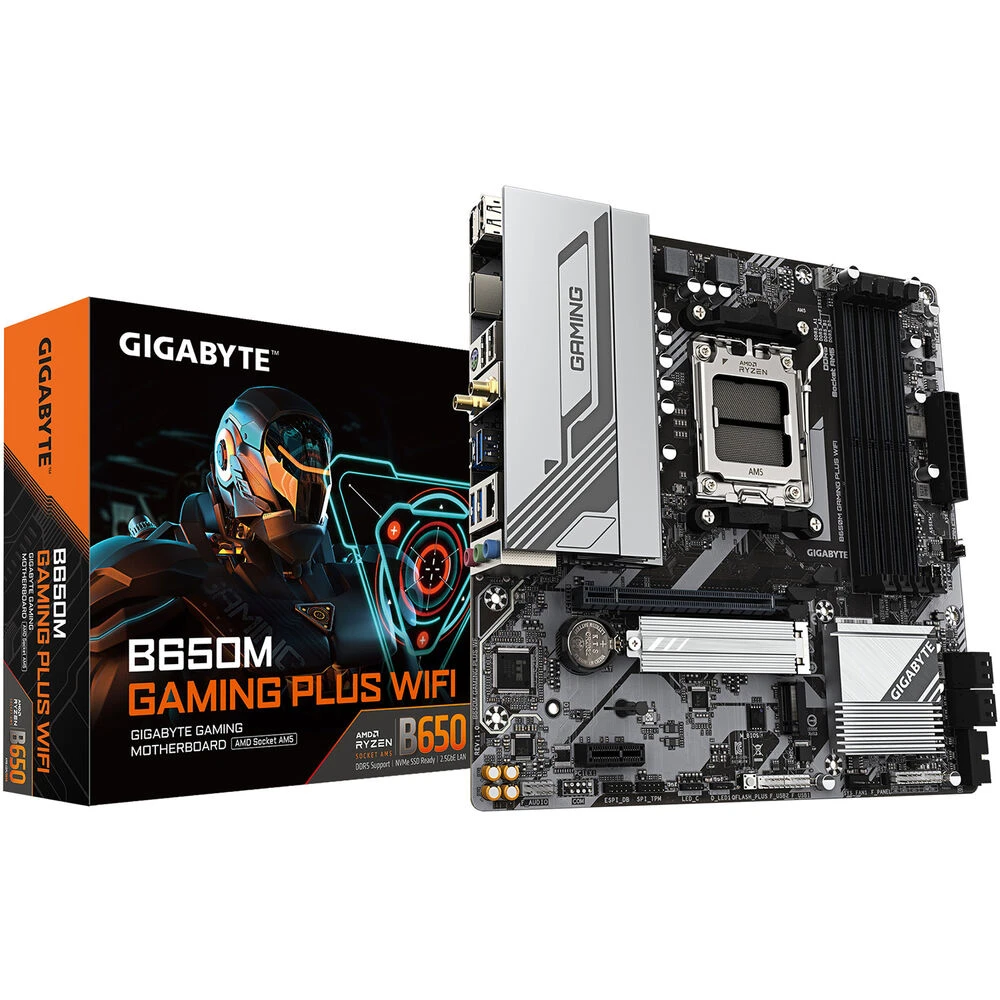

Gigabyte B650M GAMING PLUS WIFI AM5 M-ATX Motherboard(Gigabyte B650m Gaming Plus Wifi Am5 M Atx Motherboard)

Durable Performance

GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.

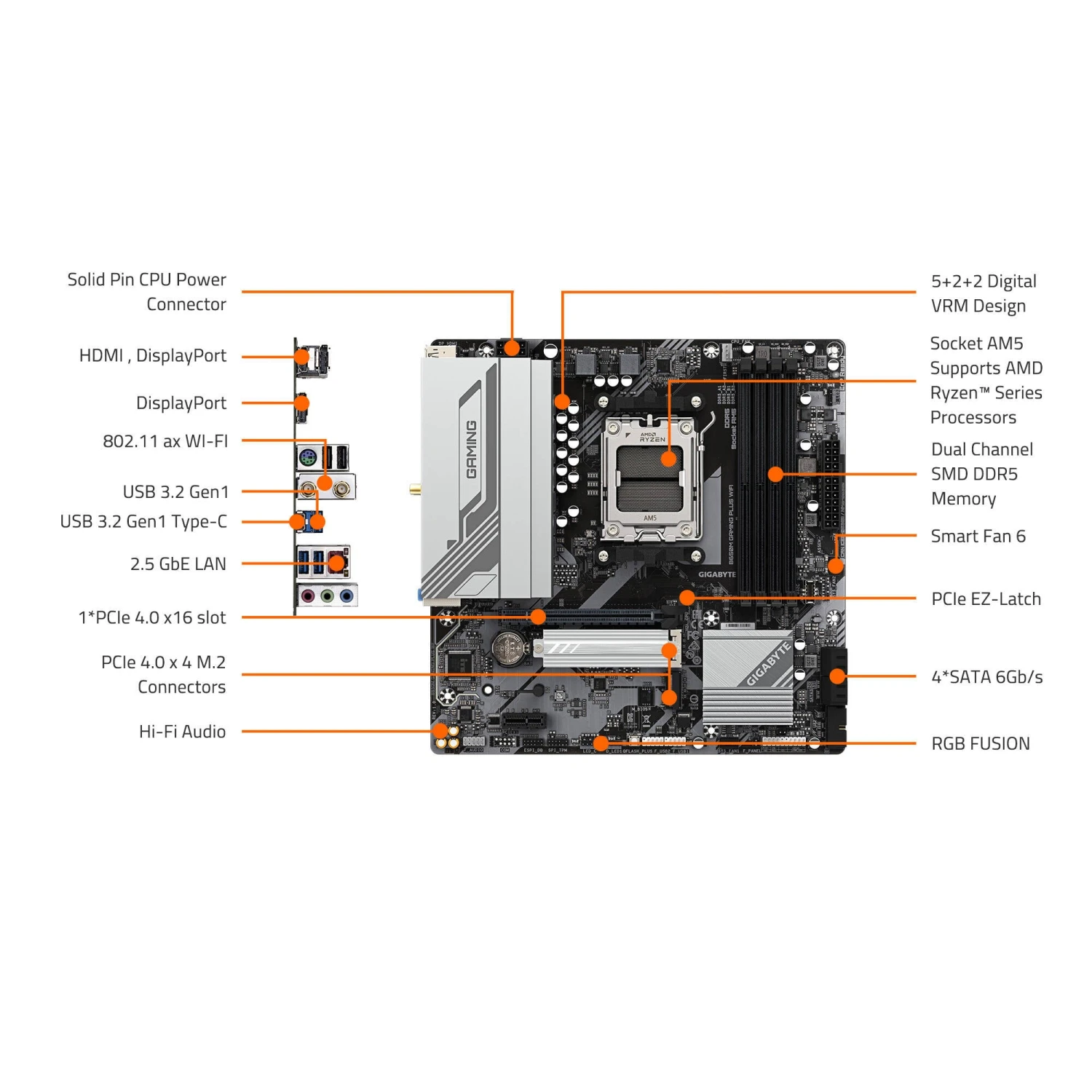

5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs

GIGABYTE UD series motherboards use a 5+2+2 phases digital PWM + Low RDS(on) MOSFET design to support AMD’s new generation CPUs by offering incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

DDR5 EXPO & XMP Overclocking Up to 7600 and Beyond

GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able to boost up to 7600 and beyond. All users need to do to achieve this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO/Intel XMP capable, and the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard.

Unlock DDR5 Voltage – Secure Mode

MB provides fixed 5V to Native DDR5 memory and built-in PMIC outputs locked 1.1v to memory IC.

• GIGABYTE’s circuit design unlocks Native DDR5 voltage control
• Transforms Native DDR5 memory module to Overclocked DDR5 memory
• Increases DDR5 memory overclocking performance and capability
• Supports all PMIC vendors for maximum compatibility

GIGABYTE DDR5 Circuit Design – Programmable Mode

GIGABYTE’s design unlocks Native DDR5 PMIC secure mode into programmable mode and control native DDR5 voltage with wide range.

Shielded memory Routing

All memory routing is under the PCB inner layer shielded by a large ground layer to protect from external interference.

EXPO and XMP Dual Support

The GIGABYTE AM5 motherboard supports both AMD EXPO and Intel XMP overclocking memory modules for maximum compatibility. The motherboard will automatically detect both profiles format in SPD and users can choose to enable one of profiles from BIOS menu and easily reach overclocked memory performance.

DDR5 Auto Booster

Automatically Boost the Native DDR5 frequency to 5000 MHz while the system is under heavy loading by a single click.

AMD EXPO and Intel XMP 3.0 User Profile

• SPD Re-defined or retrieve from database
• Performance Simulation
• Save/Load Profile
• Overclocked Performance
• Profile Clearance

Define and create your own SPD profile into Native, AMD EXPO, and Intel XMP 3.0 memory modules. One user-defined profile can be saved, loaded either locally or from/to an external storage device.

• One empty SPD profile can be defined by users and carry to next computer
• Quick memory performance simulation based on user input clock and timing parameters
• Profile save and load function to share your memory parameters online

802.11ax Wi-Fi

The wireless solution 802.11ax Wi-Fi enables Gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections, and speeds up to 2.4 Gb/s. Moreover, Bluetooth 5 provides 4x the range over BT 4.2 and with faster transmission.

2.5GbE Lan

Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

PCIe 4.0 Hardware Design

GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice the bandwidth of PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface designed to create your personal style.

EZ-Latch

Unlock the latch of the PCIe slot easily when you remove the graphics card from the PCIe slot.

Q-Flash Plus

Update the BIOS easily without installing the CPU, memory, and graphics card. With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory, and graphics card, nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus summary and you’re good to go.

• Step 1: Plug 24pin & 8pin power supply cable on motherboard
• Step 2: Download motherboard BIOS file and rename to “”gigabyte.bin””, save to USB flash drive, and plug USB flash drive into Q-Flash USB port
• Step 3: Press Q-Flash Plus summary and motherboard will start updating BIOS automatically

Smart Fan 6

Smart Fan 6 contains several unique cooling features that ensure your gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Cooling Features

• High Current Support: Each fan header supports PWM and DC fan and Water Cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection
• Precision Control: Multiple temperature/fan speed control points for precise fan curve
• Dual Curve Mode: Slope/Stair dual mode for different user scenario
• Fan Stop: Fan can stop completely below users’ specified temperature point

Smart Fan 6 BIOS UI

• Improve Fan Curve UI: Increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
• Slope/Stair Dual Graph Mode: Fan curve can be quickly switched with Slope and Stair modes for different user scenario. Slope is a traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, the fan maintains the same speed between specified temperature intervals.
• Manual Input: For advanced users, GIGABYTE provides fan speed manual input for more precise control.
• EZ Tuning: Users can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
• Fan Curve Profile: Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.

GIGABYTE Control Center

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.

• Unified software platform for all Gigabyte supported products
• Intuitive user interface for an eased experience
• Modularized control components only for installed hardware
• Auto update function to keep system up to date and support future products

Gigabyte B650M GAMING PLUS WIFI Specs

Chipset	AMD B650
CPU Socket	AM5
Memory Slots	4x 288-Pin
Memory Support	DDR5 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600 MT/s
Storage Slots	1x M.2 (M Key) 2580 (PCIe 4.0 x4, PCIe 4.0 x2) 1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots	1x PCIe 4.0 x16 1x PCIe 3.0 x1
Wi-Fi	Wi-Fi 6E (802.11ax) with MU-MIMO Support (2 x 2)
Form Factor	Micro-ATX

Chipset	AMD B650
CPU Socket	AM5

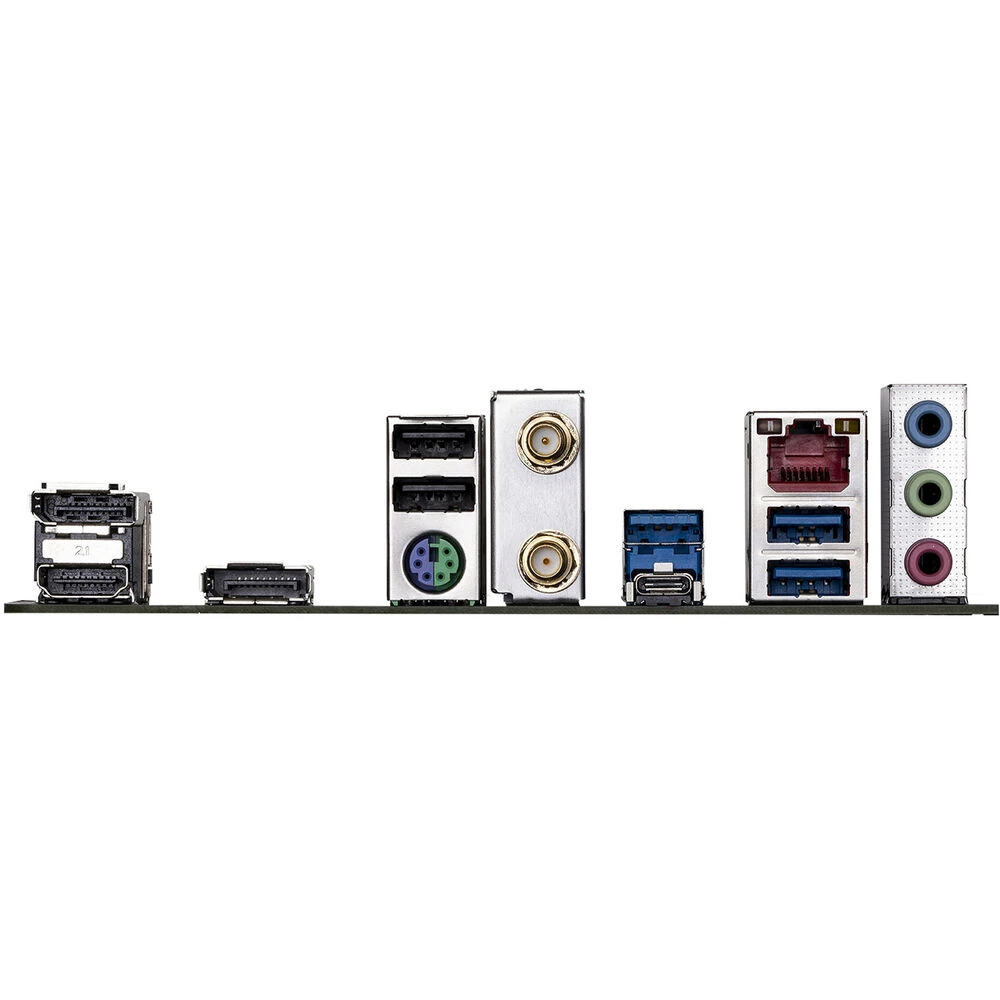

USB	1x USB-C (USB 3.0 / 3.1/3.2 Gen 1) 3x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2x USB-A (USB 2.0)
Thunderbolt	No
Display	2x DisplayPort 1.4 1x HDMI 2.1
Audio	3x 1/8″ / 3.5 mm
Ethernet / Controller	1x Realtek 2.5Gigabit
PS/2	1x PS/2
Wi-Fi Antenna	2x Connector
Buttons	BIOS Flashback

Memory Slots	4x 288-Pin
Memory Support	DDR5 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600 MT/s
Maximum Capacity	256 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered

SATA	4x SATA III
Storage Slots	1x M.2 (M Key) 2580 (PCIe 4.0 x4, PCIe 4.0 x2) 1x M.2 (M Key) 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2)
Optane Memory Support	No
RAID Support	RAID 0, 1, 10 (SATA) RAID 0, 1, 10 (M.2)

Expansion Slots	1x PCIe 4.0 x16 1x PCIe 3.0 x1
USB	1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling	1x 4-Pin CPU 2x 4-Pin System
Liquid Cooling	1x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 1x 8-Pin CPU
Security	Chassis Intrusion, TPM Header
LED Header	1x RGB
Diagnostics	Clear CMOS

Front Panel I/O

AAFP, USB 3.0 / 3.1/3.2 Gen 1

Audio Codec	Realtek (7.1-Channel)
DAC	No

Wi-Fi	Wi-Fi 6E (802.11ax) with MU-MIMO Support (2 x 2)
Bluetooth	5.3

OS Compatibility

Windows 10 to 11 (64-Bit Only)

Form Factor	Micro-ATX
Dimensions
