Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard(Gigabyte B650m Aorus Elite Ax Ice Am5 Micro Atx Motherboard)

Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard(Gigabyte B650m Aorus Elite Ax Ice Am5 Micro Atx Motherboard) - Image 2

Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard(Gigabyte B650m Aorus Elite Ax Ice Am5 Micro Atx Motherboard) - Image 3

Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard(Gigabyte B650m Aorus Elite Ax Ice Am5 Micro Atx Motherboard) - Image 4

Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard(Gigabyte B650m Aorus Elite Ax Ice Am5 Micro Atx Motherboard) - Image 5

Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard(Gigabyte B650m Aorus Elite Ax Ice Am5 Micro Atx Motherboard) - Image 6

Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard(Gigabyte B650m Aorus Elite Ax Ice Am5 Micro Atx Motherboard)

Original price was: $343.41.Current price is: $96.99.

SKU: DGFUB 7073133002837 Categories: Computer & Presentation, Computer Components, Computer Solutions Tags: Computers, Desktop Components, Gigabyte B650M AORUS ELITE AX ICE, Motherboards

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

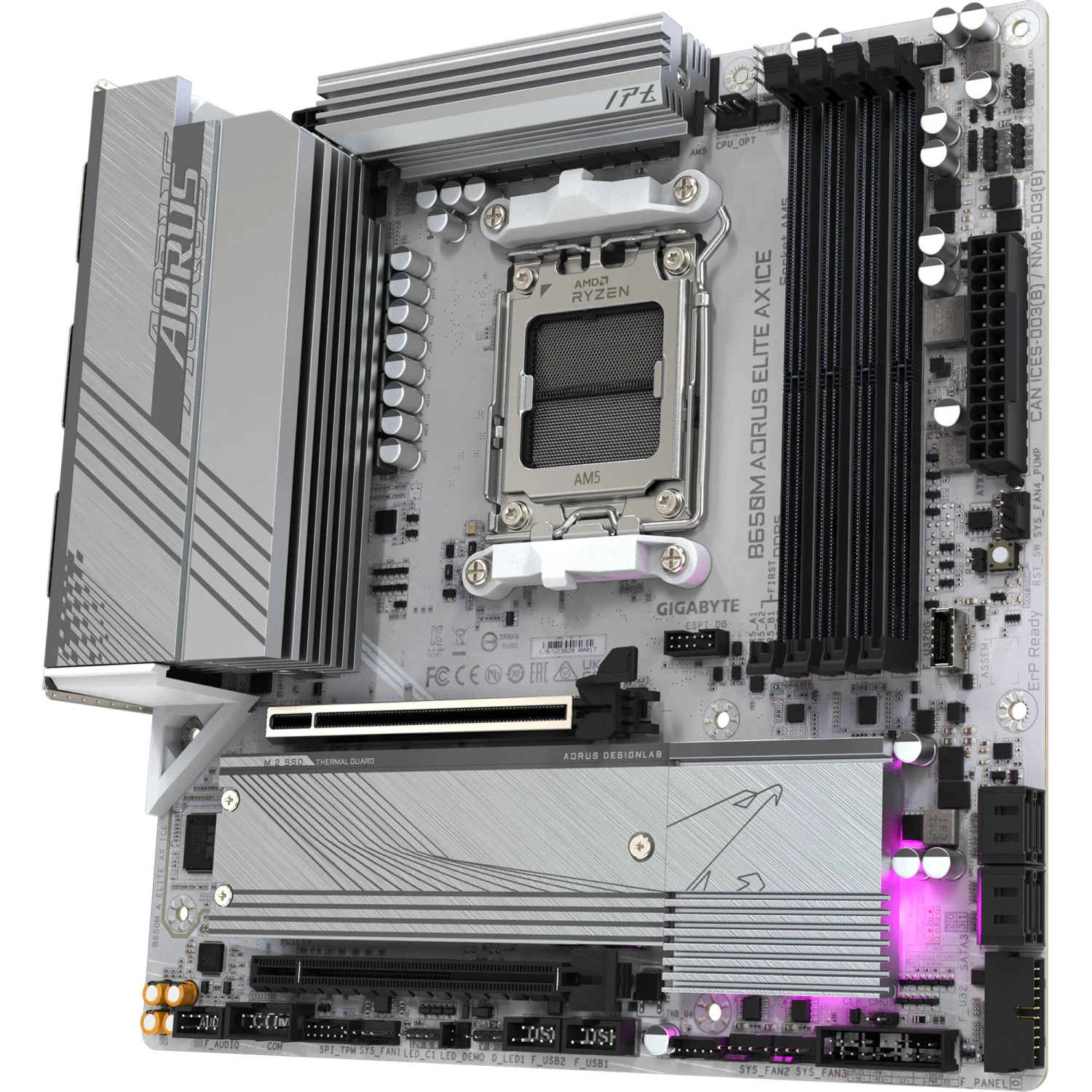

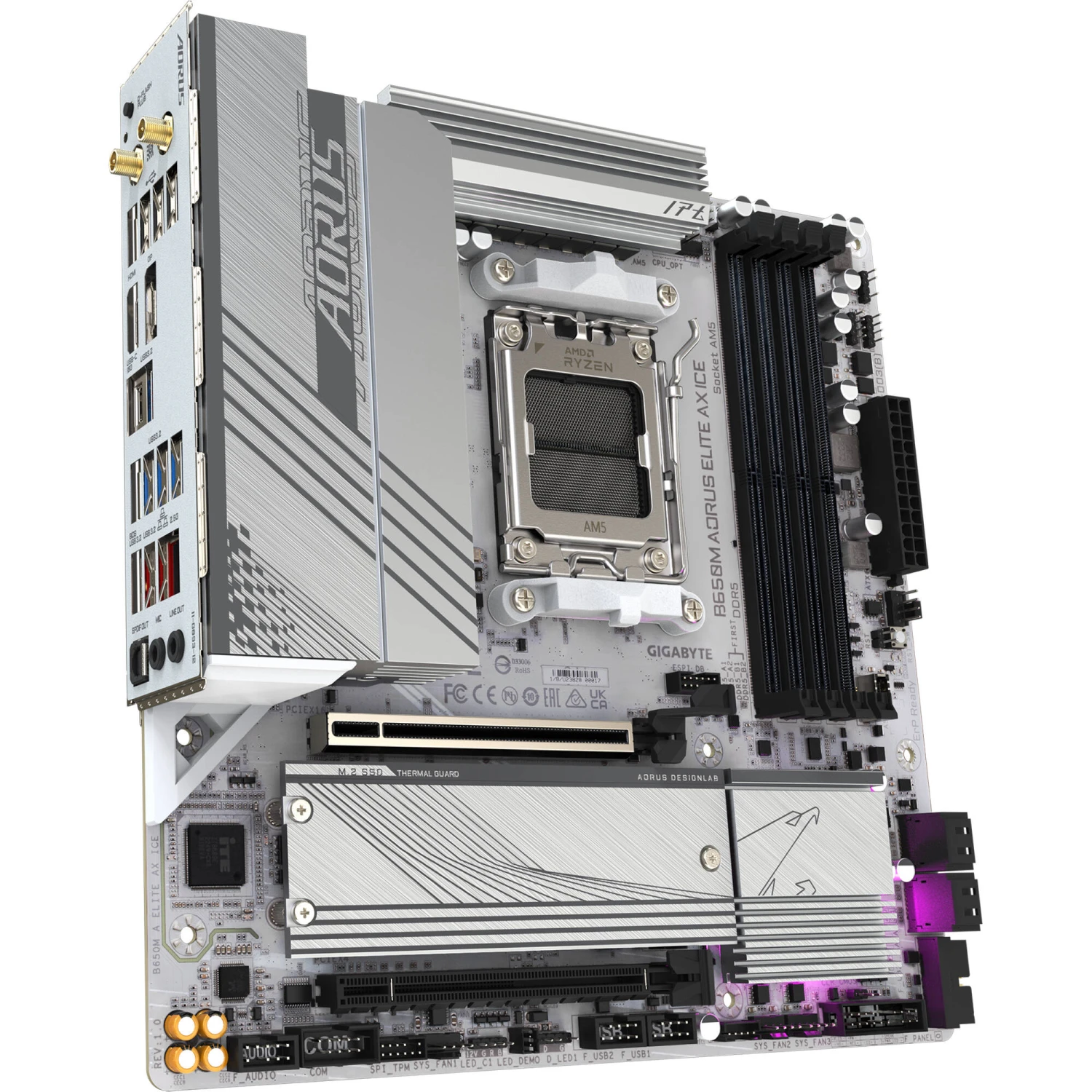

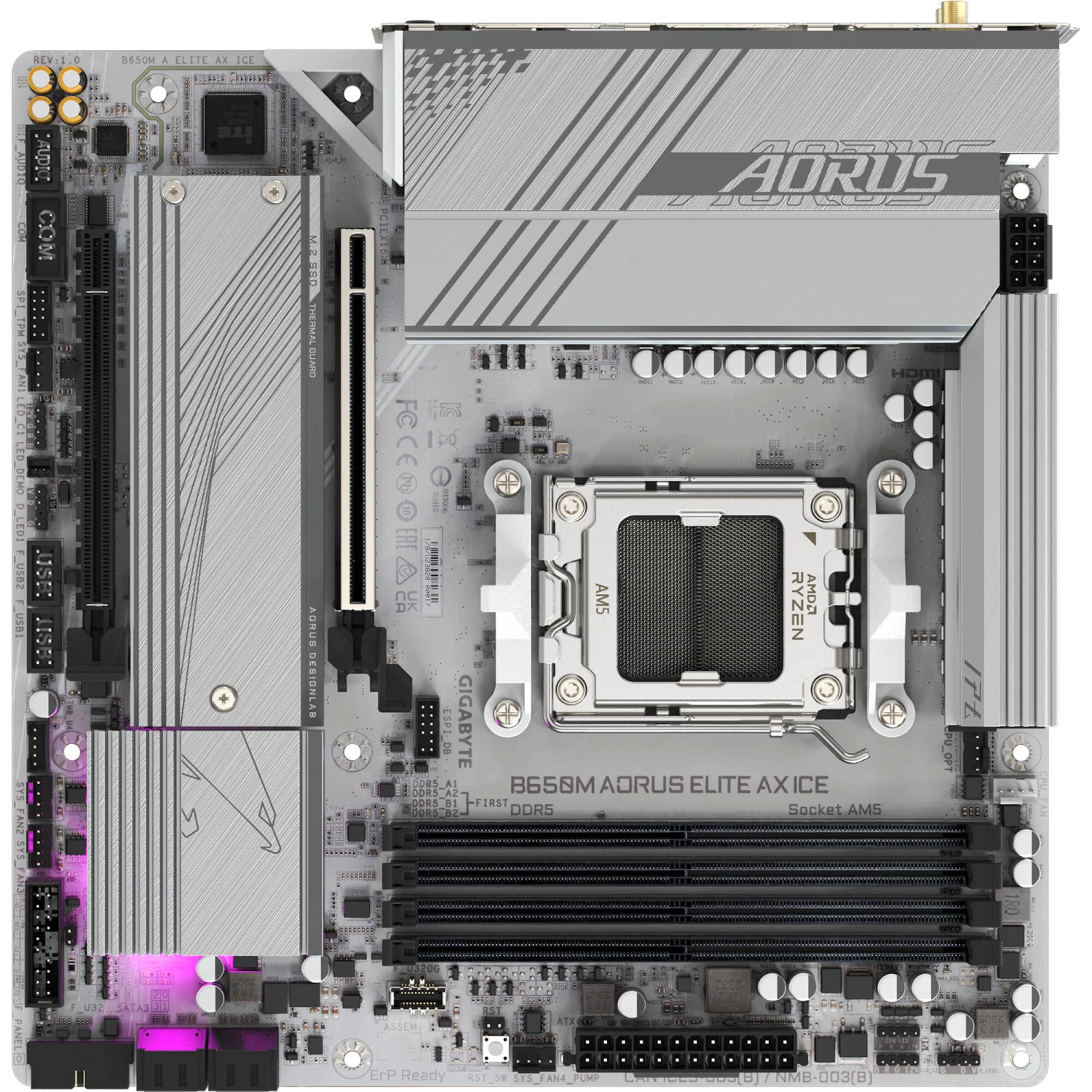

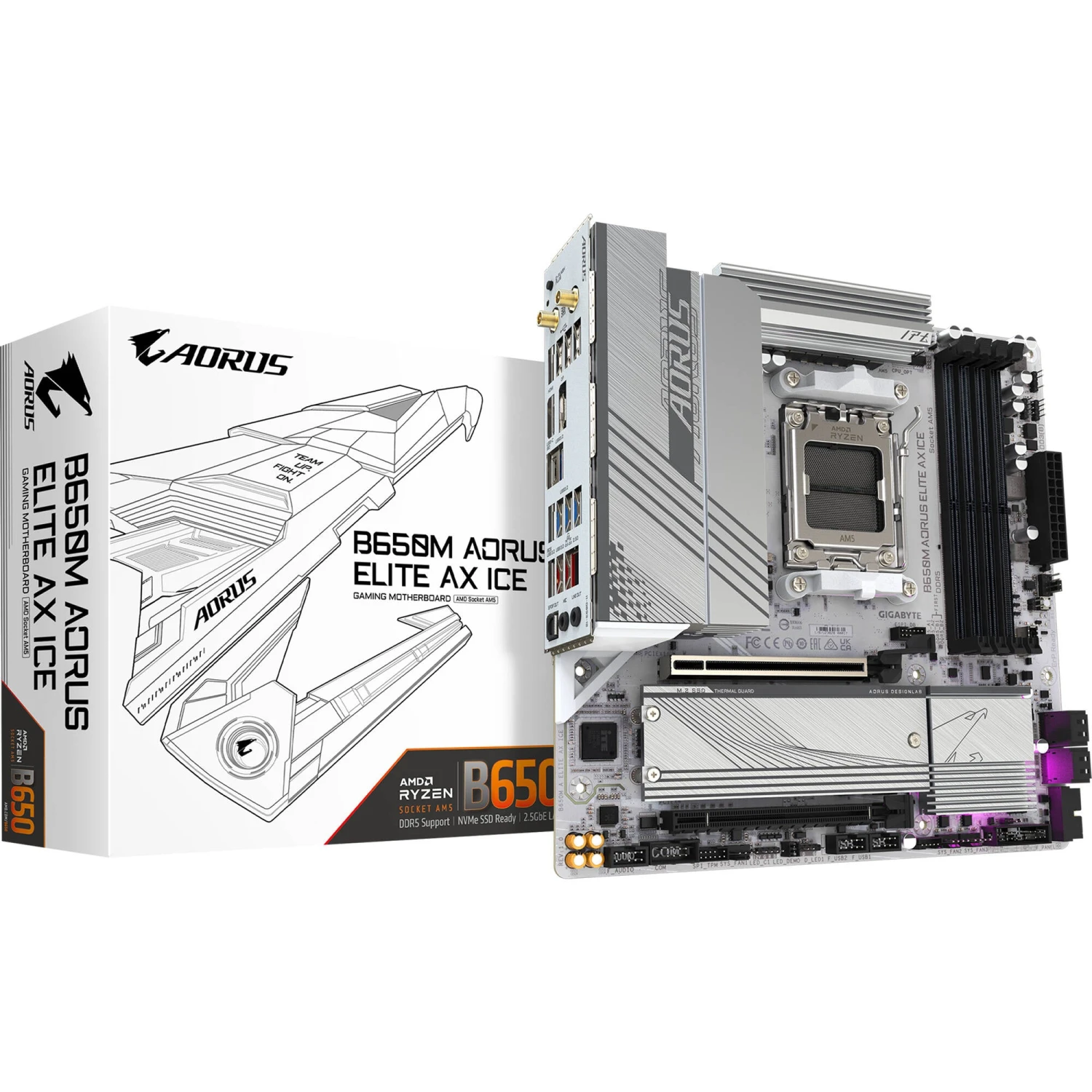

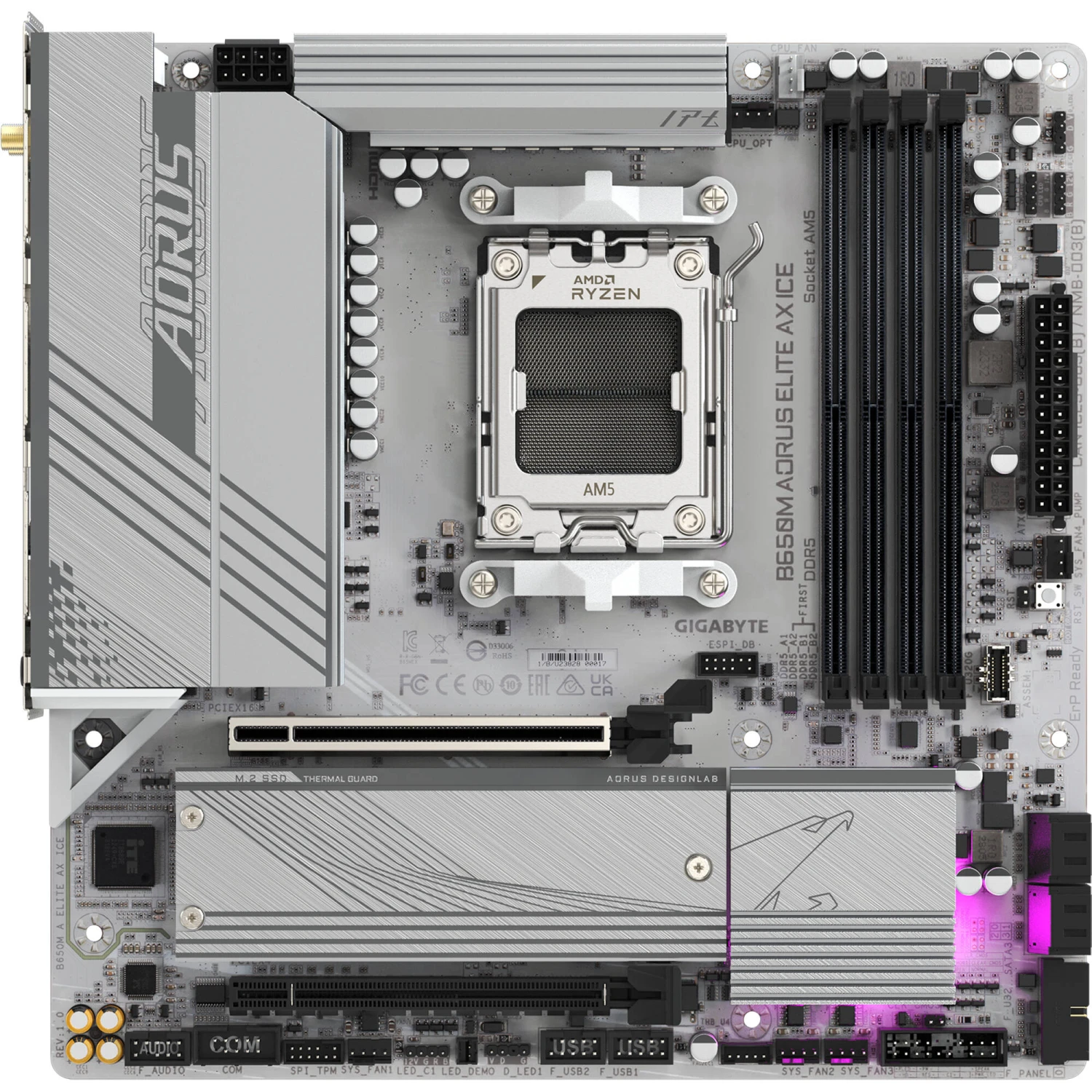

Gigabyte B650M AORUS ELITE AX ICE Overview

Designed for gaming enthusiasts looking for robust utility and unique style, the Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard enables seasoned builders to leverage the power of AMD’s Ryzen processors and gaming-focused components for greater system-wide performance while sporting an ice cool motif.

An AMD AM5 socket allows you to install a wide range of AMD Ryzen processors from the 7000 and 8000 Series family with ease. Four DDR5 DIMM slots allow you to install up to 256GB of memory with speeds up to 8000 MHz for faster multitasking and render performance. Four SATA and two M.2 interfaces allow you to install an array of storage drives, creating a massive library for your titles, video assets, and more. Install graphics and utility cards into an array of expansion slots consisting of one PCIe 4.0 x16 and one PCIe 4.0 x16 in x4 mode. Multiple USB ports allow you to plug in your favorite peripherals such as keyboards, mice, audio interfaces, and more with USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2×2 support. Bluetooth 5.3 functionality is available for wireless devices like headsets and controllers. Connect to your network wired or wirelessly with the integrated 2.5 Gigabit Ethernet port for wired connections or use Wi-Fi 6E (802.11ax) for a quick and reliable cable-free experience.

Power & Performance

Twin Digital VRM

Equipped with a variety of performance enhancements, the AORUS ELITE AX ICE boasts immense power suitable for your favorite games. Twin Digital VRM utilizes 12 VCORE Phases, 2 SOC Phases, and 2 MISC Phases to ensure power efficiency.

DDR5 EXPO & XMP

Optimize your memory performance with support for up to 8000 MHz performance, maximized with EXPO and XMP functionality.

Thermal Design

Enhanced Cooling

A fully covered VRM Thermal Armor Advanced heat sink, M.2 Thermal Guard XL, Multi-cut design, 7W/mK Thermal Pad, and 6mm heat pipe all work together to ensure proper thermal performance.

M.2 Thermal Guard

Ultra-efficient M.2 thermal guard ensures enhanced cooling and heat dissipation, preventing throttling caused by heat spikes.

Smart Fan 6

Smart Fan 6 cooling fan system ensures high air current with support for both standard fans and liquid cooling systems. An array of headers and temperature sensors monitors your system and properly enables cooling when needed.

Connectivity

Wi-Fi 6E

Wi-Fi 6E wireless networking technology offers enhanced signal strength with a dedicated 6 GHz band, providing you with smooth and reliable connection with greater range.

2.5 GbE LAN

IF you prefer a wired connection, the 2.5 GbE RJ45 port enables swift networking connectivity and optimized gaming performance.

USB-C 3.2 Gen 2×2

An internal USB-C 3.2 Gen 2×2 header gives you up to 20 Gb/s data transfer speeds, suitable for a wide range of peripherals.

Hi-Fi Audio

High-end audio capacitors provide realistic sound effects that immerse you deeper into your favorite games backed by separated audio tracks within the PCB layers.

Personalization

RGB Fusion

Leverage Gigabyte’s RGB Fusion lighting and effects to turn your rig into the centerpiece of your gaming room.

UEFI BIOS

The enhanced user-friendly interface supports an easy mode display so you can monitor and change various aspects of system, read storage information, view changelogs, and see load line curve graphs.

Gigabyte Control Center

This unified software platform offers an intuitive user interface so you can quickly enable auto update functionality, synchronize Gigabyte products, and adjust components.

Durable Design

DIY Friendly

An array of improvements makes installation and removal of components quick and easy thanks to PCIe UD Slot X and M.2 EZ-Latch.

Q-Flash Plus

Update your motherboard BIOS with ease thanks to the Q-Flash Plus updater. Plug in your power cables, download the BIOS file from another computer, plug the USB drive into the dedicated Q-Flash port, then press the Q-Flash Plus summary to initiate updating. No need to install other components.

UPC: 889523040348

Items Included

Gigabyte B650M AORUS ELITE AX ICE AM5 Micro-ATX Motherboard
Limited 5-Year Manufacturer Warranty

Additional Resources

User Manual

16.0 MB

Gigabyte B650M AORUS ELITE AX ICE Specs

Key Specs

Chipset	AMD B650
CPU Socket	AM5
Memory Slots	4x 288-Pin
Memory Support	DDR5 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600, 7800, 8000 MT/s
Storage Slots	1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4) 1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots	1x PCIe 4.0 x16 1x PCIe 4.0 x16 (x4 mode)
Wi-Fi	Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz)
Form Factor	Micro-ATX

CPU

Chipset	AMD B650
CPU Socket	AM5

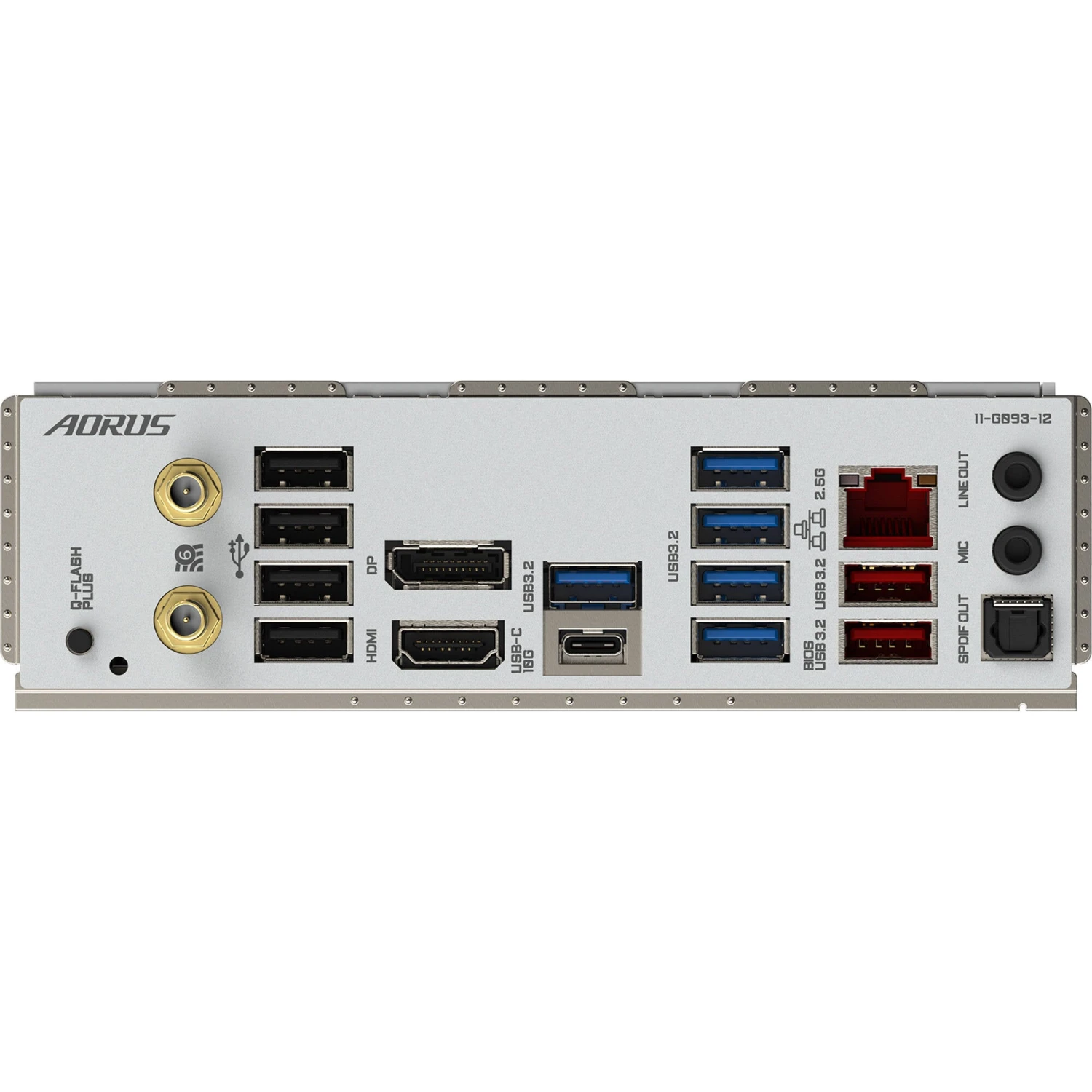

Back Panel I/O

USB	1x USB-C (USB 3.1/3.2 Gen 2) 2x USB-A (USB 3.1/3.2 Gen 2) 5x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 4x USB-A (USB 2.0)
Thunderbolt	No
Display	1x HDMI 1x DisplayPort
Audio	2x 1/8″ / 3.5 mm 1x S/PDIF
Ethernet / Controller	1x Realtek 2.5Gigabit
Wi-Fi Antenna	2x Connector
Buttons	BIOS Flashback

Memory

Memory Slots	4x 288-Pin
Memory Support	DDR5 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7600, 7800, 8000 MT/s
Maximum Capacity	256 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered

Storage Expansion

SATA	4x SATA III
Storage Slots	1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 5.0 x4) 1x M.2 (M Key) 2280, 22110, 2580, 25110 (PCIe 4.0 x4, PCIe 4.0 x2)
Optane Memory Support	No
RAID Support	RAID 0, 1, 10 (SATA) RAID 0, 1, 10 (M.2)

Internal I/O

Expansion Slots	1x PCIe 4.0 x16 1x PCIe 4.0 x16 (x4 mode)
USB	1x USB 3.2 Gen 2×2 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling	1x 4-Pin CPU 3x 4-Pin System
Liquid Cooling	2x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 1x 8-Pin ATX
Security	TPM Header
LED Header	5x RGB
Audio	No
Diagnostics	Clear CMOS, Reset
Add-On	1x Thunderbolt Card Header
Legacy	1x Serial

BIOS

ROM

256 Mb

Front Panel I/O

AAFP

Audio

Audio Codec	Realtek CODEC (7.1-Channel)
DAC	No

Wireless

Wi-Fi	Wi-Fi 6E (802.11ax); Tri-Band (2.4, 5, & 6 GHz)
Bluetooth	5.3

Software

OS Compatibility

Windows 10 to 11 (64-Bit Only)

Physical

Form Factor	Micro-ATX
Dimensions	9.6 x 9.6″ / 24.4 x 24.4 cm

Packaging Info

Package Weight	3.715 lb
Box Dimensions (LxWxH)	11.3 x 10.5 x 2.8″
