FUJIFILM X-S20 Overview
Luke Rollins
X-S20 from
FUJIFILM brings power above its weight class to give photographers and content creators outstanding results on epic journeys and in intimate moments.
- High-resolution 2.36m-dot OLED electronic viewfinder has a 0.62x magnification for bright and clear eye-level viewing.

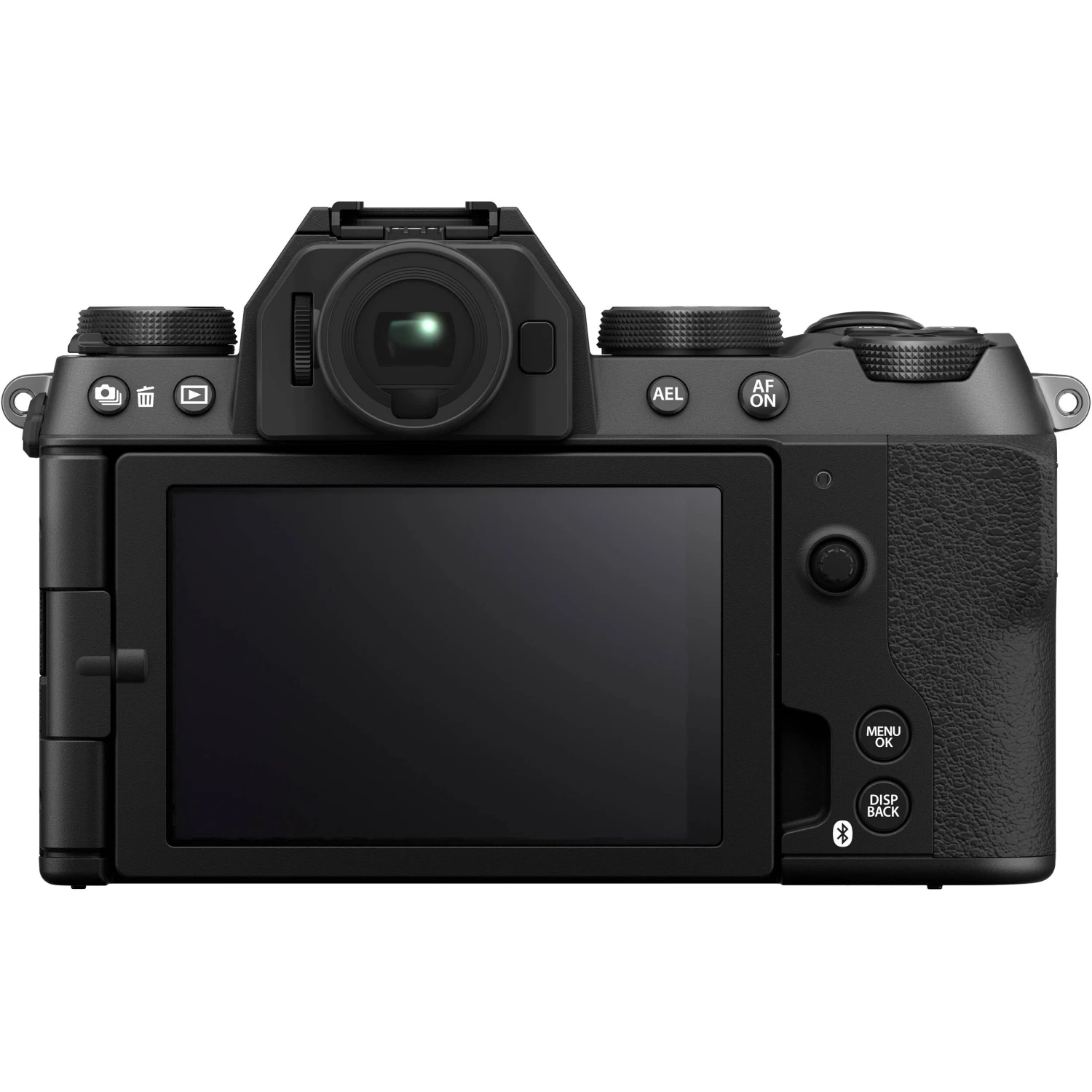

- Vari-angle 3.0″ 1.84m-dot LCD has a touchscreen design for intuitive operation and playback, and the articulating design greatly benefits working from high and low shooting angles. This vari-angle design also means you can close the screen against the camera body, hiding it from view for distraction-free shooting.
- Despite the compact design, a large righthand grip enables solid and stable handling for comfortable all-day use. It is slightly larger than its predecessor to accommodate a larger battery.

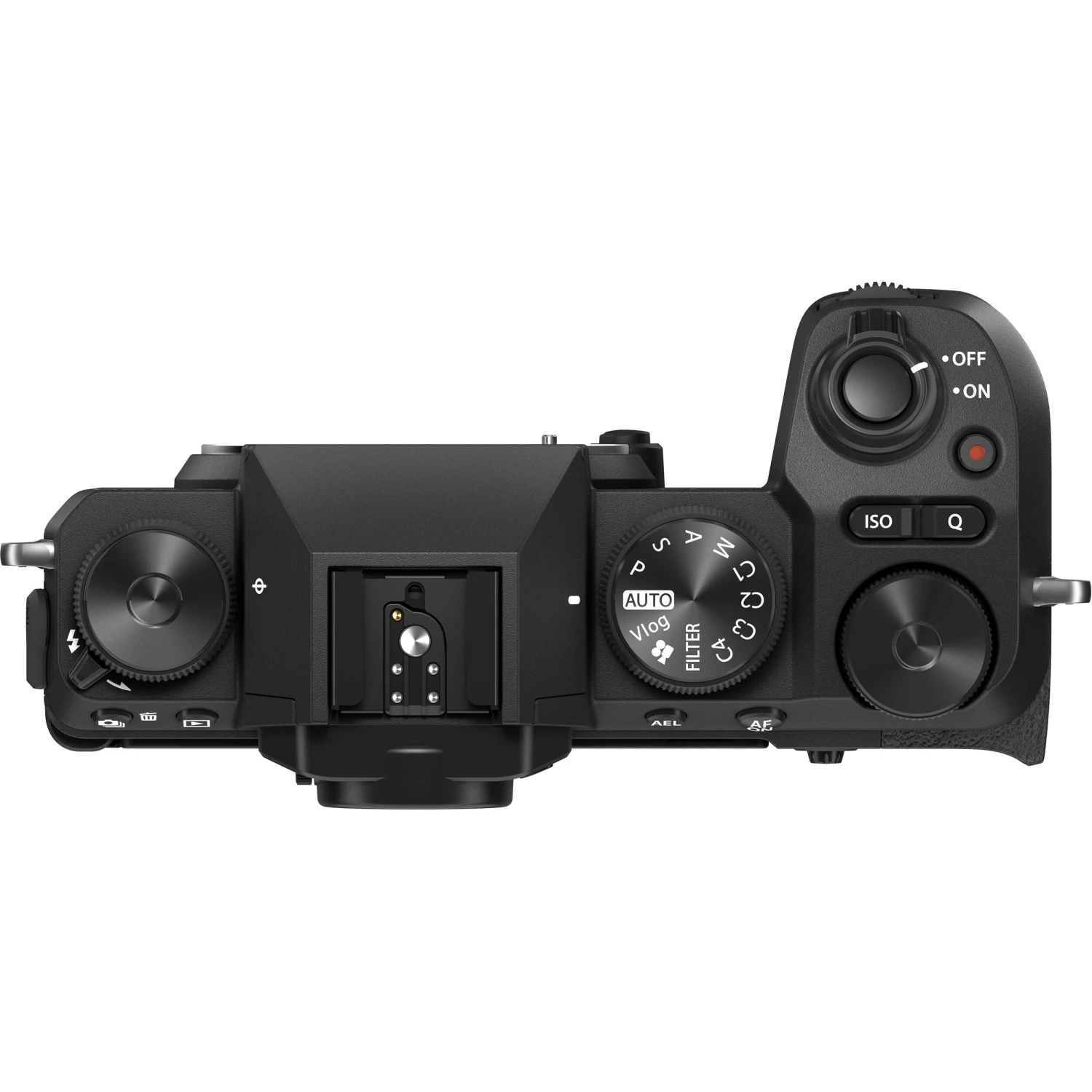

- The top plate incorporates a series of physical controls, including a dedicated exposure mode dial and two additional top dials, for fast, intuitive control over camera and exposure settings.
- Rear joystick is available for intuitive selecting and switching of AF points as well as menu navigation and image playback.

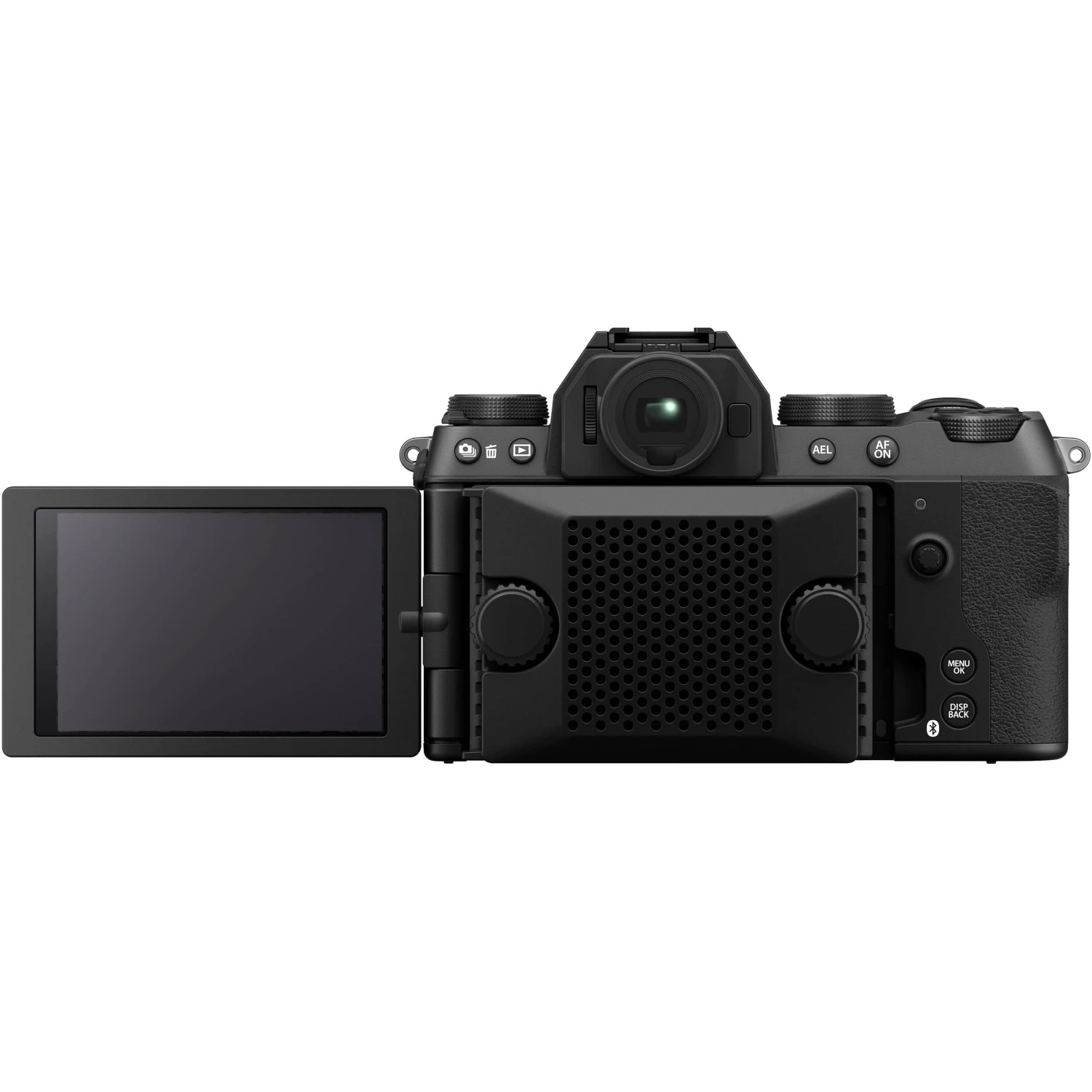

- Rear face integration support for the FUJIFILM FAN-001 Cooling Fan, a cable-less accessory that attaches to the back of the camera to moderate the operating temperature and more than double 6K recording times to 78 minutes.
- Integrated Bluetooth and Wi-Fi connectivity allows for wirelessly sharing images to a mobile device using the FUJIFILM XApp or to use the device to remotely control the camera.
- Single SD memory card slot supports up to the UHS-I standard for fast and flexible file storage.
- Included NP-W126S battery provides approximately 750 frames per charge.
XF 16-50mm f/2.8-4.8 R LM WR Lens from
FUJIFILM offers striking image quality and a broad zoom range. A full-frame equivalence of 24-76mm is given, making this lens ideal for general shooters who regularly capture various subjects. A bright maximum f/2.8 aperture allows shooting in dim conditions and also provides flattering bokeh for portraits and detail shots.
- 58mm filter thread
- Minimum focusing distance: 9.45″
- Rounded 9-blade diaphragm
Items Included
- FUJIFILM X-S20 Mirrorless Camera
- FUJIFILM NP-W235 Lithium-Ion Battery (7.2V, 2200mAh)
- AC-5VJ AC Power Adapter
- Plug Adapter
- USB Cable
- Shoulder Strap
- Body Cap
- Cooling Fan Connector Cover
- Limited 1-Year Manufacturer Warranty
- FUJIFILM XF 16-50mm f/2.8-4.8 R LM WR Lens
- FUJIFILM FLCP-58 II 58mm Front Lens Cap (Flat Type)
- RLCP-001 Rear Lens Cap
- Lens Hood
- Wrapping Cloth
- Limited 1-Year Manufacturer Warranty
Not Included
- Essential Memory Cards
Additional Resources
Guides & Manuals
Firmware Updates
v3.10, Dec ‘ 24
FUJIFILM X-S20 Specs
| Lens Mount |
FUJIFILM X |
| Sensor Resolution |
Effective: 26.1 Megapixel (6240 x 4160) |
| Image Sensor |
23.5 x 15.6 mm (APS-C) CMOS |
| Image Stabilization |
Sensor-Shift, 5-Axis |
| ISO Sensitivity Range |
Photo 160 to 12,800 in Manual, Auto Mode (Extended: 80 to 51,200) Video 125 to 12,800 in Manual, Auto Mode (Extended: 25,600) |
| Internal Recording Modes |
H.264 ALL-Intra/H.264 Long GOP/H.265/H.265 Long GOP/MOV/MP4/MPEG-4 AVC 4:2:2/4:2:0 8/10-Bit 6240 x 4160 at 23.98/24.00/25/29.97 fps [50 to 360 Mb/s] DCI 4K (4096 x 2160) at 23.98/24.00/25/29.97/50/59.94 fps [50 to 360 Mb/s] 2048 x 1080 at 23.98/24.00/25/29.97/50/59.94/100/120/200/240 fps [50 to 360 Mb/s] 1920 x 1080 at 23.98/24.00/25/29.97/50/59.94/100/120/200/240 fps [360 Mb/s] |
| External Recording Modes |
Raw/ProResRAW 12-Bit via HDMI 6240 x 4160 up to 29.97 fps |
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC (UHS-II) [2 TB Maximum] |
| Video I/O |
1x Micro-HDMI Output |
| Audio I/O |
1x 1/8″ / 3.5 mm TRS Stereo Microphone Input 1x 1/8″ / 3.5 mm TRS Stereo Headphone Output |
| Power I/O |
1x USB-C Input/Output |
| Other I/O |
1x USB-C Remote Input/Output (Shared with Power Input) |
| Wireless |
2.4 GHz Wi-Fi 5 (802.11ac) Bluetooth 4.2 |
| Display Type |
Free-Angle Tilting Touchscreen LCD |
| Battery Type |
1x NP-W235 Rechargeable Lithium-Ion |
| Lens Mount |
FUJIFILM X |
| Sensor Resolution |
Effective: 26.1 Megapixel (6240 x 4160) |
| Image Sensor |
23.5 x 15.6 mm (APS-C) CMOS |
| Sensor Crop (35mm Equivalent) |
Crop Factor: 1.5x |
| Image Stabilization |
Sensor-Shift, 5-Axis |
| Built-In ND Filter |
No |
| Capture Type |
Stills & Video |
| Shutter Type |
Mechanical Focal Plane Shutter and Electronic Rolling Shutter |
| Shutter Speed |
Mechanical Shutter 1/4000 to 900 Seconds in Manual Mode 1/4000 to 900 Seconds in Shutter Priority Mode 1/4000 to 30 Seconds in Program Mode 1/4000 to 30 Seconds in Aperture Priority Mode Electronic Shutter 1/32000 to 900 Seconds in Manual Mode 1/32000 to 900 Seconds in Shutter Priority Mode 1/32000 to 30 Seconds in Program Mode 1/32000 to 30 Seconds in Aperture Priority Mode |
| Bulb/Time Mode |
Bulb Mode (Up to 60 Minutes) |
| ISO Sensitivity Range |
Photo 160 to 12,800 in Manual, Auto Mode (Extended: 80 to 51,200) Video 125 to 12,800 in Manual, Auto Mode (Extended: 25,600) |
| Metering Method |
Average, Center-Weighted Average, Multi, Spot, TTL 256-Zones |
| Exposure Modes |
Aperture Priority, Manual, Program, Shutter Priority |
| Exposure Compensation |
-5 to +5 EV (1/3 EV Steps) |
| White Balance |
2500 to 10,000K Presets: Auto, Color Temperature, Custom, Fine, Fluorescent (Cool White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater |
| Continuous Shooting |
Up to 20 fps at Maximum Resolution for up to 256 Frames (JPEG) / 28 Frames (Raw) |
