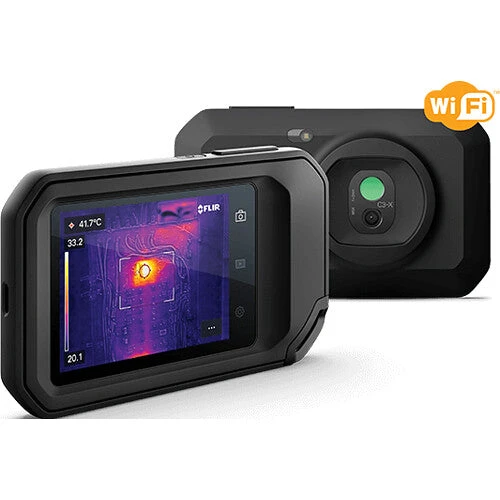

FLIR 128 X 96 C3-X Compact Professional Thermal Camera (9 Hz, Wi-Fi)(Flir 128 X 96 C3 X Compact Professional Thermal Camera 9 Hz Wi Fi)
Original price was: $397.00.$99.99Current price is: $99.99.
- Elevate Your Shopping Experience
- Product guarantee 100% satisfaction
- The quality solution for all your needs.
- Streamlined service, designed for your convenience.
FLIR C3-X Overview
- 1Description
- 2Identify and Troubleshoot
- 3Document and Share
- 4Use and Handling
Spot hidden hot fuses, plumbing issues, air leaks, and other problems with the FLIR 128 x 96 C3-X Compact Professional Thermal Camera. The C3-X includes a thermal imager, a 5MP visual camera, and an LED flashlight for inspecting electrical and mechanical systems. FLIR’s MSX (Multi-Spectral Dynamic Imaging) combines the thermal and visual images for a detailed, easy-to-read look at the issue. Use FLIR Ignite cloud storage to store and securely share images, complete with your notes. The C3-X is rated IP54 dust and water resistant and is tested to withstand being dropped 6.6′.
- Identify and troubleshoot problems faster with the 128 × 96 thermal imager and 5-megapixel visual camera
- Easily recognize the location of a temperature issue with FLIR MSX (Multi-Spectral Dynamic Imaging), which blends scene details from the visual camera with the full thermal image
- See into dark, difficult-to-reach areas with the LED flashlight
- Upload directly to the FLIR Ignite cloud to conveniently store, organize, and backup images
- Identify and describe potential issues by adding annotations to images
- Share findings easily and securely by sending a password-protected link via email
- IP54 enclosure provides protection against dust and water
- USB-C rechargeable lithium-ion battery, 4 hours runtime, 5000-charge lifespan
- Wi-Fi and USB-C connectivity
- Tripod mount
In the Box
- FLIR 128 x 96 C3-X Compact Professional Thermal Camera (9 Hz, Wi-Fi)
- USB 2.0 Cable
- Limited 1-Year Manufacturer Warranty
User Manual
0.8 MB
- Description
- Identify and Troubleshoot
- Document and Share
- Use and Handling
FLIR C3-X Specs
| Sensor |
Resolution: 128 x 96 Field of View: 53.6° Detectable Temperature Range: -4 to 572°F / -20 to 300°C Thermal Sensitivity / NETD: <70 mK Pixel Pitch: 12 µ Minimum Focus: 3.9″ / 10 cm Minimum Focus, MSX: 11.8″ / 30 cm Refresh Rate: 8.7 Hz Spectral Range: 8-14 µ Accuracy: 32 to 212°F / 0 to 100°C: ±5.5°F / ±3°C 212 to 572°F / 100 to 300°C: ±3% (Ambient Temperature 59 to 95°F / 15 to 35°C and Object Temperature Above 32°F / 0°C) Measurement Functions: Spot, Box with Max/Min Measurement Correction: Emissivity, Matt/Semi-Matt/Semi-Gloss + Custom Value, Reflected Apparent Temperature, Atmospheric Compensation |
| Display |
Screen Size: 3.5″ / 8.9 cm Resolution: 640 x 480 |
| Image Settings |
Adjustment: Automatic and Manual Level and Span Modes: Infrared Image, Visual Image, MSX (Embossed Visual Details on Thermal Image), Picture-in-Picture (IR Area on Visual Image) Gallery: Thumbnails and Custom Folder Structure Color Palettes: Iron, Gray, Rainbow, Rainbow HC Auto Orientation: Yes |
| USB I/O |
1 x USB-C Female Input/Output |
| Wireless |
Wi-Fi *Built-In |
| Bluetooth |
Yes |
| Battery Chemistry |
Lithium-Ion |
| Battery Capacity |
1800 mAh |
| Recharge Time |
2 Hours |
| Maximum Battery Life |
5000 Cycles |
| Environmental Protection |
Advertised as Dust Resistant/Water Resistant *Manufacturer Testing: IP54 |
| Operating Temperature |
14 to 122°F / -10 to 50°C |
| Storage Temperature |
-40 to 158°F / -40 to 70°C |
| Mounting |
1 x 1/4″-20 |
| Color |
Black |
| Cable Length |
Not Specified by Manufacturer |
| Dimensions |
5.4 x 3.3 x 0.9″ / 137.2 x 83.8 x 22.9 mm |
| Weight |
6.7 oz / 190 g |
| Package Weight |
1.175 lb |
| Box Dimensions (LxWxH) |
6.25 x 4.65 x 3.7″ |
