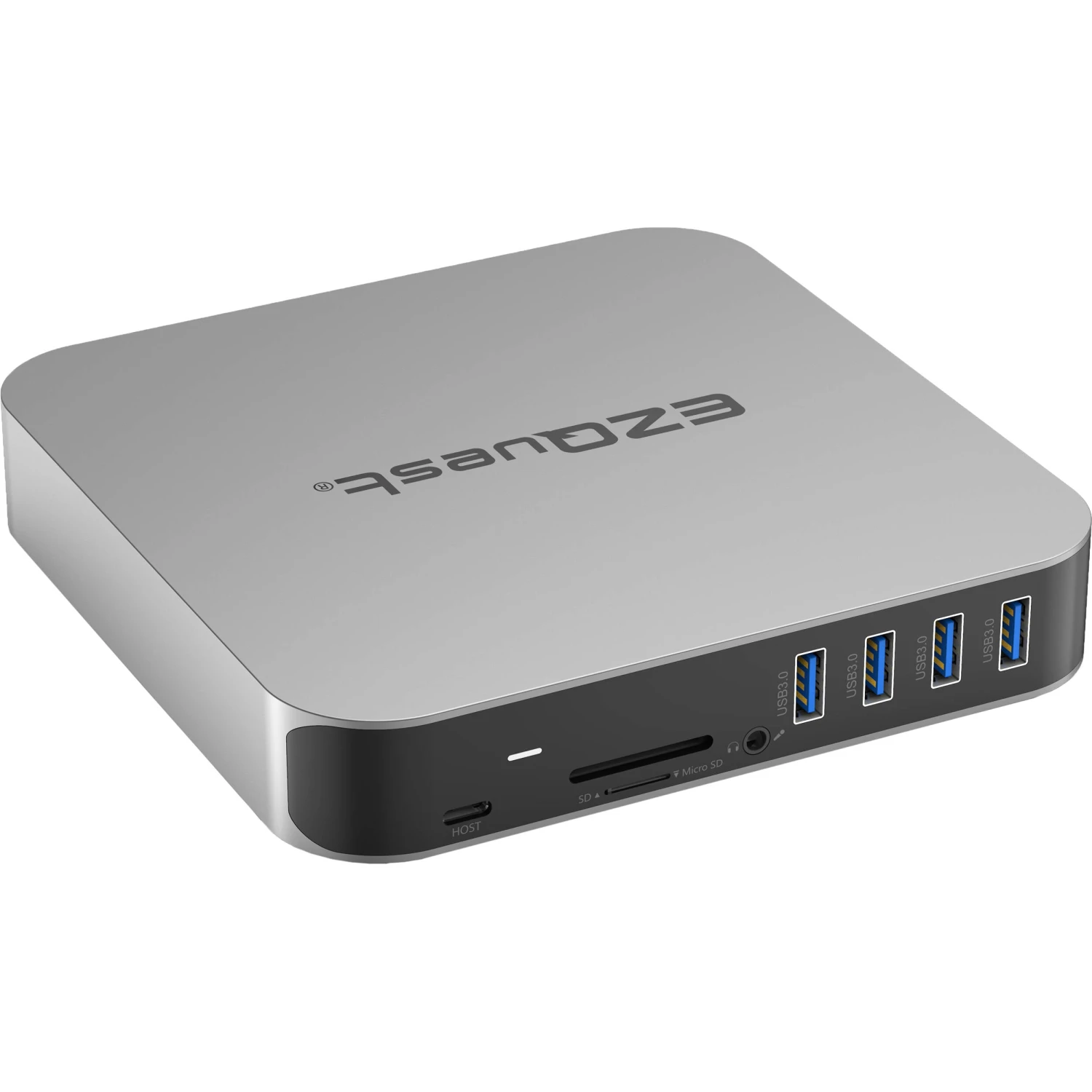

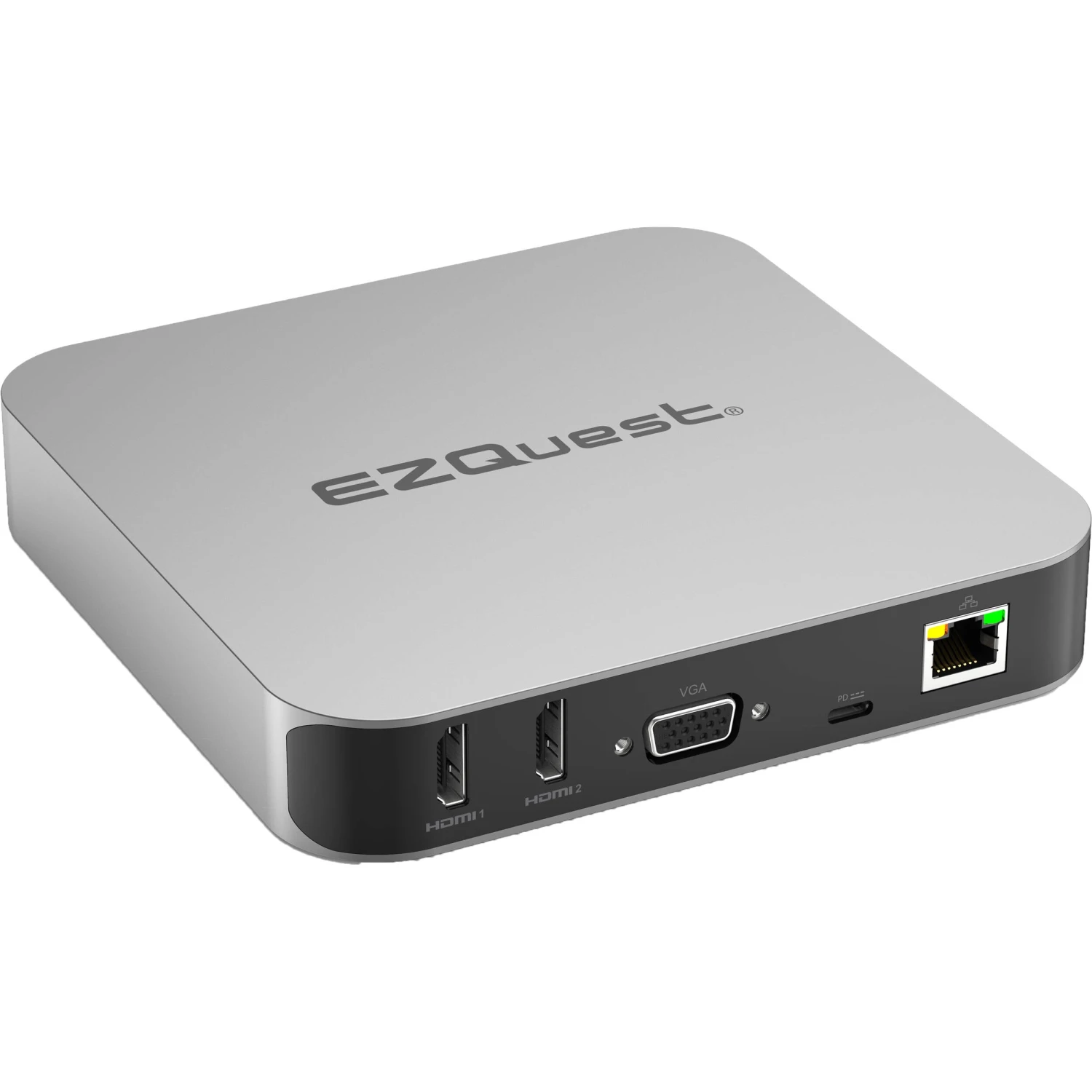

EZQuest Ultimate Plus Overview

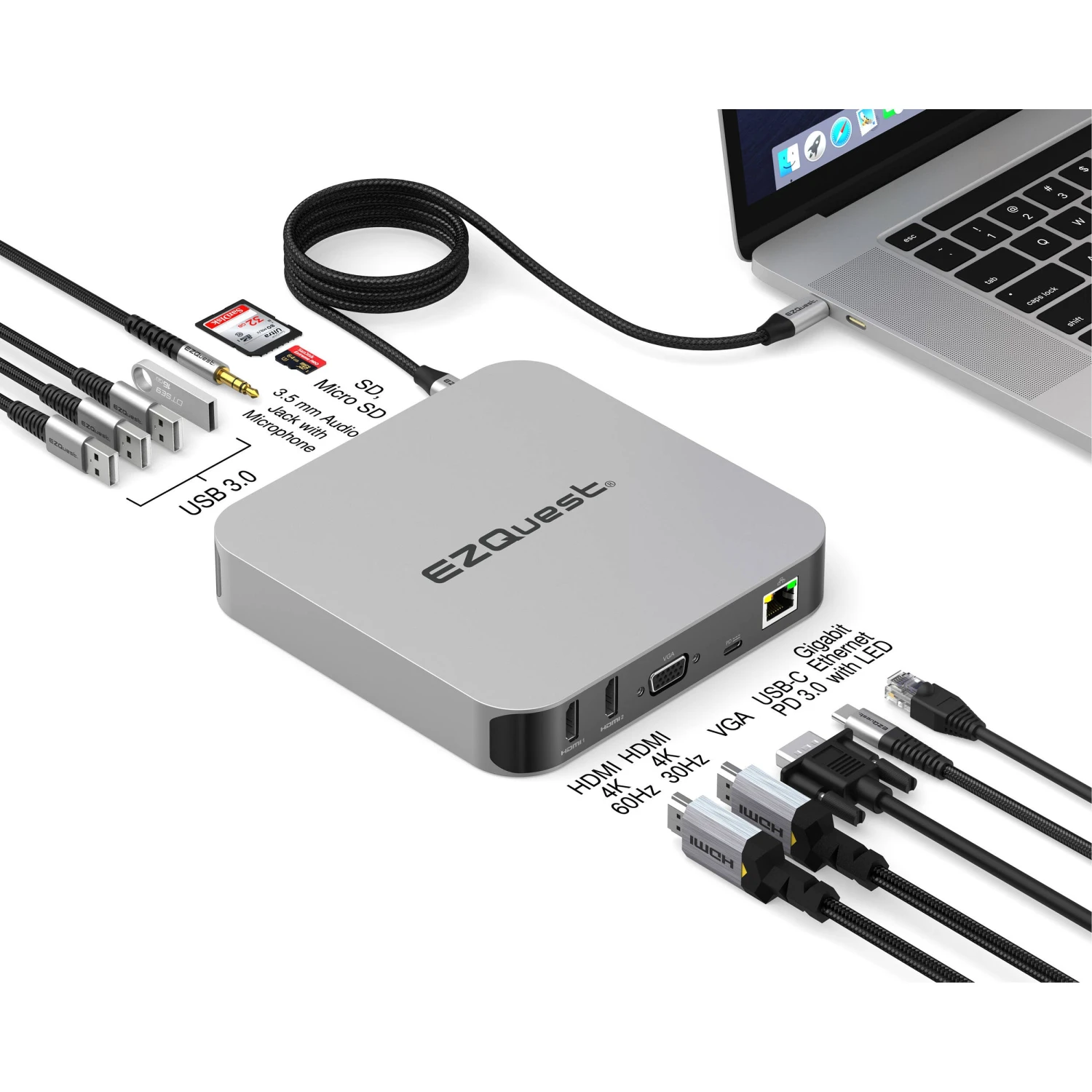

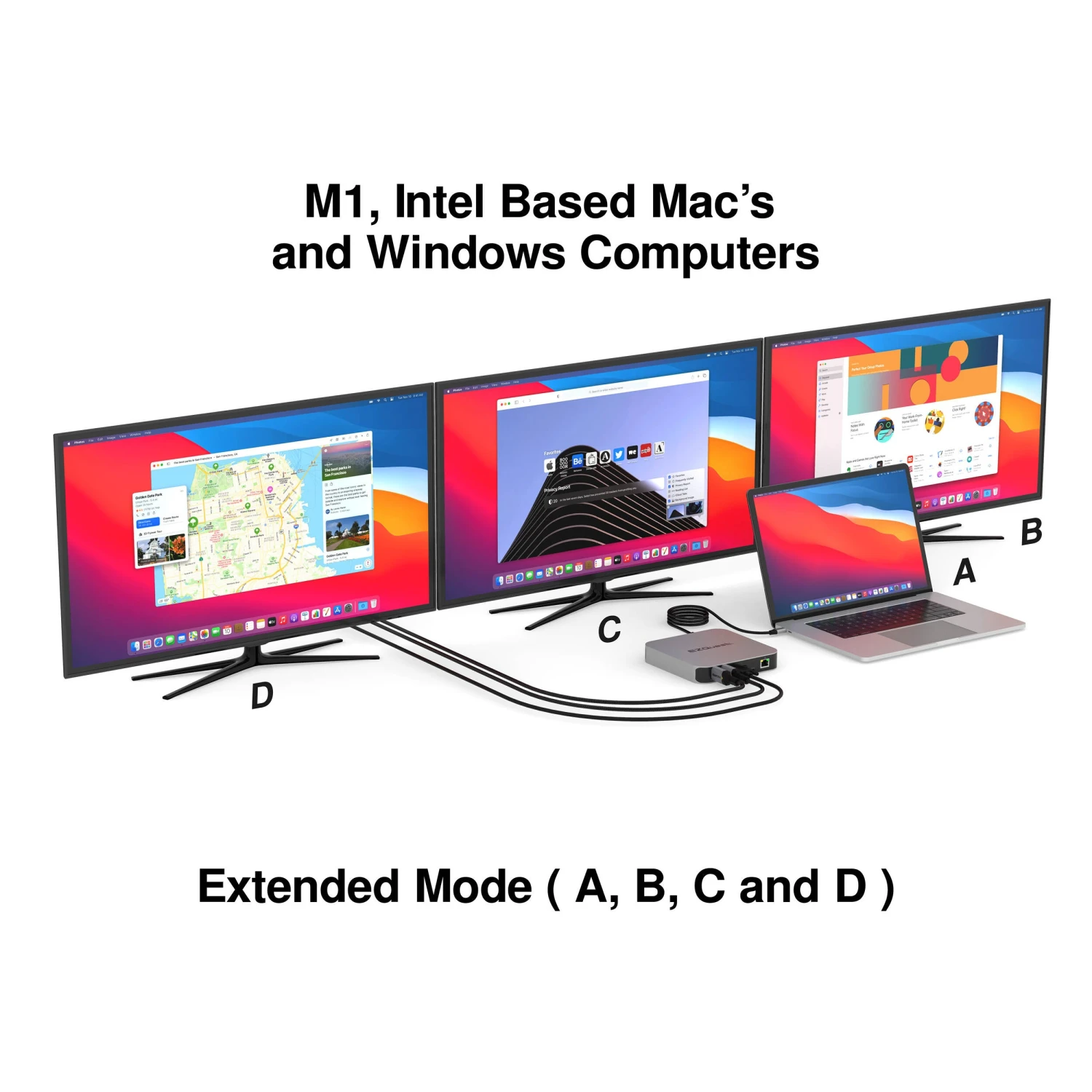

Enhance your workflow by expanding the capabilities of your USB Type-C compatible laptop with the EZQuest Ultimate Plus 12-Port USB Type-C Multimedia Hub. Compatible with both Windows and Mac systems, you simply connect this hub to your system using its included detachable USB Type-C cable to get started. This hub includes two HDMI ports, which allow you to add one or two 3840 x 2160 resolution 4K displays alongside a single 1080p monitor through the VGA port for larger viewing and efficient multitasking. Select MacBook Pros can add a fourth display using their built-in HDMI ports. The Ultimate Plus hub also includes four USB 3.1 Gen 1 Type-A ports, each of which can transfer up to 5 Gb/s with compatible flash drives and peripherals while supplying 4.5W of power to help keep mobile devices charged. Other features include SDHC and microSDHC card readers, an RJ45 Ethernet port, a 3.5mm audio, and a USB Type-C power port that can deliver up to 100W to compatible laptops when connected to a separately sold AC power adapter and cable.
In the Box
- EZQuest Ultimate Plus 12-Port USB Type-C Multimedia Hub
- USB Type-C Cable (3.3′)
User Manual
10.9 MB
EZQuest Ultimate Plus Specs
| USB | 4 x USB-A USB 3.0 / 3.1/3.2 Gen 1 (4.5 W) 1 x USB-C USB (Charging Only) 1 x USB-C USB 3.0 / 3.1/3.2 Gen 1 |
| Thunderbolt | None |
| Ethernet | 1 x RJ45 (10/100/1000 Mb/s) |
| Display | 2 x HDMI 1 x VGA |
| Audio | 1 x 1/8″ / 3.5 mm Headphone/Microphone Combo Jack |
| Media Card Reader | 1 x SDHC 1 x microSDHC |
| Host Connection | USB-C 3.0 / 3.1/3.2 Gen 1 |
| Connection Type | Detachable Cable |
| Powered Connection | 100 W USB Power Delivery 3.0 |
| Maximum Resolution Supported | 3840 x 2160 at 60 Hz |
| UASP Support | Yes |
| Power Source | Bus Powered |
| Cable Length | 3.3′ / 1 m |
| LED Indicator | None |
| Lock Slot | No |
| Dimensions | 2.1 x 2.1 x 1.1″ / 53 x 53 x 29 mm |
| Package Weight | 1.435 lb |
| Box Dimensions (LxWxH) | 9.1 x 8.6 x 1.9″ |
