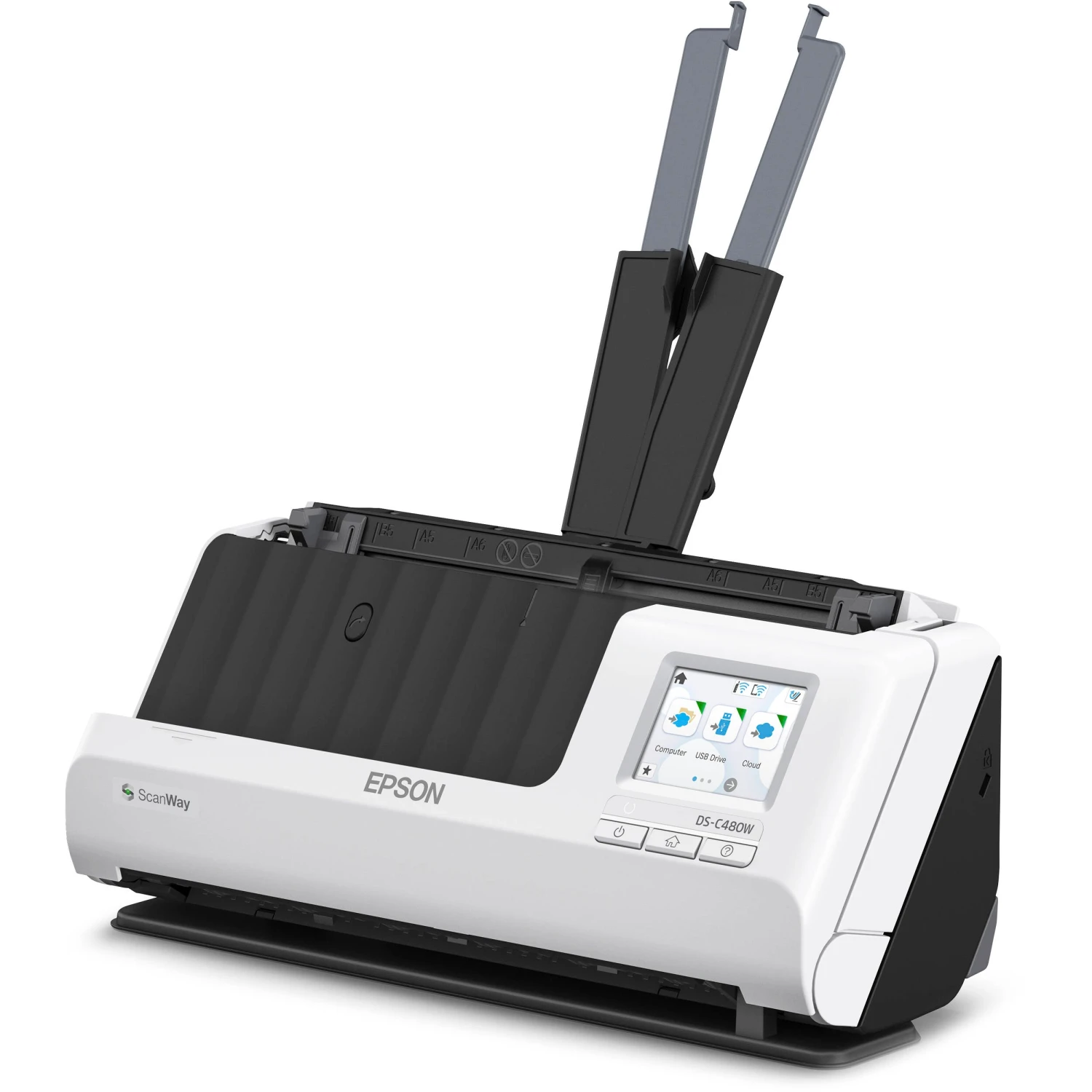

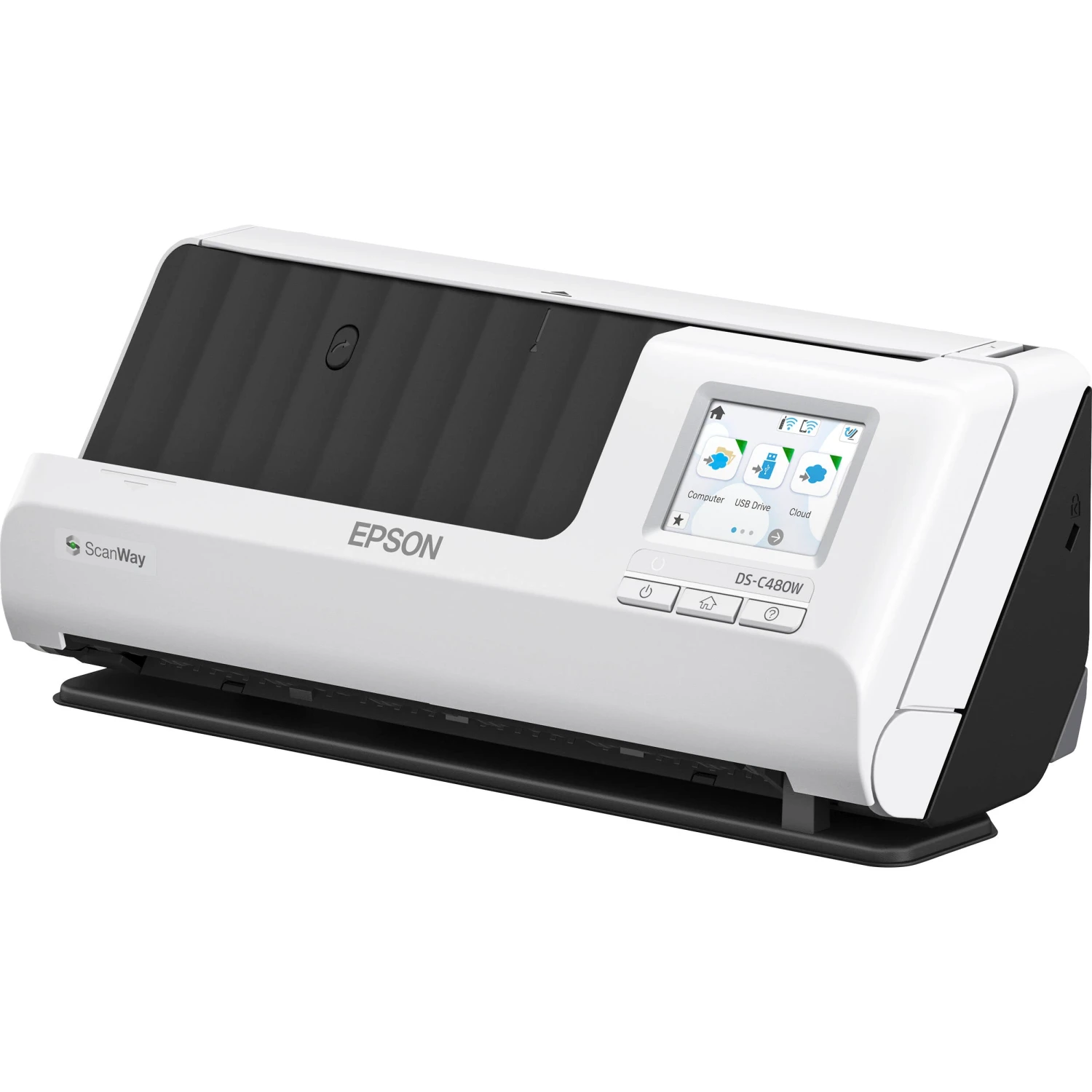

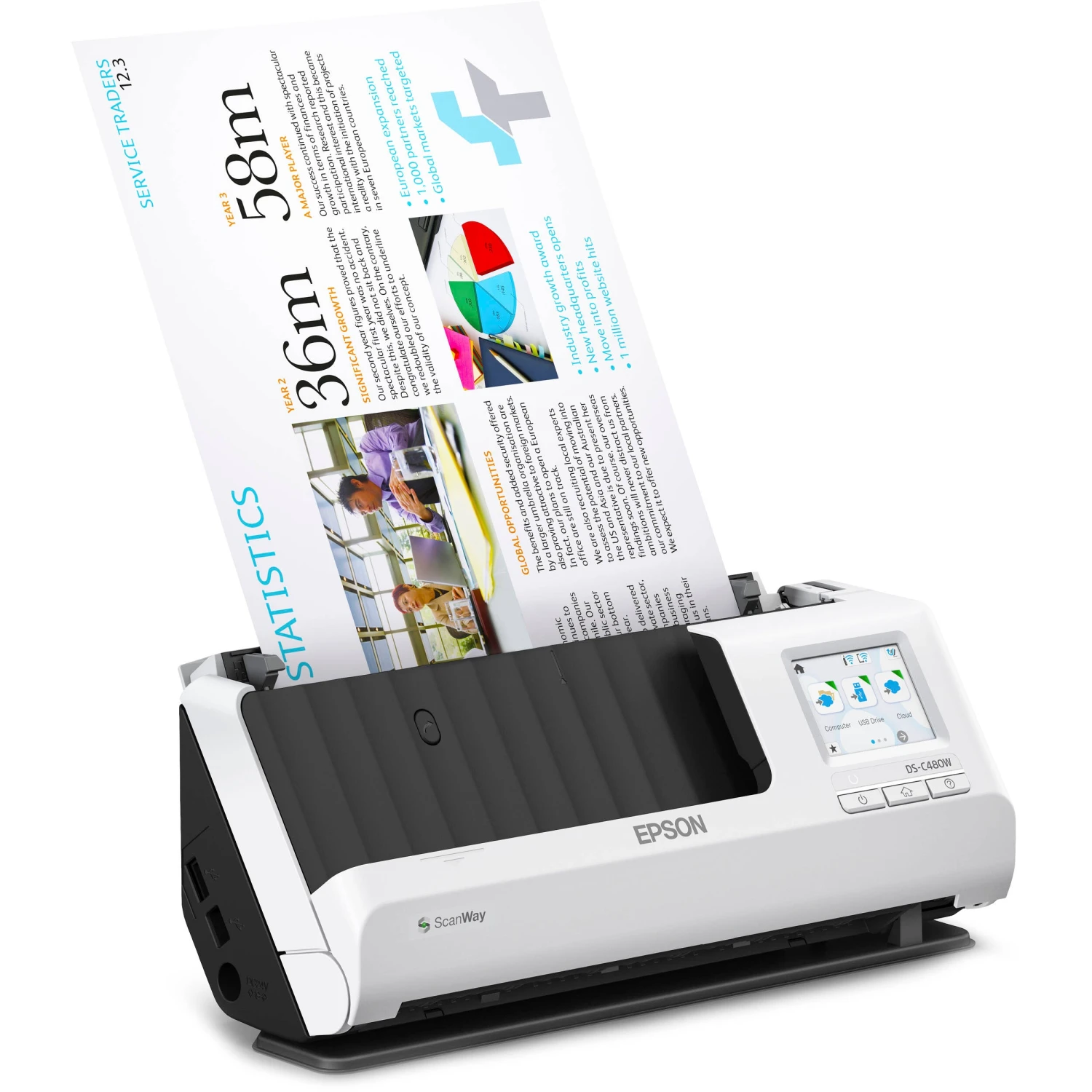

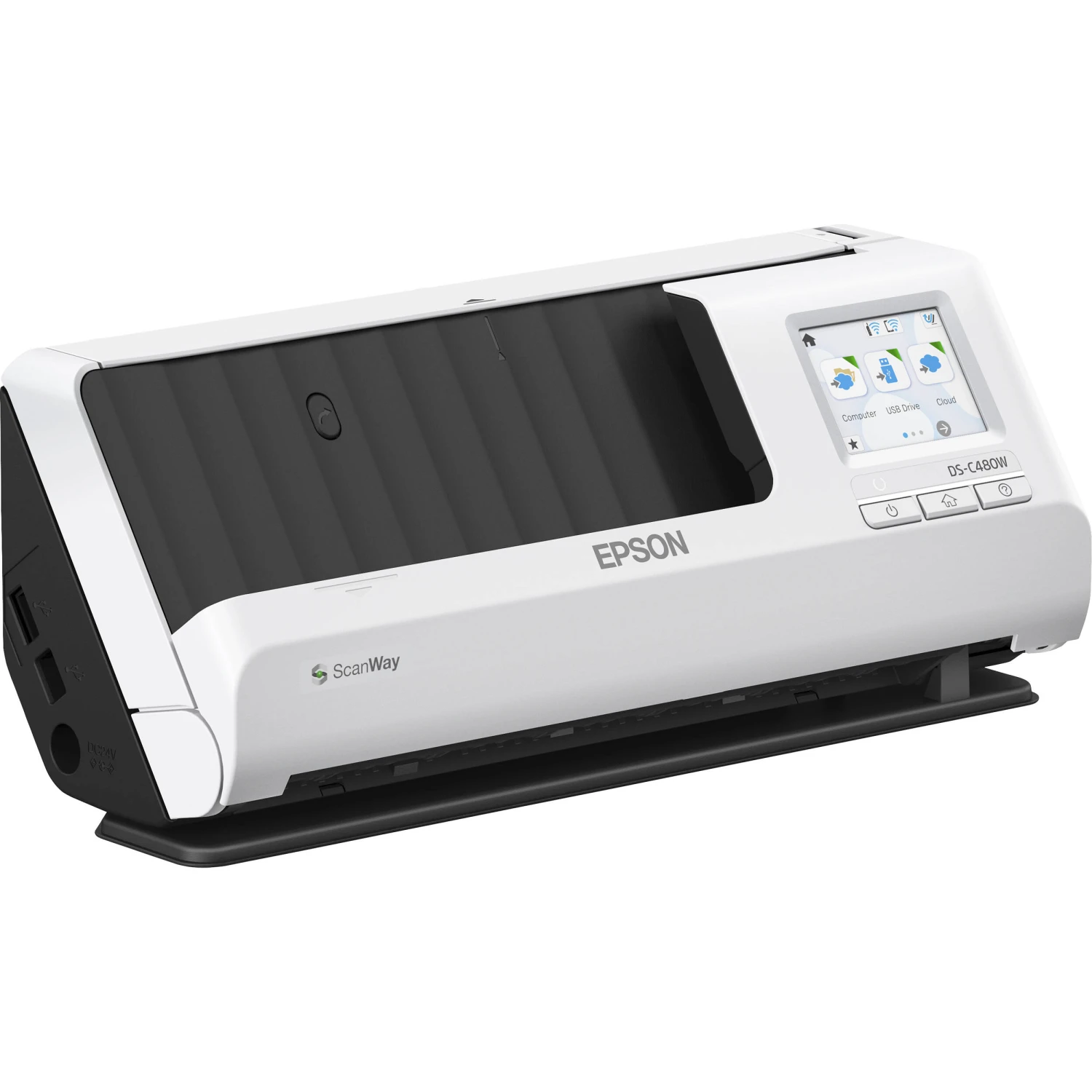

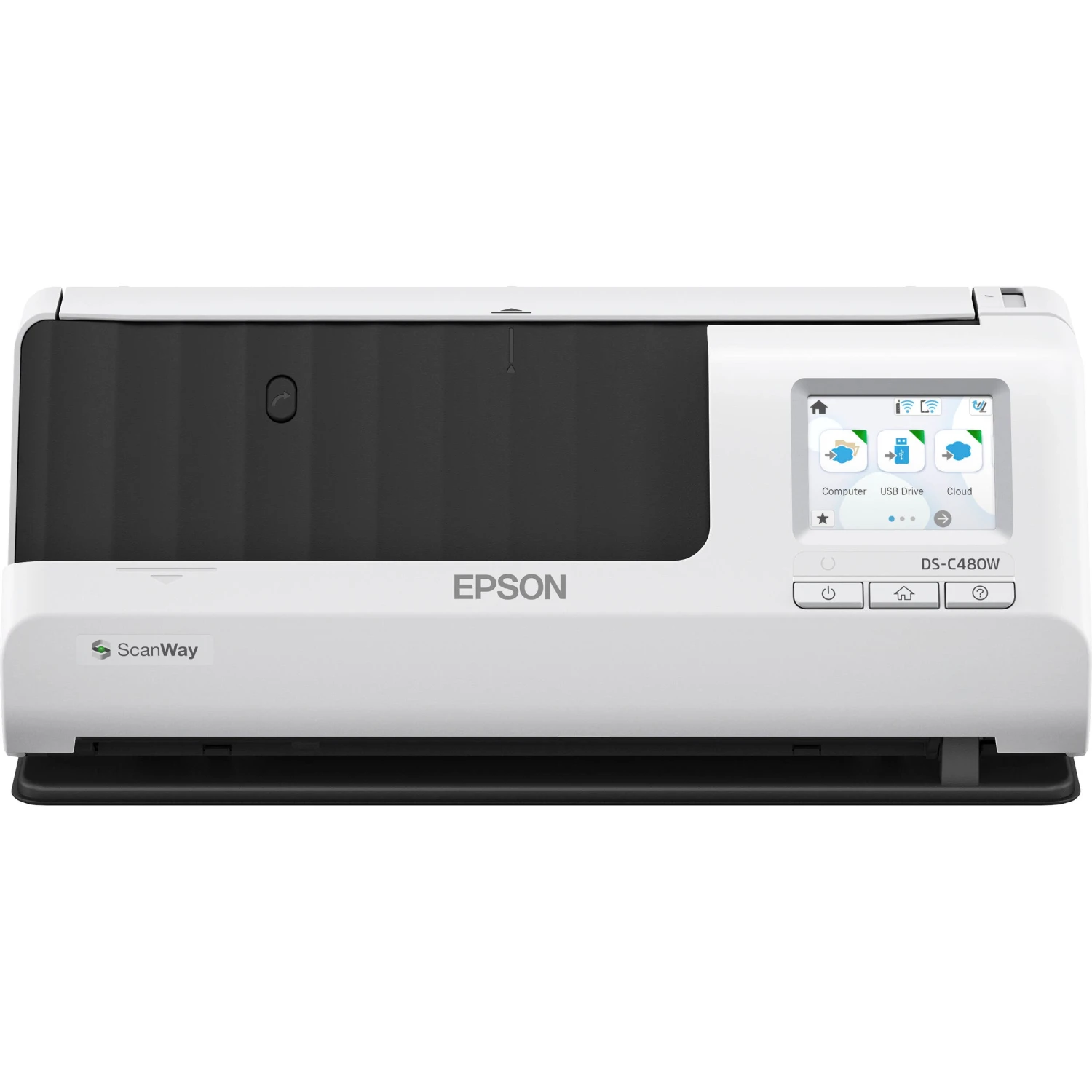

Scan quickly and reliably with the versatile DS-C480W Compact Desktop Document Scanner from Epson. This powerful wireless unit features a 20-sheet ADF with one-pass duplex scanning at speeds as fast as 30 ppm. Easily operate and customize your DS-C480W using its 2.4″ color LCD touchscreen. Wi-Fi and USB connectivity means you’ll be able to scan to mobile devices, computers, and cloud storage services. Designed for heavy usage, the DS-C480W allows for a 3500-page daily duty cycle.
In the Box
- Epson DS-C480W Compact Desktop Document Scanner
- USB 2.0 Cable
- AC Adapter and Power Cable
- Limited 1-Year Manufacturer Warranty
- Description
- Connect via Wi-Fi or USB 2.0
- Save Desk Space
- Advanced Imaging Technology
- Easy Uploading and Sharing
- Powerful Software
- High-Quality & Versatile
Epson DS-C480W Specs
| Scanner Type |
Automatic Document Feeder (ADF) |
| Scanner Maximum Resolution |
600 dpi (Optical) 1200 dpi (Interpolated) |
| Scanner Color Depth |
10-Bit (Internal) 8-Bit (External) |
| Wireless |
Wi-Fi *Built-In |
| Mobile App Compatible |
Yes: Android & iOS App Name: Epson Smart Panel |
| Power Source |
AC Adapter (Included) |
| Scanner Type |
Automatic Document Feeder (ADF) |
| Scanner Maximum Resolution |
600 dpi (Optical) 1200 dpi (Interpolated) |
| Scan Modes |
Color, Grayscale |
| Scanner Color Depth |
10-Bit (Internal) 8-Bit (External) |
| Light Source |
LED |
| Image Sensor |
2x Contact Image Sensor (CIS) |
| Duplex Scanning |
Yes |
| Single Pass Duplex |
Yes |
| Scan Speed |
30 ppm at 300 dpi in Color/Grayscale/Black & White 60 ipm at 300 dpi in Color/Grayscale/Black & White |
| Automatic Image Corrections |
Yes |
| Scan Sizes |
ADF Minimum: 2 x 2″ / 5.1 x 5.1 cm Maximum: 8.5 x 220″ / 21.6 x 558.8 cm |
| Paper Capacity |
ADF: 20x Sheet |
| Media Weight |
ADF: 40 to 413 gsm |
| Daily Duty Cycle |
3500 Scans |
| Special Media Support |
ID Card |
| Inputs/Outputs |
Scanner: USB-C 2.0 |
| Wireless |
Wi-Fi *Built-In |
| Scanner Drivers |
TWAIN, ISIS |
| Mobile App Compatible |
Yes: Android & iOS App Name: Epson Smart Panel |
| OS Compatibility |
Windows 7 to 11 macOS 10.9 to 13 |
| Operating Temperature |
41 to 95°F / 5 to 35°C |
| Operating Humidity |
15 to 80% () |
| Storage Temperature |
-13 to 140°F / -25 to 60°C |
| Display Size |
2.4″ |
| Display Type |
Color Touchscreen LCD |
| Power Source |
AC Adapter (Included) |
| Battery |
No |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
13 W (Maximum) 1 W (Sleep) 3.6 W (Ready) 0.1 W (Off) |
| Certifications |
ENERGY STAR, RoHS |
| Dimensions (W x H x D) |
11.7 x 4.9 x 4.2″ / 29.7 x 12.4 x 10.7 cm (Storage) |
| Weight |
4.2 lb / 1.9 kg |
| Package Weight |
6.11 lb |
| Box Dimensions (LxWxH) |
14.4 x 8.7 x 8.1″ |
