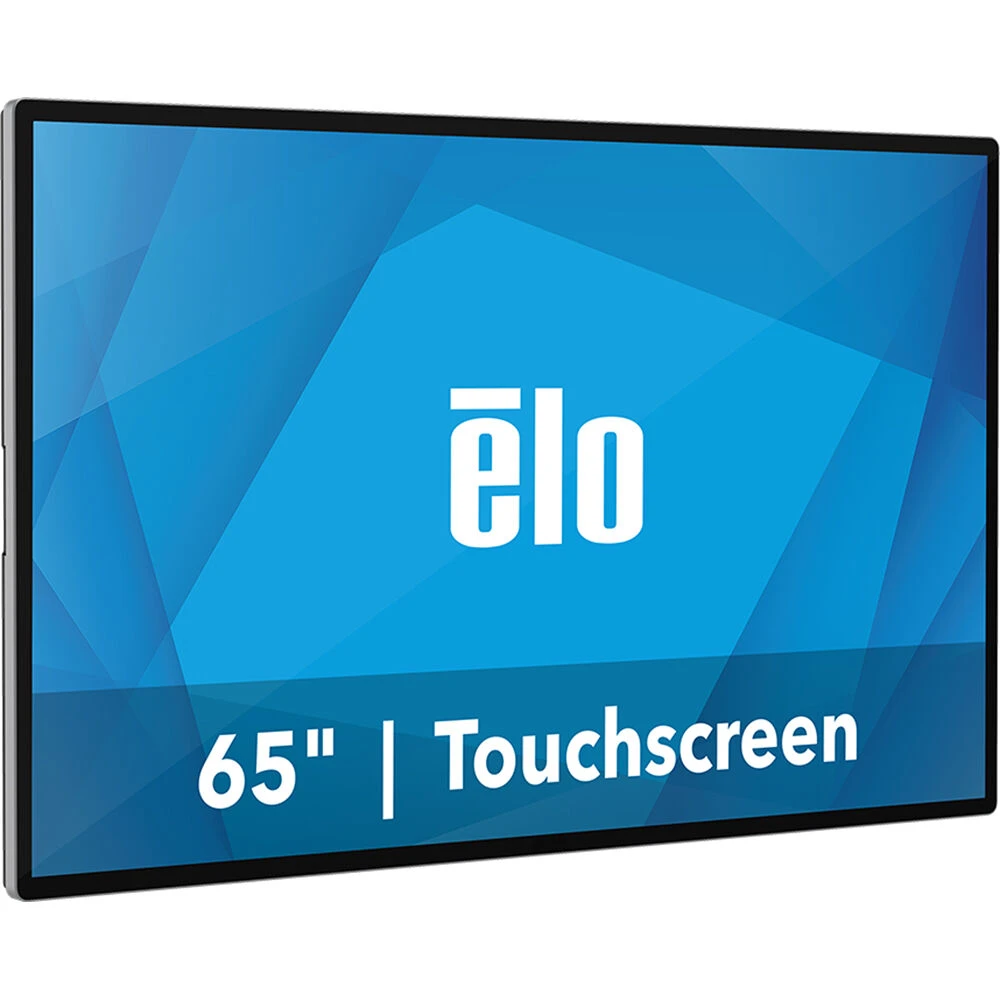

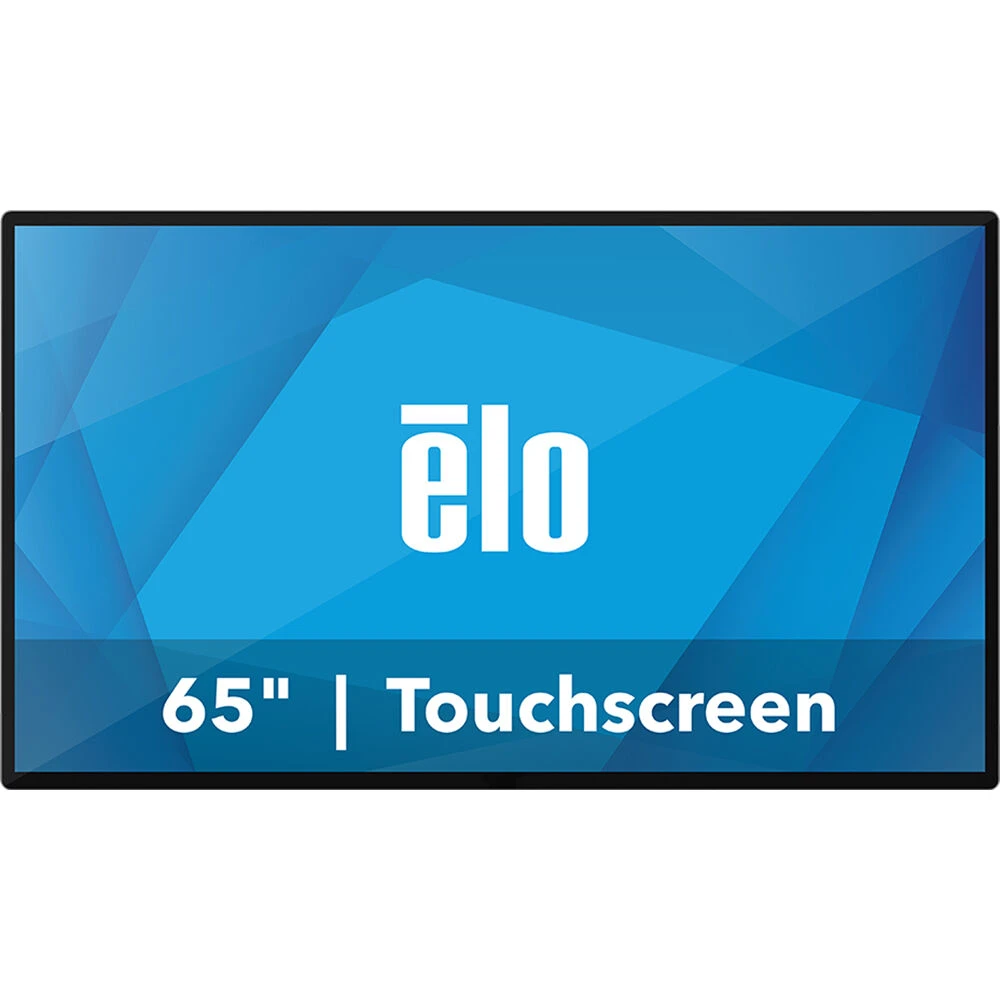

Elo Touch 6553L 65″ 4K UHD Interactive Digital Signage Display (IR Touch With Anti-Glare)(Elo Touch 6553l 65 4k Uhd Interactive Digital Signage Display Ir Touch With Anti Glare)

Add an interactive digital signage display to your business or venue with the
6553L 65″ 4K UHD Interactive Digital Signage Display from
Elo Touch. This 65″ 4K display features infrared touch technology to provide easy interaction for large-format signage. Its slim design can fit into education or corporate environments for presentations, video conferencing, and meetings, or use it in industries such as retail, healthcare, or hospitality for customer interactions. The 3840 x 2160 resolution display features 450 cd/m² brightness, a 1100:1 contrast ratio, and features three HDMI inputs, a DisplayPort input, HDCP compatibility, speakers, and a headphone output.

The display is ideal for high-traffic environments that demand interaction as well as conference and huddle and education enviornments. Interactive displays expand collaboration capabilities between the presenter and their audience, helping deliver concepts beyond what a whiteboard and dry erase marker can do.

Elo’s IDS product line offers versatility across environments. From retail and entertainment to healthcare and corporate offices, the 6553L is an excellent choice to meet the demands of continuous public use.

Designed for conference and huddle rooms, the optional Elo Conference Camera delivers full HD video with wide viewing angles, an adjustable slider and 30° tilt that supports both vertical and horizontal adjustment.

The Conference Camera makes your 6553L compatible with all major web conferencing applications, including Microsoft Teams, Zoom, Cisco Webex, GoToMeeting, and BlueJeans.

The optional commercial-grade computer module transforms Elo’s touchscreen into a powerful, all-in-one, touch computer platform with compatibility with most content-management servers.

With the addition of an optional computer module, the user-friendly annotation and whiteboarding software provides corporate environments with a full set of features.

From multi-user writing and drawing to handwriting recognition, graphical input, and full multi-media integration and capture, the display has the durability your environment demands.

With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.

Expand your touchscreen’s potential by adding an EMV reader, NFC/RFID, MSR, barcode reader or one of Elo’s many other accessories. With the Elo Edge Connect system, accessories snap on to the edge of the touchscreen for a clean design and extended functionality. Easily add any combination of up to four Edge Connect products-configuration is up to you and easily changed at any time.

Elo Touch 6553L Specs

Display Size	65″
Native Resolution	3840 x 2160
Maximum Brightness	450 nits / cd/m2
Touchscreen Technology	Infrared (IR)
Inputs	Rear: 2x HDMI 2.0 1x DisplayPort 1.4 Side: 1x HDMI 2.0
Outputs	1x 1/8″ / 3.5 mm (Headphone)
Wireless	No
USB I/O	Rear: 2x USB-B 3.0 / 3.1/3.2 Gen 1 (Control/Touchscreen Control) Side: 1x USB-A 3.0 / 3.1/3.2 Gen 1 (Control/Touchscreen Control)
Ethernet I/O	No
Other I/O	1x RJ45 Control Input/Output 1/8″ / 3.5 mm Serial (RS-232C) Control Input
Built-In Speakers	Yes, 2x 10 W
Media Card Reader	No

Display Size	65″
Panel Type	TFT LCD
Aspect Ratio	16:9
Display Orientation	Landscape, Portrait
Native Resolution	3840 x 2160
Maximum Brightness	450 nits / cd/m2
Lighting System	Backlit LED
HDR Support	Yes
Contrast Ratio	1100:1
Response Time	8 ms
Color Support	1.07 Billion Colors (10-Bit)
Viewing Angle (H x V)	178 x 178°
Screen Area	56.2 x 31.6″ / 142.7 x 80.3 cm
Pixels Per Inch (ppi)	68 ppi

Touchscreen Technology

Infrared (IR)

Video System	NTSC
TV Tuner	No

Inputs	Rear: 2x HDMI 2.0 1x DisplayPort 1.4 Side: 1x HDMI 2.0
Outputs	1x 1/8″ / 3.5 mm (Headphone)
HDCP Support	Yes
Wireless	No
USB I/O	Rear: 2x USB-B 3.0 / 3.1/3.2 Gen 1 (Control/Touchscreen Control) Side: 1x USB-A 3.0 / 3.1/3.2 Gen 1 (Control/Touchscreen Control)
Ethernet I/O	No
Other I/O	1x RJ45 Control Input/Output 1/8″ / 3.5 mm Serial (RS-232C) Control Input

Built-In Speakers

Yes, 2x 10 W

Media Card Reader	No
Built-In Mic	No

Power Consumption	Operational: 152.0 W Standby: 2.0 W
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Adapter Type	Internal

Operating Conditions	32 to 104°F / 0 to 40°C at 20 to 80% Humidity
Storage Conditions	-4 to 140°F / -20 to 60°C at 10 to 95% Humidity
Certifications	UL, FCC, cUL, IC, CB, CE, RCM, VCCI, UL60950

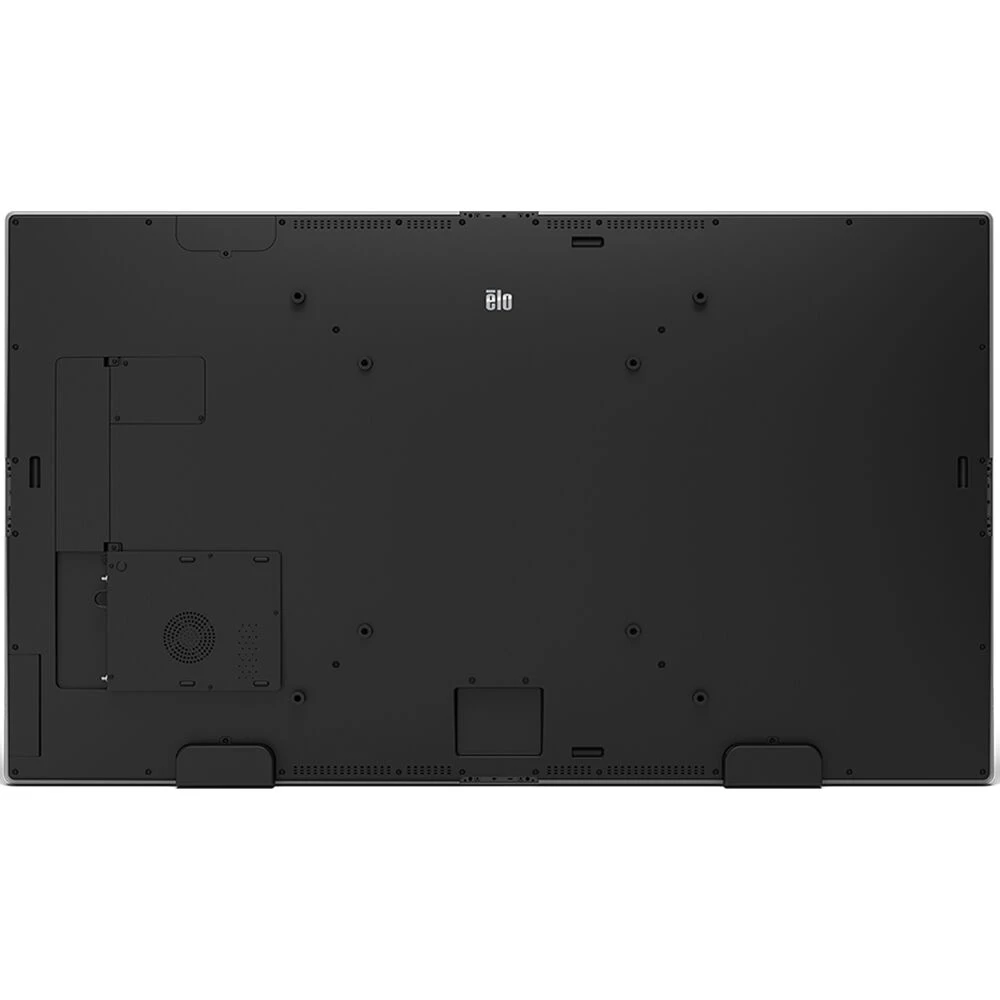

Mounting-Hole Pattern	400 x 400 mm, 600 x 600 mm
Lighting Lifespan	50000 Hours
Impact Resistance	No
Duty Cycle	24 Hours / 7 Days
Dimensions	68.9 x 45.3 x 11″ / 1750 x 1150 x 280 mm
Weight	114.13 lb / 51.77 kg
