Elo Touch 5554L Overview
Experience reliable interactive digital signage with the 5554L 55″ UHD 4K Commercial Monitor with PCAP Touch & Anti-Glare Screen from Elo Touch. This versatile display features up to 40 points of responsive, simultaneous touch, with palm rejection and touch through glass capability. 24/7 operation, along with landscape, portrait, and tabletop orientation support, make the 5554L well suited to self-service kiosks, wayfinding, and other interactive applications in shopping malls, hospitals, transportation hubs, and more.

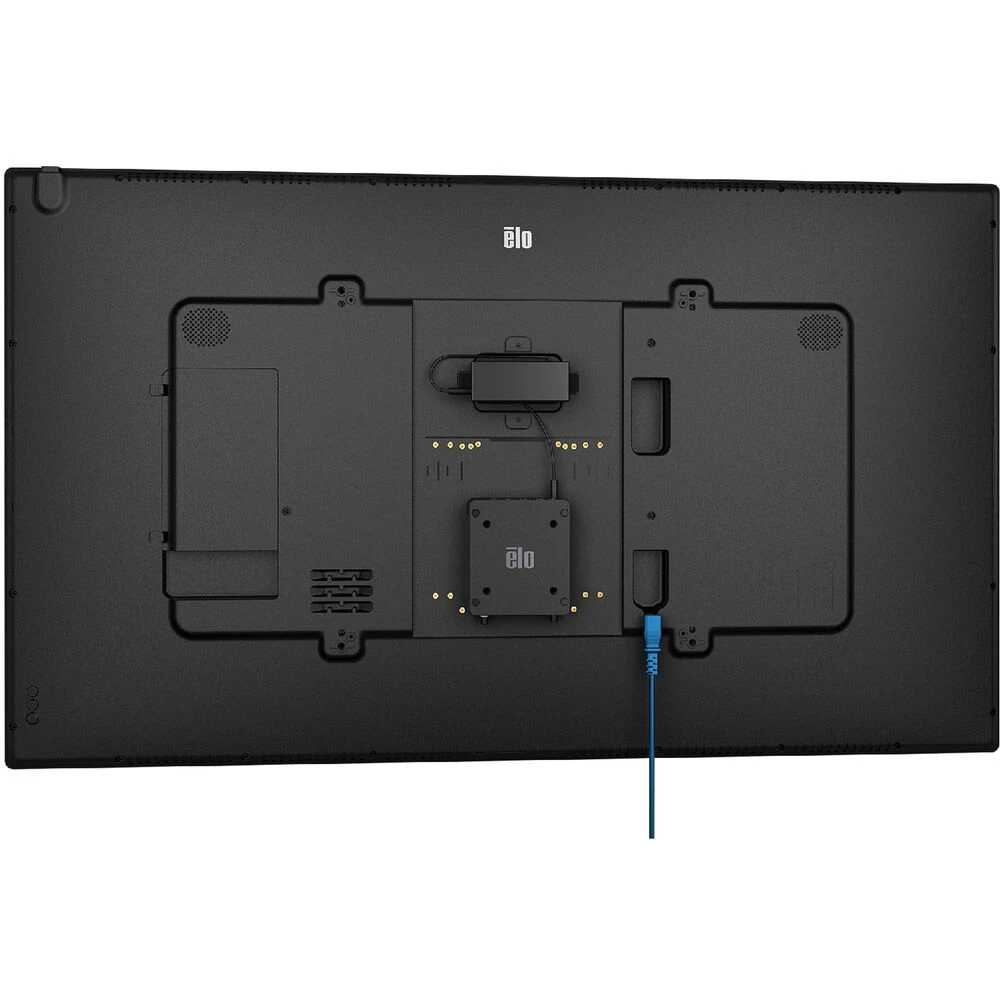

Connect external devices via HDMI 2.0, DisplayPort, and USB-C inputs. Four micro-USB connections are compatible with Elo Edge Connect peripherals, such as the 4K Conference Camera, Fingerprint Scanner, and 2D Barcode Scanner. Featuring a minimalistic design with rear mounting for compact VESA PCs and the included power brick, along with integrated cable management, and external PC power passthrough, the 5554L offers a clean, all-in-one interactive commercial display solution.
- Built-in dual 10W speakers
- Ambient light sensor
- Auto wake
- Wake by IoT
- UL-60950 and IK-07 compliance for impact resistance
Items Included
- Elo Touch 5554L 55″ UHD 4K Commercial Monitor with PCAP Touch & Anti-Glare Screen
- AC Power Cable
- USB-C Cable (3.2′)
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Elo Touch 5554L Specs
| Display Size |
55″ |
| Native Resolution |
3840 x 2160 |
| Maximum Brightness |
430 nits / cd/m2 |
| Touchscreen Technology |
Projected Capacitive |
| Inputs |
2x HDMI 2.0 1x DisplayPort 1.4 |
| Outputs |
1x 1/8″ / 3.5 mm (Headphone) |
| Wireless |
Wi-Fi *Via Optional Adapter |
| USB I/O |
1x USB-C (Unspecified Version) (Audio/Video/Control/Touchscreen Control) 4x Micro-USB 2.0 (Control) 1x USB-A (Unspecified Version) |
| Ethernet I/O |
2x RJ45 |
| Other I/O |
1x 1/8″ / 3.5 mm Serial (RS-232C) Control Input |
| Built-In Speakers |
Yes, 2x 10 W |
| Media Card Reader |
No |
| Display Size |
55″ |
| Panel Type |
TFT LCD |
| Aspect Ratio |
16:9 |
| Display Orientation |
Face-Up, Landscape, Portrait |
| Native Resolution |
3840 x 2160 |
| Maximum Brightness |
430 nits / cd/m2 |
| Contrast Ratio |
1100:1 |
| Response Time |
8 ms |
| Refresh Rate |
60 Hz |
| Color Support |
1.07 Billion Colors (10-Bit) |
| Viewing Angle (H x V) |
178 x 178° |
| Screen Area |
47.6 x 26.8″ / 1209.6 x 680.4 mm |
| Horizontal Frequency |
30 to 135 kHz |
| Vertical Frequency |
24 to 64 Hz |
| Pixels Per Inch (ppi) |
80 ppi |
| Finish |
Anti-Glare / Matte |
| Touchscreen Technology |
Projected Capacitive |
| Multi-Touch Points |
40 |
| TV Tuner |
No |
| Inputs |
2x HDMI 2.0 1x DisplayPort 1.4 |
| Outputs |
1x 1/8″ / 3.5 mm (Headphone) |
| HDCP Support |
Yes |
| Wireless |
Wi-Fi *Via Optional Adapter |
| NFC |
No |
| USB I/O |
1x USB-C (Unspecified Version) (Audio/Video/Control/Touchscreen Control) 4x Micro-USB 2.0 (Control) 1x USB-A (Unspecified Version) |
| Ethernet I/O |
2x RJ45 |
| Other I/O |
1x 1/8″ / 3.5 mm Serial (RS-232C) Control Input |
| Ambient Light Sensor |
Yes |
| Built-In Speakers |
Yes, 2x 10 W |
| Speaker Configuration |
2-Channel |
| Media Card Reader |
No |
| Built-In Mic |
No |
| Supported Languages |
English French German Italian Japanese Korean Russian Simplified Chinese Spanish Traditional Chinese |
| Power Consumption |
Operational: 111.8 W Standby: < 2.0 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Type |
Internal |
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 80% Humidity |
| Storage Conditions |
-4 to 140°F / -20 to 60°C at 10 to 95% Humidity |
| Certifications |
ENERGY STAR 8.0, FCC, CEC, cUL, IC, CB, CE, VCCI, RCM, CCC, RoHS, NOM, UL60950 |
| Mounting-Hole Pattern |
400 x 400 mm, 600 x 600 mm |
| Lighting Lifespan |
50000 Hours |
| Impact Resistance |
Impact-Resistant (IK07) |
| Duty Cycle |
24 Hours / 7 Days |
| Dimensions |
50.1 x 29.2 x 2.4″ / 1271.8 x 742.6 x 60.2 mm |
| Weight |
66.29 lb / 30.07 kg |
