Elo Touch 2794L 27" Class 1080p HD Open Frame Touchscreen Display (IntelliTouch Dual Touch)(Elo Touch 2794l 27 Class 1080p Hd Open Frame Touchscreen Display Intellitouch Dual Touch)

Elo Touch 2794L 27″ Class 1080p HD Open Frame Touchscreen Display (IntelliTouch Dual Touch)(Elo Touch 2794l 27 Class 1080p Hd Open Frame Touchscreen Display Intellitouch Dual Touch)

Original price was: $386.00.Current price is: $99.99.

SKU: DGFUB 6750731042901 Categories: Audio Visual Presentation, Commercial Monitors & Displays, Computer & Presentation Tags: Audio Visual Presentation, Commercial Monitors, Commercial Monitors & Displays, Elo Touch 2794L

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Elo Touch 2794L Overview

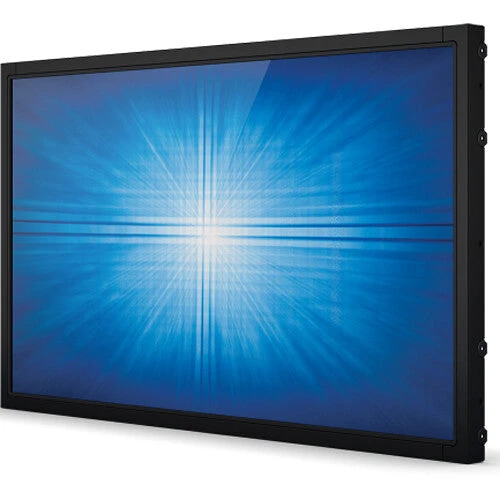

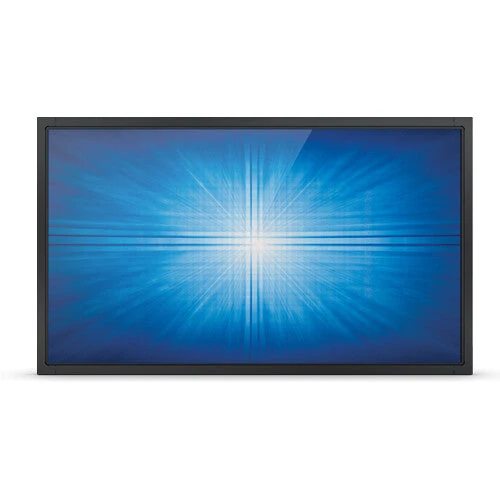

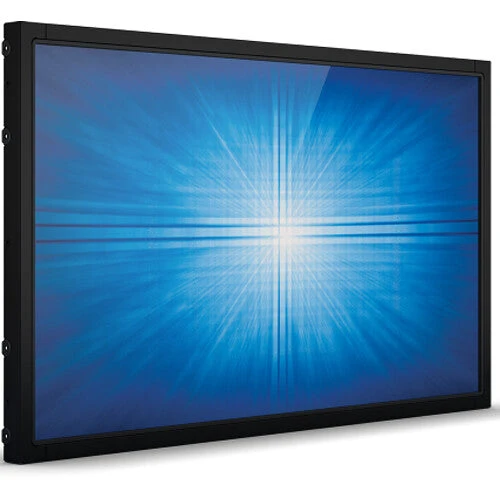

The Elo Touch 2794L 27″ Class 1080p HD Open Frame Touchscreen Display delivers an industrial-grade solution that is cost-effective for OEMs and system integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo’s open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The display offers the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.

Enabling Partners to Build Smarter Kiosks

With EloView and the optional Backpack accessory, managing kiosks is easy. The Elo Backpack is an Android-powered engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.

Flexibility for Your Install

It can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, the open frame offers what you need while maintaining optimal clarity and the viewing experience you want to deliver.

In the Box

Elo Touch 2794L 27″ Class 1080p HD Open Frame Touchscreen Display (IntelliTouch Dual Touch)
HDMI Cable
VGA Cable
RJ45 OSD Remote
“L” (Side Mount) Brackets and with Screws
Touch USB Cable
Limited 3-Year Warranty

Elo Touch 2794L Specs

Display

Screen Size (Diagonal)	27″
Resolution	1920 x 1080
Supported Display Resolutions	640 x 480 / 60 Hz 720 x 400 / 70 Hz 800 x 500 / 60 Hz 800 x 600 / 60 Hz 1024 x 768 / 60 Hz 1280 x 800 / 60 Hz 1280 x 1024 / 60 Hz 1366 x 768 / 60 Hz 1440 x 900 / 60 Hz 1680 x 1050 / 60 Hz 1920 x 1080 / 50 Hz 1920 x 1080 / 60 Hz
Bit Depth / Color Support	8-Bit (16.7 Million Colors)
Brightness	270 cd/m² (Typical)
Viewing Angle (H x V)	178 x 178°
Screen Area	23.5 x 13.23″ / 597.6 x 336.15 mm
Aspect Ratio	16:9
Contrast Ratio	3000:1
Response Time	12 ms
Horizontal Frequency	30 to 82 kHz
Vertical Frequency	50 to 75 Hz

Connectivity

Input Ports	1 x HDMI 1.3 Video 1 x 15-Pin VGA Video 1 x DisplayPort 1.1 Video
USB Ports	1 x USB 2.0 Type-B
Other I/O	2 x Serial

Surface

Touchscreen Technology

Surface Capacitive

Electrical

Power Consumption	Typical: 27.0 W Standby: 1.5 W
DC Input Power	12 VDC

Environmental

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	20 to 80%
Storage Humidity	10 to 95%

Physical

Wall Mounting	200 x 100 mm
Dimensions	24.9 x 14.7 x 1.6″ / 633.2 x 374.4 x 41.8 mm (with Bracket) 25.4 x 15.3 x 1.6″ / 644.2 x 388.4 x 40.6 mm (Panel)
Weight	16.09 lb / 7.30 kg
