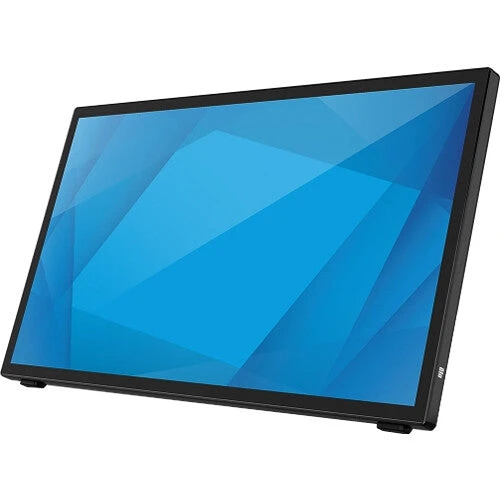

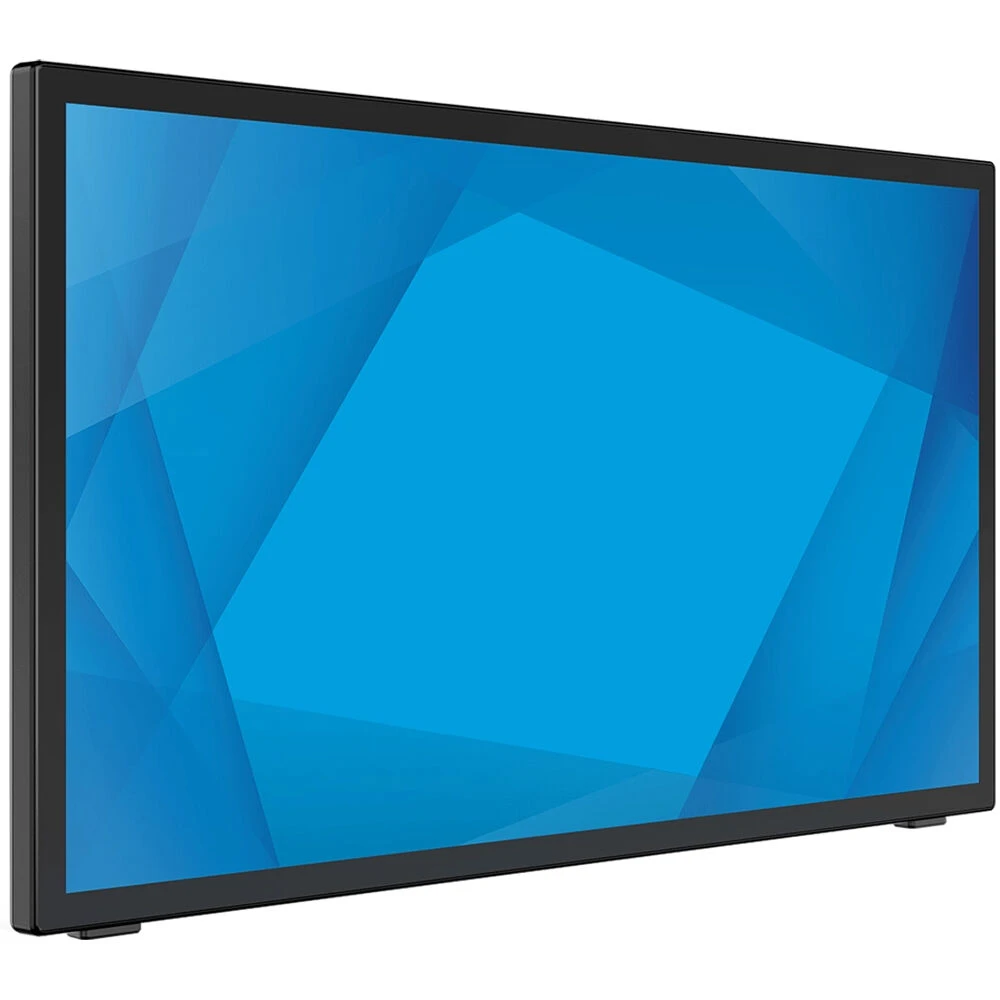

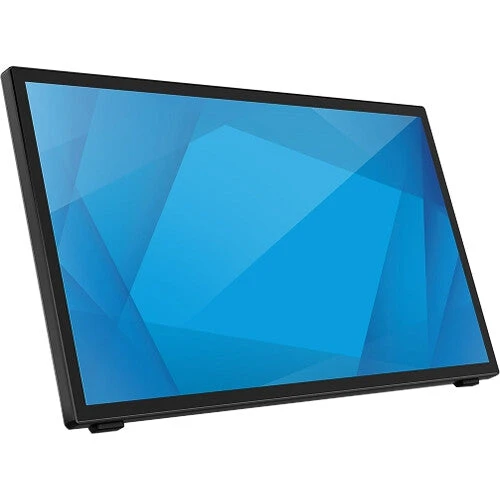

Elo Touch 2270L Overview
Enjoy reliable touchscreen functionality with the black Elo Touch 2270L 22″ Full HD Touchscreen Commercial Monitor. The 2270L is a 225 nits bright, TFT-LCD display with responsive PCAP touch technology. It features a 70% reduction in the bezel compared to similar models and a minimalistic design made to fit any space, ideal for corporate and retail applications. This durable display has a scratch-resistant glass surface with anti-glare screen coating and an IK07 impact-resistant rating. An integrated kickstand allows for 20 to 70° of tilt when placed on a desk or tabletop, or it can be mounted via 100mm VESA mount (sold separately).
- USB-B touch control input with USB-B to USB-A cable included
- 10 points of touch
- Navigate via on-screen display touch control
- Integrated HDMI, DisplayPort, and VGA video inputs
- 3.5mm audio connection can be used as input or output
- Built-in 2W stereo speakers
- IK07 certified impact-resistant
- TUV certified for low blue light and flicker free
In the Box
- Elo Touch 2270L 22″ Full HD Touchscreen Commercial Monitor (Black)
- North American Power Cable
- European Power Cable
- HDMI Cable
- Touch USB Cable
- 2 x Replacement Foot Cover
- 5 x Cable Tie
- Limited 3-Year Manufacturer Warranty
Elo Touch 2270L Specs
| Display Size |
21.5″ |
| Resolution |
1920 x 1080 |
| Maximum Brightness |
225 nits / cd/m2 |
| Touchscreen Technology |
Projected Capacitive |
| Inputs |
1x DisplayPort 1x HDMI 1x VGA 1x 1/8″ / 3.5 mm (Analog Audio) |
| Outputs |
1x 1/8″ / 3.5 mm (Analog Audio) |
| Wireless |
No |
| USB I/O |
1x USB-B 2.0 (Touchscreen Control) 2x USB-A 2.0 |
| Ethernet I/O |
No |
| Built-In Speakers |
Yes, 2x 2 W |
| Media Card Reader |
No |
| Display Size |
21.5″ |
| Panel Type |
TFT LCD |
| Aspect Ratio |
16:9 |
| Display Orientation |
Landscape |
| Resolution |
1920 x 1080 |
| Maximum Brightness |
225 nits / cd/m2 |
| HDR Compatibility |
No |
| Contrast Ratio |
1000:1 |
| Response Time |
14 ms |
| Refresh Rate |
60 Hz |
| Bit Depth / Color Support |
8-Bit (16.7 Million Colors) |
| Viewing Angle (H x V) |
178 x 178° |
| Screen Area |
18.74 x 10.54″ / 476.06 x 267.79 mm |
| Horizontal Frequency |
30 to 82 kHz |
| Vertical Frequency |
50 to 75 Hz |
| Pixels Per Inch (ppi) |
102 ppi |
| Finish |
Anti-Glare / Matte |
| Touchscreen Technology |
Projected Capacitive |
| Multi-Touch Points |
10 |
| TV Tuner |
No |
| Inputs |
1x DisplayPort 1x HDMI 1x VGA 1x 1/8″ / 3.5 mm (Analog Audio) |
| Outputs |
1x 1/8″ / 3.5 mm (Analog Audio) |
| HDCP Support |
Yes |
| Wireless |
No |
| USB I/O |
1x USB-B 2.0 (Touchscreen Control) 2x USB-A 2.0 |
| Ethernet I/O |
No |
| Built-In Speakers |
Yes, 2x 2 W |
| Speaker Configuration |
2-Channel |
| Mobile App Compatible |
No |
| Media Card Reader |
No |
| Built-In Mic |
No |
| Supported Languages |
English French German Italian Japanese Simplified Chinese Spanish Traditional Chinese |
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Storage Temperature |
-4 to 140°F / -20 to 60°C |
| Operating Humidity |
20 to 80% |
| Storage Humidity |
10 to 95% (Non-Condensing) |
| Power Consumption |
Typical: 13.8 W Standby: 0.5 W |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Type |
Internal |
| Certifications |
ENERGY STAR 8.0, TUV Rheinland (Flicker Free), TUV Rheinland (Low Blue Light), FCC, UL, RoHS, WEEE, REACH |
| Tilt Adjustment |
50° (20 to 70°) |
| Mounting-Hole Pattern |
100 x 100 mm |
| Lighting Lifespan |
50000 Hours |
| IK Rating |
IK07 |
| Lock Slot |
Yes, Kensington |
| Dimensions |
19.9 x 11.9 x 1.6″ / 504.7 x 302.4 x 41.3 mm (without Stand) |
| Weight |
9.0 lb / 4.1 kg |
