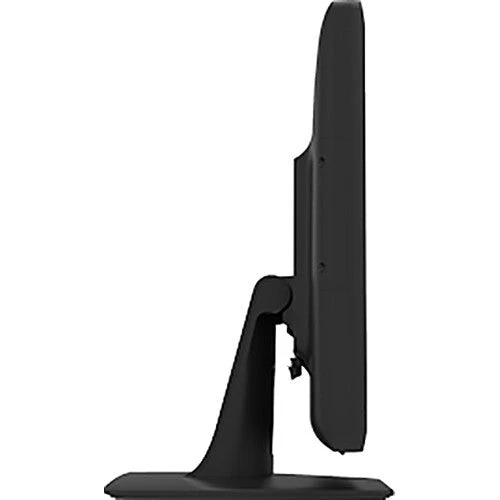

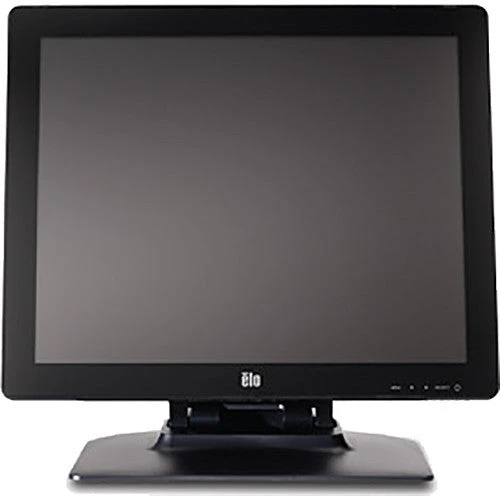

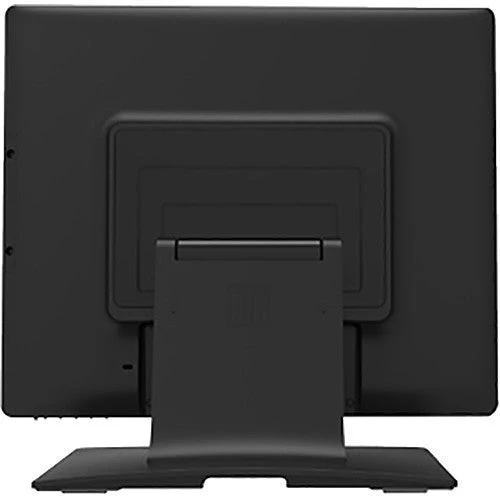

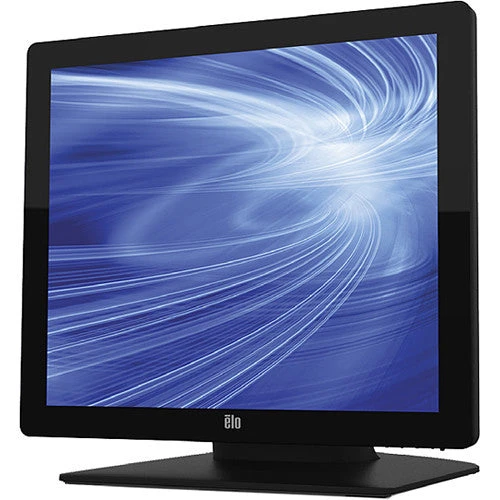

Elo Touch 1717L 17″-Class LED Touchmonitor (IntelliTouch Single-Touch, Anti-Glare, Black)(Elo Touch 1717l 17 Class Led Touchmonitor Intellitouch Single Touch Anti Glare Black)

The 17″ black 1717L LED Desktop Touchmonitor from Elo Touch is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its thin look is coupled with a retail-focused feature set and is suitable for commercial touchmonitor needs. It is well suited for high-traffic public venues where point-of-sale, point-of-information, point-of-service, shelf-level, and countertop interactive digital signage as well as loyalty systems are found.

The monitor utilizes IntelliTouch Surface Acoustic Wave touch technology with transactional single-touch capability. There are no coatings, plastic films or moving parts to wear out or be damaged. The active area of the touchscreen is resistant to chemicals such as acetone, toluene, methyl ethyl ketone, isopropyl alcohol, methyl alcohol, ethyl acetate, ammonia-based glass cleaners, gasoline, kerosene, and vinegar.

Elo Touch 1717L 17″-Class LED Touchmonitor (IntelliTouch Single-Touch, Anti-Glare, Black)

Monitor
Diagonal Size	17″ (43.2 cm)
Aspect Ratio	5:4
Active Display Area	13.3 x 10.6″ (33.8 x 27.0 cm)
LCD Technology	Active matrix TFT LCD with LED backlighting
Native Resolution	1280 x 1024
Supported Resolutions	640 x 480 @ 60 Hz, 75Hz; 720 x 400 @ 70 Hz; 800 x 600 @ 56 Hz, 60 Hz, 75 Hz; 1024 x 768, @ 60 Hz, 75 Hz; 1280 x 1024 @ 60 Hz, 75 Hz
Colors	16.7 million colors
Brightness	LCD Panel: 250 cd/m 2 With IntelliTouch: 225 cd/m 2
Response Time (Typical)	7.8 ms
Viewing Angle	Horizontal: �85� Vertical: �80�
Contrast Ratio (Typical)	1000:1
OSD Controls	Controls: Menu, Up, Down, Select Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Defaults Lockouts: OSD, Power
Languages	English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Video Input Connectors	1 x VGA (female DE-15)
Video Sync Input	Horizontal: 31.5 to 80 kHz Vertical: 56 to 75 Hz
Power Input Connector	AC: IEC 60320 C6 DC: Coaxial power jack (2.1 mm pin outer diameter, 6.4 mm barrel inner diameter)
Power Input	AC: 100 – 240 VAC, 50/60 Hz DC: 12 VDC �5%
Power Consumption (typical)	ON (Monitor Only): 20 W SLEEP (Monitor Only): 1.1 W OFF (Monitor Only): 0.8 W
MTBF	50,000 hours demonstrated
Operating Temperature	32 to 104�F (0 to 40�C)
Storage Temperature	-4 to 140�F (-20 to 60�C)
Operating Humidity	20 to 80%, non-condensing
Storage Humidity	10 to 90%, non-condensing
Mounting Options	3″ (75 mm) VESA mount, capped through-mount holes
Panel Depth	1.7″ (4.3 cm)
Dimensions	With Stand: 15.4 x 8.5 x 14.2″ / 39.2 x 21.5 x 36.1 cm
Weight	With Stand: 11.9 lb / 5.4 kg

Touchscreen Information
Technology	IntelliTouch Surface Acoustic Wave
Input Method	Finger or gloved hand (cloth, leather, or rubber) activation, or soft stylus
Profile	Front surface of touchscreen is completely flat
Position Accuracy	Standard deviation of error is less than 0.1″ (2.5 mm) and is typically much less with calibration to display image
Resolution	6.19 points per mm typical (A/D sampling capability is extended by pattern recognition software)
Actuation Force	2 to 3 oz (55 to 85 g) typical
Controller	USB
Light Transmission	92% �2%
Anti-Glare	95 �15 or 65 �15 gloss units when measured per ASTM D2457 using a 60� gloss meter
Durability	Surface durability is that of glass
Surface Hardness	Mohs’ Scale: 6.5
Life Expectation	Tested to more than 50 million touches in one location without failure, using a stylus similar to a finger
Approvals	UL, cUL, T�V, CE, FCC Class A, RoHS compliant
Protection	Per EN 61000-4-2, 1995 meets Level 4 (15 kV air/8kV contact discharges)
Operating Humidity (Relative)	104�F (40�C) at 90%, non-condensing
Operating Temperature	Operating: 32 to 122�F (0 to 50�C)
Storage Temperature	Storage: -40 to 160�F (-40 to 71�C)
