Elo Touch 1523L E394454 IntelliTouch ZB 15″ XGA Touchscreen Commercial Monitor(Elo Touch 1523l E394454 Intellitouch Zb 15 Xga Touchscreen Commercial Monitor)
Original price was: $308.00.$96.99Current price is: $96.99.
- Elevate Your Shopping Experience
- Product guarantee 100% satisfaction
- The quality solution for all your needs.
- Streamlined service, designed for your convenience.
Elo Touch 1523L Overview

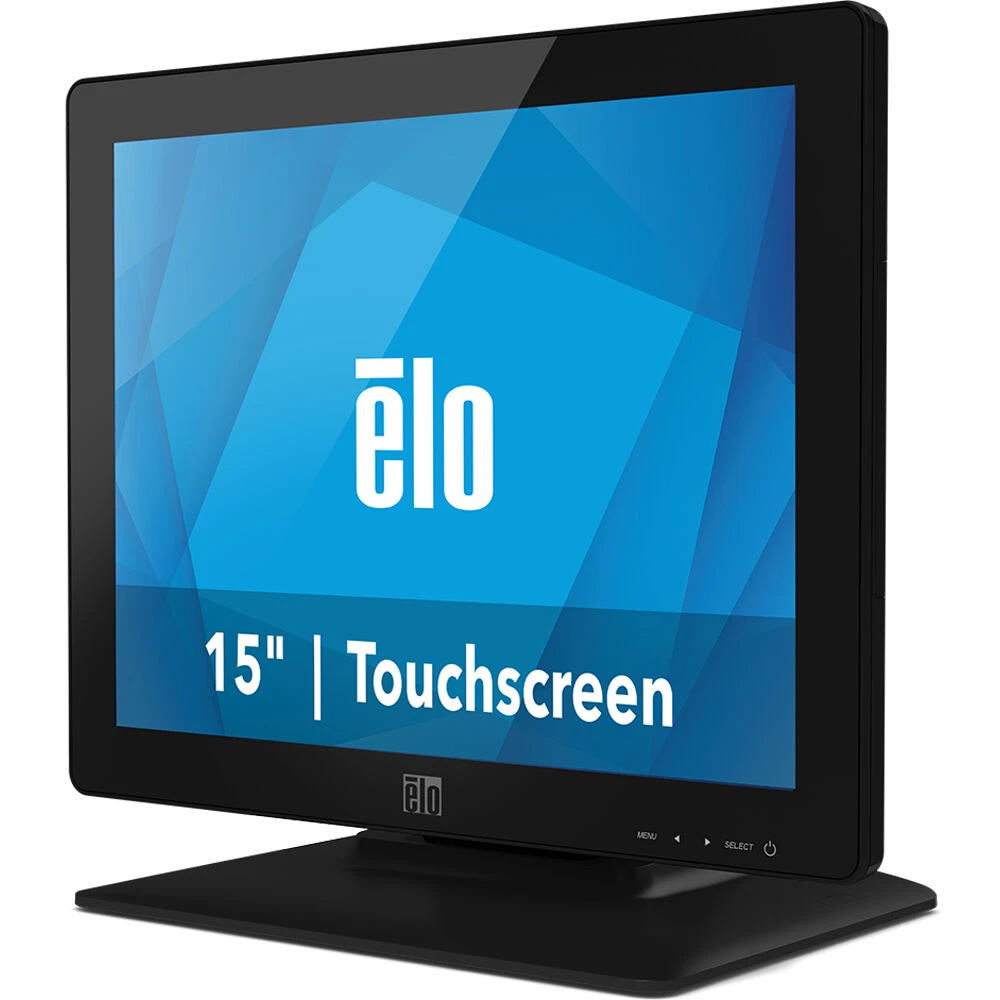

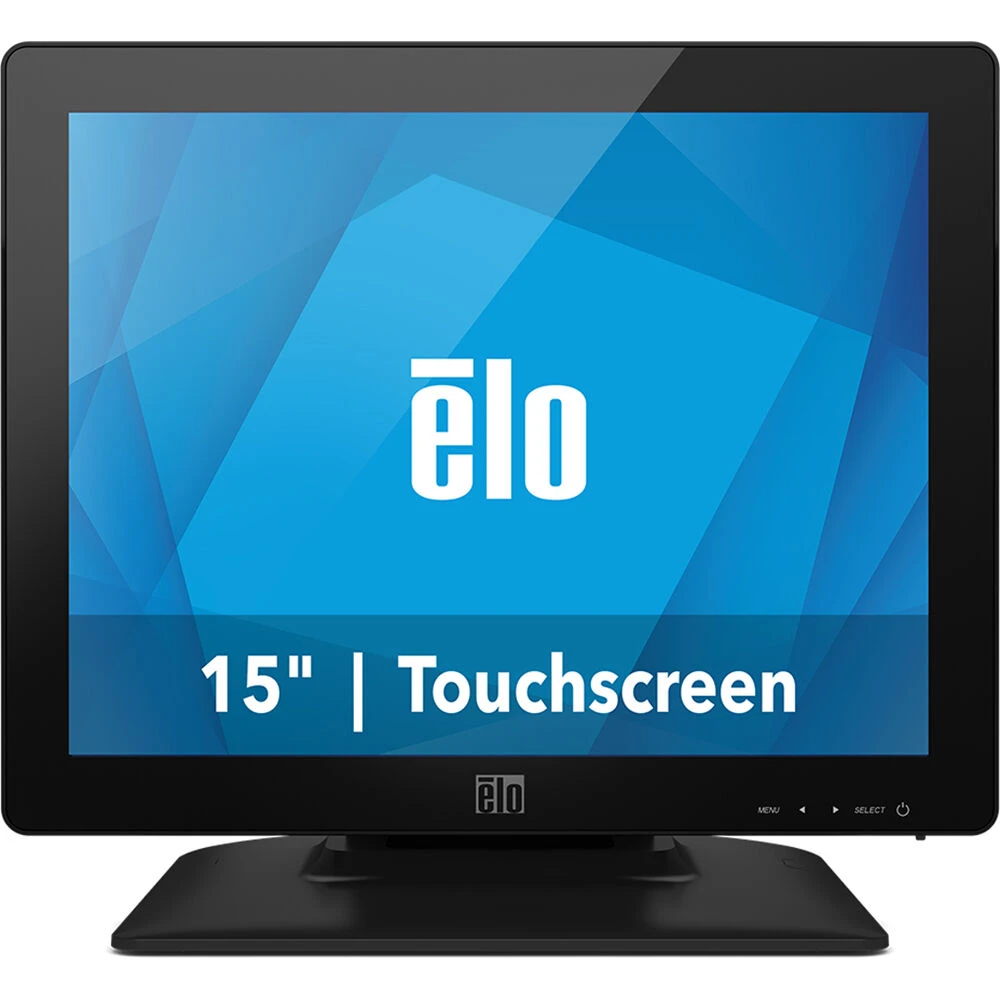

The Elo Touch 1523L E394454 IntelliTouch ZB 15″ XGA Touchscreen Commercial Monitor is a 270 nits bright, dual-touch display, with a sleek zero-bezel design that is well suited to high-traffic retail and hospitality applications. The 1523L features a spill-resistant sealing, a height-adjustable tilting stand or optional wall mount, and side controls with lock-out capability for public use. Cables are included to connect sources via HDMI, DVI-D, and VGA inputs with USB-B for touch interaction.
Integrated Touch
The IntelliTouch surface acoustic wave (SAW) zero-bezel offers stable, drift-free dual-touch functionality, and delivers the ultimate in optical quality for dry retail and hospitality applications.
Installation Flexibility
The 1523L ensures installation flexibility and offers tabletop use as well as VESA mounting in portrait or landscape orientation. The dual position stand offers a single hinge design with high/low settings and tilt functionality.
Commercial Grade
The 15-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by their three-year standard warranty. All ELO Touch products go through rigorous reliability testing (over 20 tests) to deliver 50,000 hours MTBF.
Additional Features
- Integrated cable management
- Customize with an integrated 3-track magnetic stripe reader (MSR) (sold separately)
- Screen is resistant to dirt, dust, and liquid
- Internal speakers
Items Included
- Elo Touch 1523L E394454 IntelliTouch ZB 15″ XGA Touchscreen Commercial Monitor
- Power Cable
- DC Power Brick
- DVI-D Cable
- VGA Cable
- HDMI Cable
- USB Touch Cable
- Audio Cable
- Stand Base Assembly
- Filler Plate
- Limited 3-Year Manufacturer Warranty
Additional Resources
User Manual
4.9 MB
Elo Touch 1523L Specs
Key Specs
| Display Size |
15″ |
| Native Resolution |
1024 x 768 |
| Maximum Brightness |
270 nits / cd/m2 |
| Touchscreen Technology |
Surface Capacitive |
| Inputs |
1x HDMI 1x DVI-D 1x DE-15/DB-15 (VGA) 1x 1/8″ / 3.5 mm (Analog Audio) |
| Outputs |
No |
| Wireless |
No |
| USB I/O |
1x USB-B (Unspecified Version) (Touchscreen Control) 2x USB-A (Unspecified Version) |
| Ethernet I/O |
No |
| Built-In Speakers |
Yes, 2x 2 W |
| Media Card Reader |
No |
Display
| Display Size |
15″ |
| Panel Type |
TFT LCD |
| Aspect Ratio |
4:3 |
| Display Orientation |
Landscape |
| Native Resolution |
1024 x 768 |
| Maximum Brightness |
270 nits / cd/m2 |
| HDR Support |
No |
| Contrast Ratio |
800:1 |
| Response Time |
23 ms |
| Color Support |
16.2 Million Colors (6-Bit+FRC) |
| Viewing Angle (H x V) |
160 x 150° |
| Screen Area |
11.97 x 9.0″ / 304.13 x 228.1 mm |
| Horizontal Frequency |
31.5 to 80 kHz |
| Vertical Frequency |
56 to 75 Hz |
| Pixels Per Inch (ppi) |
85 ppi |
| Finish |
Anti-Glare / Matte |
Surface
| Touchscreen Technology |
Surface Capacitive |
| Multi-Touch Points |
2 |
Video
| TV Tuner |
No |
Connectivity
| Inputs |
1x HDMI 1x DVI-D 1x DE-15/DB-15 (VGA) 1x 1/8″ / 3.5 mm (Analog Audio) |
| Outputs |
No |
| HDCP Support |
No |
| Wireless |
No |
| NFC |
No |
| USB I/O |
1x USB-B (Unspecified Version) (Touchscreen Control) 2x USB-A (Unspecified Version) |
| Ethernet I/O |
No |
| Ambient Light Sensor |
No |
| Multi-Input Support (PIP/PBP) |
No |
Speaker
| Built-In Speakers |
Yes, 2x 2 W |
| Speaker Configuration |
2-Channel |
Hardware
| Mobile App Compatible |
No |
| Media Card Reader |
No |
| Built-In Mic |
No |
| Supported Languages |
English French German Italian Japanese Simplified Chinese Spanish Traditional Chinese |
Electrical
| Power Consumption |
Operational: 10.5 W Standby: 1.3 W |
| Input Power |
12 VDC 100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Type |
External |
General
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 80% Humidity |
| Storage Conditions |
-4 to 140°F / -20 to 60°C at 10 to 95% Humidity |
| Certifications |
cUL, IC, CCC, CE, UKCA, Kcc, BSMI, FCC, VCCI, CB, RCM, EAC, NOM, BIS, RoHS, WEEE |
| Mounting-Hole Pattern |
75 x 75 mm |
| Lighting Lifespan |
50000 Hours |
| Dimensions |
14.1 x 12.5 x 7.8″ / 358.1 x 318.5 x 199.1 mm (with Stand) 14.1 x 11.2 x 1.8″ / 358.1 x 285 x 45.6 mm (without Stand) |
| Weight |
9.3 lb / 4.2 kg (with Stand) |
