Elo Touch 1523L Overview

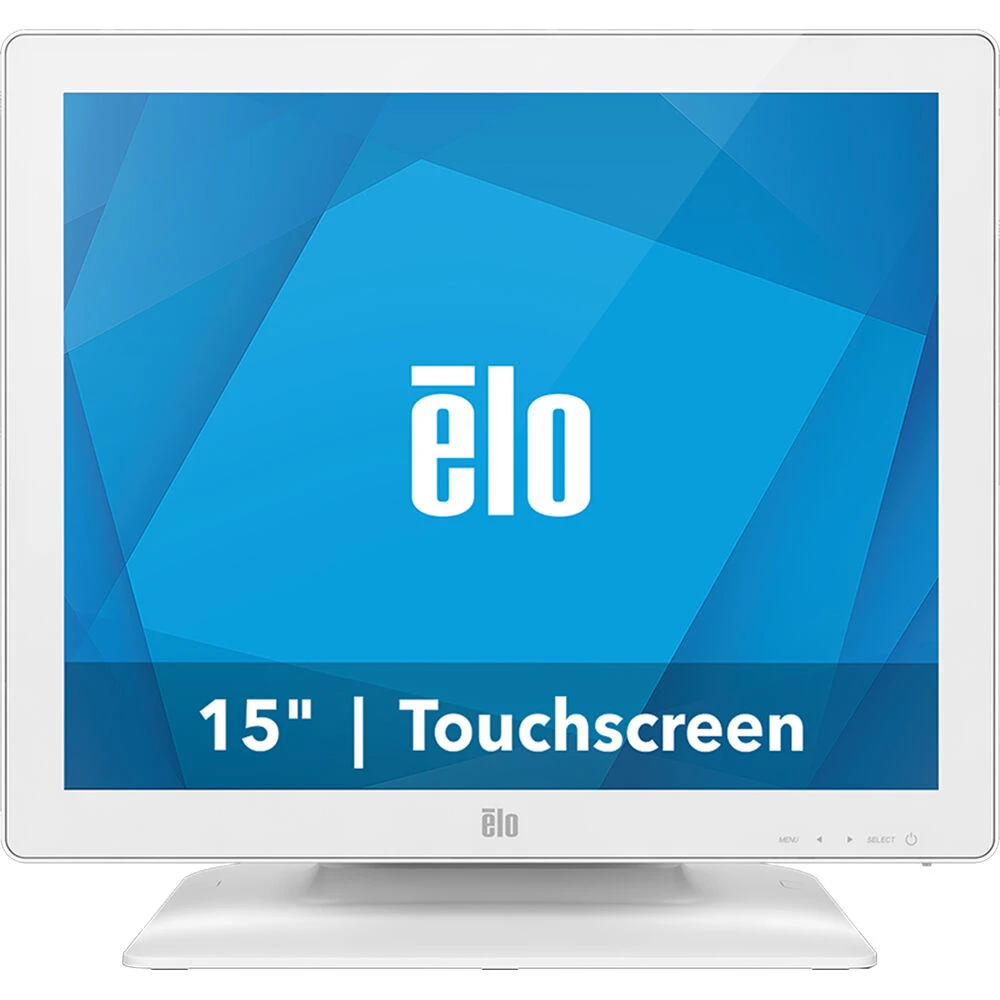

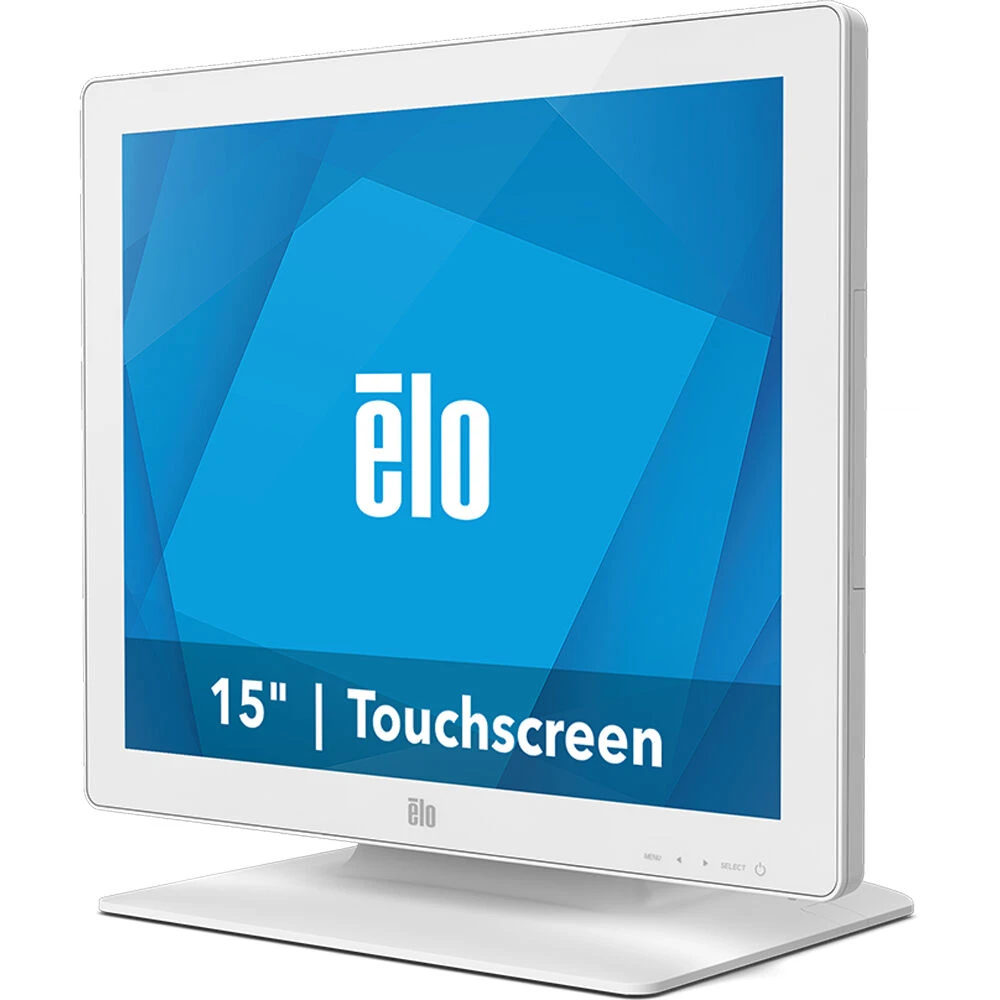

The Elo Touch 1523L E3336518 TouchPro PCap 15″ XGA Touchscreen Commercial Monitor is a 270 nits bright, multi-touch display, with a sleek zero-bezel design that is well suited to high-traffic retail and hospitality applications. The 1523L features a spill-resistant sealing, a height-adjustable tilting stand or optional wall mount, and side controls with lock-out capability for public use. Cables are included to connect sources via HDMI, DVI-D, and VGA inputs with USB-B for touch interaction.
Integrated Touch
With 10-point multi-touch capability, TouchPro PCAP offers a clean edge-to-edge glass design perfect for multi-user interaction with fast and extremely sensitive responses right out of the box.
Installation Flexibility
The 1523L ensures installation flexibility and offers tabletop use as well as VESA mounting in portrait or landscape orientation. The dual position stand offers a single hinge design with high/low settings and tilt functionality.
Commercial Grade
The 15-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by their three-year standard warranty. All ELO Touch products go through rigorous reliability testing (over 20 tests) to deliver 50,000 hours MTBF.
Additional Features
- Integrated cable management
- Customize with an integrated 3-track magnetic stripe reader (MSR) (sold separately)
- Screen is resistant to dirt, dust, and liquid
- Internal speakers
Items Included
- Elo Touch 1523L E3336518 TouchPro PCap 15″ XGA Touchscreen Commercial Monitor (White)
- Power Cable
- DC Power Brick
- DVI-D Cable
- VGA Cable
- HDMI Cable
- USB Touch Cable
- Audio Cable
- Stand Base Assembly
- Filler Plate
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
Elo Touch 1523L Specs
Key Specs
| Display Size |
15″ |
| Native Resolution |
1024 x 768 |
| Maximum Brightness |
270 nits / cd/m2 |
| Touchscreen Technology |
Projected Capacitive |
| Inputs |
1x HDMI 1x DVI-D 1x DE-15/DB-15 (VGA) 1x 1/8″ / 3.5 mm (Analog Audio) |
| Outputs |
No |
| Wireless |
No |
| USB I/O |
1x USB-B (Unspecified Version) (Touchscreen Control) 2x USB-A (Unspecified Version) |
| Ethernet I/O |
No |
| Built-In Speakers |
Yes, 2x 2 W |
| Media Card Reader |
No |
Display
| Display Size |
15″ |
| Panel Type |
TFT LCD |
| Aspect Ratio |
4:3 |
| Display Orientation |
Landscape |
| Native Resolution |
1024 x 768 |
| Maximum Brightness |
270 nits / cd/m2 |
| HDR Support |
No |
| Contrast Ratio |
800:1 |
| Response Time |
23 ms |
| Color Support |
16.2 Million Colors (6-Bit+FRC) |
| Viewing Angle (H x V) |
160 x 150° |
| Screen Area |
11.97 x 9.0″ / 304.13 x 228.1 mm |
| Horizontal Frequency |
31.5 to 80 kHz |
| Vertical Frequency |
56 to 75 Hz |
| Pixels Per Inch (ppi) |
85 ppi |
| Finish |
Anti-Glare / Matte |
Surface
| Touchscreen Technology |
Projected Capacitive |
| Multi-Touch Points |
10 |
Video
| TV Tuner |
No |
Connectivity
| Inputs |
1x HDMI 1x DVI-D 1x DE-15/DB-15 (VGA) 1x 1/8″ / 3.5 mm (Analog Audio) |
| Outputs |
No |
| Wireless |
No |
| NFC |
No |
| USB I/O |
1x USB-B (Unspecified Version) (Touchscreen Control) 2x USB-A (Unspecified Version) |
| Ethernet I/O |
No |
| Ambient Light Sensor |
No |
| Multi-Input Support (PIP/PBP) |
No |
Speaker
| Built-In Speakers |
Yes, 2x 2 W |
| Speaker Configuration |
2-Channel |
Hardware
| Media Card Reader |
No |
| Built-In Mic |
No |
| Supported Languages |
English French German Italian Japanese Simplified Chinese Spanish Traditional Chinese |
Electrical
| Power Consumption |
Operational: 10.5 W Standby: 1.3 W |
| Input Power |
12 VDC 100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Type |
External |
General
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 80% Humidity |
| Storage Conditions |
-4 to 140°F / -20 to 60°C at 10 to 95% Humidity |
| Certifications |
cUL, IC, CCC, CE, UKCA, Kcc, BSMI, FCC, VCCI, CB, RCM, EAC, NOM, BIS, RoHS, WEEE |
| Mounting-Hole Pattern |
75 x 75 mm |
| Lighting Lifespan |
50000 Hours |
| Impact Resistance |
No |
| Dimensions |
14.1 x 12.5 x 7.8″ / 358.1 x 318.5 x 199.1 mm (with Stand) 14.1 x 11.2 x 1.8″ / 358.1 x 285 x 45.6 mm (without Stand) |
| Weight |
9.3 lb / 4.2 kg (with Stand) |
