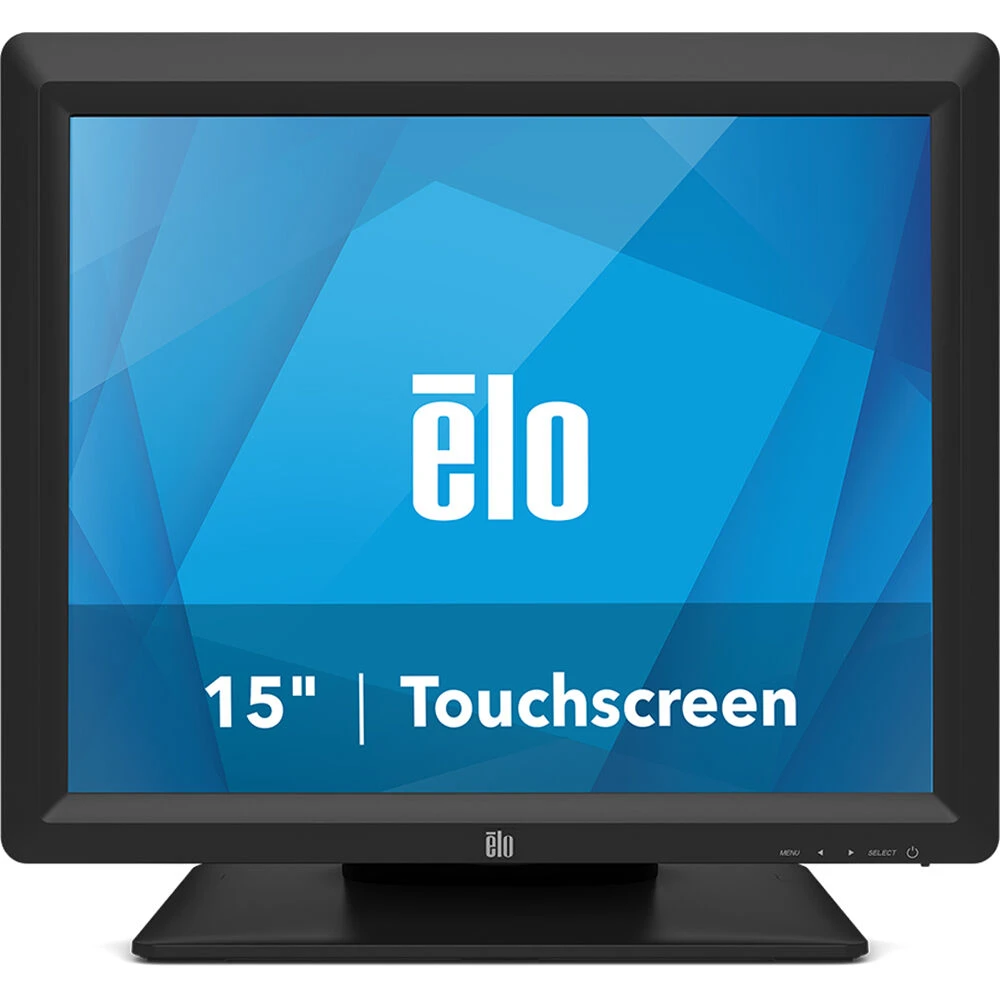

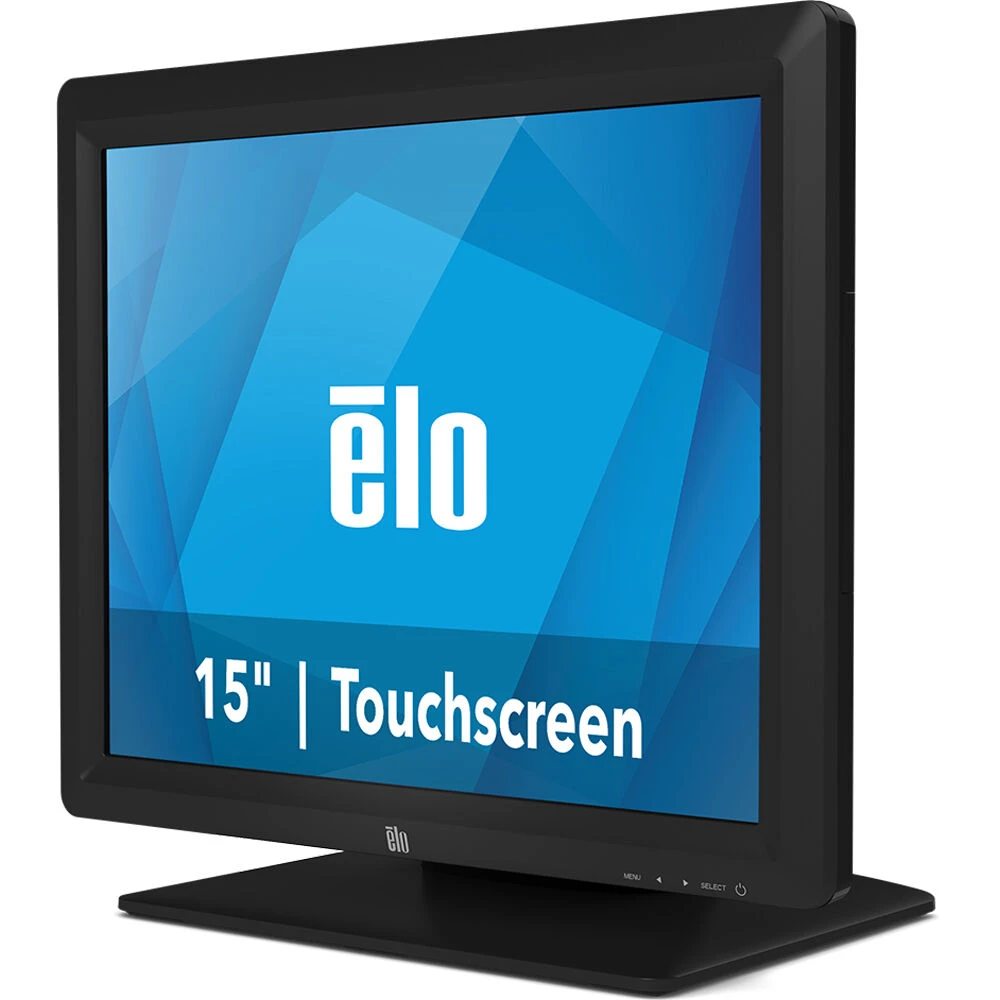

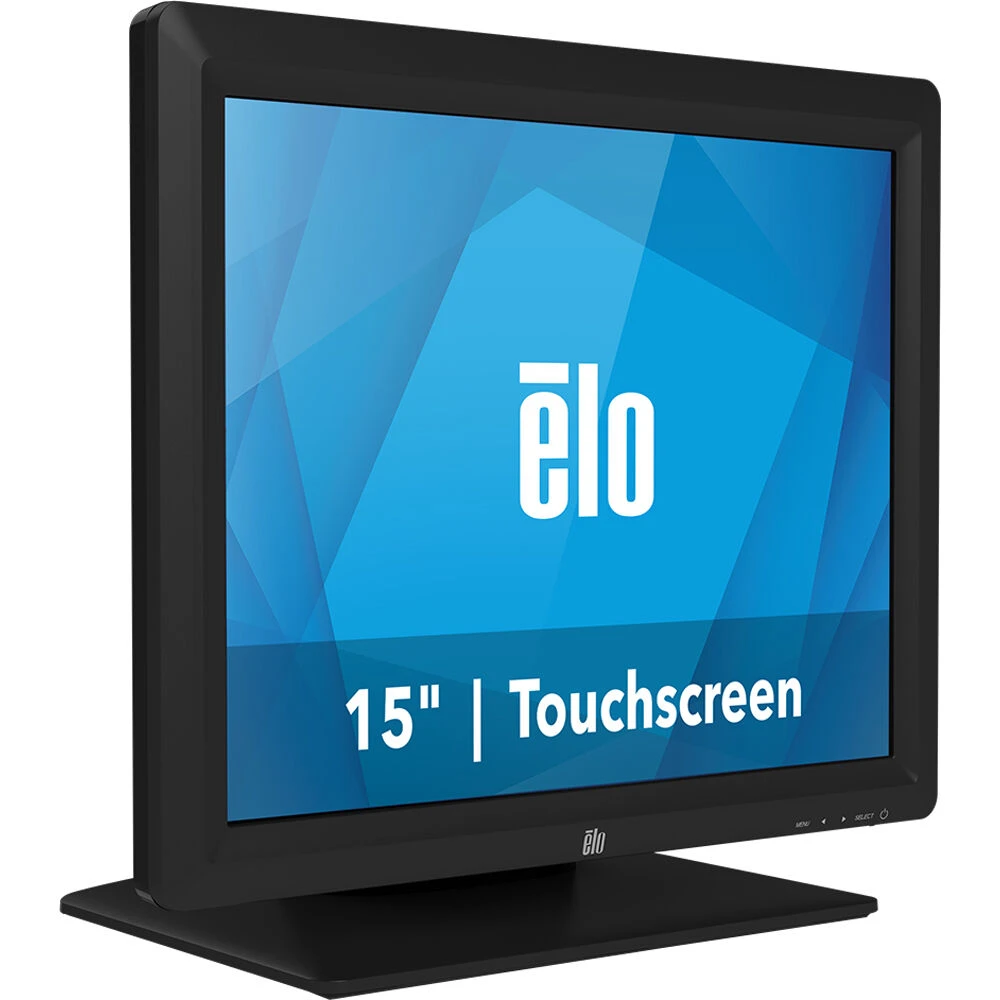

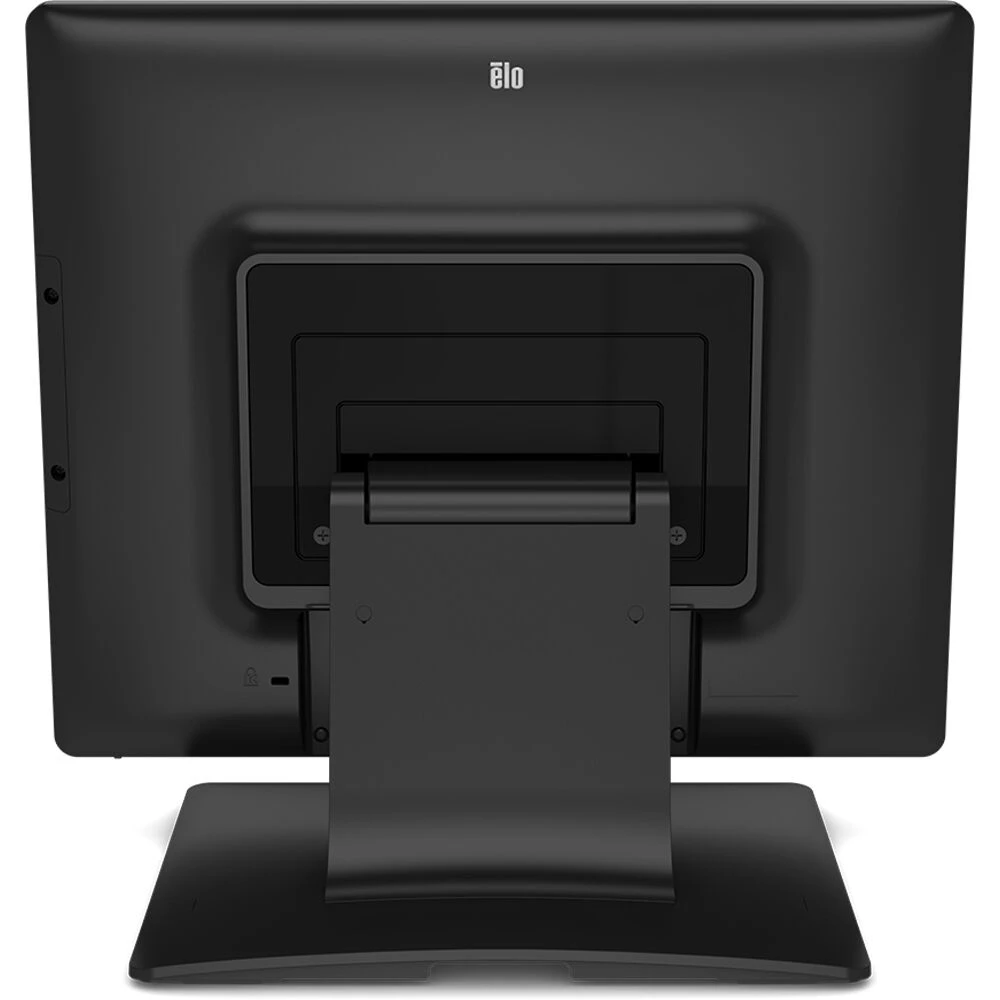

Elo Touch 1517L Overview
The Elo Touch 1517L E344758 IntelliTouch 15″ XGA Touchscreen Commercial Monitor is a 270 nits bright, single-point touch display, with retail focused features, that is well suited for applications like point-of-sale, information services, and interactive signage. Sources can be connected via HDMI or VGA, with USB or RS-232 for touch control. Additionally, this monitor can be powered by the included AC power cable, or with a separately available DC power adapter.
- Dual serial/USB touch interface
- Screen is sealed against dirt, dust, and liquid
- Mounting holes on stand bottom for tabletop security
- Power via internal AC power or optional external 12 VDC power supply
Items Included
- Elo Touch 1517L E344758 IntelliTouch 15″ XGA Touchscreen Commercial Monitor
- Power Cable
- VGA Cable
- USB Touch Cable
- 3 x Cable Tie Wrap
- Limited 3-Year Manufacturer Warranty
Additional Resources
User Manual
1.0 MB
Elo Touch 1517L Specs
| Display Size |
15″ |
| Native Resolution |
1024 x 768 |
| Maximum Brightness |
270 nits / cd/m2 |
| Touchscreen Technology |
Resistive |
| Inputs |
1x HDMI 1x DE-15/DB-15 (VGA) |
| Outputs |
No |
| Wireless |
No |
| USB I/O |
1x USB-B (Unspecified Version) (Touchscreen Control) |
| Ethernet I/O |
No |
| Other I/O |
1x DE-9/DB-9 Serial (RS-232C) Control Input |
| Built-In Speakers |
No |
| Media Card Reader |
No |
| Display Size |
15″ |
| Panel Type |
TFT LCD |
| Aspect Ratio |
4:3 |
| Display Orientation |
Landscape |
| Native Resolution |
1024 x 768 |
| Maximum Brightness |
270 nits / cd/m2 |
| HDR Support |
No |
| Contrast Ratio |
800:1 |
| Response Time |
23 ms |
| Color Support |
16.2 Million Colors (6-Bit+FRC) |
| Viewing Angle (H x V) |
160 x 150° |
| Screen Area |
11.97 x 8.98″ / 304.13 x 228.10 mm |
| Horizontal Frequency |
31.5 to 60 kHz |
| Vertical Frequency |
56 to 75 Hz |
| Pixels Per Inch (ppi) |
85 ppi |
| Touchscreen Technology |
Resistive |
| Multi-Touch Points |
1 |
| TV Tuner |
No |
| Inputs |
1x HDMI 1x DE-15/DB-15 (VGA) |
| Outputs |
No |
| Wireless |
No |
| NFC |
No |
| USB I/O |
1x USB-B (Unspecified Version) (Touchscreen Control) |
| Ethernet I/O |
No |
| Other I/O |
1x DE-9/DB-9 Serial (RS-232C) Control Input |
| Ambient Light Sensor |
No |
| Multi-Input Support (PIP/PBP) |
No |
| Built-In Speakers |
No |
| Mobile App Compatible |
No |
| Media Card Reader |
No |
| Built-In Mic |
No |
| Supported Languages |
English French German Italian Japanese Simplified Chinese Spanish Traditional Chinese |
| Power Consumption |
Operational: 10.5 W Standby: 1.4 W |
| Input Power |
12 VDC 100 to 240 VAC, 50 / 60 Hz |
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 80% Humidity |
| Storage Conditions |
-4 to 140°F / -20 to 60°C at 10 to 95% Humidity |
| Certifications |
cUL, IC, CCC, CE, UKCA, Kcc, BSMI, FCC, VCCI, CB, RCM, EAC, NOM, BIS, RoHS, WEEE |
| Mounting-Hole Pattern |
75 x 75 mm |
| Lighting Lifespan |
50000 Hours |
| Dimensions |
14.1 x 12.6 x 7.8″ / 358 x 319 x 197 mm (with Stand) 14.1 x 12.6 x 2″ / 357 x 319 x 50 mm (without Stand) |
| Weight |
9.5 lb / 4.3 kg (with Stand) |
