Elo Touch 1515L E700813 IntelliTouch 15″ XGA Touchscreen Commercial Monitor(Elo Touch 1515l E700813 Intellitouch 15 Xga Touchscreen Commercial Monitor)
Original price was: $361.00.$97.99Current price is: $97.99.
- Elevate Your Shopping Experience
- Product guarantee 100% satisfaction
- The quality solution for all your needs.
- Streamlined service, designed for your convenience.
Elo Touch 1515L Overview

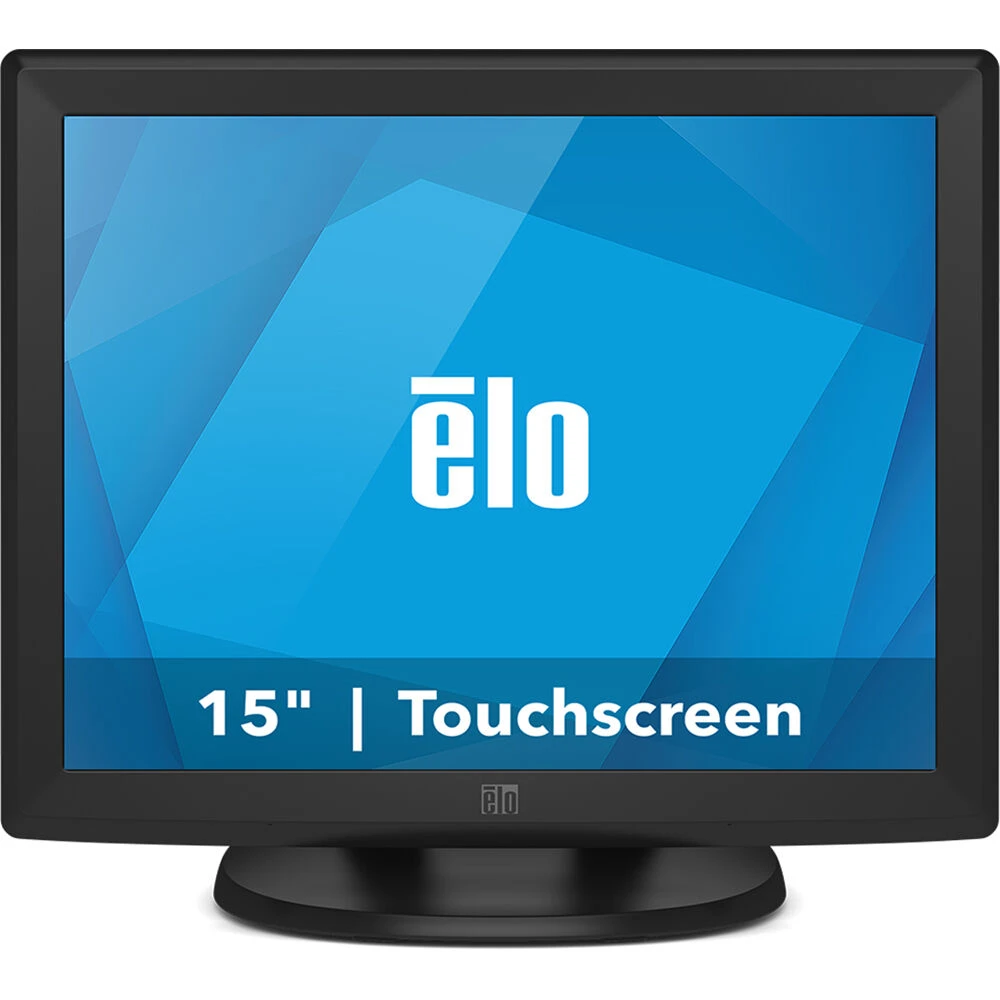

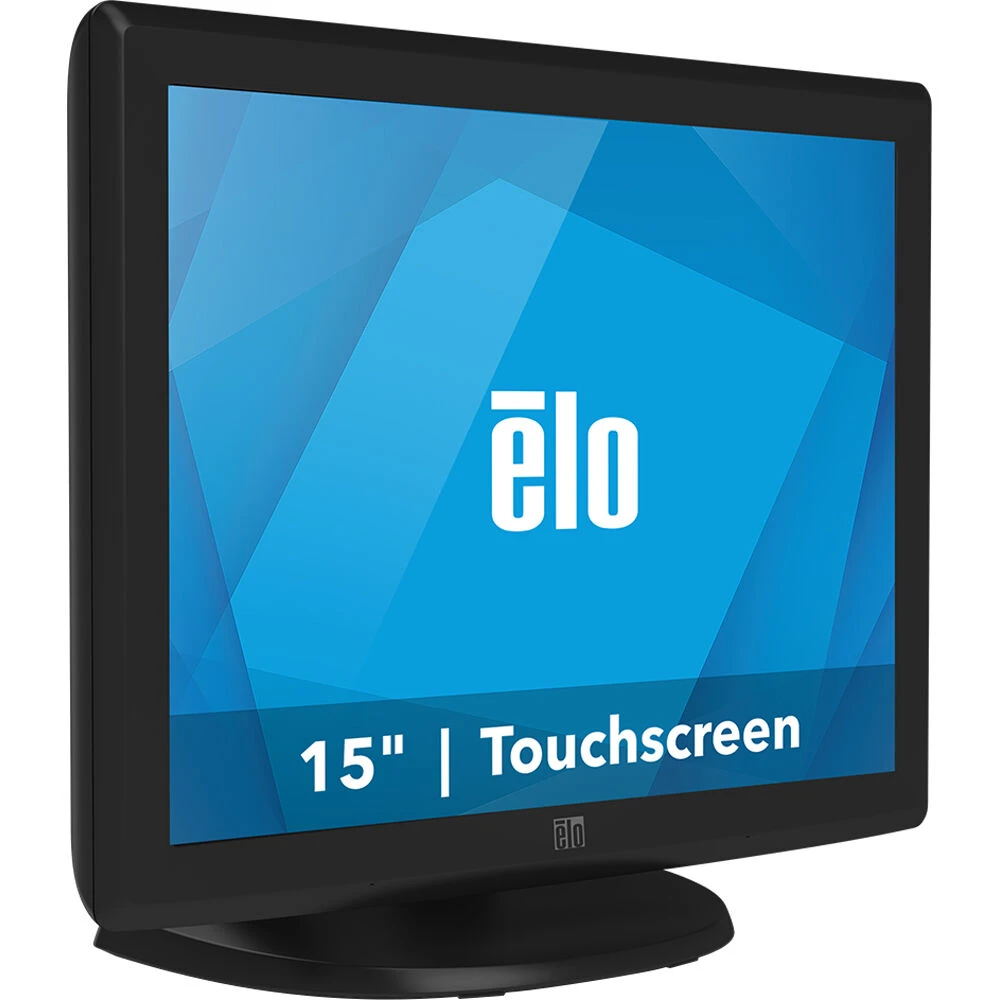

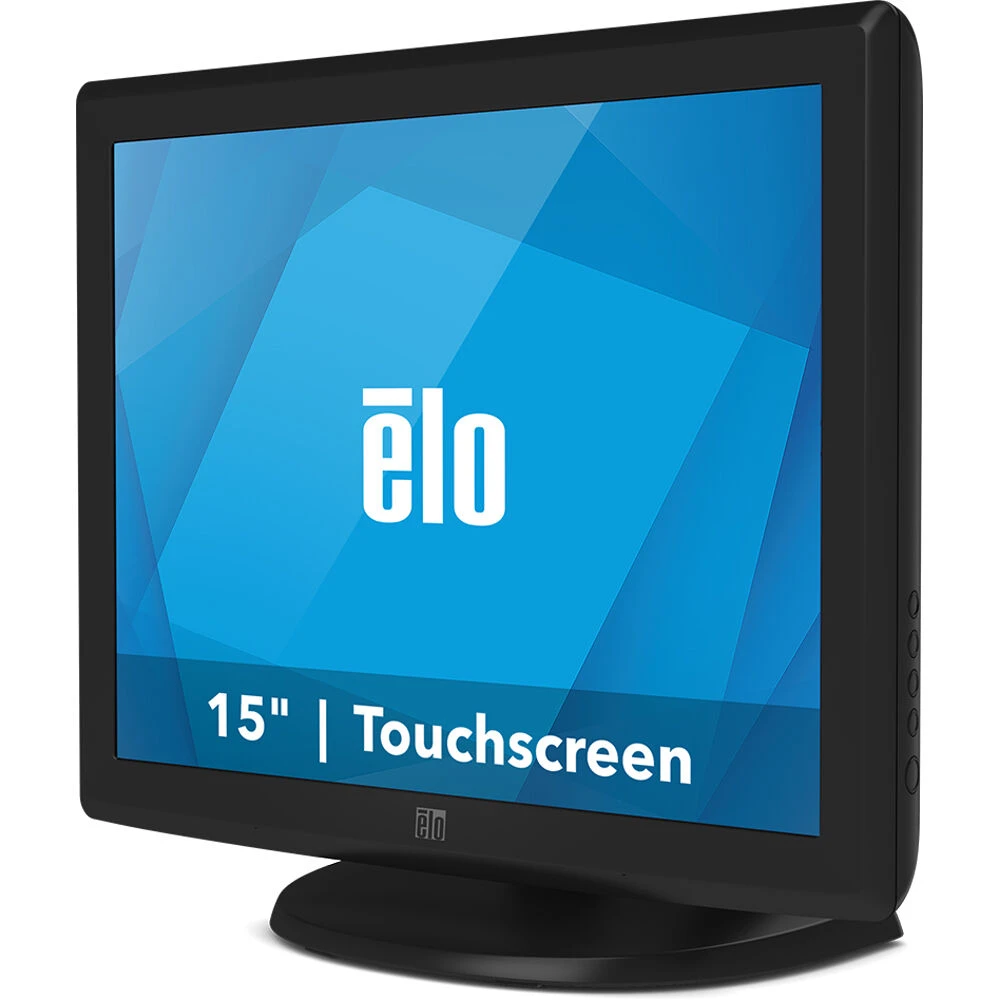

The Elo Touch 1515L E700813 IntelliTouch 15″ XGA Touchscreen Commercial Monitor is a compact and durable display, with single-point finger or glove-touch interactivity for professional applications, like point-of-sale or information services. The 1515L includes a stable base, side controls, and lock-out capability for public use. For added reliability in commercial environments the anti-glare touchscreen is sealed from dirt, dust, and liquid.
Integrated Touch
The 15-inch touchscreen monitor features IntelliTouch surface acoustic wave (SAW) technology with an anti-glare display and Dual/Serial USB ready for any retail or hospitality environment.
MSR Ready
The optional ergonomic three-track mag stripe reader (MSR) is easily installed providing an elegant, integrated solution. The MSR is available in two versions, USB with keyboard emulation, and USB with human interface device (HID) class specification 1.1.
Flexible Mounting

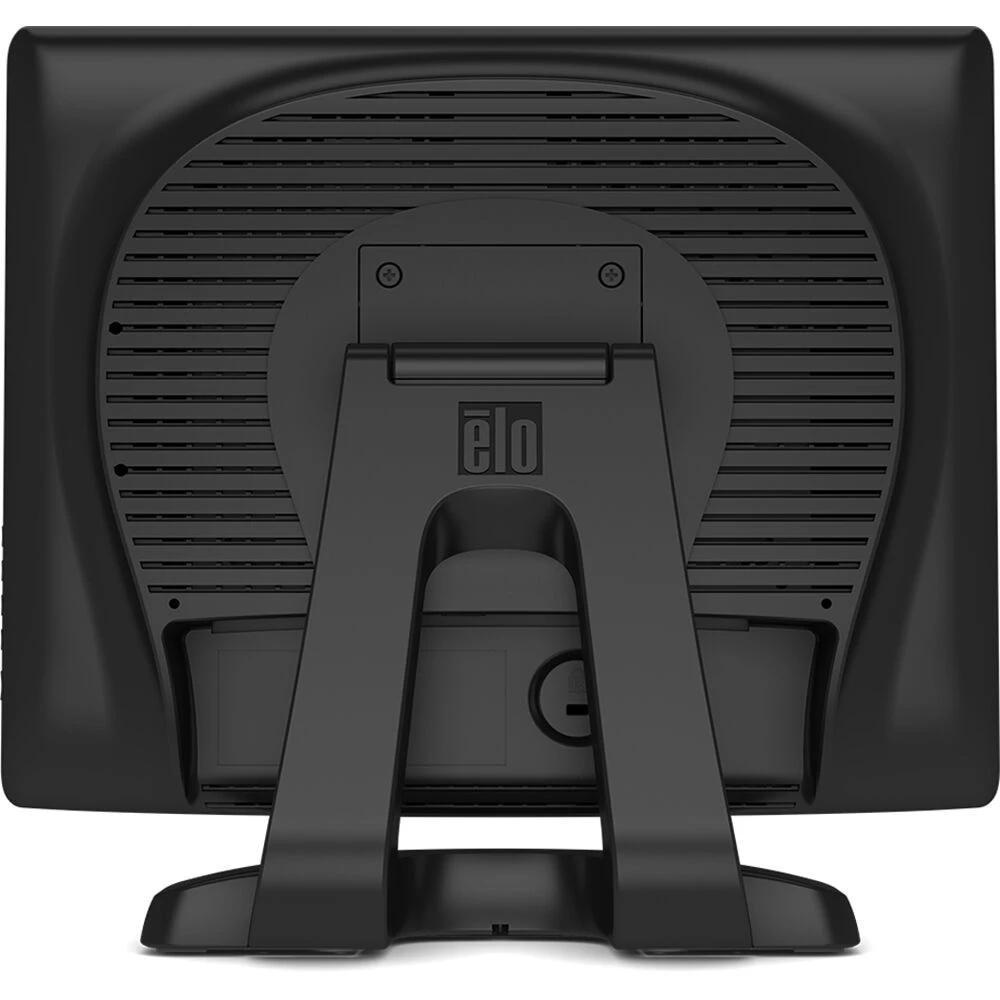

The Elo 1515L offers multiple mounting options to ensure installation flexibility, including wall and pole-mount via 75 x 75mm VESA mount as well as tabletop with the use of the included stand.
Commercial Grade
The 15-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by their three-year standard warranty. All ELO Touch products go through rigorous reliability testing (over 20 tests) to deliver 50,000 hours MTBF.
Additional Features
- Dual serial/USB touch interface
- Mounting holes on stand bottom for tabletop security
- Power via internal AC power or optional external 12VDC power supply
Items Included
- Elo Touch 1515L E700813 IntelliTouch 15″ XGA Touchscreen Commercial Monitor
- Power Cable
- VGA Cable
- USB Touch Cable
- 3 x Cable Tie Wraps
- Limited 3-Year Manufacturer Warranty
Additional Resources
User Manual
0.7 MB
Elo Touch 1515L Specs
Key Specs
| Display Size |
15″ |
| Native Resolution |
1024 x 768 |
| Maximum Brightness |
225 nits / cd/m2 |
| Touchscreen Technology |
Resistive |
| Inputs |
1x DE-15/DB-15 (VGA) |
| Outputs |
No |
| Wireless |
No |
| USB I/O |
1x USB-B (Unspecified Version) |
| Ethernet I/O |
No |
| Other I/O |
1x DE-9/DB-9 Serial (RS-232C) Control Input |
| Built-In Speakers |
No |
| Media Card Reader |
No |
Display
| Display Size |
15″ |
| Panel Type |
TFT LCD |
| Aspect Ratio |
4:3 |
| Display Orientation |
Landscape |
| Native Resolution |
1024 x 768 |
| Maximum Brightness |
225 nits / cd/m2 |
| HDR Support |
No |
| Contrast Ratio |
800:1 |
| Response Time |
8 ms |
| Color Support |
16.2 Million Colors (6-Bit+FRC) |
| Viewing Angle (H x V) |
160 x 150° |
| Screen Area |
12.0 x 9.0″ / 304 x 228 mm |
| Horizontal Frequency |
31.5 to 60.2 kHz |
| Vertical Frequency |
56.3 to 75 Hz |
| Pixels Per Inch (ppi) |
85 ppi |
| Finish |
Anti-Glare / Matte |
Surface
| Touchscreen Technology |
Resistive |
| Multi-Touch Points |
1 |
Video
| TV Tuner |
No |
Connectivity
| Inputs |
1x DE-15/DB-15 (VGA) |
| Outputs |
No |
| HDCP Support |
No |
| Wireless |
No |
| NFC |
No |
| USB I/O |
1x USB-B (Unspecified Version) |
| Ethernet I/O |
No |
| Other I/O |
1x DE-9/DB-9 Serial (RS-232C) Control Input |
| Ambient Light Sensor |
No |
| Multi-Input Support (PIP/PBP) |
No |
| Built-In Speakers |
No |
Hardware
| Mobile App Compatible |
No |
| Media Card Reader |
No |
| Built-In Mic |
No |
| Supported Languages |
English French German Italian Japanese Simplified Chinese Spanish Traditional Chinese |
Electrical
| Power Consumption |
Operational: 9.6 W Standby: 1.3 W |
| Input Power |
12 VDC 100 to 240 VAC, 50 / 60 Hz |
General
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 80% Humidity |
| Storage Conditions |
-4 to 140°F / -20 to 60°C at 10 to 95% Humidity |
| Certifications |
cUL, IC, CCC, CE, UKCA, Kcc, BSMI, FCC, VCCI, CB, RCM, EAC, NOM, BIS, RoHS, WEEE, REACH |
| Mounting-Hole Pattern |
75 x 75 mm |
| Lighting Lifespan |
50000 Hours |
| Dimensions |
13.8 x 12.2 x 6.9″ / 350 x 310 x 175 mm (with Stand) 13.8 x 11 x 2.2″ / 350 x 280 x 55 mm (without Stand) |
| Weight |
10.6 lb / 4.8 kg (with Stand) |
