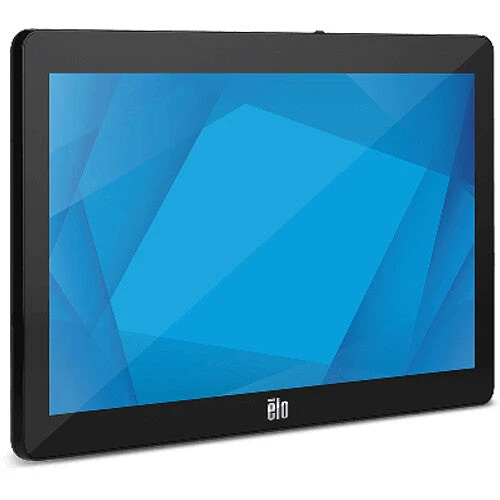

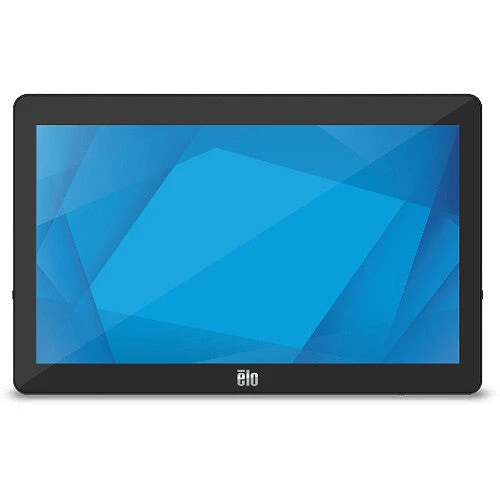

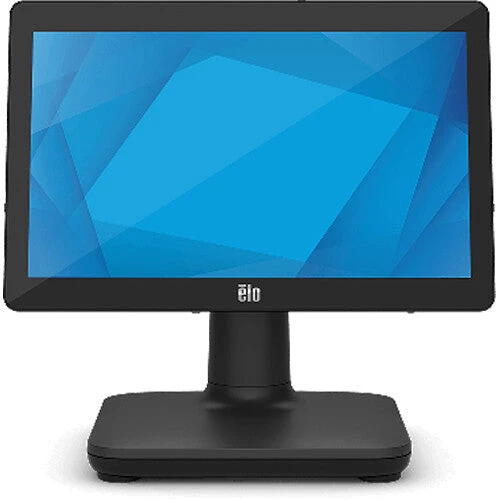

Enhance your retail business with the highly versatile 15.6″ EloPOS E440234 Multi-Touch All-In-One Desktop Computer from Elo. Purpose-built specifically for point-of-sale (POS) industries such as retail, hospitality, and entertainment, this stylish all-in-one system features a 15.6″ 1366 x 768 HD resolution touchscreen display that can be adapted for traditional POS applications or customer-facing self-service display. Inside is a 2 GHz Intel Celeron J4125 quad-core processor with 4GB of DDR4 memory and a 128GB M.2 SATA solid-state drive that can reliably run a variety of retail applications. Both its screen and its included stand have multiple connection ports available for separately purchased peripherals such as a payment reader, printer, cash drawer, barcode scanner, or scale. Use the included adapter to convert a designated RJ45 port to a serial port.
With Wi-Fi 5 (802.11ac) support, EloPOS E440234 may be connected to compatible high-speed wireless networks. Alternatively, you can connect directly to a wired network through its Gigabit Ethernet port. Windows 10 IoT Enterprise 64-bit is preinstalled on the system.
2 x USB 2.0 Type-A
4 x Micro-USB 2.0
1 x USB 3.1 Gen 1 Type-C
2 x RJ45 serial ports
In the Box
- Elo Touch 15.6″ EloPOS E440234 Multi-Touch All-In-One Desktop Computer
- North American Power Cable
- EU Power Cable
- Power Adapter (180W)
- RJ45 to DB9 Cable
- Cable Cover Locking Screw
- Description
- Elo Edge Connect
- High Connectivity
- Durable Design
- Add a Customer-Facing Display
- USB 3.1 Gen 1
Elo Touch E440234 Specs
| Operating System | Windows 10 IoT Enterprise (64-Bit) |
| Processor | Intel Celeron J4125 |
| CPU | 2 to 2.7 GHz Quad-Core |
| L3 Cache | 4 MB |
| Graphics Type | Integrated |
| GPU | Intel UHD Graphics 600 |
| Memory Type | 2666 MHz DDR4 |
| Total Installed Memory | 4 GB |
| Memory Configuration | 1 x 4 GB (User-Replaceable) |
| Maximum Memory Capacity | 8 GB |
| Memory Slot Type | 260-Pin SO-DIMM |
| Memory Slots | 2 (1 Available) |
| Buffered Memory | No |
| ECC Memory | No |
| Panel Type | LCD |
| Size | 15.6″ |
| Aspect Ratio | 16:9 |
| Resolution | 1366 x 768 |
| Touchscreen | Yes |
| Finish | Anti-Glare / Matte |
| Maximum Brightness | 220 cd/m2 |
| Refresh Rate | 60 Hz |
| Contrast Ratio | 400:1 |
| Response Time | 10 ms |
| Variable Refresh Technology | None |
| Viewing Angle (H x V) | 90 x 50° |
| SSD Slots | 1 x M.2 SATA (In Use) |
| Total Installed Capacity | 128 GB |
| Solid State Storage | 1 x 128 GB M.2 SATA |
| Optical Drive | None |
| Ports |
3 x USB-A 3.0 / 3.1/3.2 Gen 1 2 x USB-A 2.0 4 x Micro-USB 2.0 |
| USB Type-C | 1 x USB 3.0 / 3.1/3.2 Gen 1 (Supports DisplayPort and 27 W Power Delivery) |
| Audio I/O | 1 x 1/8″ / 3.5 mm Headphone Output |
| Built-In Speakers | 2 x 2 W |
| Built-In Microphones | None |
| Media/Memory Card Slot | None |
| Ethernet | 1 x RJ45 (Gigabit) |
| Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) |
| Bluetooth | 5.0 |
| NFC | No |
| Webcam | None |
| Keyboard | None |
| Pointing Device | Touchscreen |
| Security | Dedicated Hardware TPM Security Chip |
| Power Supply | 180 W with Barrel/Proprietary |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Operating Temperature | 32 to 95°F / 0 to 35°C |
| Operating Humidity | 20 to 80% |
| Mounting-Hole Pattern | 75 x 75 mm |
| Dimensions | 15.2 x 14.5 x 8.7″ / 386.2 x 369.3 x 221.2 mm |
| Weight | 10.8 lb / 4.9 kg |
| Package Weight | 15.33 lb |
| Box Dimensions (LxWxH) | 18.1 x 17.8 x 11.6″ |
