ELAC DB63 Overview

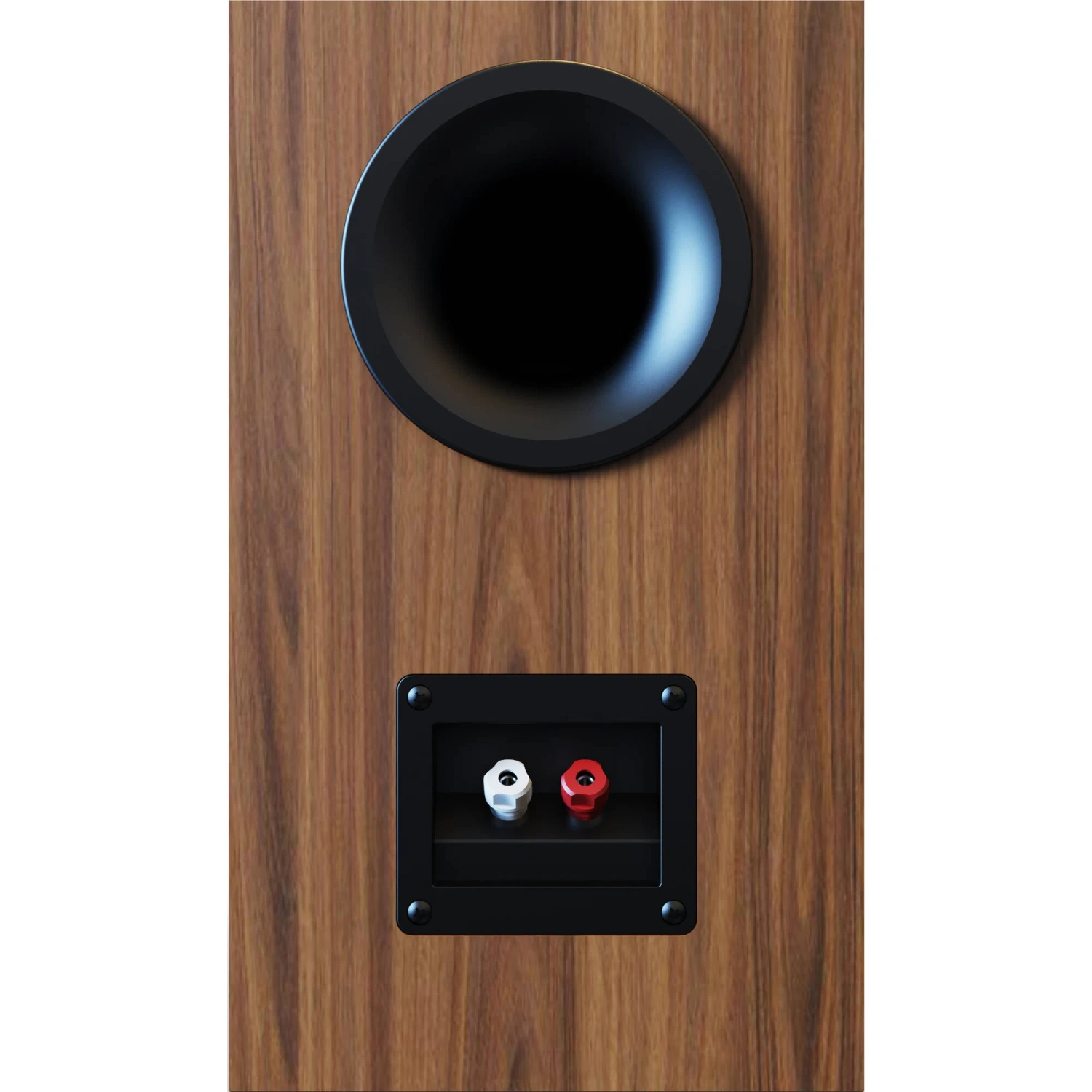

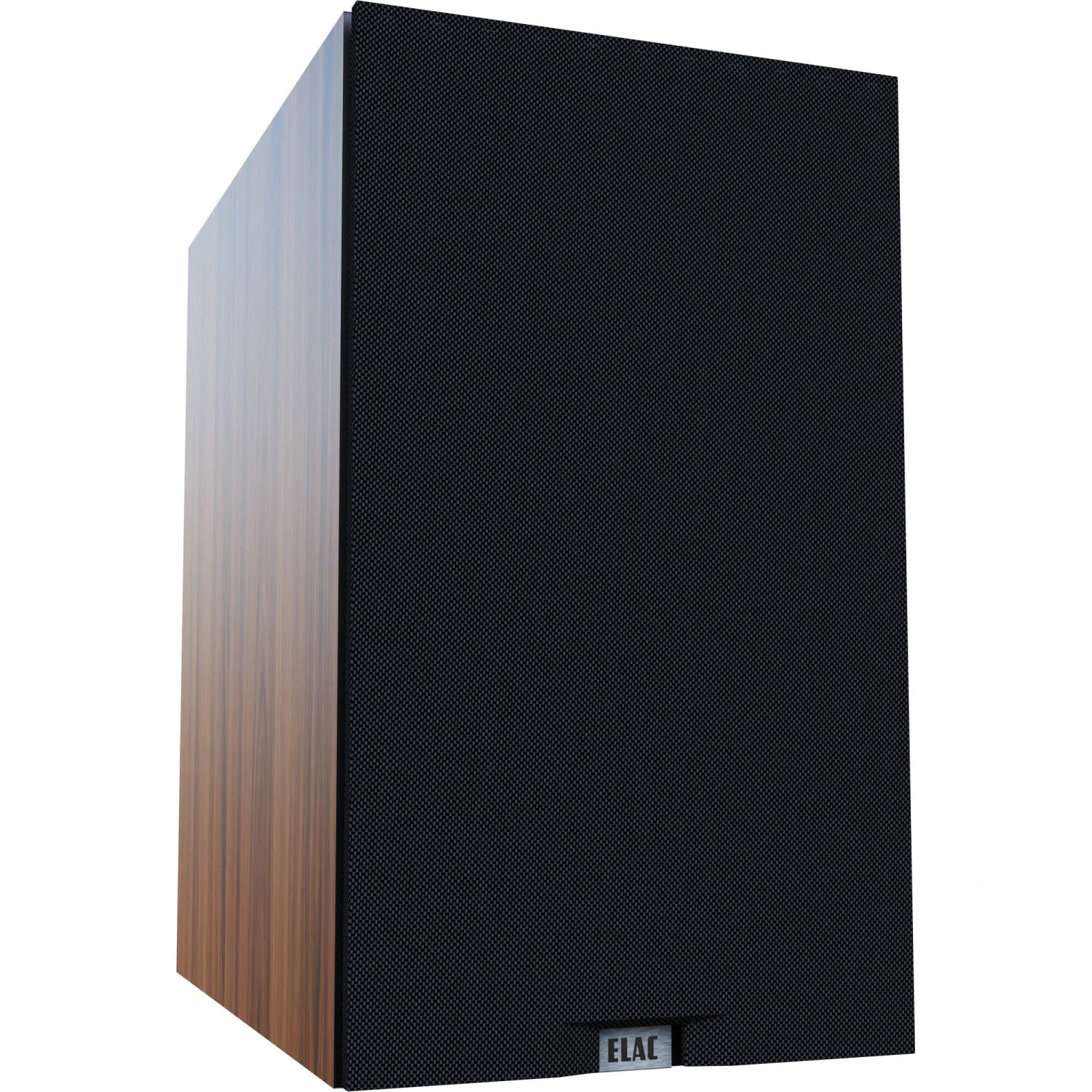

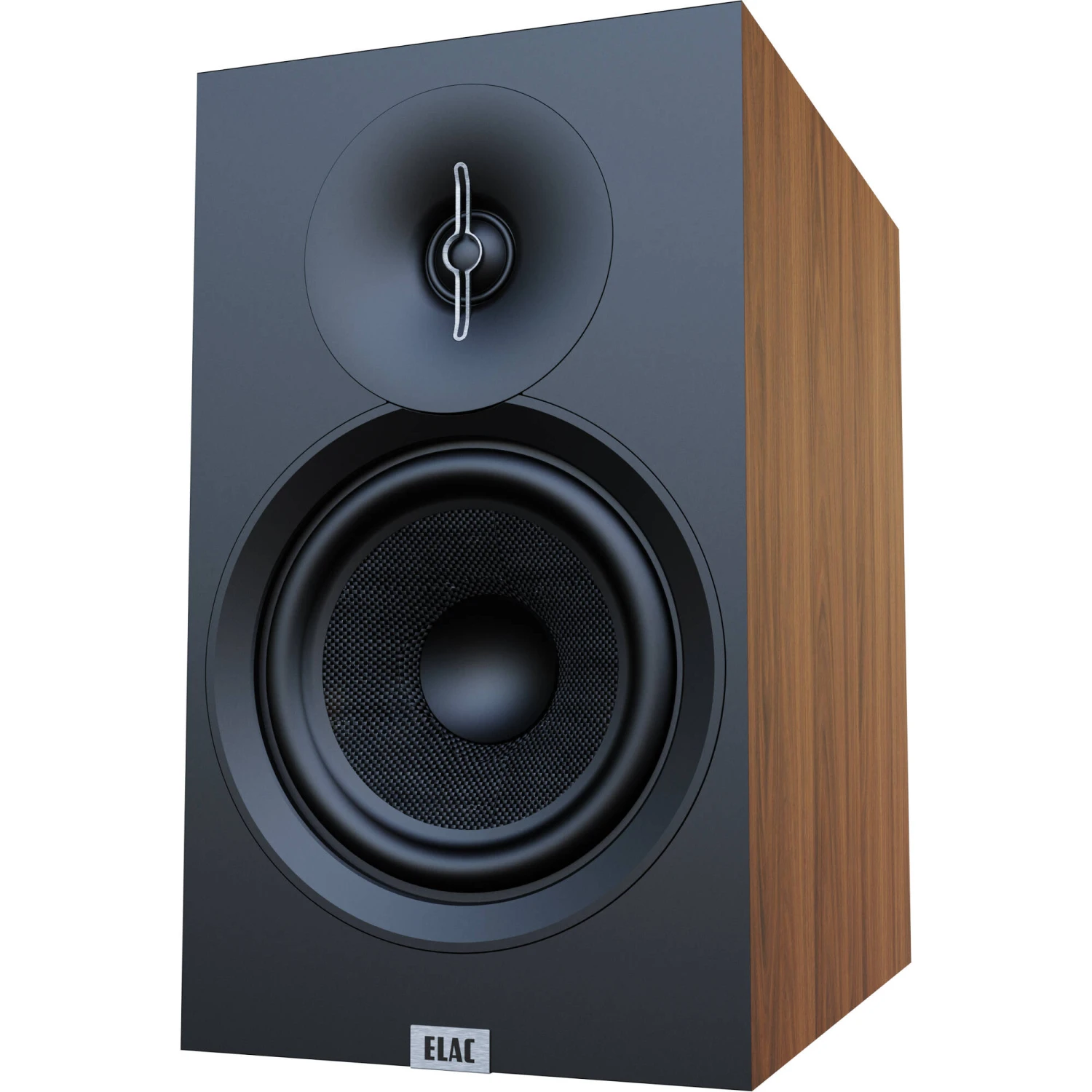

Experience exceptional style and sound without breaking the bank with the ELAC Debut 3.0 DB63 Bookshelf 2-Way Speakers. The DB63 features a 2-way speaker design, with a 6.5″ aramid fiber mid/bass woofer, and ELAC’s bespoke 1″ aluminum dome tweeter. The bass-reflex design uses a flared rear-firing port to enhance low frequencies and reduce distortion. Constructed from durable walnut finished MDF, with a magnetic grille, and rubber feet, the DB63 speakers provide high-quality sound and aesthetics for stereo and surround sound applications.
Items Included
- ELAC Debut 3.0 DB63 Bookshelf 2-Way Speakers (Walnut, Pair)
- 4 x Rubber Feet
- Limited 3-Year Manufacturer Warranty
Additional Resources
User Manual
1.4 MB
ELAC DB63 Specs
| Speaker Configuration |
2-Way |
| Power Handling |
60 W RMS per Channel 80 W Peak per Channel |
| Drivers |
1x 1″ / 25.4 mm Aluminum Dome Tweeter (per Speaker) 1x 6.5″ / 165.1 mm Woven Aramid-Fiber/Kevlar Cone Mid-Woofer (per Speaker) |
| Frequency Response |
42 Hz to 38 kHz (-6 dB) 50 Hz to 34 kHz (-3 dB) |
| Inputs/Outputs |
5-Way Binding Post Pair Input |
| Speaker Configuration |
2-Way |
| Power Handling |
60 W RMS per Channel 80 W Peak per Channel |
| Recommended Amplifier Power |
20 to 140 W per Channel |
| Drivers |
1x 1″ / 25.4 mm Aluminum Dome Tweeter (per Speaker) 1x 6.5″ / 165.1 mm Woven Aramid-Fiber/Kevlar Cone Mid-Woofer (per Speaker) |
| Passive Radiators |
No |
| Enclosure Type |
Bass-Reflex |
| Ports |
1x Rear-Firing (per Speaker) |
| Frequency Response |
42 Hz to 38 kHz (-6 dB) 50 Hz to 34 kHz (-3 dB) |
| Impedance |
6 Ohms |
| Magnetic Shielding |
No |
| Inputs/Outputs |
5-Way Binding Post Pair Input |
| Crossover |
High-Pass: 2000 Hz |
| Sensitivity |
87 dB |
| Color |
Walnut Woodgrain |
| Environmental Resistance |
No |
| Placement & Mounting Options |
Tabletop/Bookshelf (with Included Hardware) |
| Floor Contacts |
Rubber Feet (Adjustable) |
| Cabinet Material |
MDF |
| Grille |
Cloth (Removable) |
| Dimensions |
7.7 x 13.3 x 11.7″ / 195 x 339 x 298 mm (Each) |
| Weight |
17.3 lb / 7.8 kg (Each) |
| Package Weight |
40.7 lb |
| Box Dimensions (LxWxH) |
20.8 x 17.3 x 15.9″ |
