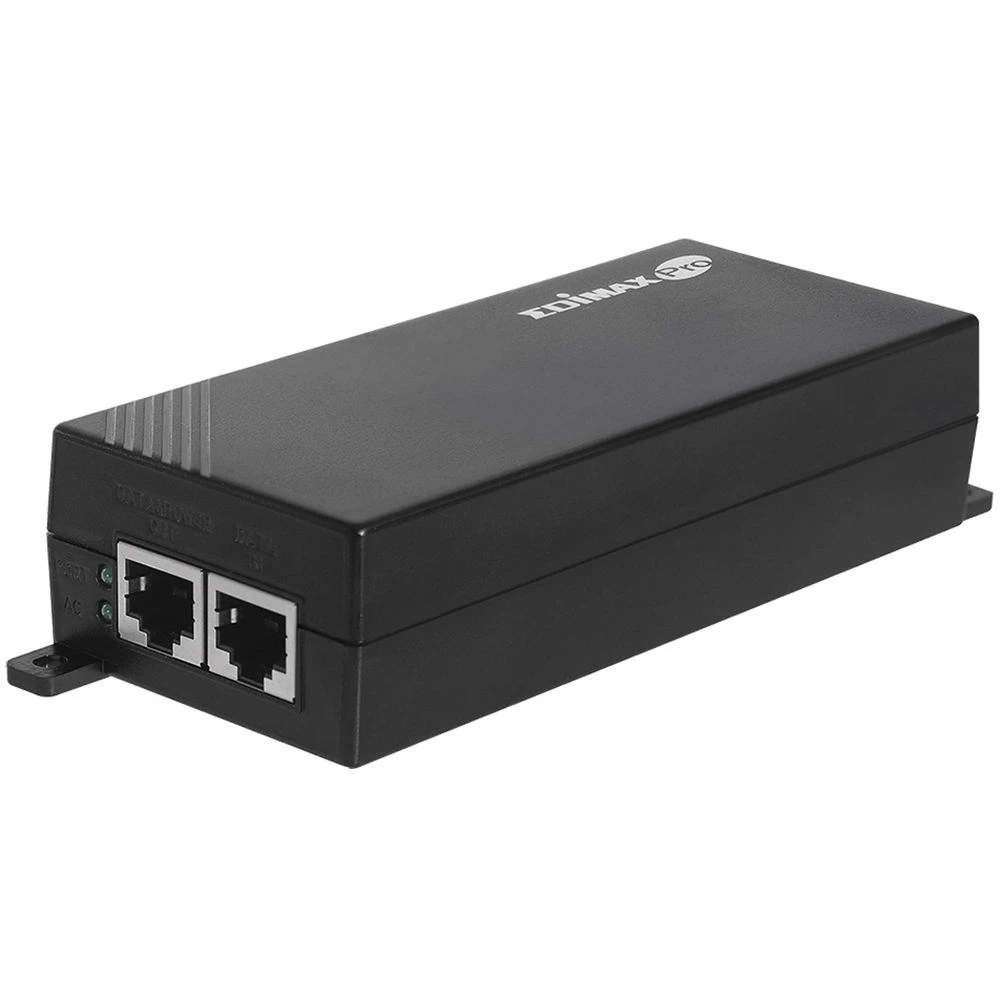

EDIMAX Technology GP-101IT IEEE 802.3at Gigabit PoE+ Injector(Edimax Technology Gp 101it Ieee 802 3at Gigabit Poe Injector)

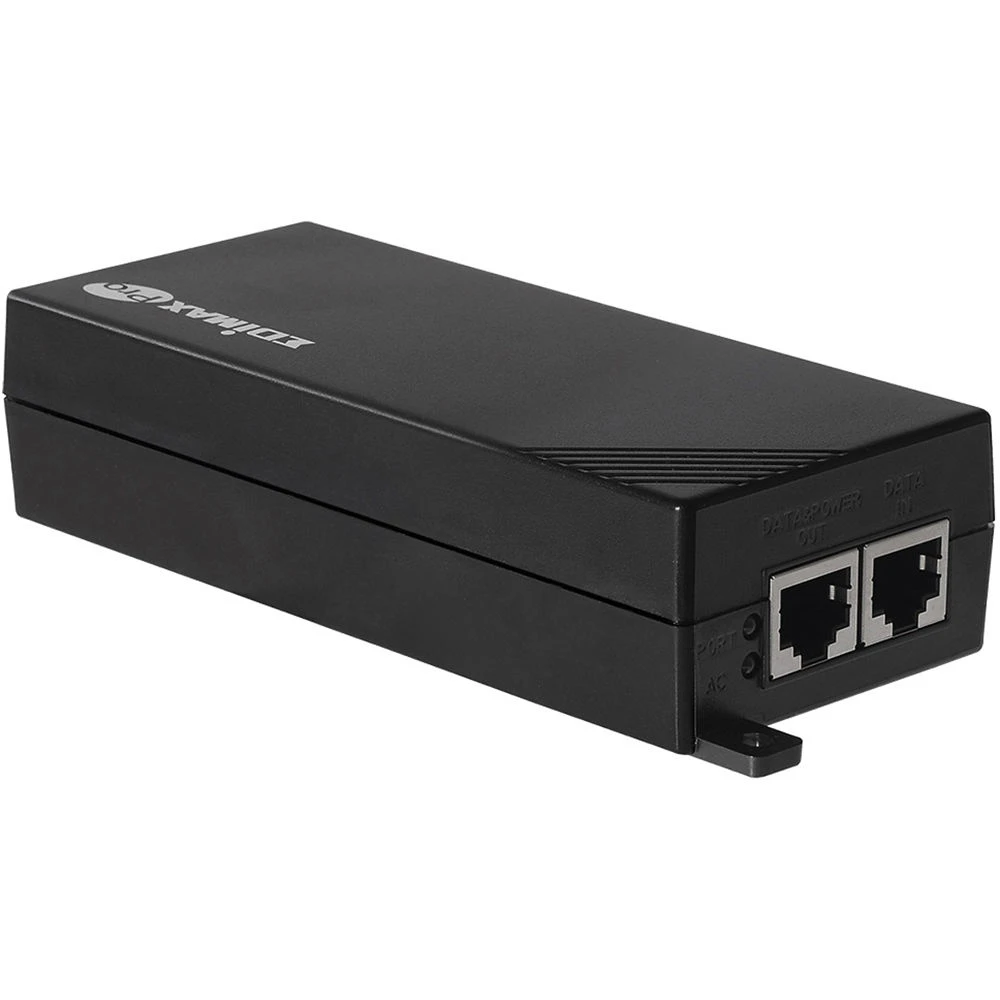

EDIMAX Technology GP-101IT IEEE 802.3at Gigabit PoE+ Injector(Edimax Technology Gp 101it Ieee 802 3at Gigabit Poe Injector) - Image 2

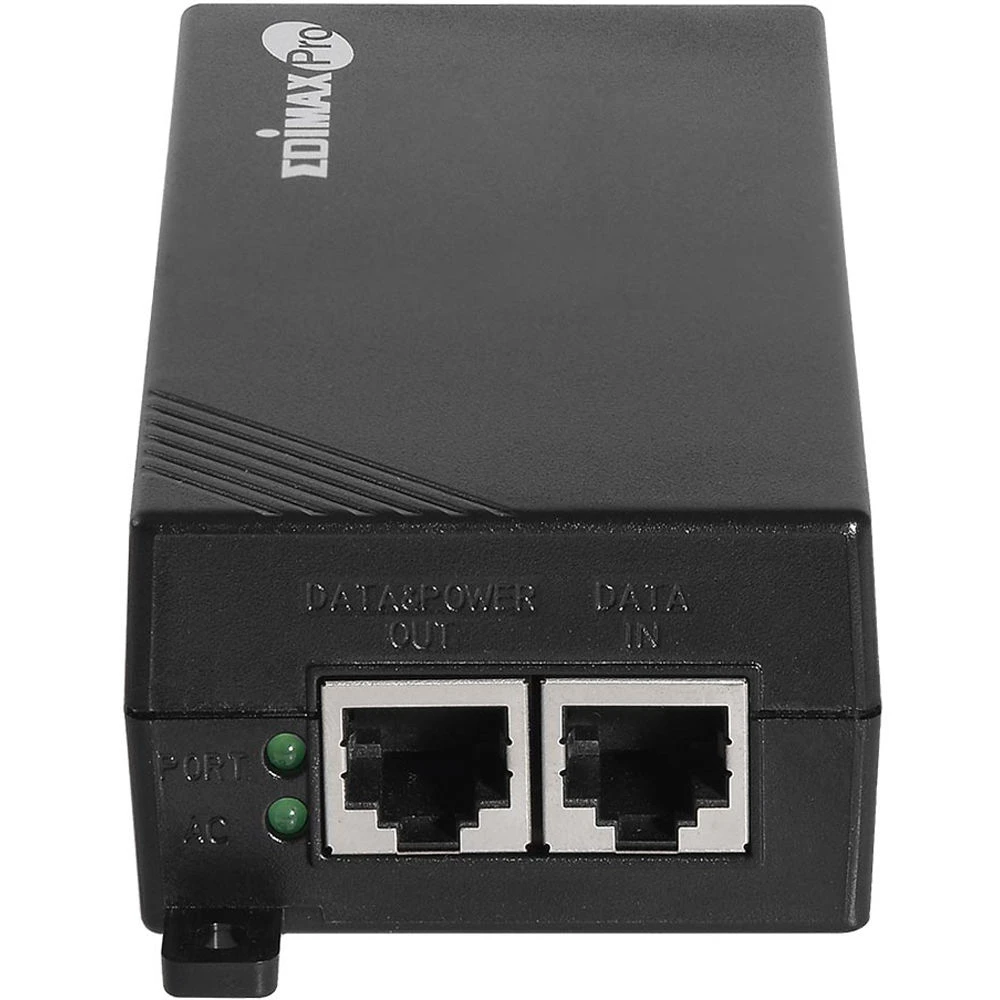

EDIMAX Technology GP-101IT IEEE 802.3at Gigabit PoE+ Injector(Edimax Technology Gp 101it Ieee 802 3at Gigabit Poe Injector) - Image 3

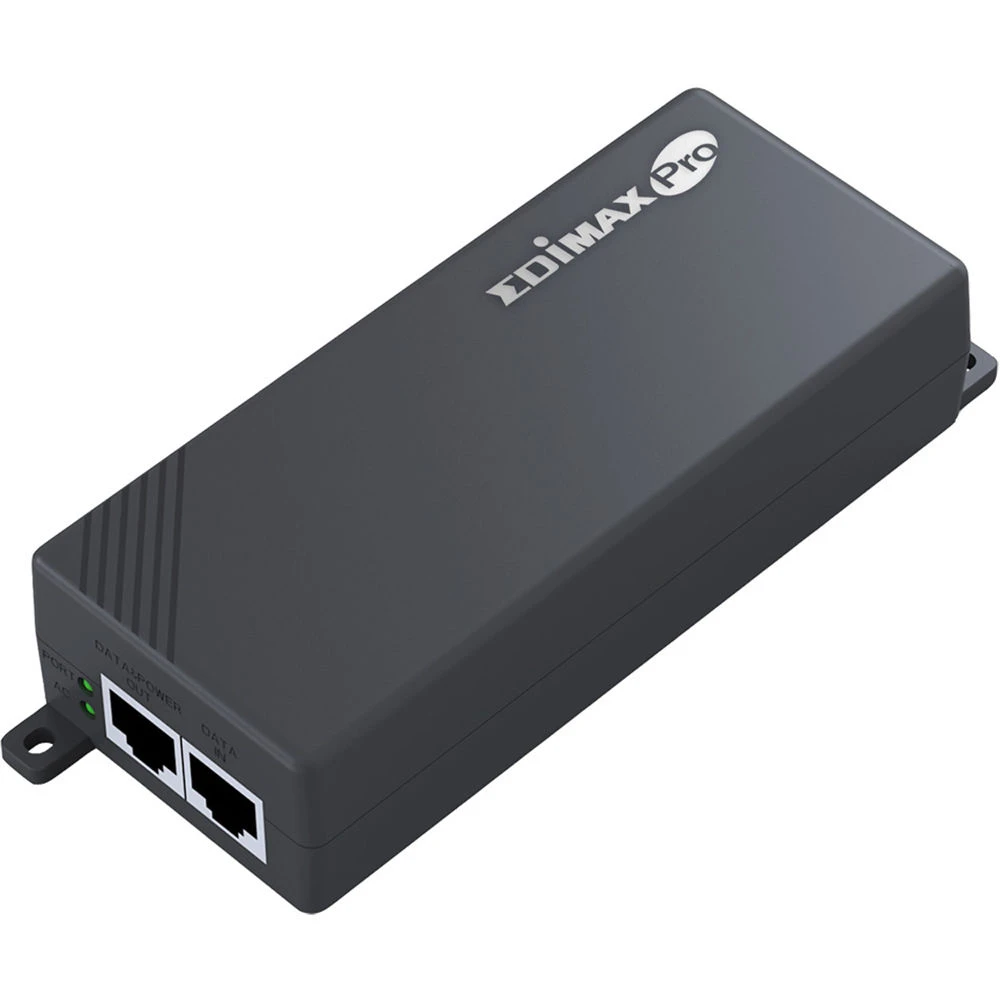

EDIMAX Technology GP-101IT IEEE 802.3at Gigabit PoE+ Injector(Edimax Technology Gp 101it Ieee 802 3at Gigabit Poe Injector) - Image 4

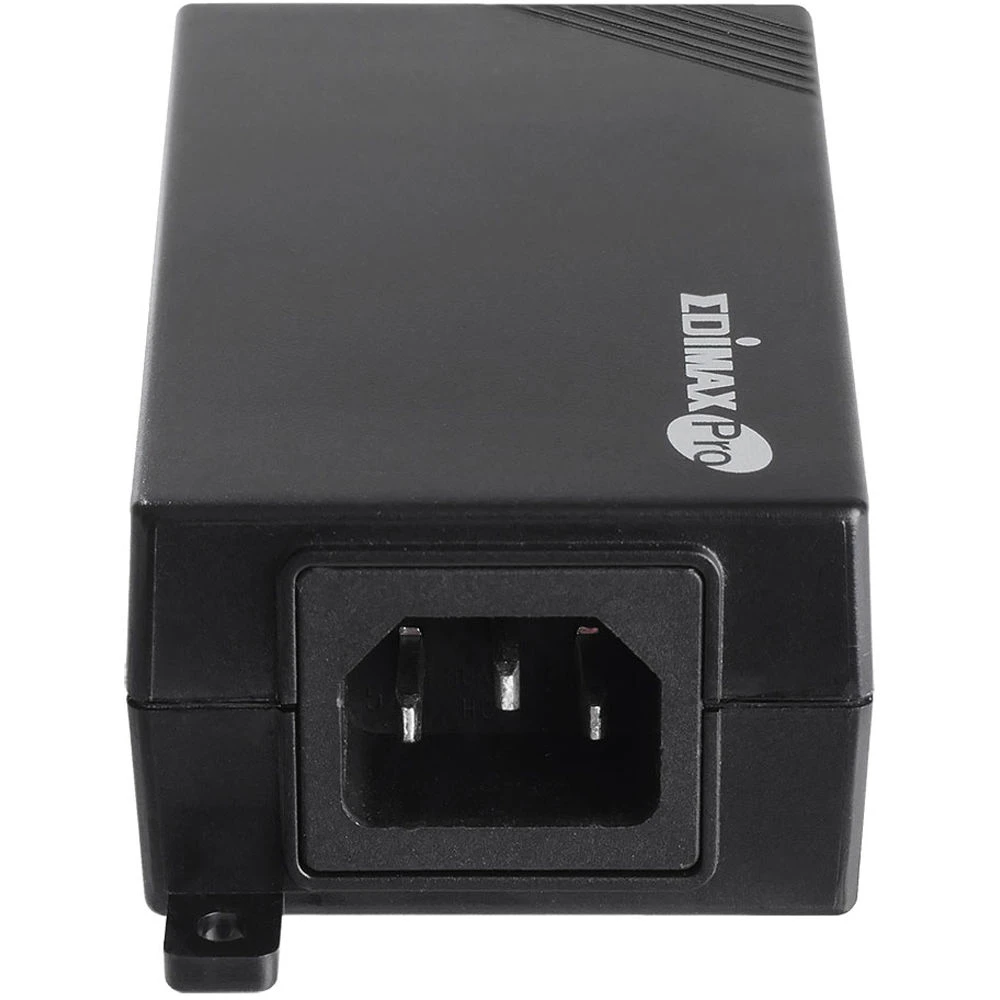

EDIMAX Technology GP-101IT IEEE 802.3at Gigabit PoE+ Injector(Edimax Technology Gp 101it Ieee 802 3at Gigabit Poe Injector) - Image 5

EDIMAX Technology GP-101IT IEEE 802.3at Gigabit PoE+ Injector(Edimax Technology Gp 101it Ieee 802 3at Gigabit Poe Injector)

Original price was: $105.20.Current price is: $73.64.

SKU: DGFUB 6899192561749 Categories: Optics & Surveillance, Surveillance Video, Surviellance Tags: Power over Ethernet (PoE), Surveillance, Surveillance Video, Wired Networking

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

EDIMAX Technology GP-101IT Overview

1Description
2IEEE 802.3at/af PoE Standard
3Designed for Cost Efficiency and Easy Installation
4Flexible & Reliable Power Supply

The IEEE 802.3at Gigabit PoE+ Injector from EDIMAX Technology is a Power-over-Ethernet injector for power distribution with seamless deployment on existing LAN infrastructure. With the use of power injectors and DC power of up to 30W, the data that comes from a non-PoE switch or router is transmitted via Ethernet cabling to IEEE 802.3at/af compliant products (such as PoE dome cameras).

IEEE 802.3at/af PoE Standard

The GP-101IT can connect to any IEEE 802.3at/af end nodes where IEEE 802.3at/af in-line PoE is supported, such as PTZ network cameras, Voice over IP (VoIP) telephones, and multi-channel wireless LAN access points.

Designed for Cost Efficiency and Easy Installation

PoE technology enables an Ethernet wire to carry both data and power, so the GP-101IT reduces the need for cables for installation and eliminates the need for extension cords.

Flexible & Reliable Power Supply

Features PoE short circuit protection to safeguard network devices and protect against damage.

UPC: 649659020733

In the Box

EDIMAX Technology GP-101IT IEEE 802.3at Gigabit PoE+ Injector
Power Cord

Table of Contents

Description
IEEE 802.3at/af PoE Standard
Designed for Cost Efficiency and Easy Installation
Flexible & Reliable Power Supply

EDIMAX Technology GP-101IT Specs

Type

Injector

General

Inputs/Outputs	1 x RJ45 (Input) 1 x RJ45 PoE (Output)
Supported IEEE Standards	802.3ab, 802.3af, 802.3at, 802.3u

Electrical

PoE Power	53 VDC at 0.6 A
Power Consumption	30 W (Maximum)
AC Input Power	100 to 240 VAC, 50 / 60 Hz at 0.6 A

Environmental

Operating Temperature	32 to 72°F / 0 to 40°C
Operating Humidity	10 to 90%
Storage Temperature	-40 to 158°F / -40 to 70°C
Storage Humidity	5 to 90%
Certifications	CE, FCC *as per Manufacturer

Physical

Maximum Operating Distance	328.08′ / 100 m
LED Indicators	Yes
Wall Mountable	Yes
Dimensions	6.1 x 2.3 x 1.4″ / 155.0 x 58.0 x 36.0 mm
Weight	0.41 lb / 185 g

Packaging Info

Package Weight	1.04 lb
Box Dimensions (LxWxH)	7.9 x 5.5 x 2.6″
