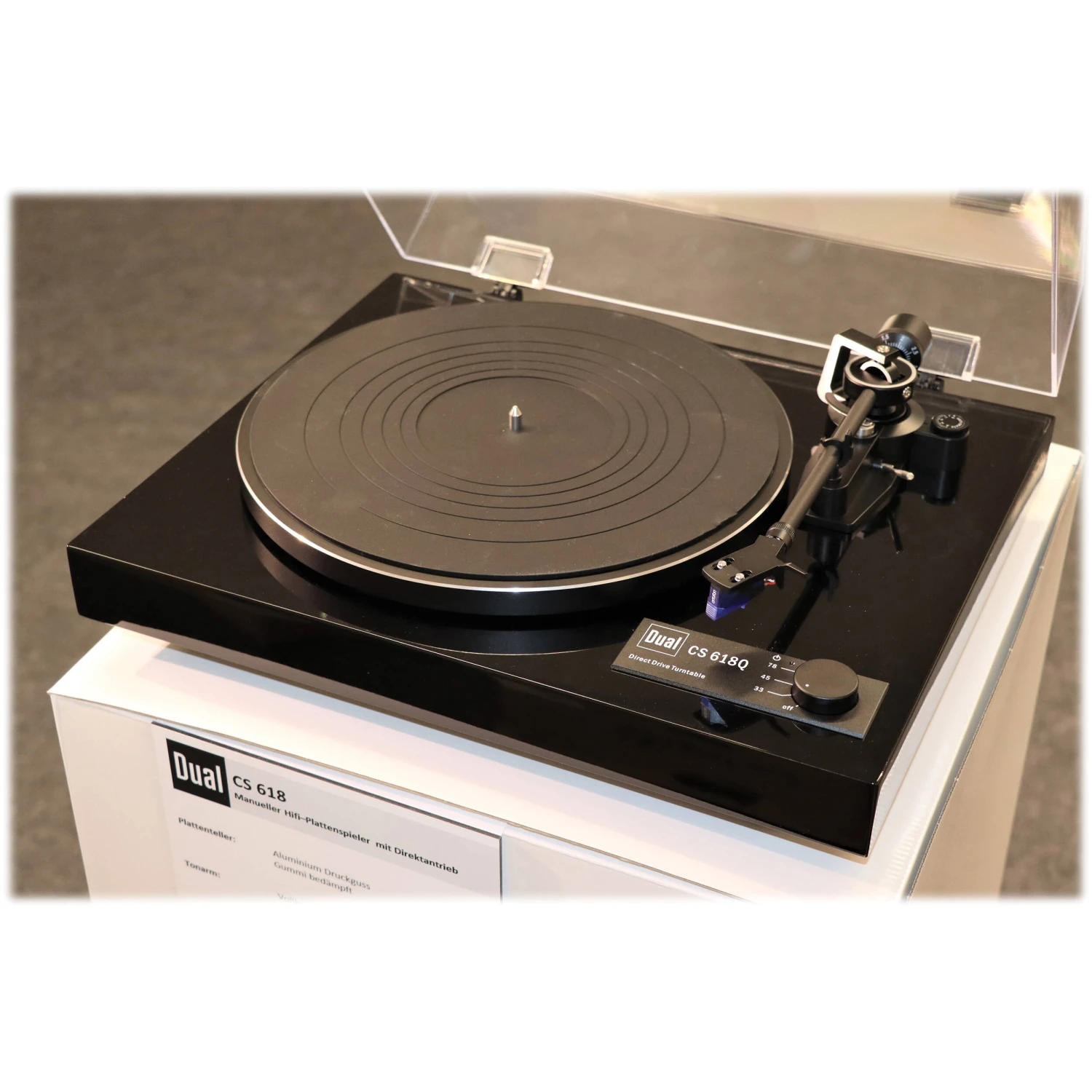

Enjoy your 33 1/3, 45, and 78 rpm vinyl records with your stereo system and the black vinyl veneer Dual Electronics CS 618Q Manual Three-Speed Turntable. It features a die-cast aluminum platter and a solid aluminum tonearm in a twin-gimbal mount with the Ortofon 2M Blue cartridge. The turntable has a stereo RCA output with a ground screw that works with nearly any audio system thanks to its built-in switchable preamp. A hinged dustcover is included as an added convenience.
- Elastomer vibration absorber integrated inside the feet
- Removable dustcover

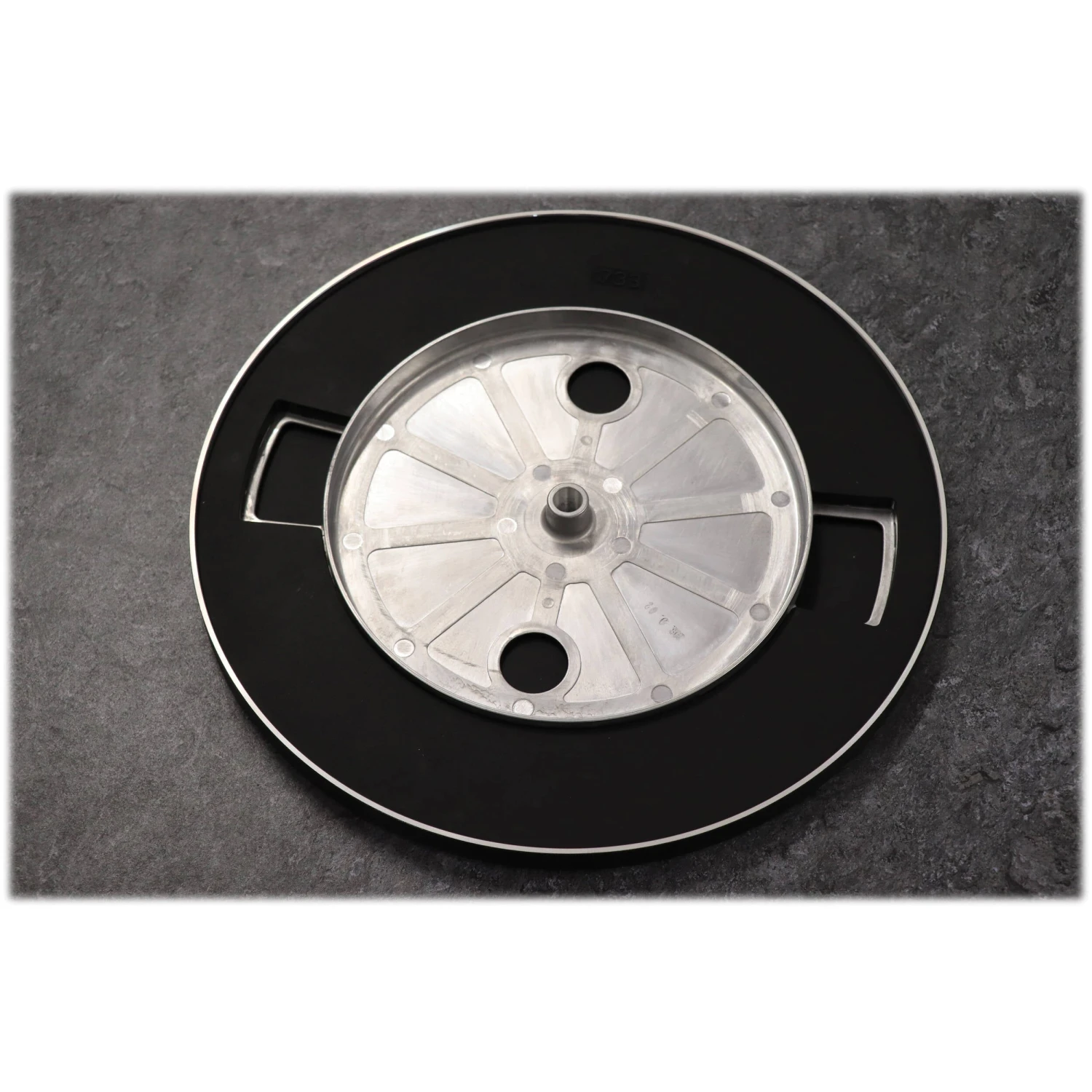

- Heavy 3.2 lb die-cast aluminum platter
- Heavy rubber mat for resonance damping
- Hardened steel spindle integrated into the drive mechanism

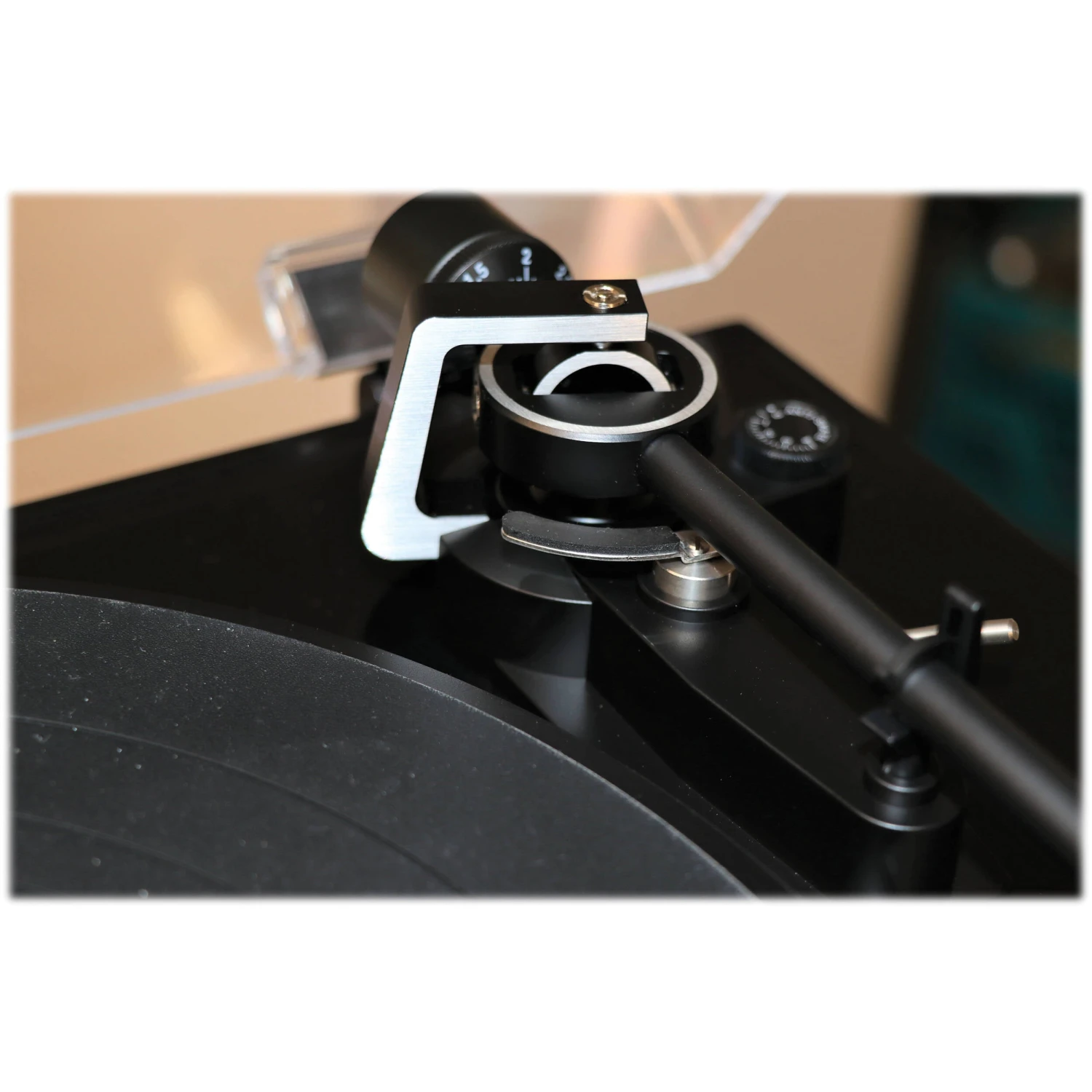

- Twin gimbal, statically balanced design
- Auto stop function with an automatic tonearm lift
- Solid aluminum construction with precision pivot ball-bearing
- Adjustable tracking force and anti-skating
- Quartz-stabilized, high end direct-drive mechanism
- Coreless inductors transfer no vibrations
- Double-shielded rotor magnets to eliminate stray magnetic fields
In the Box
- Dual Electronics CS 618Q Manual Three-Speed Turntable (Black Vinyl Veneer)
- 45 rpm Adapter
- Stereo RCA Cable
- Headshell with Phono Cartridge
- Platter
- Turntable Mat
- Counterweight
- Dustcover with Hinges
- Power Supply
- Limited 1-Year Manufacturer Warranty
User Manual
0.9 MB
- Description
- Plinth Features
- Platter Features
- Tonearm Features
- Drive Features
Dual Electronics CS 618Q Specs
| Drive System |
Direct Drive |
| Motor |
Not Specified by Manufacturer |
| Speeds |
33 1/3, 45, 78 rpm |
| Wow and Flutter |
<0.07% (DIN WTD) |
| Signal to Noise Ratio |
Not Specified by Manufacturer |
| Turntable Platter |
Material: Die-Cast Aluminum Diameter: 12.01″ / 305 mm Mat: Rubber, 0.1″ / 2.5 mm Weight, Including Mat: 3.2 lb / 1.45 kg |
| Output |
Stereo RCA with Ground Screw |
| Preamp |
Yes, Switchable |
| Type |
Statically Balanced |
| Construction Material |
Solid Aluminum |
| Effective Arm Length |
8.72″ / 221.5 mm |
| Overhang |
0.75″ / 19 mm |
| Offset Angle |
25.6° |
| Stylus Pressure Adjustment |
0 to 4 g |
| Cartridge Weight |
5 to 9 g |
| Bearing |
4 x Pivot Ball Bearings in Twin Gimbal Mounting |
| Anti-Skating Adjustment |
Yes |
| Type |
Ortofon 2M Blue |
| Stylus |
Not Specified by Manufacturer |
| Frequency Response |
Not Specified by Manufacturer |
| Construction Material |
Plinth: MDF |
| Feet |
Diameter: 2.44″ / 62 mm |
| Voltage |
100 to 240 VAC, 50/60 Hz |
| Standby Power Consumption |
<0.1 W |
| Dimensions |
17.13 x 5.71 x 14.45″ / 435 x 145 x 367 mm (with Dustcover Closed) 17.13 x 15.75 x 16.34″ / 435 x 400 x 415 mm (with Dustcover Open) |
| Weight |
15.4 lb / 7 kg |
| Package Weight |
20.265 lb |
| Box Dimensions (LxWxH) |
20.1 x 17.9 x 9.2″ |
