Dsan PerfectCue Mini System With Compact Cue Light And PC-AS3 Wireless Transmitter(Dsan Perfectcue Mini System With Compact Cue Light And Pc As3 Wireless Transmitter)

Dsan PerfectCue Mini System With Compact Cue Light And PC-AS3 Wireless Transmitter(Dsan Perfectcue Mini System With Compact Cue Light And Pc As3 Wireless Transmitter)

Original price was: $305.00.Current price is: $96.99.

SKU: DGFUB 7132766797909 Categories: Audio Visual Presentation, Computer & Presentation, Video Presenters Tags: Audience Response Systems, Audio Visual Presentation, Dsan PC-MINI-AS3, Video Presenters

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Dsan PC-MINI-AS3 Overview

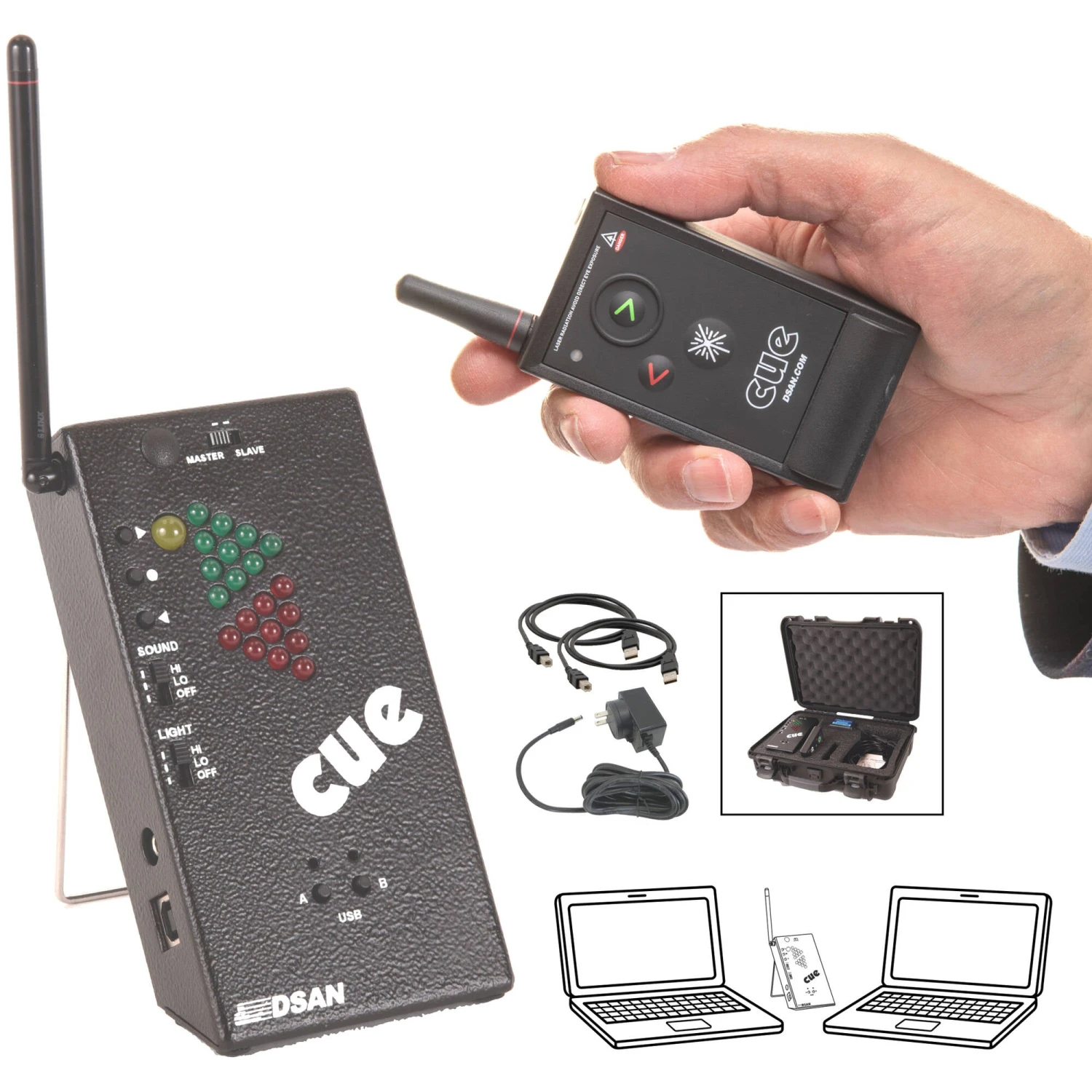

The Dsan PerfectCue Mini is a wireless audio and visual cueing system that enables a speaker to send cues to a projectionist using the wireless handheld transmitter or to remotely control presentation software via dual programmable USB ports. This configuration includes a compact Cue Light receiver and a pocket-size PC-AS3 wireless transmitter with Forward and Reverse summarys, plus a green laser for pointing things out. The high-quality RF performance ensures that wireless communication between the transmitter and the Cue Light receiver is reliable at 300′.

The PerfectCue Mini receiver is designed with a fold-away bracket so that the unit can slide easily into a laptop carrying case. It is compatible with all the PerfectCue transmitters and may interconnect with other PerfectCue Minis, PerfectCues, or any of the company’s Cue Light accessories via Cat 5 or XLR cable. The receiver features an audio output with volume control for use with headphone or earpiece monitoring.

Flexible Visual Cueing

Range of transmitter to Cue Light: 300′
Light behavior, sounds, and keystrokes are programmable with free app
Onboard speaker volume control: High, Low, and Off
Lights control: High, Low, and Off
Local switch control: Forward (green), Back (red), Blank (amber), USB engaged/disengaged
Ports: 2x USB Type-B, Serial-XLR female, Serial-RJ45, 3.5mm headphone jack
Cue Light power: USB or power supply (included)
Rf communication: 433.92 MHz , 256 possible channels
Waterproof, dustproof, crushproof customized hard case

PC-AS3 Three-Button Wireless Transmitter with Laser

Large, dot-embossed, tactile-feel summarys
One “Forward” command summary to indicate “next slide”
One “Reverse” command summary to indicate “previous slide”
One “Green Laser” command summary for pointing out
Powered by one CR123 battery (included)
LED indicating push summary transmission and approach of end of battery life

DIP Switch Settings

Users can establish the relationship between transmitter and receiver via DIP switch settings.

One transmitter can control multiple Cue Lights
One Cue Light can be controlled by multiple transmitters
One Cue Light can control two computers in sync
One Cue Light can control additional Cue Lights (by wiring together the Cue Lights) PerfectCue systems can work in proximity without interfering with one another

Items Included

Dsan PerfectCue Mini System with Compact Cue Light and PC-AS3 Wireless Transmitter
Cue Light with Fold-Away Bracket
Dsan PC-AS3 3-Button Wireless Transmitter with Green Laser for PerfectCue
2 x USB Cable (6′)
Dsan External 12V Power Supply
Dsan Carrying Case for PerfectCue Mini
Limited 1-Year Warranty

Additional Resources

User Manual

0.3 MB

Dsan PC-MINI-AS3 Specs

General

Compatibility

Not Specified by Manufacturer

Inputs / Outputs

USB I/O	2 x USB-B Female Output
Audio I/O	1x 1/8″ / 3.5 mm TRS Headphone Output

Power

Power Source	USB, AC Adapter with Power Brick (Included)
Battery Type	2x CR2032
AC Input Power	110 to 220 VAC, 50 / 60 Hz
DC Input Power	12 VDC at 1 A

Physical

Mounting	1x Fold-Away Bracket
Cable Length	6′ / 1.8 m
Dimensions	6 x 3.75 x 1.25″ / 15.2 x 9.53 x 3.17 cm (Cue Light) 5 x 2 x 0.75″ / 12.7 x 5.1 x 1.91 cm (Transmitter) 14.5 x 11.5 x 4″ / 36.8 x 29.2 x 10.2 cm (Case)
Weight	6 lb / 2.7 kg (with Case)

Packaging Info

Package Weight	7 lb
Box Dimensions (LxWxH)	14.2 x 12 x 6″
