Dsan PC-AS1 Overview

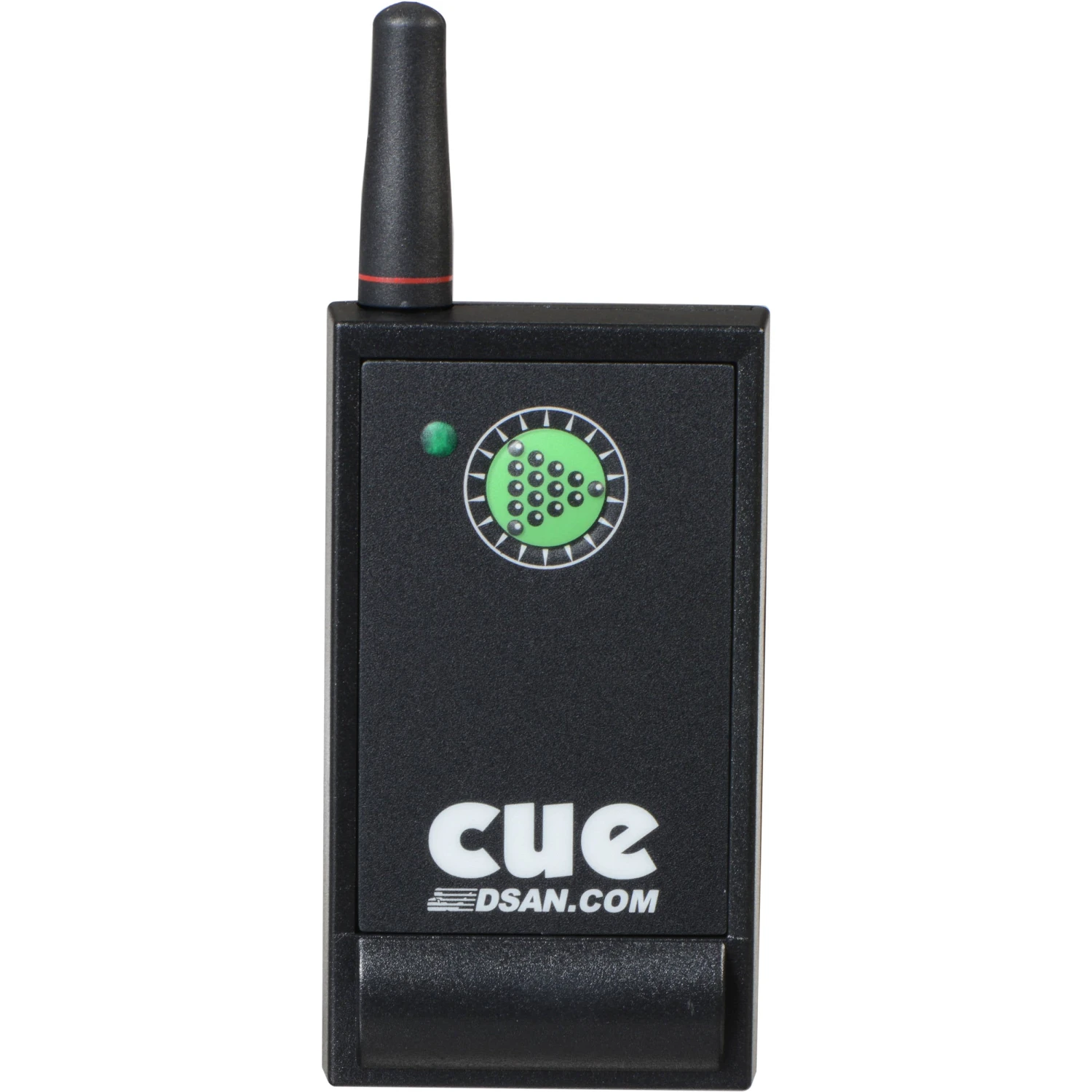

The DSAN PC-AS1 is a pocket-size 1-Button Wireless Transmitter for the PerfectCue presentation signaling system. It is compatible with all PerfectCue systems, including the PerfectCue Mini.

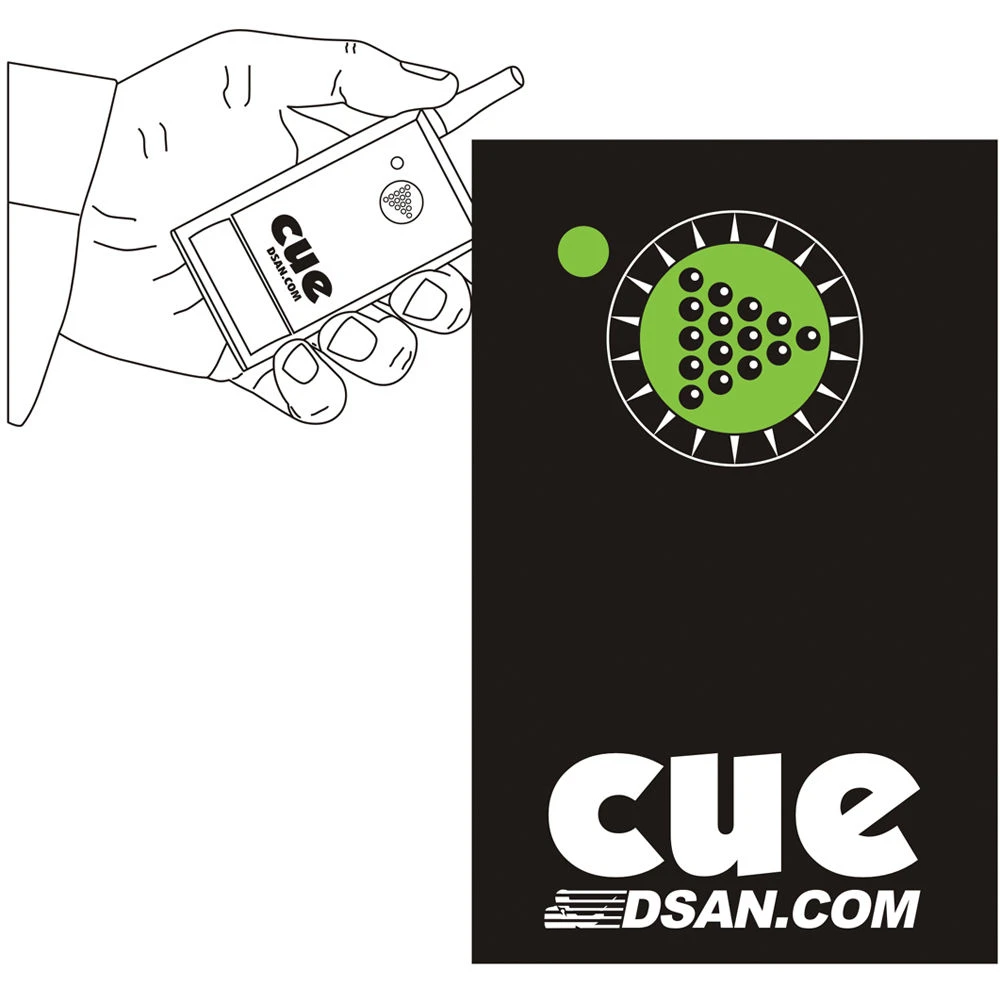

The PC-AS1 features one summary that allows you to signal a “Forward” command to the PerfectCue to indicate “next slide.” The summary is large and has embossed dots providing for a tactile feel.
The PC-AS1 operates at 433 MHz and reaches ranges of 300 ft or more even in noisy RF environments. Furthermore, you can select from 256 channels to transmit over. The desired channel is assignable via a dip switch under a cover door on the rear.
The PC-AS1 is powered by two included CR2032 coin batteries, which last up to a year under normal use.
- Pocket-size 300 ft range one-summary wireless transmitter
- Compatible with all PerfectCue systems
- One “Forward” command summary to indicate “next slide”
- Large, dot-embossed, tactile-feel summary
- Operates at 433 MHz
- Select from 256 channels to transmit over
- Powered by two included CR2032 coin batteries
Items Included
- Dsan PC-AS1 1-Button Wireless Transmitter for PerfectCue
- 2 x CR2032 Batteries
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Dsan PC-AS1 Specs
| Range |
300 ft (91 m) |
| Dimensions |
1.8 x 3.3 x 0.6″ (4.6 x 8.4 x 1.5 cm) Antenna Length: 1.25″ (3.2 cm) |
| Weight |
3 oz (85 g) |
| Package Weight |
0.145 lb |
| Box Dimensions (LxWxH) |
5.6 x 4.7 x 1″ |
