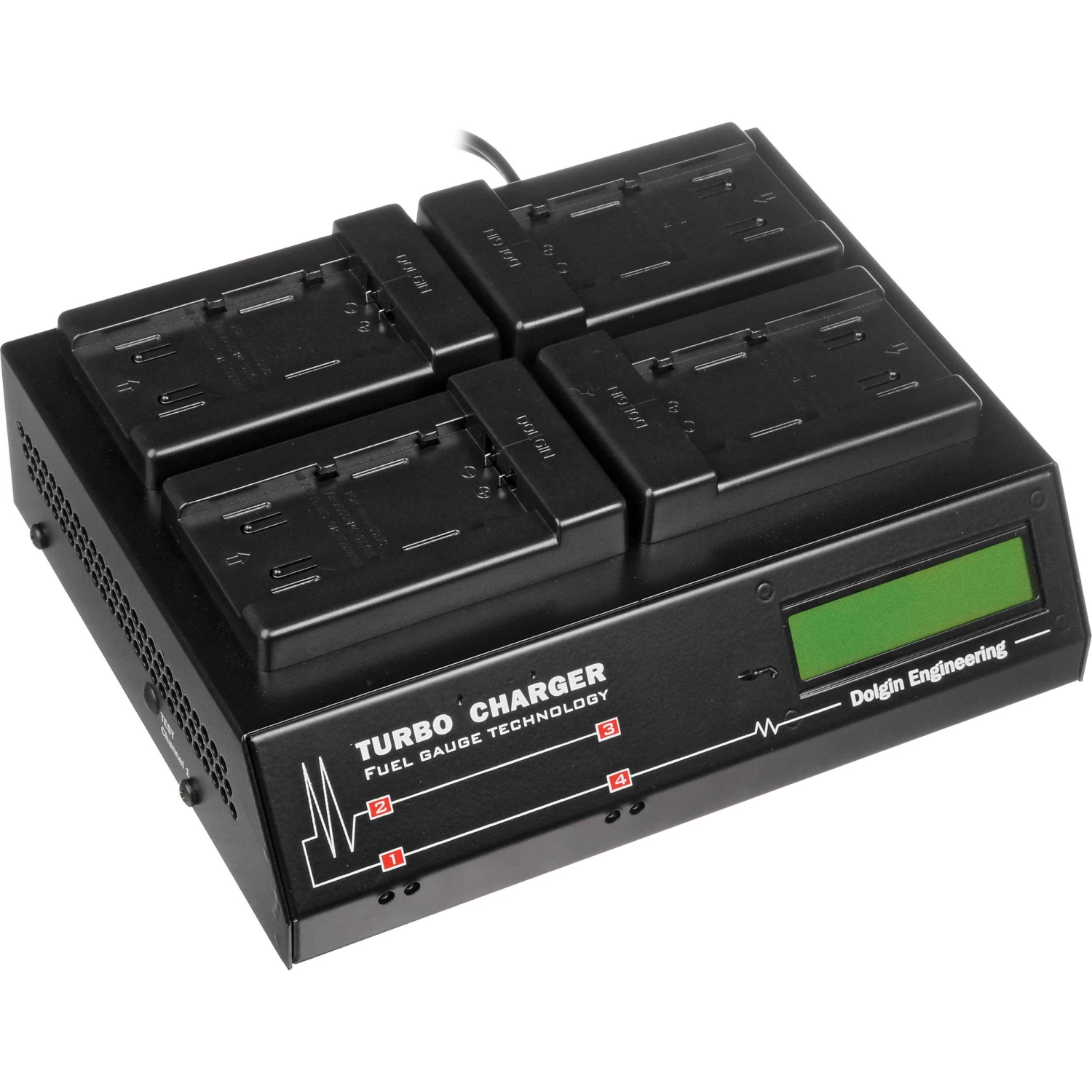

Dolgin Engineering TC400 Four-Position Simultaneous Battery Charger For Panasonic VBD58, VBR118G, VBR89G, VBR59P, And D54 (Interchangeable Plates)(Dolgin Engineering Tc400 Four Position Simultaneous Battery Charger For Panasonic Vbd58 Vbr118g Vbr89g Vbr59p And D54 Interchangeable Plates)

The TC400-PAN-U from Dolgin Engineering features interchangeable battery plates that support Panasonic and third-party VW-VBD58, AG-VBR59P, AG-VBR89G, AG-VBR118G, CGR-D54, and CGA-D54 batteries. These batteries are used with Panasonic’s DVX200, PX270, HPX170, and HVX200 cameras. Five different battery plates are compatible, supporting a wide variety of DV batteries between them, and they can be mixed together at the same time. (Please see the Accessories section to view the battery plates.)

The TC400 has an LCD screen on the front panel that displays charge status in volts, amp hours, and percentage of charge that’s estimated using a proprietary algorithm.

The TC400 has fully independent channels and deliver simultaneous charging to all four batteries. Based on a capacity of 5600mAh, this particular model delivers a complete charge to a single battery or up to four batteries in approximately 3.5 hours.

The charger comes with a U.S. power cord and supports worldwide power input via optional plug adapters.

Dolgin Engineering TC400 Four-Position Simultaneous Battery Charger for Panasonic VBD58, VBR118G, VBR89G, VBR59P, and D54 (Interchangeable Plates)

Type of Charging	Simultaneous
Charge Time	Approx. 3.5 hours per channel/all four channels based on 5600 mAh capacity
Power Requirements	100-240 VAC at 50/60 Hz
Dimensions	8.4 x 2.5 x 6.6″ (21.3 x 6.4 x 16.8 cm)
Weight	4 lb (1.8 kg)
