Digital Watchdog DWC-PDS10WI28A Overview

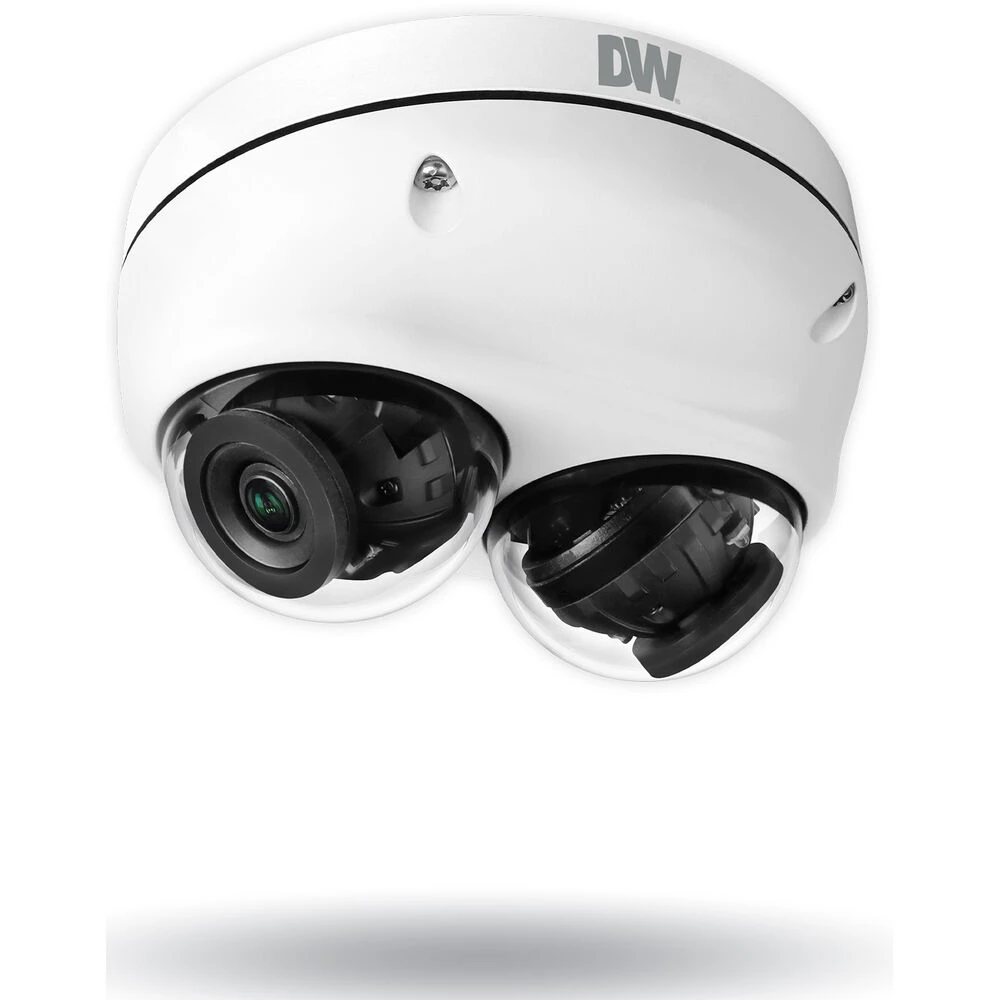

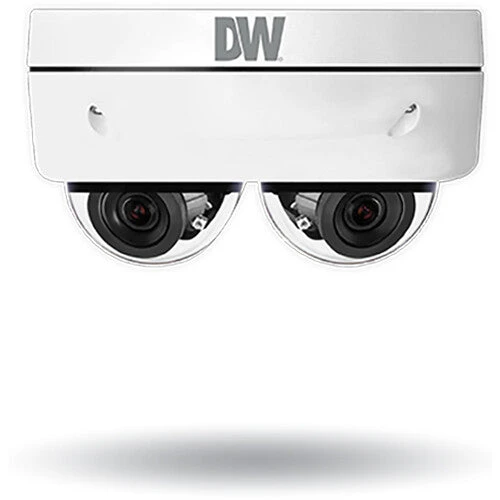

Monitor your surroundings with the MEGApix Ai 10MP Dual-Sensor Outdoor Network Dome Camera from Digital Watchdog. This multi-sensor camera uses two 1/2.8″ 5MP CMOS sensors to capture video at a combined resolution of 10MP at 30fps. The camera is equipped with two 2.8mm fixed lenses that each deliver a 102.4° horizontal field of view. Two-way audio is possible thanks to a built-in microphone and an audio output. An onboard slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
Compliance with ONVIF profile S enables interoperability with a wide range of surveillance devices. This camera is housed in an IP67- and IK10-rated enclosure that is suitable for safe outdoor use in areas at risk of vandalism.
In the Box
- Digital Watchdog MEGApix Ai 10MP Dual-Sensor Outdoor Network Dome Camera
- Limited 5-Year Manufacturer Warranty
User Manual
7.8 MB
Digital Watchdog DWC-PDS10WI28A Specs
| Sensor |
2 x 5 MP 1/2.8″ CMOS |
| Focal Length |
2.8mm |
| Lens Field of View |
Horizontal: 102.4° Vertical: 77.4° |
| Video Outputs |
1 x BNC (Composite) |
| Built-In Mic |
Yes |
| Power Source |
DC, PoE 802.3af (15 W) |
| Environmental Protection |
Advertised as Dust Resistant/Outdoor Use/Water Resistant *Manufacturer Testing: IP67 |
| Illumination |
IR LEDs up to 60′ / 18.3 m |
| Sensor |
2 x 5 MP 1/2.8″ CMOS |
| Focal Length |
2.8mm |
| Maximum Aperture |
f/1.8 |
| Lens Field of View |
Horizontal: 102.4° Vertical: 77.4° |
| IR Cut Filter |
Mechanical |
| Day/Night |
True |
| Minimum Illumination |
Color: 0.13 Lux B&W: 0 Lux |
| Shutter Speed |
1/32000 to 1/15 Seconds |
| Mobile App Compatible |
Yes: Android & iOS App Name: DW Spectrum IPVMS *As of November, 2023: Check with manufacturer for the most up-to-date compatibility |
| Streaming Resolution |
2592 x 1944 at 30 fps (25 Mb/s ) |
| Supported Video Compression |
H.264, H.265, MJPEG |
| Multi-View Streaming |
Yes, 2 Streams |
| Automatic Gain Control |
Yes |
| Video Outputs |
1 x BNC (Composite) |
| 1- or 2-Way Audio |
Two-Way |
| Audio Formats |
G.711 |
| Built-In Mic |
Yes |
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering |
| Supported Protocols |
APIPA, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IPv4/v6, NTP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP |
| Application Programming Interface (API) |
ONVIF Profile S |
| Analytics |
Motion Detection, Deep Learning Object Tracking |
| OS Compatibility |
Windows macOS Linux |
| Event Trigger |
Yes |
| Event Action |
Recording, Notification, Alarm |
| Data Streaming |
Yes |
| Alarm I/O |
1 / 1 |
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC [Class 10/U1/V10 or Faster Recommended] |
| Internal Storage |
No |
| Power Source |
DC, PoE 802.3af (15 W) |
| Power Consumption |
DC: 9.9 W PoE: 11.6 W |
| Operating Temperature |
-4 to 122°F / -20 to 50°C |
| Operating Humidity |
10 to 90% (Non-Condensing) |
| Environmental Protection |
Advertised as Dust Resistant/Outdoor Use/Water Resistant *Manufacturer Testing: IP67 |
| IK Rating |
IK10 |
| Inputs/Outputs |
1 x RJ45 1 x Power |
| Illumination |
IR LEDs up to 60′ / 18.3 m |
| Video Management Software |
DW Spectrum IPVMS |
| Certifications |
FCC (Part 15 Class B), RoHS, UL, as per Manufacturer |
| Material of Construction |
Aluminum, Polymer |
| Dimensions |
ø: 5.5 x H: 3.1″ / ø: 139.0 x H: 79.5 mm |
| Weight |
1.5 lb / 0.68 kg |
