Digipas Technologies DWL680PRO Overview
- 1Description
- 2Waterproof and Dustproof
- 3Wide Operating Temperature
- 4Illuminated Display
- 5Ergonomic Battery Compartment
- 6Measuring Range
- 7Resolution
- 8Alternate Zero
- 9Inverted Display Reading
- 10Instant Unit Conversion
- 11User Self-Calibration

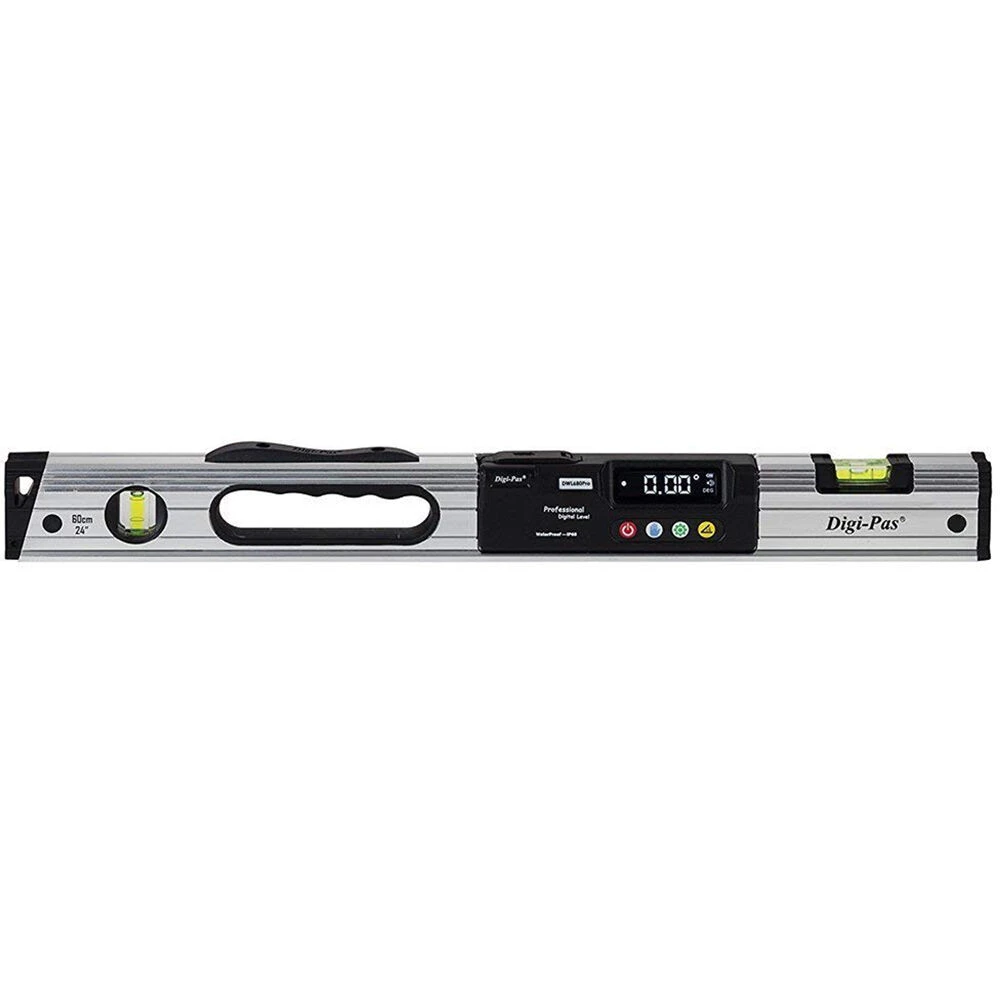

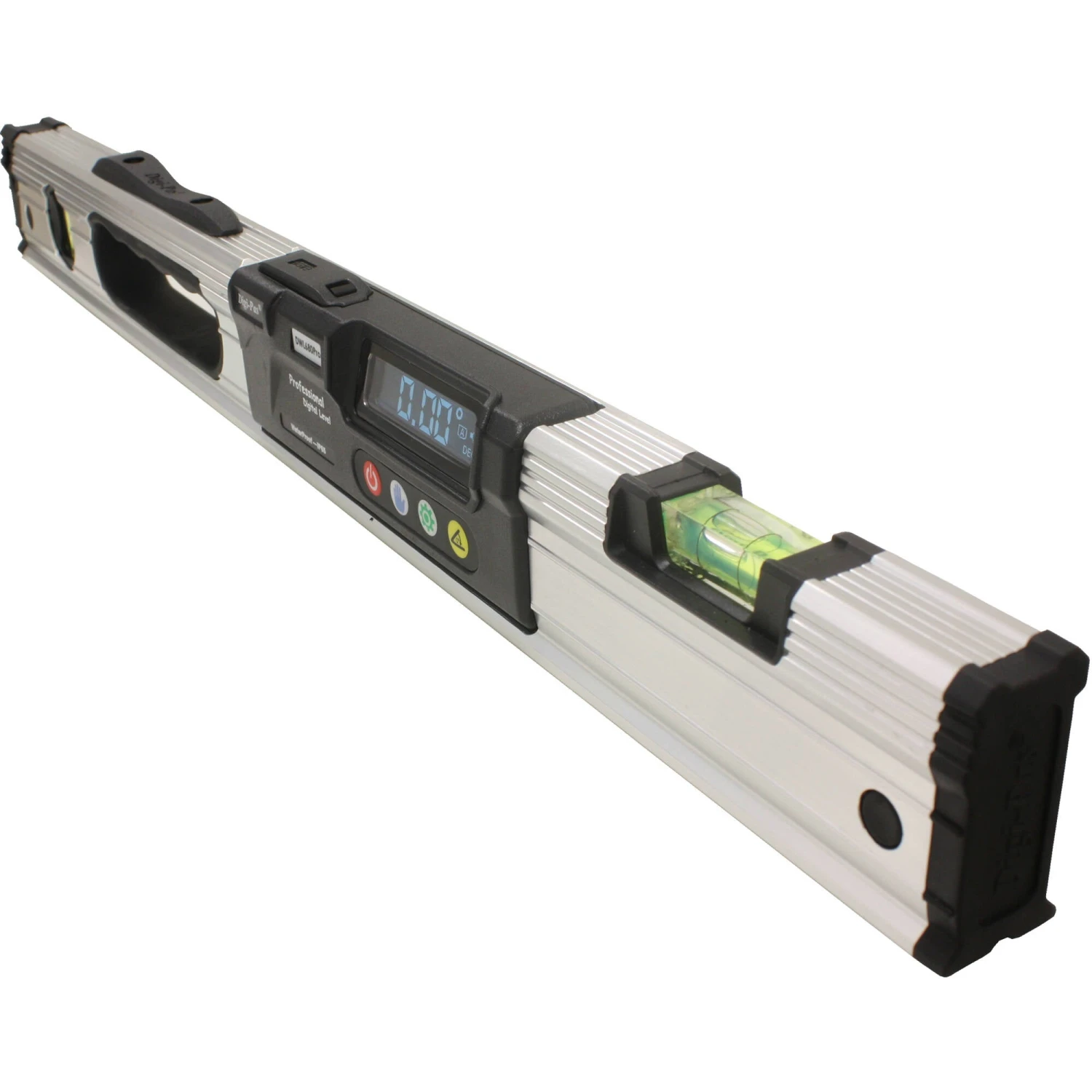

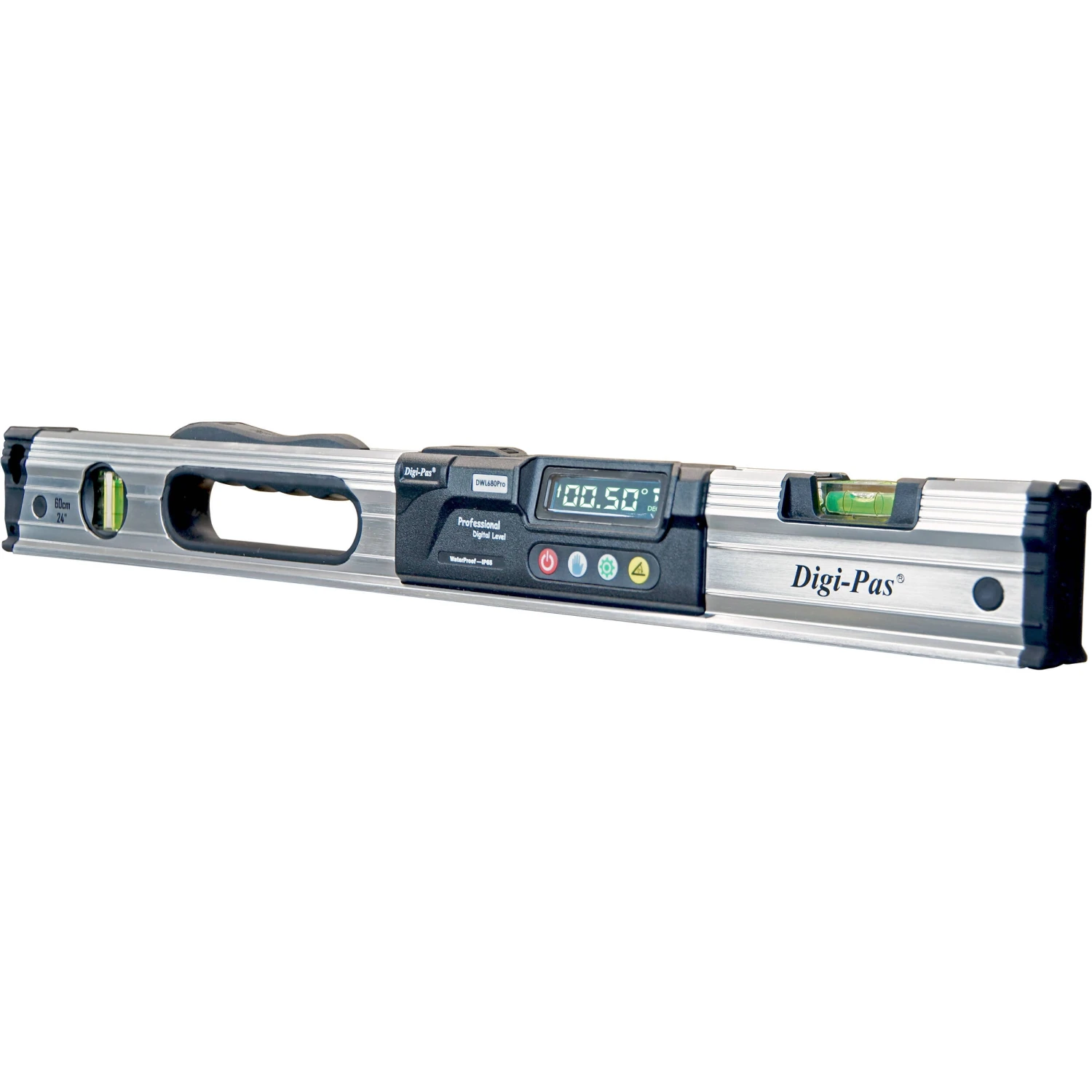

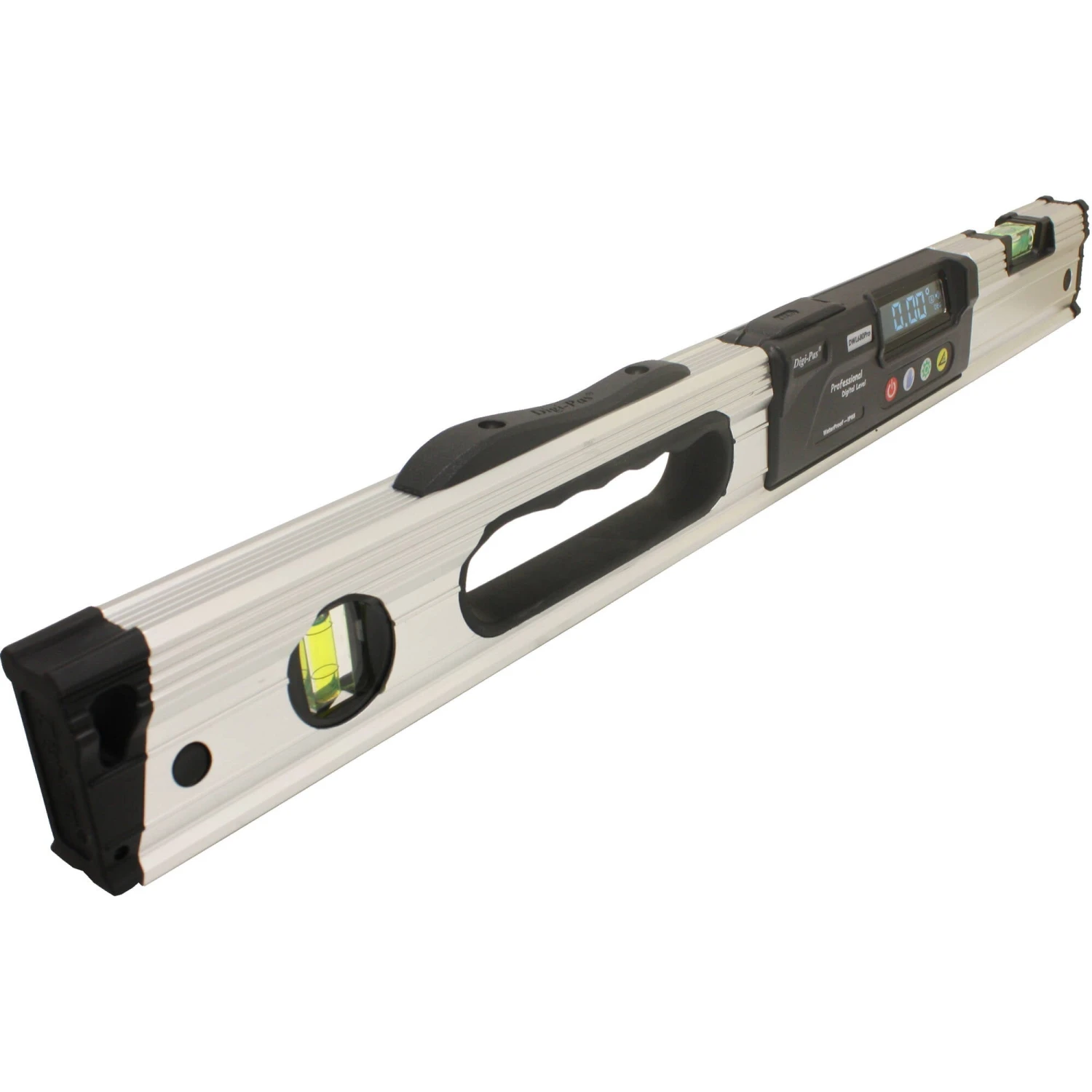

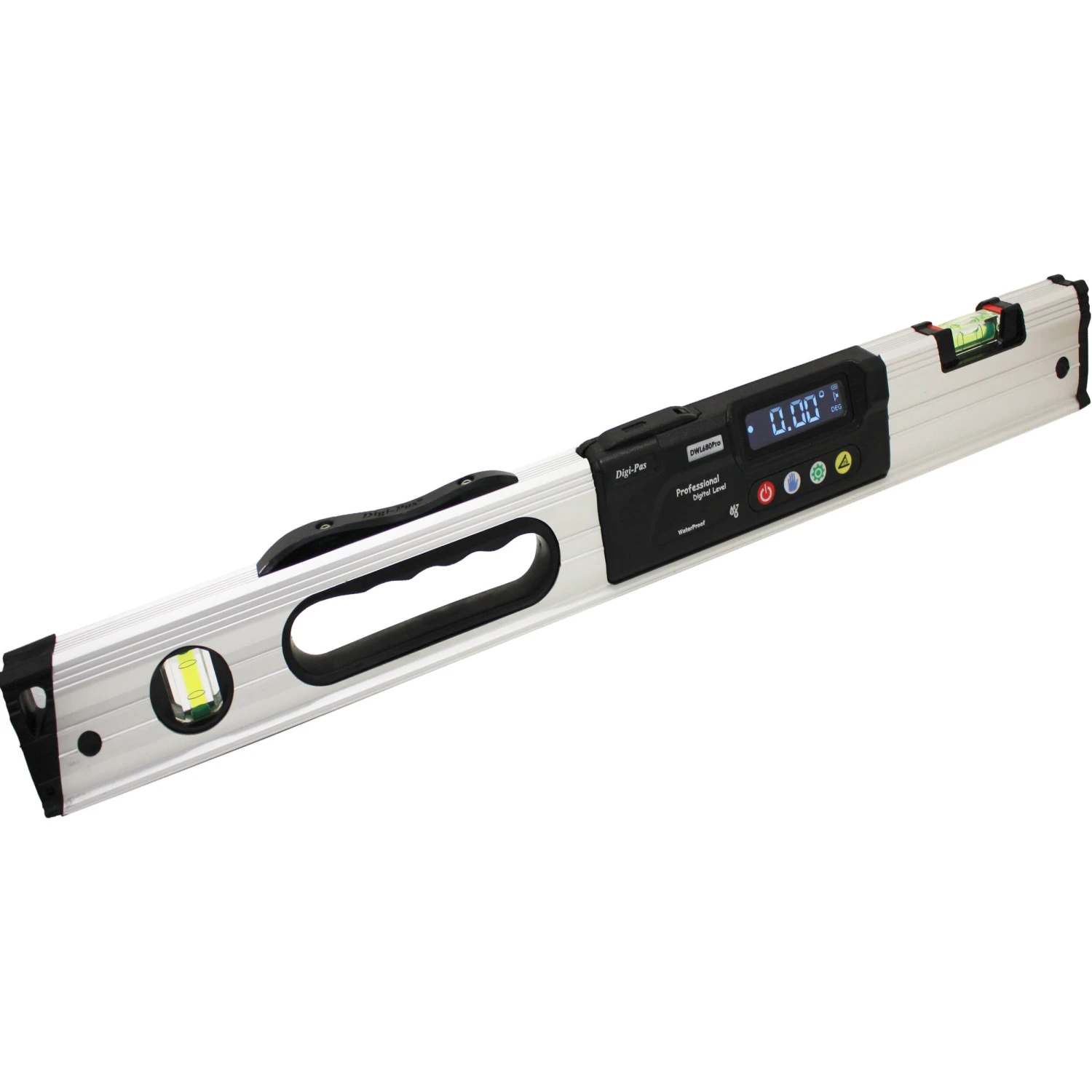

Unlike single-axis “bubble” levels that indicate one axis at a time, the 24″ Digipas Technologies DWL-680Pro 2-Axis Digital Level simultaneous displays two-dimensional plane angles to conduct surface plane leveling, tilt angle measurement, surface flatness profiling, and precision 2D alignment tasks.

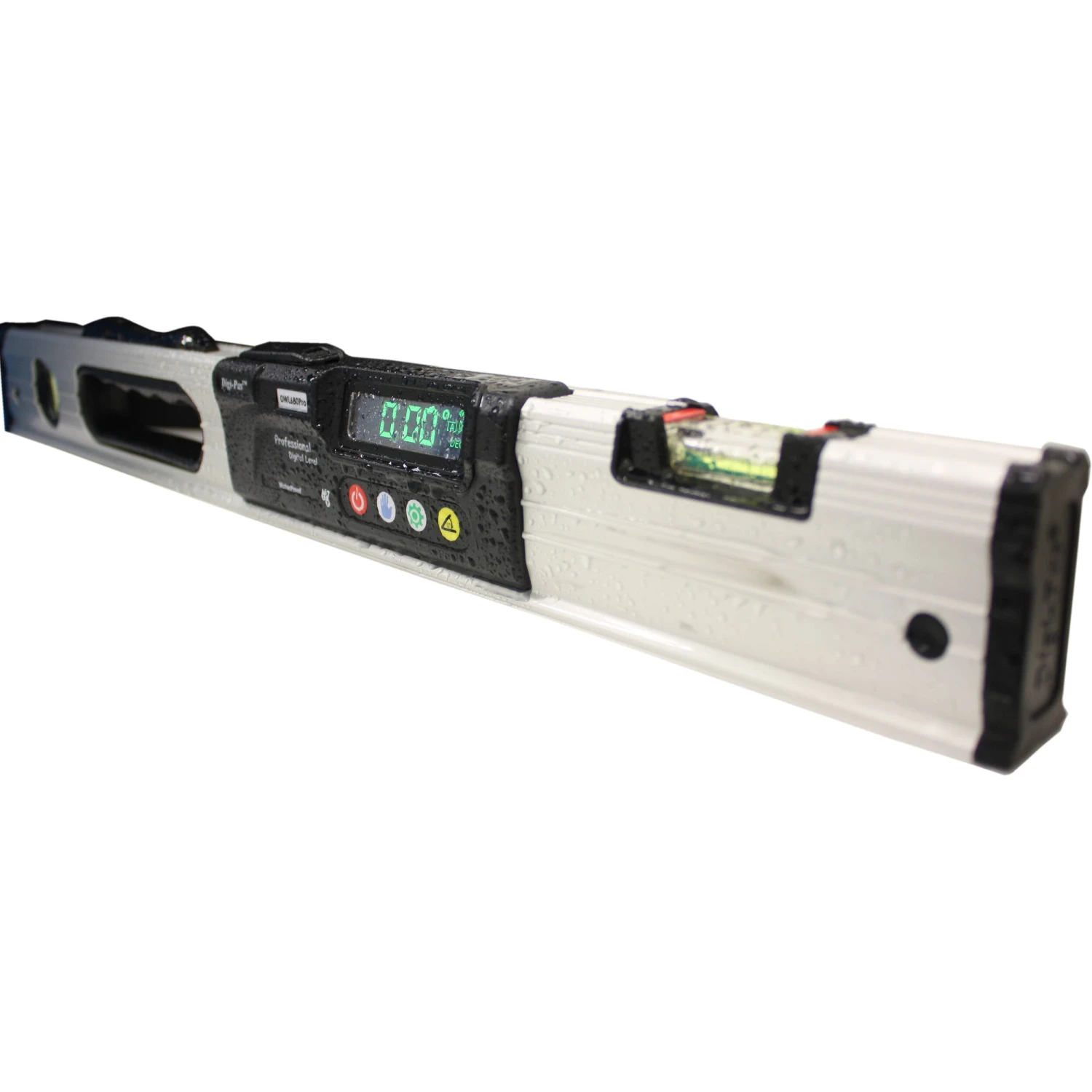

- IP65 waterproof and dustproof features allow the tool to work in harsh terrains including off-shore, freezing cold weather, and wet tropical environments.
- Protective rubber end caps to withstand shock/impact.
- A wide operating temperature range of -4 to 140°F allows the digital level to work in extremely hot to cold weather.
- The very bright OLED digital display enables the user to work in less illuminated working conditions such as tunnels, bridges, and shipbuilding.
- Speedily displays with precision any measured angle.
- Extended battery life using four AAA batteries.
- Designed for quick-and-easy battery replacement with a built-in IP65 waterproof seal.
- Measuring range 0 to 90°; 4 x 90°(360°).
- Measuring resolution of 0.05° with accuracy ± 0.05° at 0 and 90° and ± 0.2° at 1 to 89°.
- Audible sound to indicate leveling to 0 and 90° angles halt.
- Set reference angle at any desired measurement angle.
- Allows the user to read upright digital readings, even when the level position is upside down.
- Instantly convert measurement unit from °(degree) to %(slope).
- The easy self-calibration feature allows the user to reset the digital level back to factory-preset accuracy.
User Manual
1.4 MB
- Description
- Waterproof and Dustproof
- Wide Operating Temperature
- Illuminated Display
- Ergonomic Battery Compartment
- Measuring Range
- Resolution
- Alternate Zero
- Inverted Display Reading
- Instant Unit Conversion
- User Self-Calibration
Digipas Technologies DWL680PRO Specs
| Power Source | Battery |
| Battery Type | 4 x AAA |
| IP Rating | IP65 |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| Dimensions | 23.6 x 2.4 x 1.2″ / 600 x 60 x 30 mm |
| Weight | 1.9 lb / 850 g |
| Package Weight | 2.03 lb |
| Box Dimensions (LxWxH) | 24.8 x 4.3 x 1.5″ |
