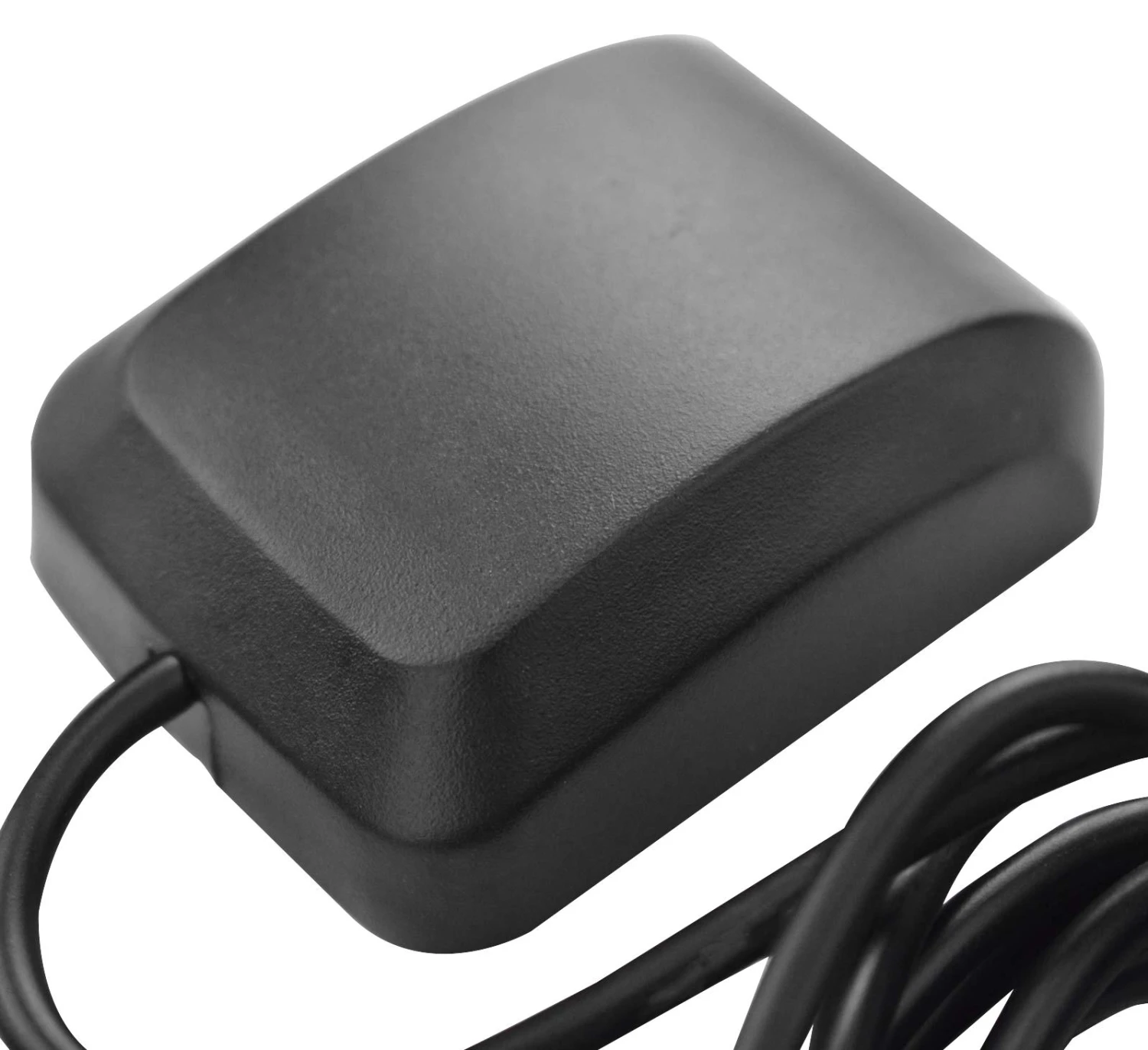

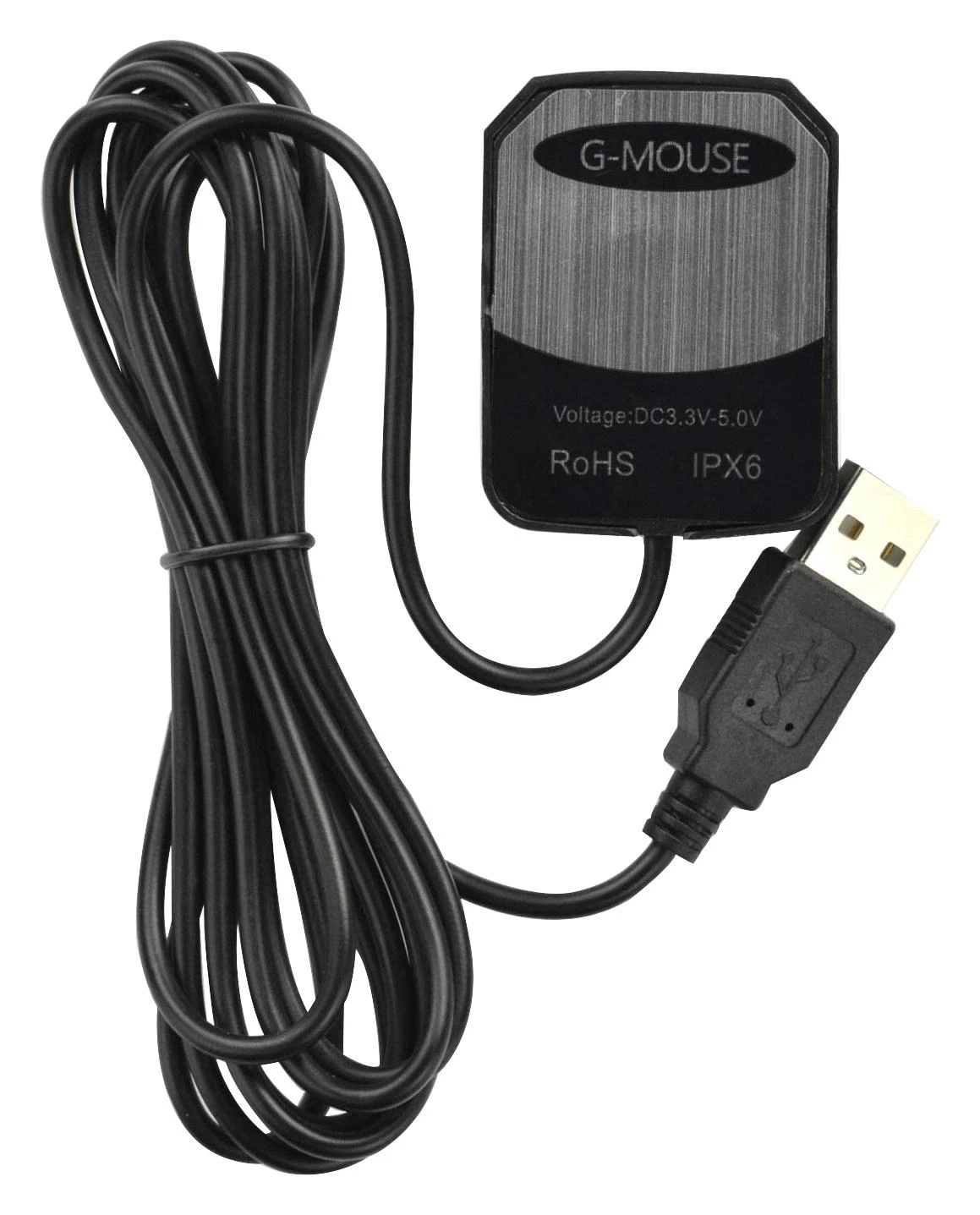

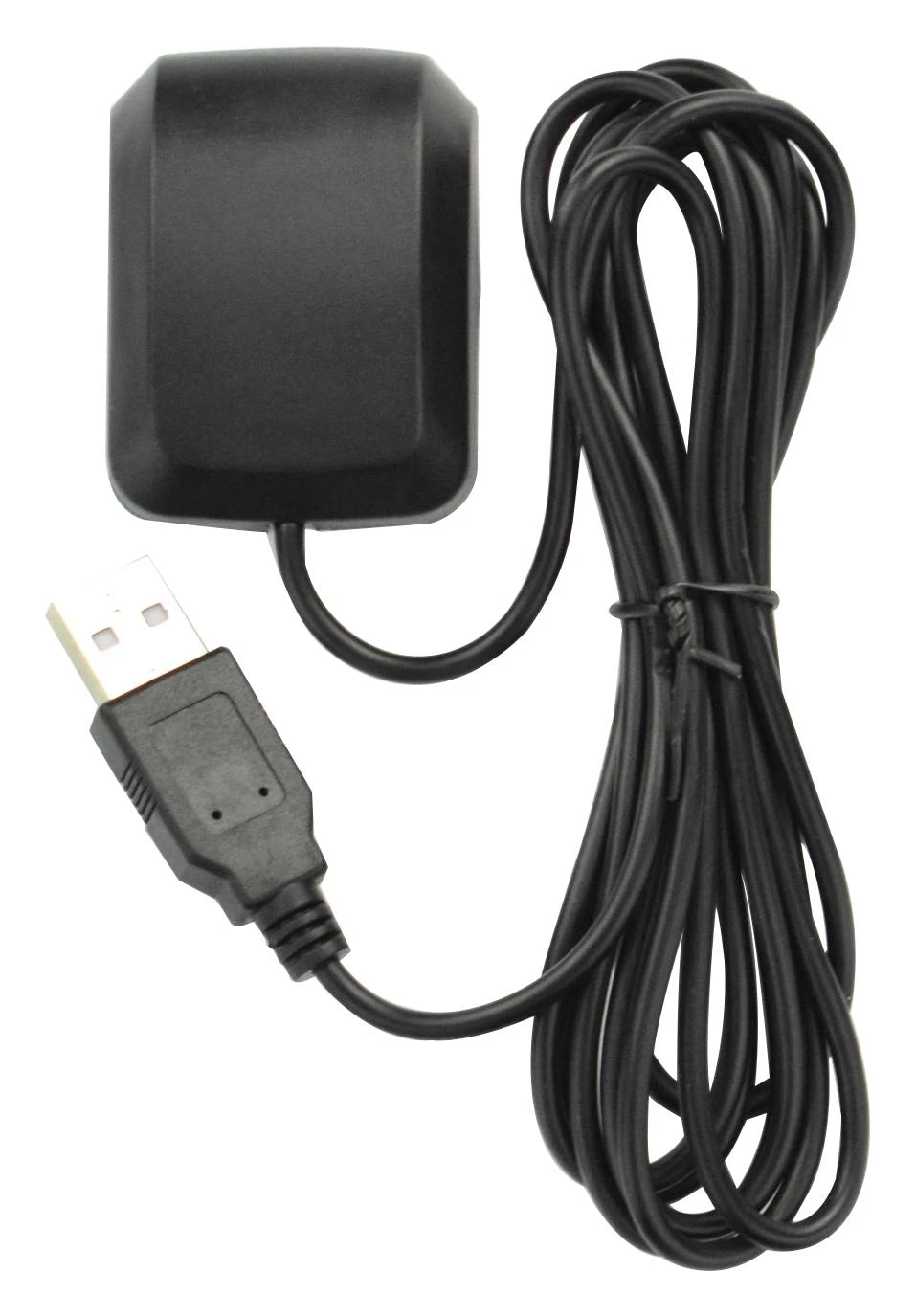

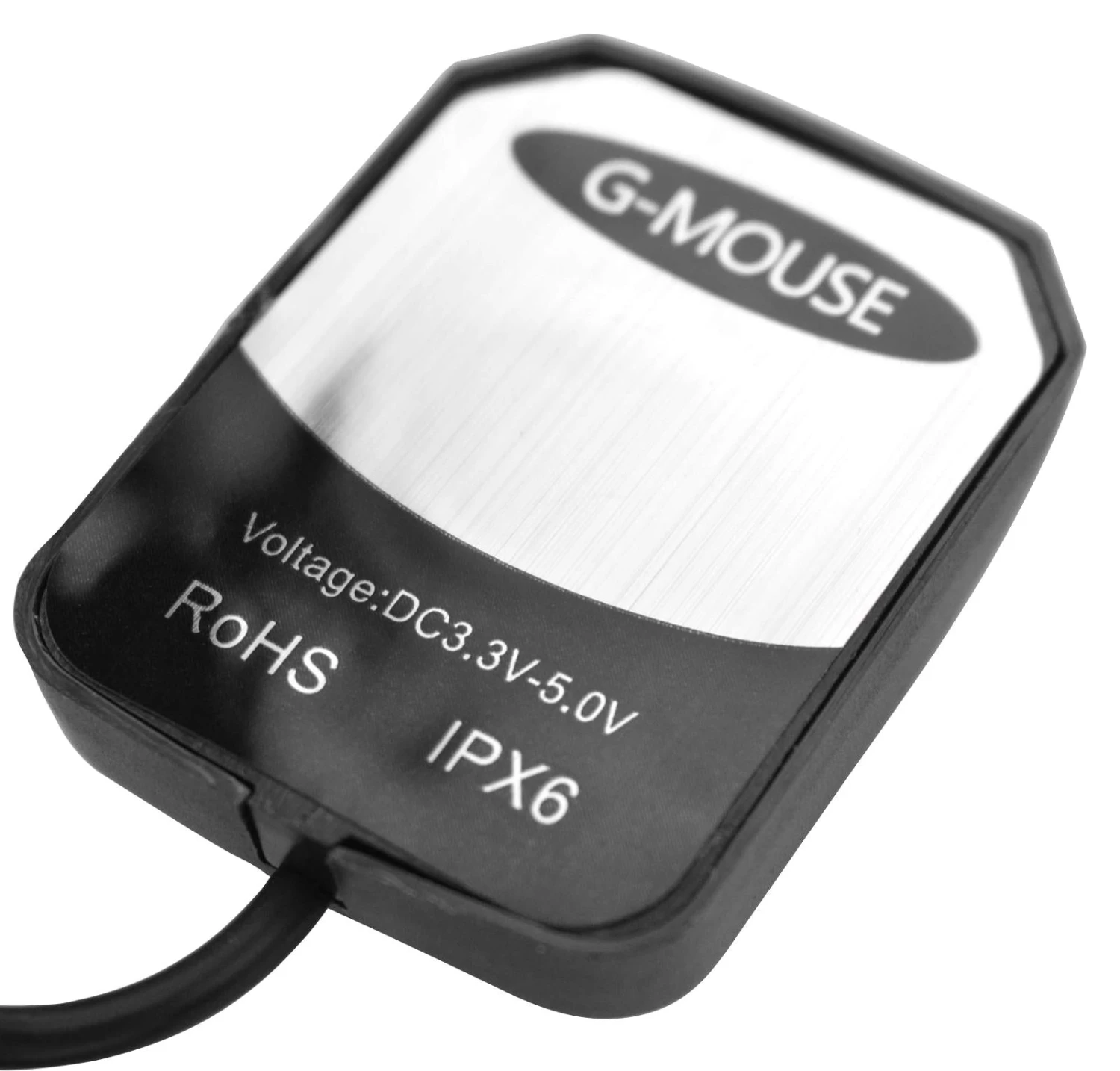

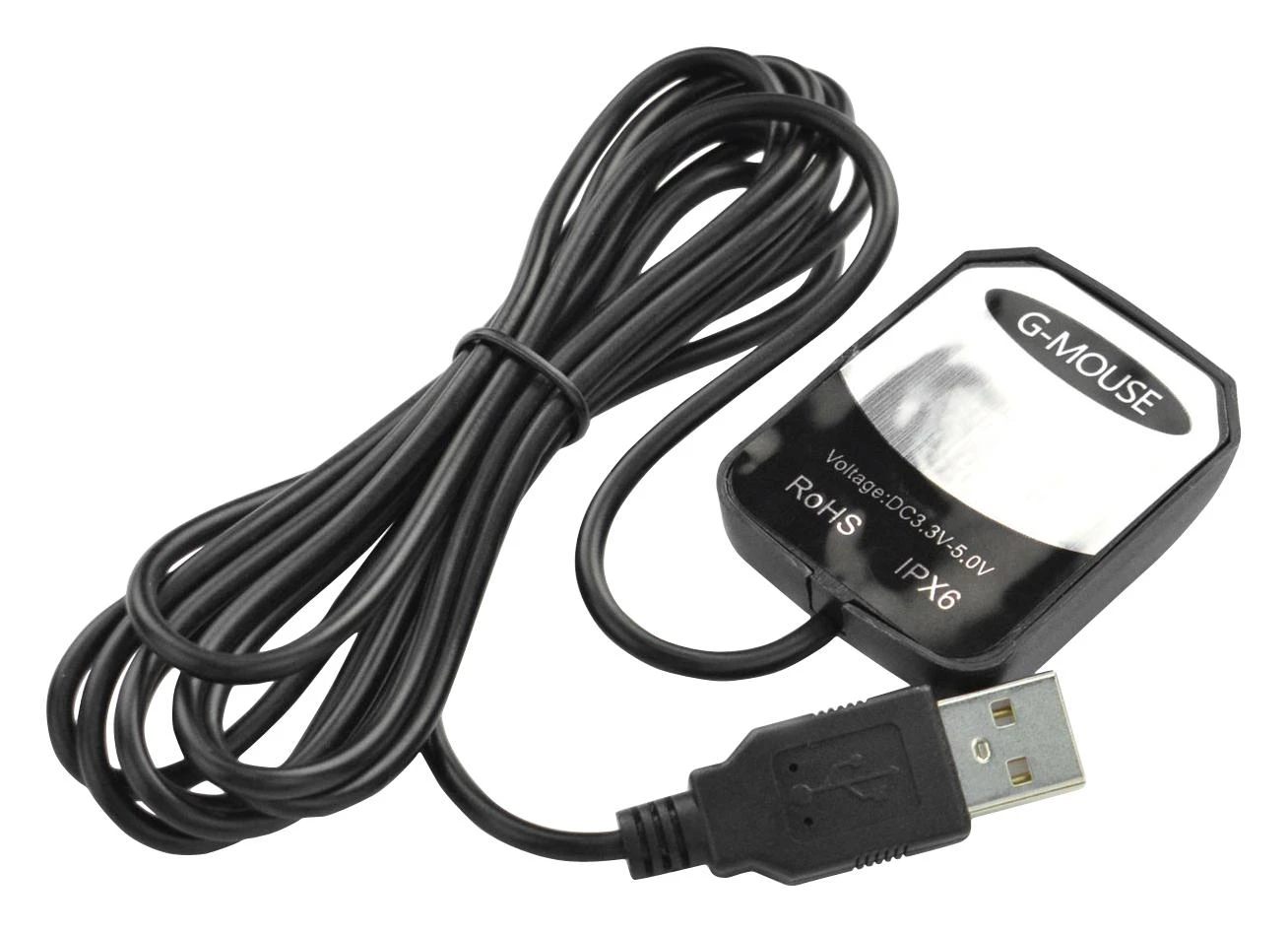

Dfrobot TEL0138 TEL0138 USB GPS Receiver 56-Ch 1.602 GHz Raspberry Pi/ Lattepanda/ Jetson Nano(Dfrobot Tel0138 Tel0138 Usb Gps Receiver 56 Ch 1 602 Ghz Raspberry Pi Lattepanda Jetson Nano)

USB GPS receiver with 2m extension cable is an Ublox chip-based GPS receiver module of low power and high sensitivity that can receive 56 channels satellite signal. Compared with traditional GPS receivers, it brings much more accurate and faster positioning performance with stronger signal. Integrated with built-in receiving antenna, this product adopts a high-precision positioning chip and industrial-grade manufacturing process so that it can meet the positioning requirements of both industrial-grade and personal use. The GPS receiver has battery inside for supplying power for storing satellite data, such as satellite signal status, final position and time that would greatly increase the positioning speed at the module’s next boot. Besides, this receiver adopts USB interface, which can be conveniently used in maincontrollers like Raspberry Pi, NVIDIA, LattePanda.

• Chip: UBX-G7020-KT
• Frequency: L1, 1575.42MHz/L2, 1561.10MHZ/L3,1602.00MHZ
• Baud Rate: 4800, 9600, 19200, 38400, 57600, 115200bps
• Sensitivity: tracking -162dBm; Acquisition: 160dBm; cold start: -148dBm
• Cold Start: 29s average, Warm Start: 3s average, Hot Start: 1s average
• Accuracy: horizontal position accuracy<2.5M, SBAS<2.0M
• Timing accuracy: 30ns
• Update rate: 1Hz
• Operating temperature range from -40â�°C to 85â�°C

Contents

USB GPS receiver with 2m extension cable (compatible with Raspberry Pi/ LattePanda/ Jetson Nano) x1.

Product details

Accessory Type	USB GPS Receiver
For Use With	Raspberry Pi/ LattePanda/ Jetson Nano
Product Range	–

Other details

Brand	DFROBOT
Part Number	TEL0138
Quantity	Each
Technical Data Sheet EN
