Dfrobot SEN0460 Air Quality Sensor Module PM2.5 5 V Arduino UNO R3 Board(Dfrobot Sen0460 Air Quality Sensor Module Pm2 5 5 V Arduino Uno R3 Board)

SEN0460 is a Gravity: PM2.5 air quality sensor that can measure particulate matter like PM2.5, PM1.0, PM10. With easy-to-use Gravity interface, the air quality sensor works well with most main-controllers.

• Laser scattering principle, accurate measurement
• Zero false alarm rate
• Real-time response and support continuous acquisition
• Minimum recognizable particle size 0.3µm
• Six-sided all-round shielding, stronger anti-interference
• Ultra-thin design, only 12mm, suitable for portable devices
• Working voltage of 5.0V, maximum working current of 100mA
• Standby current: <=2mA
• Particle counting efficiency: 50% at 0.3µm 98% at >=0.5µm

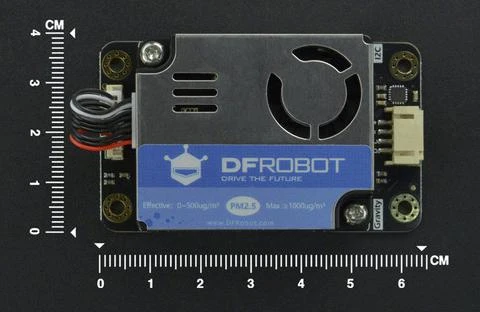

• Product size is 67mm x 40mm x 14mm

Contents

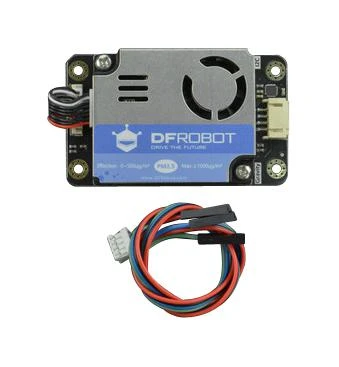

Gravity: PM2.5 air quality sensor x 1, Gravity-4P I2C/UART sensor cable x 1.

Product details

Silicon Manufacturer	–
Core Architecture	–
Core Sub-Architecture	–
Silicon Core Number	PM2.5
Silicon Family Name	–
For Use With	Arduino UNO R3 Board
Kit Contents	Air Quality Sensor Module PM2.5, 4P I2C/UART Sensor Cable
Product Range	–

Other details

Brand	DFROBOT
Part Number	SEN0460
Quantity	Each
Technical Data Sheet EN
