Dfrobot SEN0456 Pressure Sensor Board MPX5700AP 3.3 V To 5.5 Arduino UNO R3(Dfrobot Sen0456 Pressure Sensor Board Mpx5700ap 3 3 V To 5 5 Arduino Uno R3)

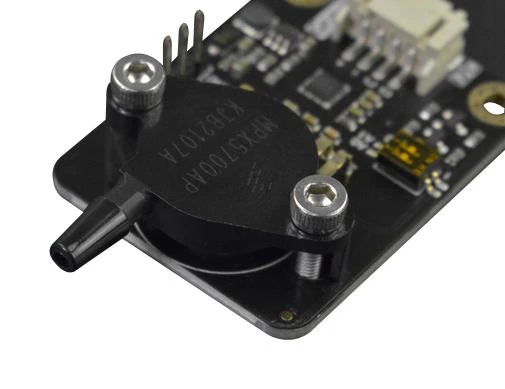

SEN0456 is a Gravity: air pressure sensor (15-700kPa) – I2C – MPX5700AP. This is a Arduino compatible pressure sensor module with a measuring range of 15-700kPa, which supports I2C digital output and can be calibrated according to known pressure values and allows fast and accurate measurement of pressure values in pipelines or other environments. It is suitable for pipeline air pressure detection and natural science experiments.

• Supports I2C digital output
• Can fast and accurate measurement of pressure values

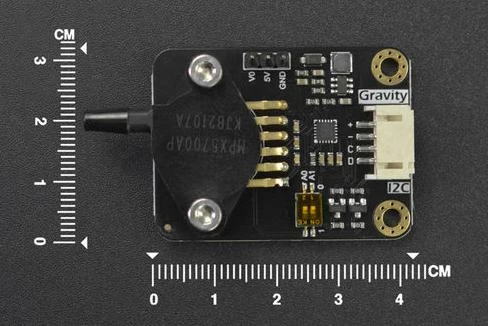

• Circuit board size is 32mm x43mm

Contents

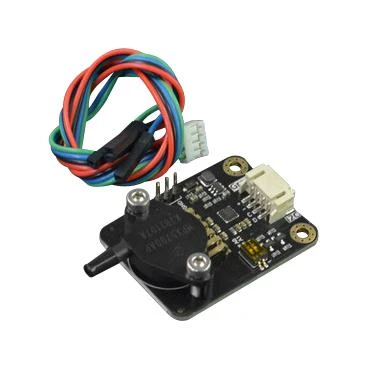

Gravity: pressure sensor(15-700kPa) x1, Gravity-4pin I2C cable x1.

Product details

Silicon Manufacturer	NXP
Core Architecture	–
Core Sub-Architecture	–
Silicon Core Number	MPX5700AP
Silicon Family Name	–
For Use With	Arduino UNO R3 Board
Kit Contents	Pressure sensor Board MPX5700AP, I2C 4 Pin Cable
Product Range	–

Other details

Brand	DFROBOT
Part Number	SEN0456
Quantity	Each
Technical Data Sheet EN
