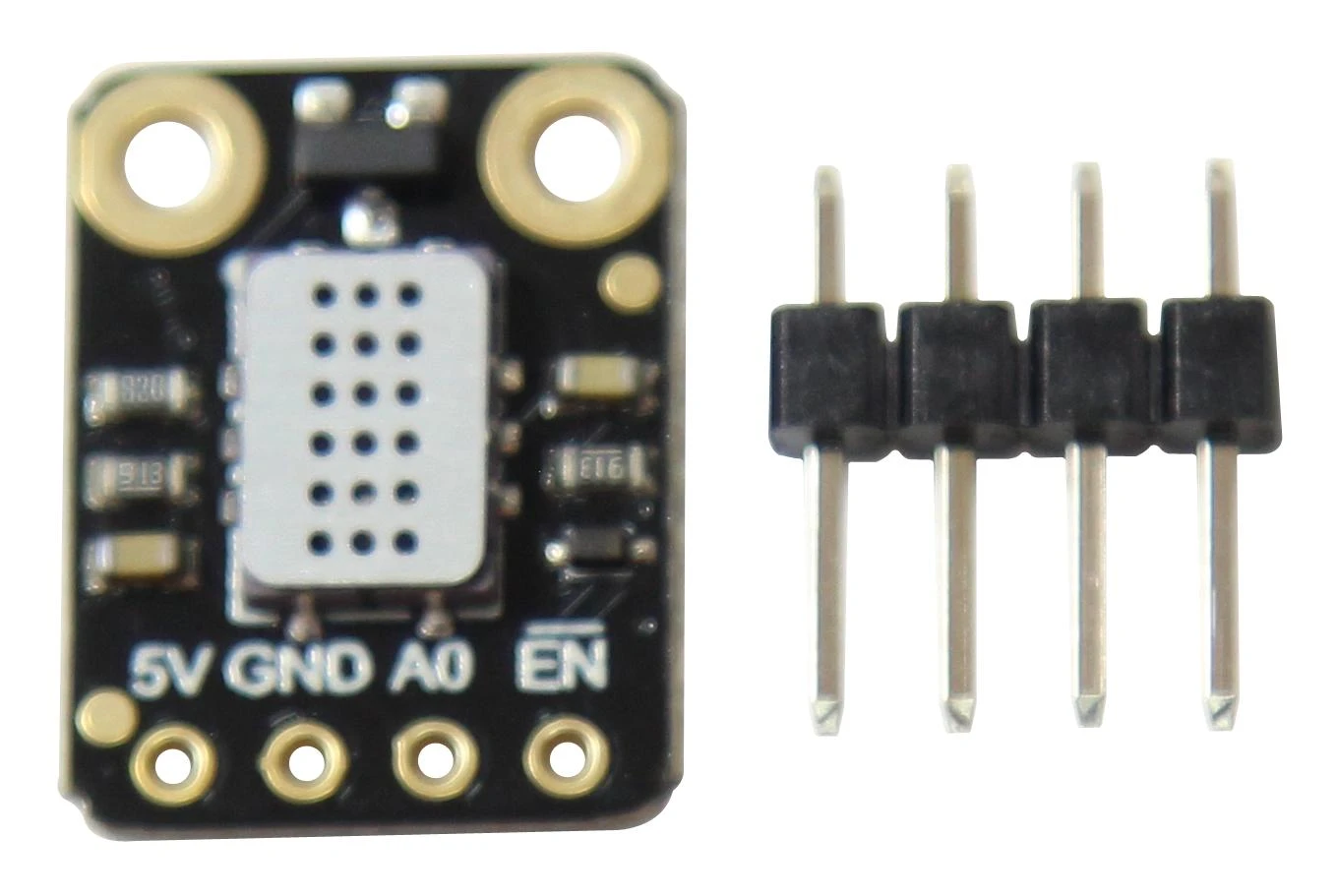

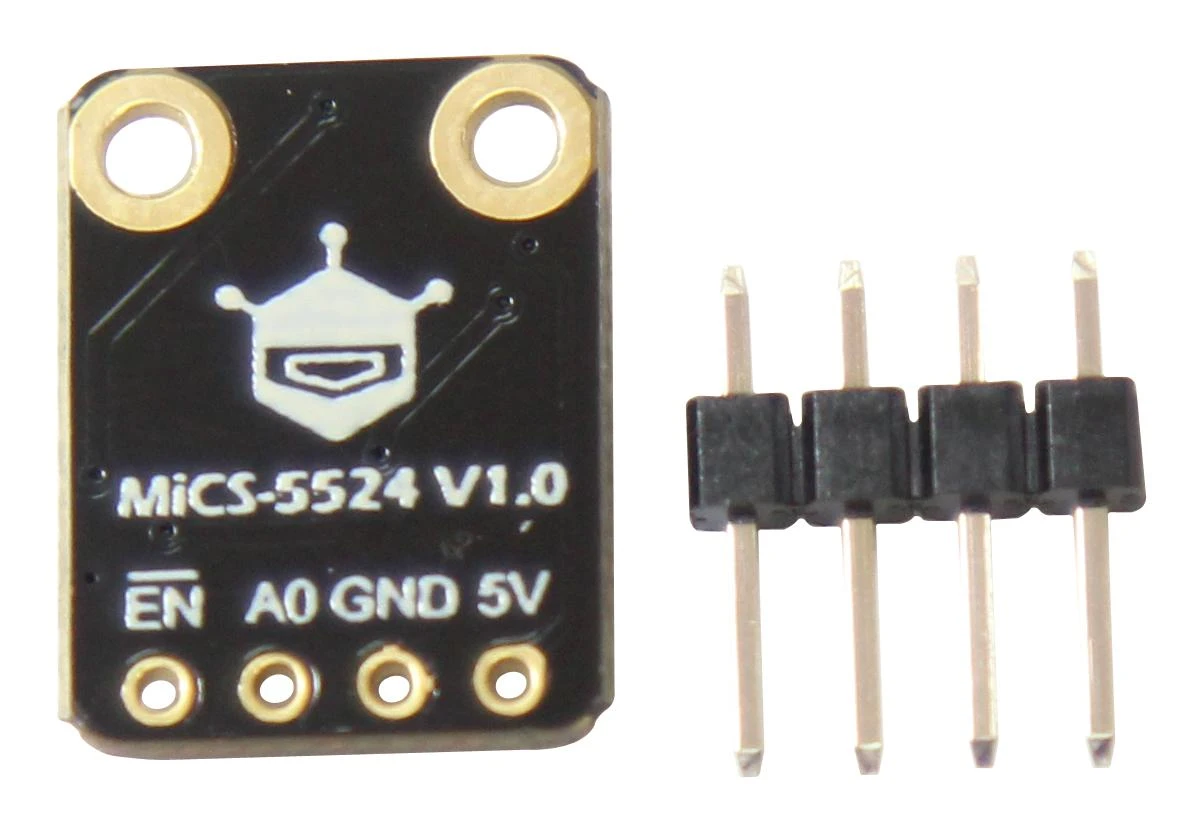

Dfrobot SEN0440 Sensor Board MiCS-5524 Mems Gas 4.9 V To 5.1 Concentration Detection(Dfrobot Sen0440 Sensor Board Mics 5524 Mems Gas 4 9 V To 5 1 Concentration Detection)

SEN0440 is a Fermion: MEMS gas sensor – MiCS-5524 (Breakout). This is a hydrogen and nitrogen oxide gas concentration sensor launched by DFRobot. The sensor uses MEMS technology to support gas concentration detection of CO, CH4, C2H5OH, C3H8, C4H10, H2, H2S and NH3. The matching sample code integrates the concentration conversion formula of various gas to facilitate the testing and use of sensors. The product supports 5V power supply, analogue voltage output, and has power supply enable/disable pins for low power consumption.

• Support detection of a variety of harmful gas
• Integrate the calculation formulas of various gas concentration
• I2C digital output
• Measuring range 1-1000ppm(CO), 10-500ppm(C2H5OH), 1-1000ppm(H2), 1-500ppm (NH3), >1000ppm(CH4)
• Circuit board size is 12mm x 16mm

Contents

Fermion: MEMS gas sensor – MiCS-5524 x1, Black pin header-3pin x1.

Product details

Silicon Manufacturer	SGX Sensortech
Core Architecture	–
Core Sub-Architecture	–
Silicon Core Number	MiCS-5524
Silicon Family Name	–
For Use With	Gas Concentration Detection
Kit Contents	MEMS Gas Sensor Board MiCS-5524, Black 3 Pin header
Product Range	–

Other details

Brand	DFROBOT
Part Number	SEN0440
Quantity	Each
Technical Data Sheet EN
