Dfrobot SEN0430 Sensor Board Distance Ranging TMF8801 2.7 V To 3.3 Arduino UNO R3(Dfrobot Sen0430 Sensor Board Distance Ranging Tmf8801 2 7 V To 3 3 Arduino Uno R3)

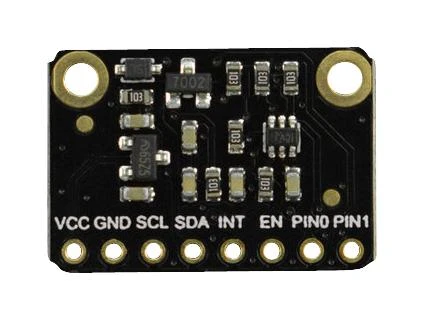

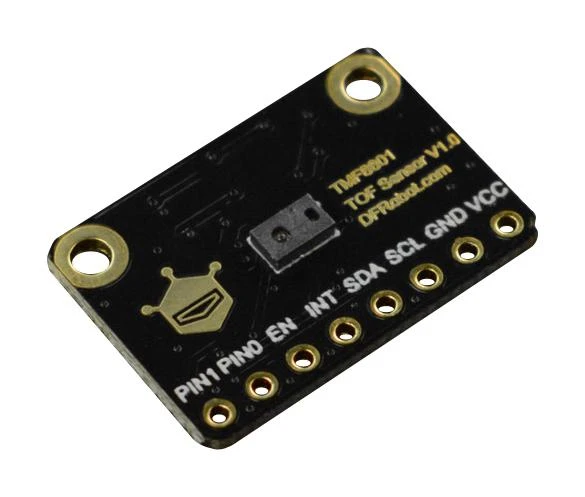

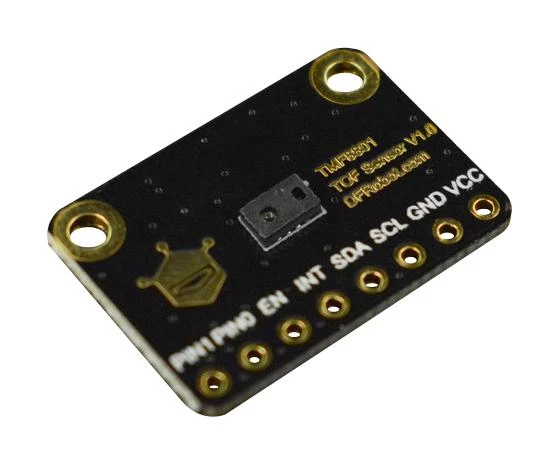

SEN0430 is a Fermion: TMF8801 ToF Distance Ranging Sensor (20-2500mm) (Breakout). The TMF8801 is a time-of-flight distance ranging sensor that uses the time difference between light pulses to measure distance. It provides single zone detection of an object irrespective of the colour, reflectivity and texture of the object. The TMF8801 offers high dynamic range and detection sensing measurements from 2-250cm distances. The device can make highly accurate distance measurements within ±5% and is capable of operation in dark environments and in the presence of sunlight. A built-in histogram is featured to delivers dynamic cover glass calibration and crosstalk compensation and background light noise is minimized through on-chip sunlight rejection filters. The TMF8801 outputs data through a I2C fast-mode communications interface and an integrated micro controller, which is featured with all algorithms included on-chip with no need for external optics.

• 21â�° FOI, detect the object closest to the centre
• 940nm VCSEL class 1 eye safety
• Low power consumption
• Operating voltage is 2.7~3.3V

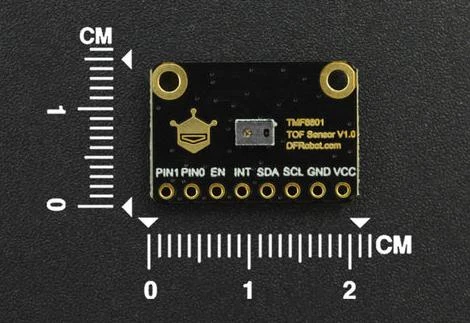

• Dimension is 21Ã�14.5mm

Contents

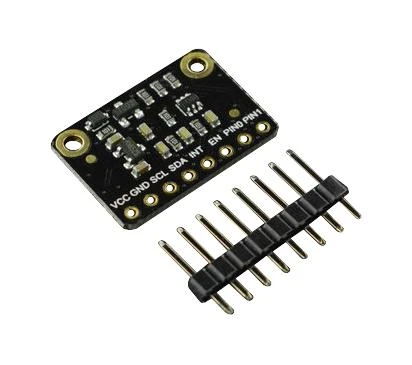

Fermion: TMF8801 ToF distance ranging sensor (10-2500mm) x1, 2.54-8P black single-row connector x1.

Product details

Silicon Manufacturer	AMS
Core Architecture	–
Core Sub-Architecture	–
Silicon Core Number	TMF8801
Silicon Family Name	–
For Use With	Arduino UNO v3.0[R3] Board
Kit Contents	Time-of-Flight Distance Ranging Sensor TMF8801, 8P Black Single-Row Connector
Product Range	–

Other details

Brand	DFROBOT
Part Number	SEN0430
Quantity	Each
Technical Data Sheet EN
