Dfrobot SEN0308 SEN0308 Soil Moisture Sensor Analogue Waterproof Arduino/ESP32/micro:bit/Control Board/Raspberry Pi Board(Dfrobot Sen0308 Sen0308 Soil Moisture Sensor Analogue Waterproof Arduino Esp32 Micro Bit Control Board Raspberry Pi Board)

Gravity: Analog waterproof capacitive soil moisture sensor is a new type of analogue capacitive soil moisture sensor designed by DFRobot. Compared with the old soil moisture sensor, it has increased waterproof performance. Even if the sensor is fully immersed in water, it can still be used normally. The anti-corrosion performance is optimized and more Laminate design, no longer need to worry about the sensors in the soil scratching the sensor panel resulting in accelerated corrosion of the sensor. The length of the electrode plate is increased and the circuit performance is optimized, the measurement range is expanded and the measurement value of the sensor is more accurate.

• Supply voltage range from 3.3VDC to 5.5VDC
• 2.54-3Pin interface
• Output voltage range from 0VDC to 3VDC
• Cable length of 1.5m
• Dimension(L x W): 175 x 30mm / 6.89 x 1.18 inches

Contents

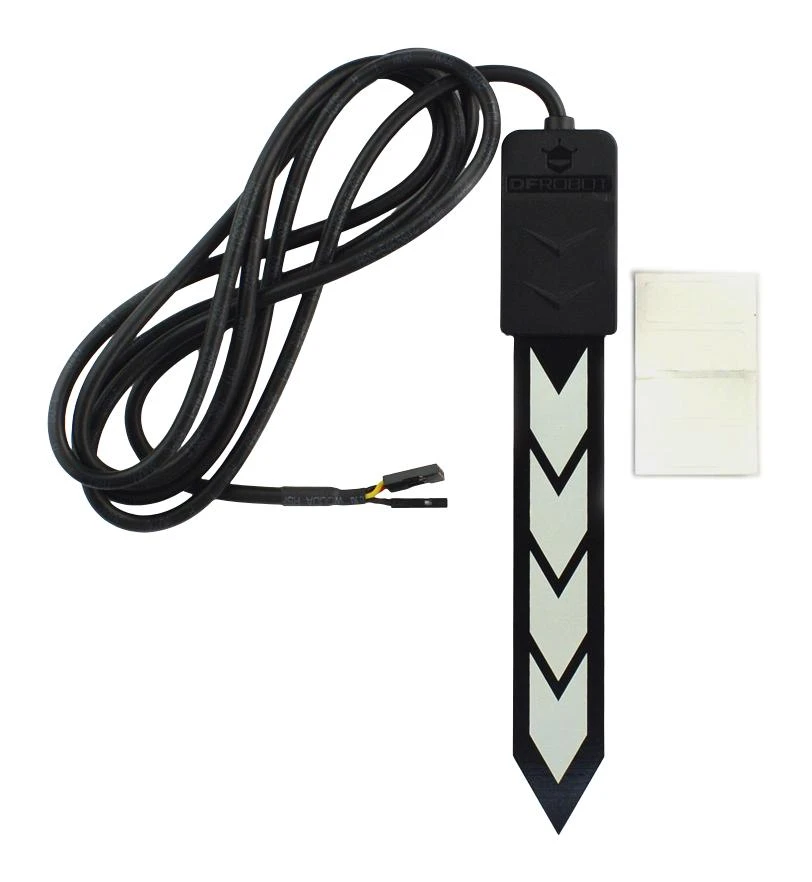

Analog waterproof soil moisture sensor x 1, Waterproof label x 4.

Product details

Accessory Type	Gravity Analogue Waterproof Capacitive Soil Moisture Sensor
For Use With	Arduino, ESP32, micro:bit, Control Board and Raspberry Pi Boards
Product Range	–

Other details

Brand	DFROBOT
Part Number	SEN0308
Quantity	Each
Technical Data Sheet EN
