Dfrobot SEN0244 SEN0244 Analog TDS Sensor/Meter Arduino Development Boards(Dfrobot Sen0244 Sen0244 Analog Tds Sensor Meter Arduino Development Boards)

Original price was: $21.91.Current price is: $15.34.

Elevate Your Shopping Experience

Product guarantee 100% satisfaction

The quality solution for all your needs.

Streamlined service, designed for your convenience.

Gravity analogue TDS sensor/meter for Arduinois is an Arduino compatible TDS meter kit for measuring TDS value of the water, to reflect the cleanliness of the water. It can be applied to domestic water, hydroponic and other fields of water quality testing.

Wide voltage input from 3.3V to 5.5V
Good compatibility output of 0 to 2.3V analogue signal output, compatible with 5 or 3.3V controller
AC excitation source, effectively prevent probe from polarization
Waterproof probe
Easy to use, Arduino compatible, simple connection, plug and play without soldering
TDS measurement range from 0 ppm to 1000ppm with accuracy of Â±10% F.S. (25Â°C)

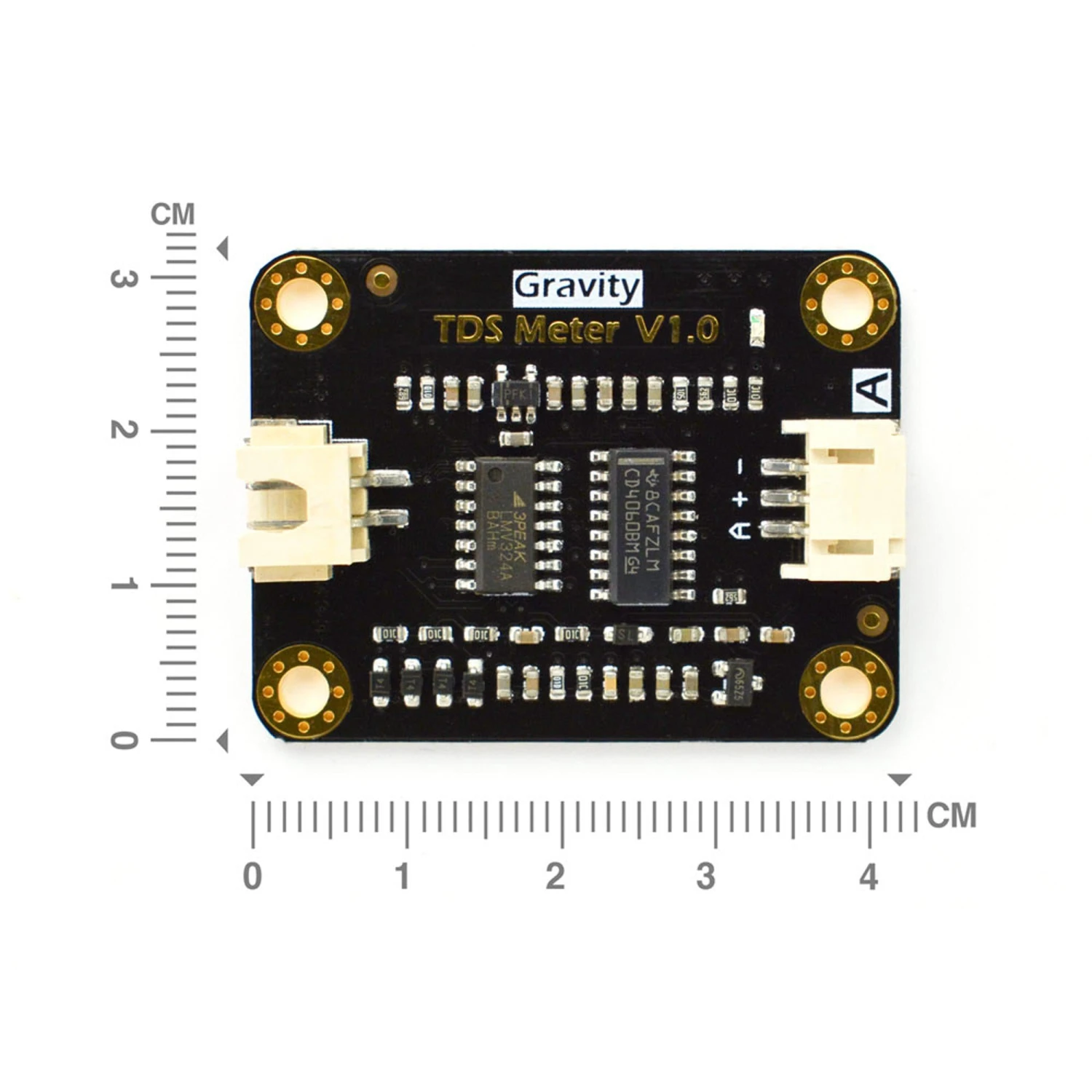

Module size is 42mm x 32mm
PH2.0-3P module interface, XH2.54-2P electrode interface
TDS probe has 2 needle and length of 83cm

Contents

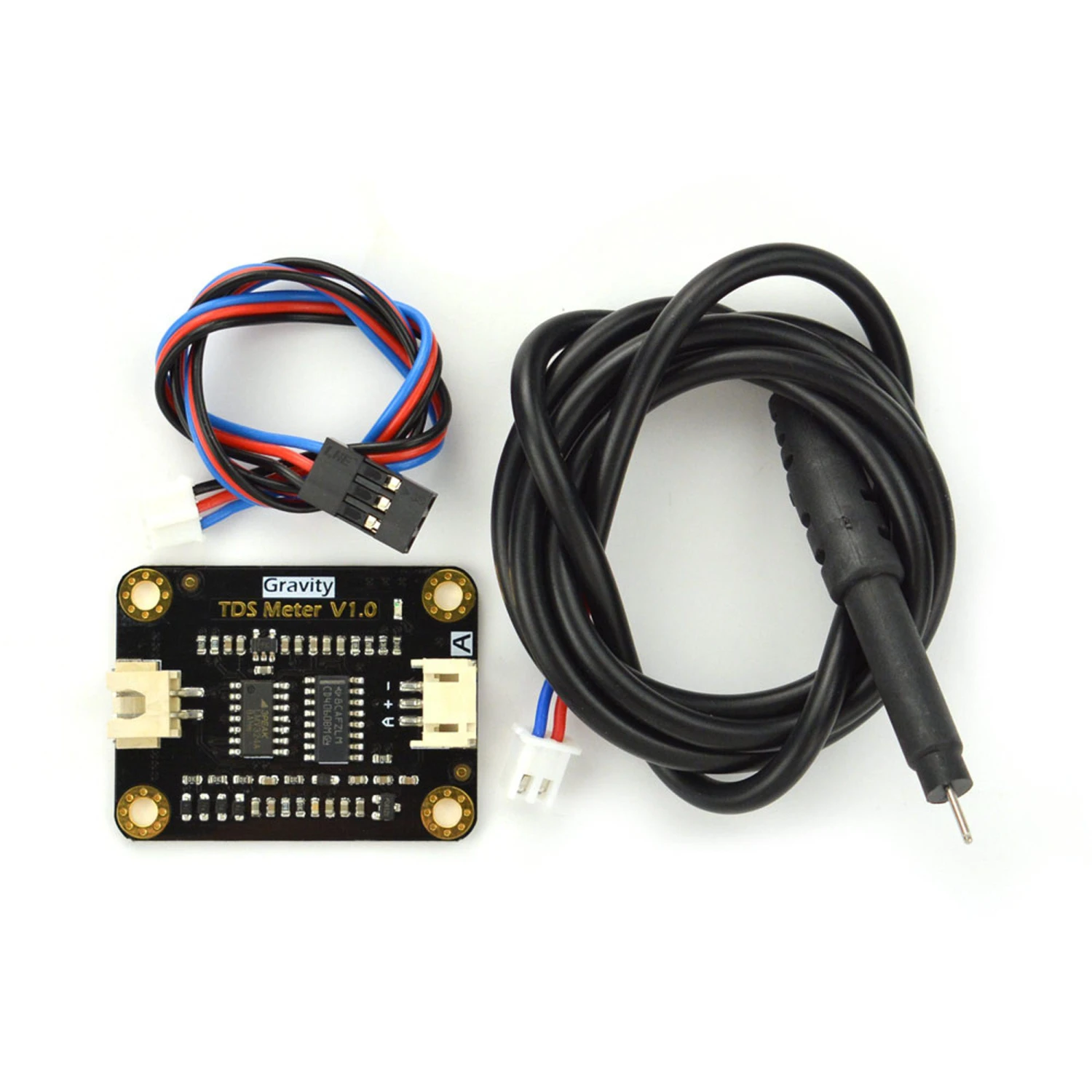

Analog TDS Meter For Arduino x1, Waterproof TDS Probe x1, 3 Pin Analogue Sensor Cable x1.

Other details

Brand	DFROBOT
Part Number	SEN0244
Quantity	Each
Technical Data Sheet EN
Manufacturer Product Page EN
