Dfrobot SEN0227 Temperature & Humidity Sensor SHT20 I2C For Arduino Development Boards(Dfrobot Sen0227 Temperature Amp Humidity Sensor Sht20 I2c For Arduino Development Boards)

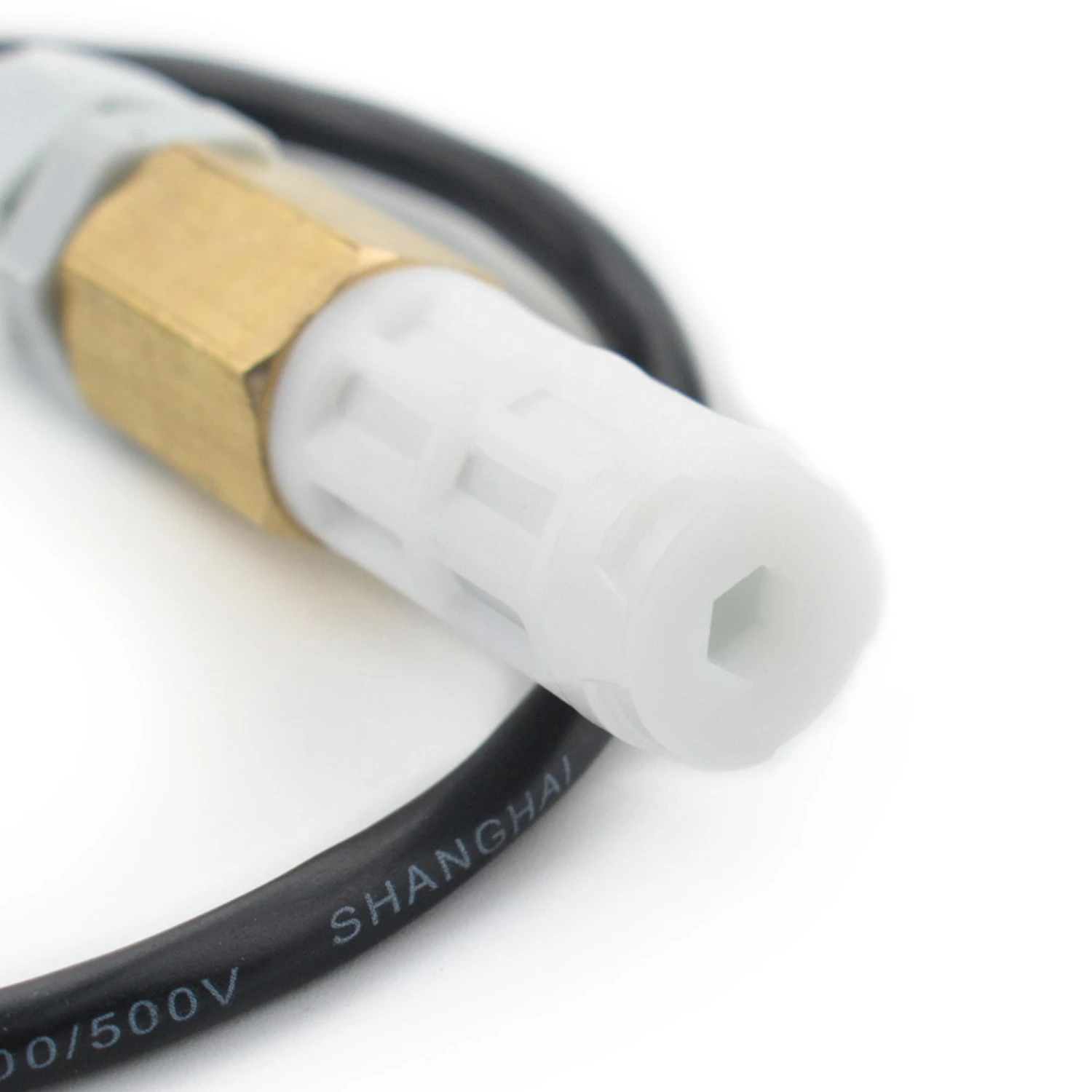

SHT20 I2C temperature & humidity sensor is equipped with waterproof probe. It comes with the 4C CMOSens® SHT20 temperature & humidity sensor chip and the probe has gone through dual waterproof protection test. The SHT20 I2C temperature & humidity sensor adopt Sensirion techniques. Except the humidity sensor of capacitive type and the temperature sensor of band gap, SHT20 contains an amplifier, A/D converter, OTP memory and a digital processing unit. Compared with early SHT1x series and SHT7x series, SHT20 shows a strong reliability and long term stability. It can measure surrounding environment temperature and relative air humidity precisely. There is also a built-in 10k pull-up resistor and 0.1uf filter capacitor. It enables the sensor to be directly used with the microcontroller such as Arduino.

• Operating voltage of 3.3/5V
• I2C communication interface
• Waterproof anti-condensation protection class
• RH response time is 8s (tau63%)
• Accuracy is ±3% RH / ±0.3°C
• Measuring range from 0-100% RH / -40-125°C
• Dimension is 73mm x 17mm / 2.87 x 0.67inch, weight is 44g

Contents

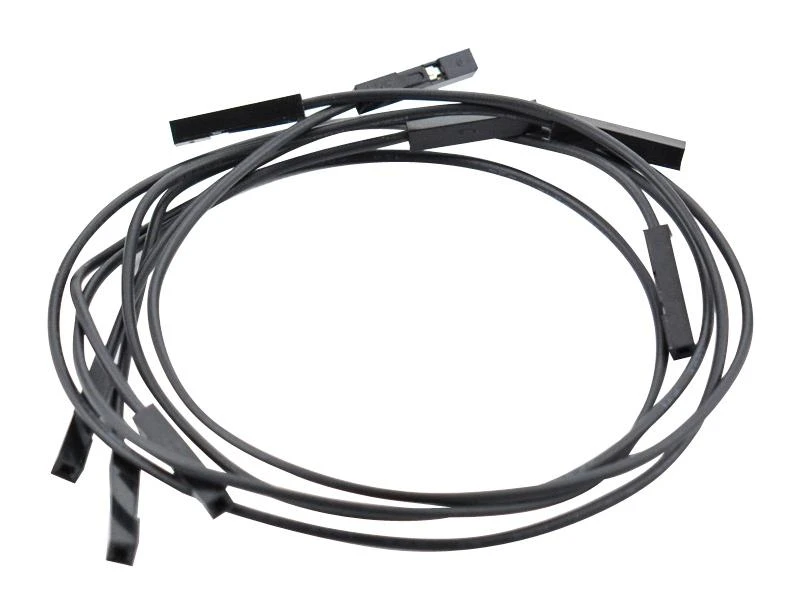

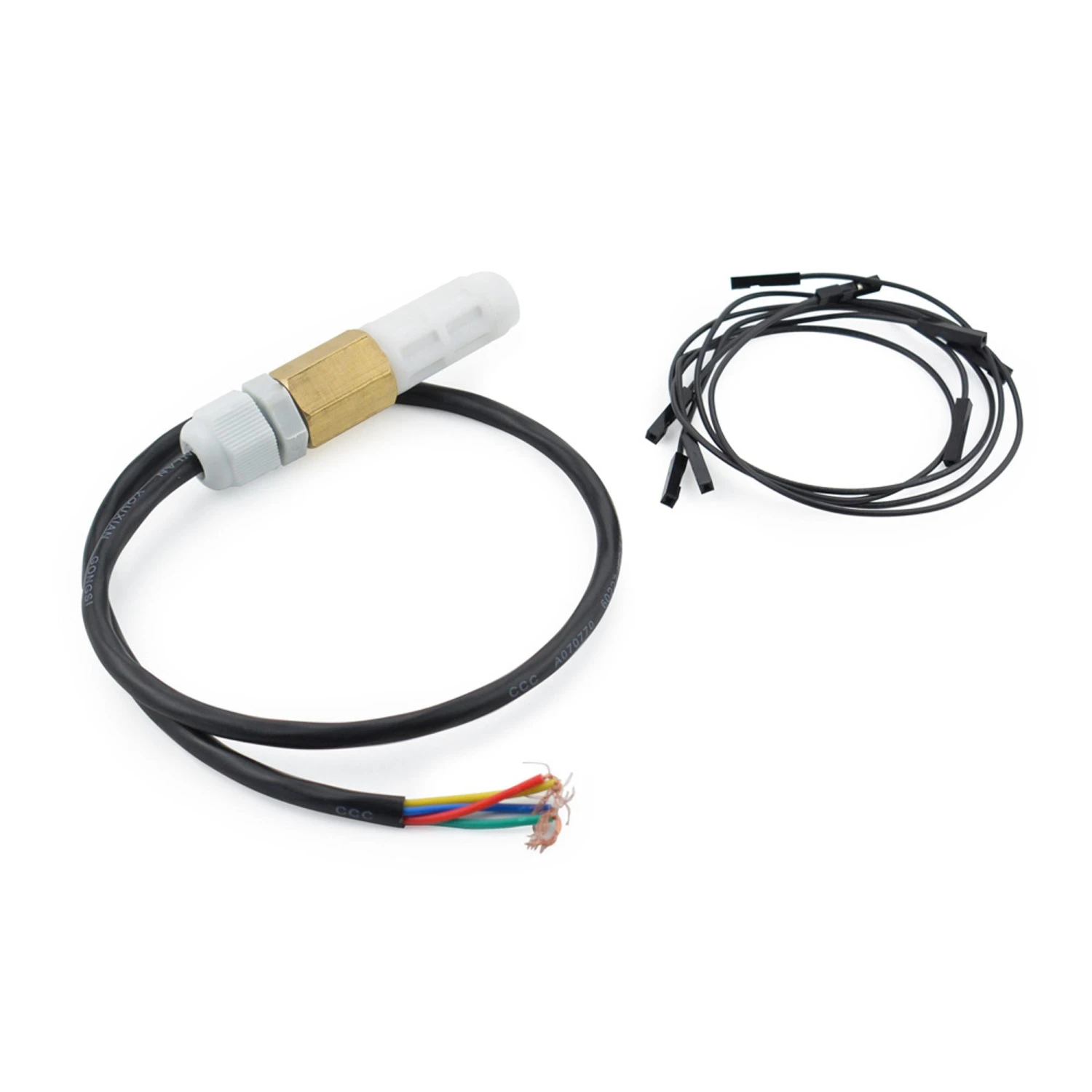

SHT20 I2C Temperature & Humidity Sensor (Waterproof Probe) x1, Jumper Wires 7.8″ F/F x4.

Product details

Accessory Type	SHT20 I2C Temperature & Humidity Sensor
For Use With	Arduino Development Boards
Product Range	–

Other details

Brand	DFROBOT
Part Number	SEN0227
Quantity	Each
Technical Data Sheet EN
Manufacturer Product Page EN
