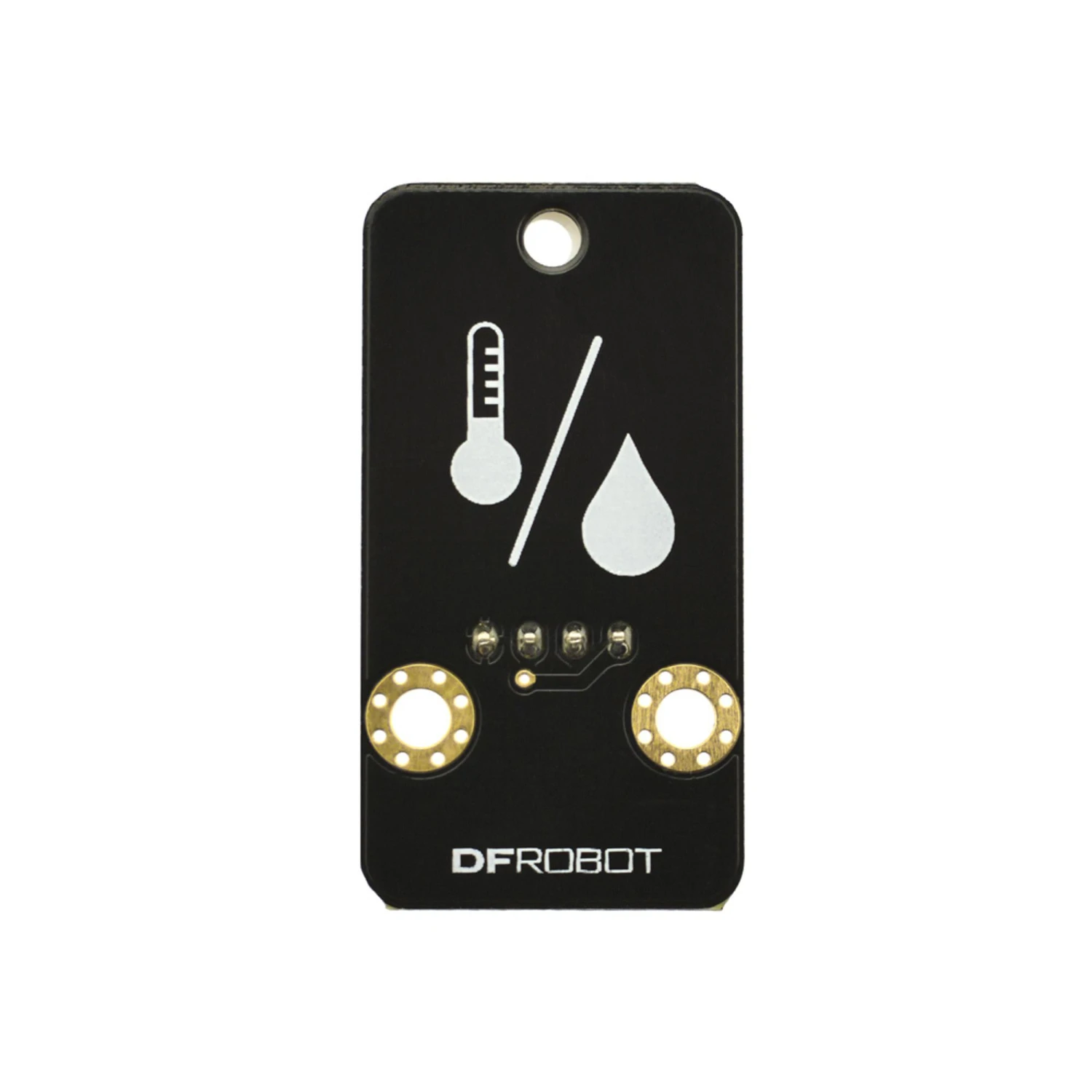

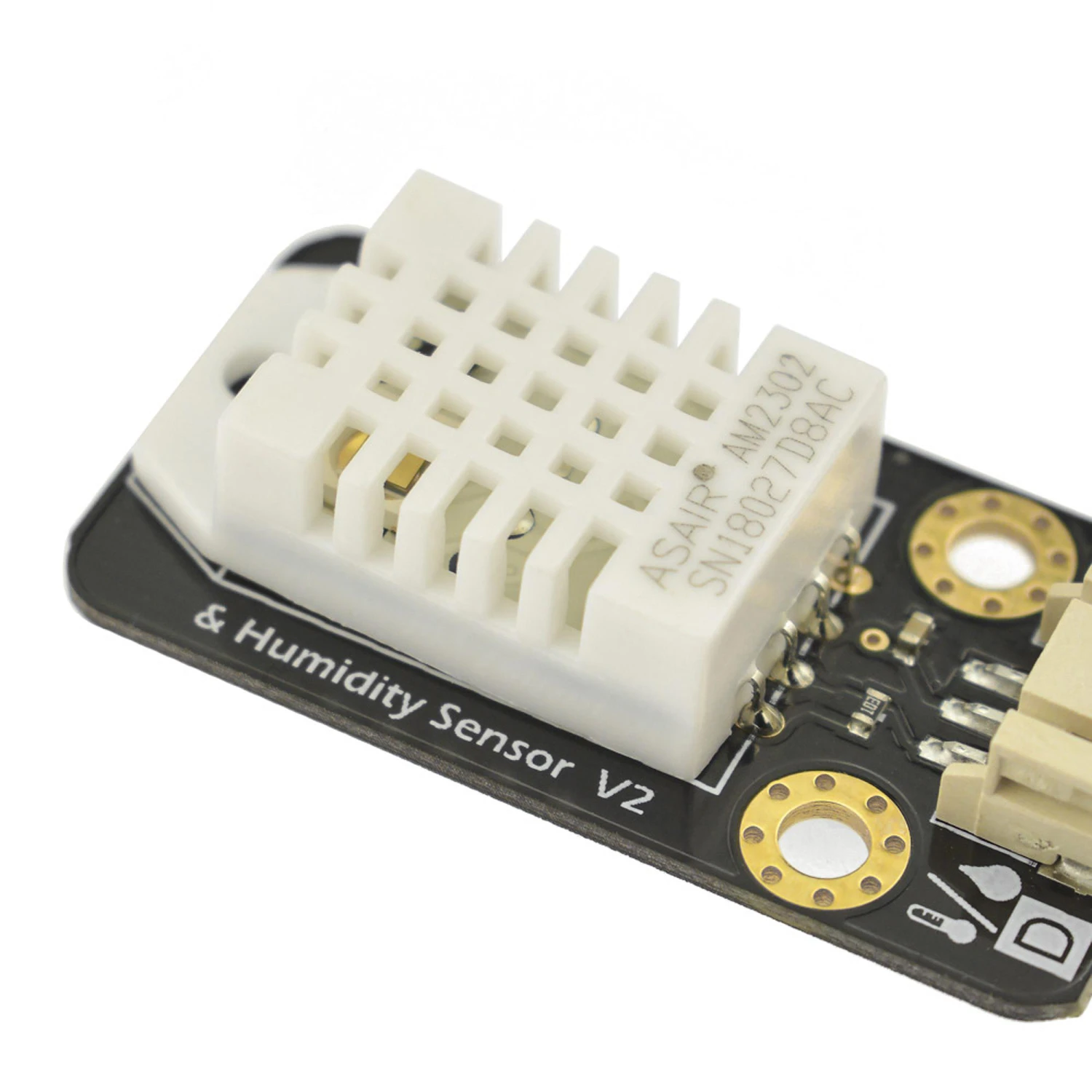

Dfrobot SEN0137 Temperature & Humidity Sensor DHT22 For Arduino Development Boards(Dfrobot Sen0137 Temperature Amp Humidity Sensor Dht22 For Arduino Development Boards)

Gravity: DHT22 temperature & humidity sensor module is one that contains the compound has been calibrated digital signal output of the temperature and humidity sensors. Application of a dedicated digital modules collection technology and the temperature and humidity sensing technology, to ensure that the product has high reliability and excellent long-term stability. The sensor includes a capacitive sensor wet components and a high precision temperature measurement devices, and connected with a high performance 8bit microcontroller. The product has excellent quality, fast response, strong anti-jamming capability and cost-effective. Standard single bus interface, system integration quick and easy. Small size, low power consumption, signal transmission distance up to 20 meters, making it the best choice of all kinds of applications and even the most demanding applications. It can measure the environment temperature and humidity to meet the high demand.

• Supply voltage is 5V
• Temperature range from -40 to 80°C / resolution0.1°C / error <±0.5°C
• Humidity range from 0-100%RH / resolution0.1%RH / error±2%RH
• VCC, GND, S wiring map

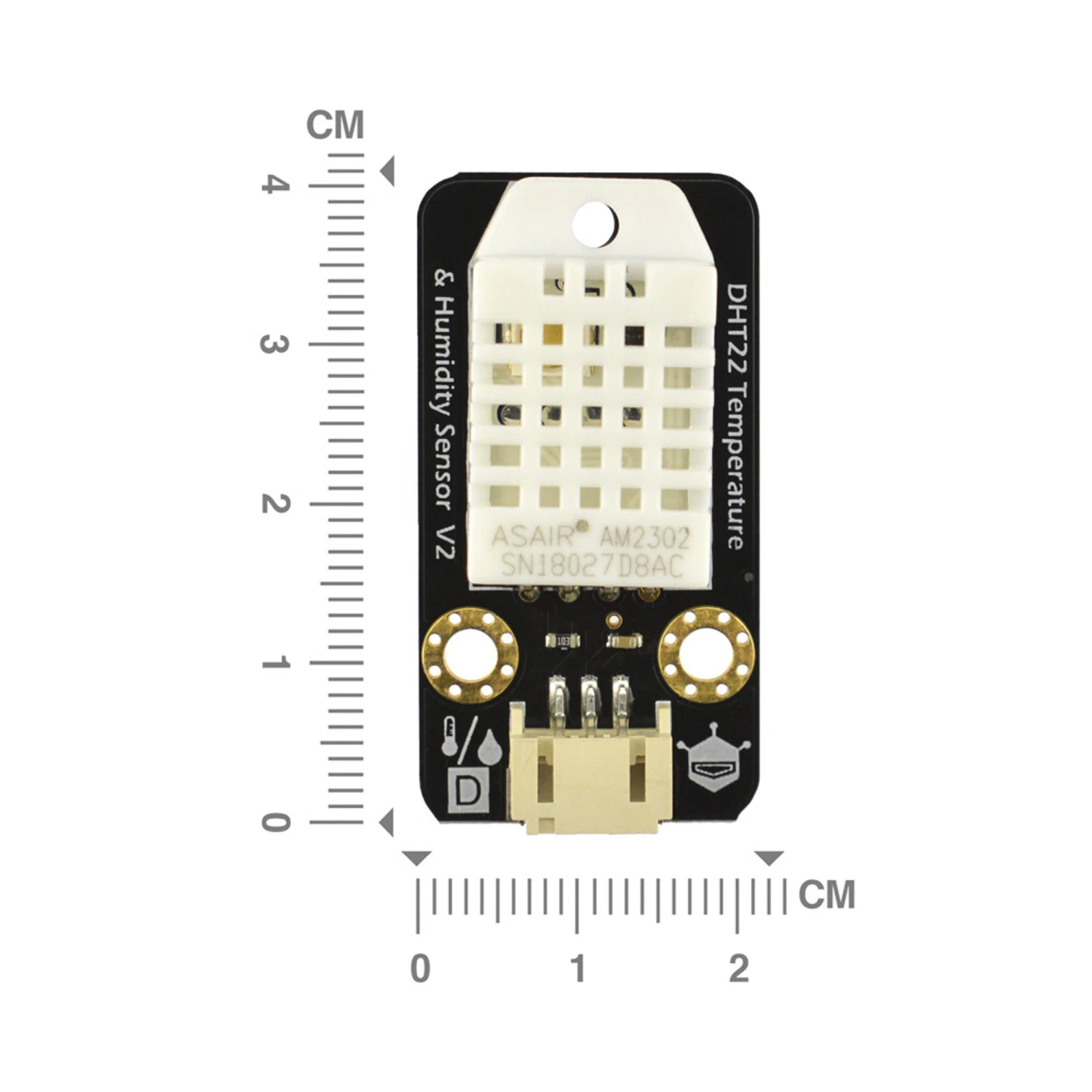

• Size is 38mm x 20mm (1.50 x 0.79″)

Contents

DHT22 Sensor x1, Analog Sensor Cable x1.

Other details

Brand	DFROBOT
Part Number	SEN0137
Quantity	Each
Technical Data Sheet EN
Manufacturer Product Page EN
