Dfrobot DFR0579 DFR0579 Evaluation Board Solar Power Management Module SPV1050 DC-DC Boost 0.5 V To 4 Supply(Dfrobot Dfr0579 Dfr0579 Evaluation Board Solar Power Management Module Spv1050 Dc Dc Boost 0 5 V To 4 Supply)

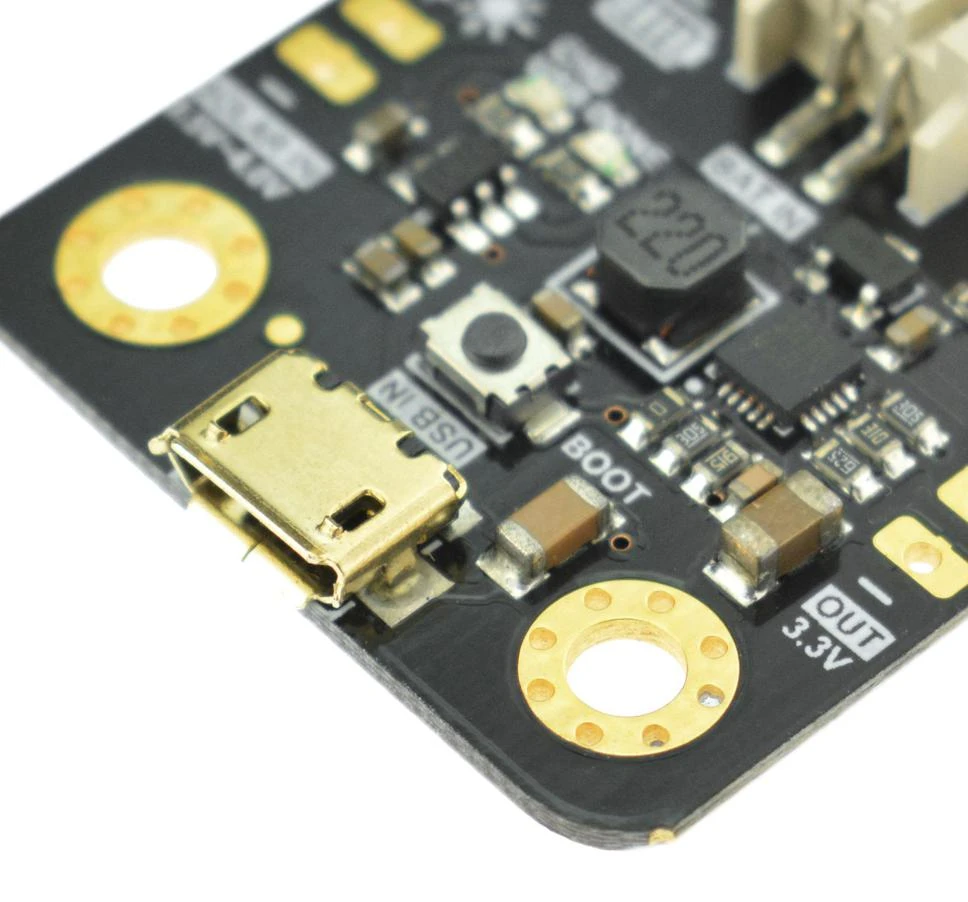

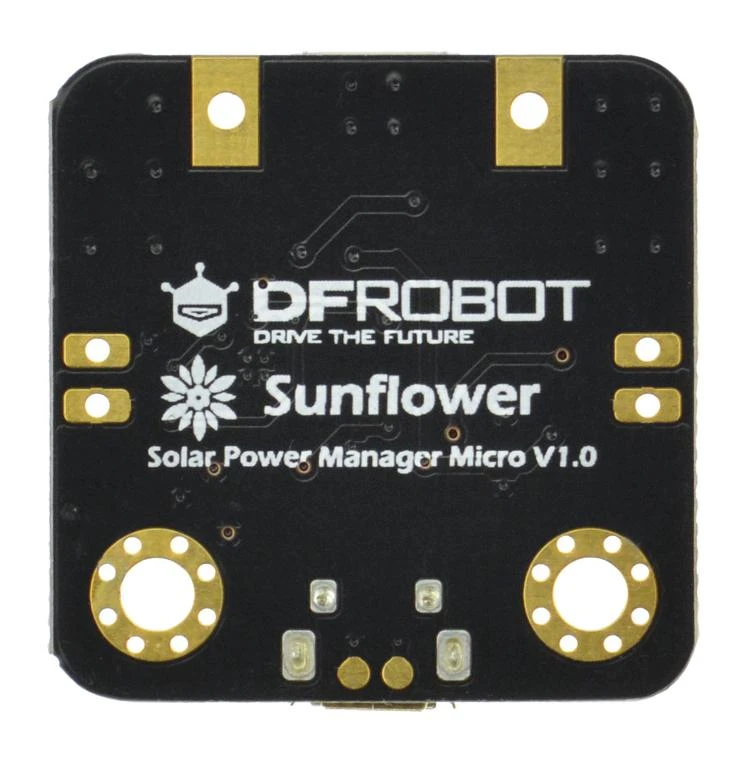

Solar power manager micro is a micro power, high-efficiency solar power management module, designed for powering IoT based low-power wireless sensors or controllers with 1V~3V small size solar panels. Benefited from its extremely low power dissipation and MPPT (maximum power point tracking), the module is able to maximize the conversion efficiency of solar energy under weak sunlight. These features make low-power wireless devices charge-free and battery replacement-free possible by pure solar power.

• Constant voltage ratio MPPT algorithm, maximizing solar power conversion
• Designed for 1V ~ 3V small solar panels, ultra low power design
• Solar/USB two charging methods
• Multiple protections extending battery life

Contents

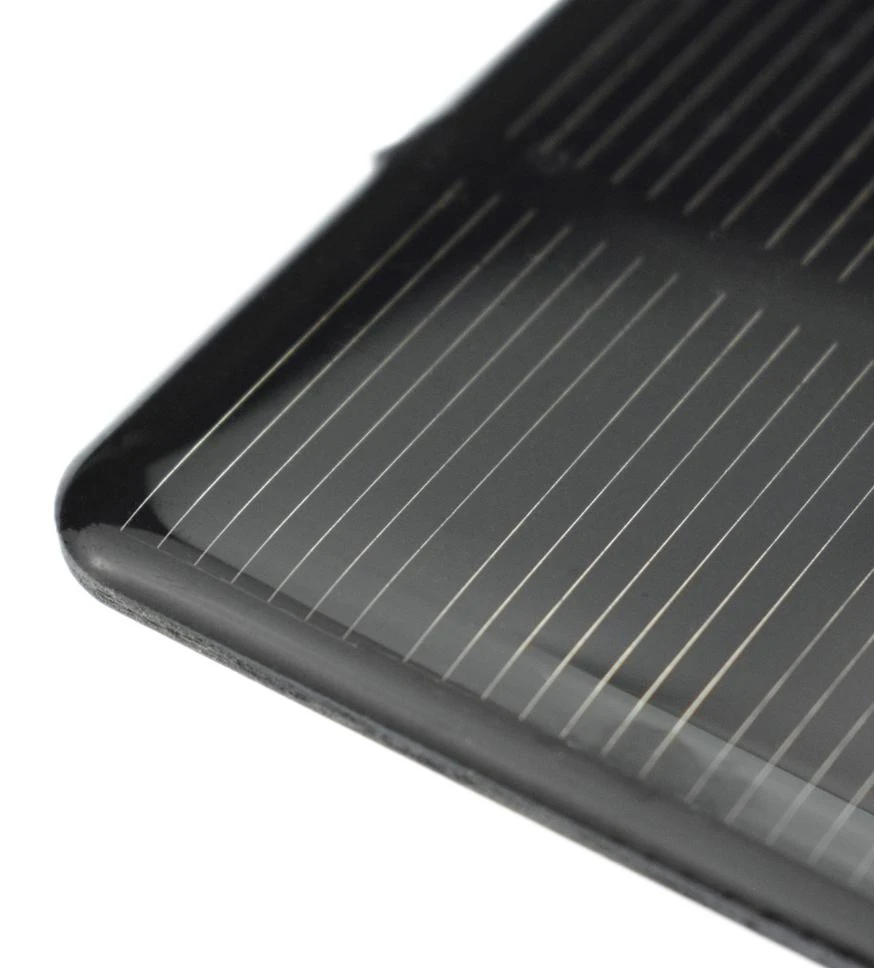

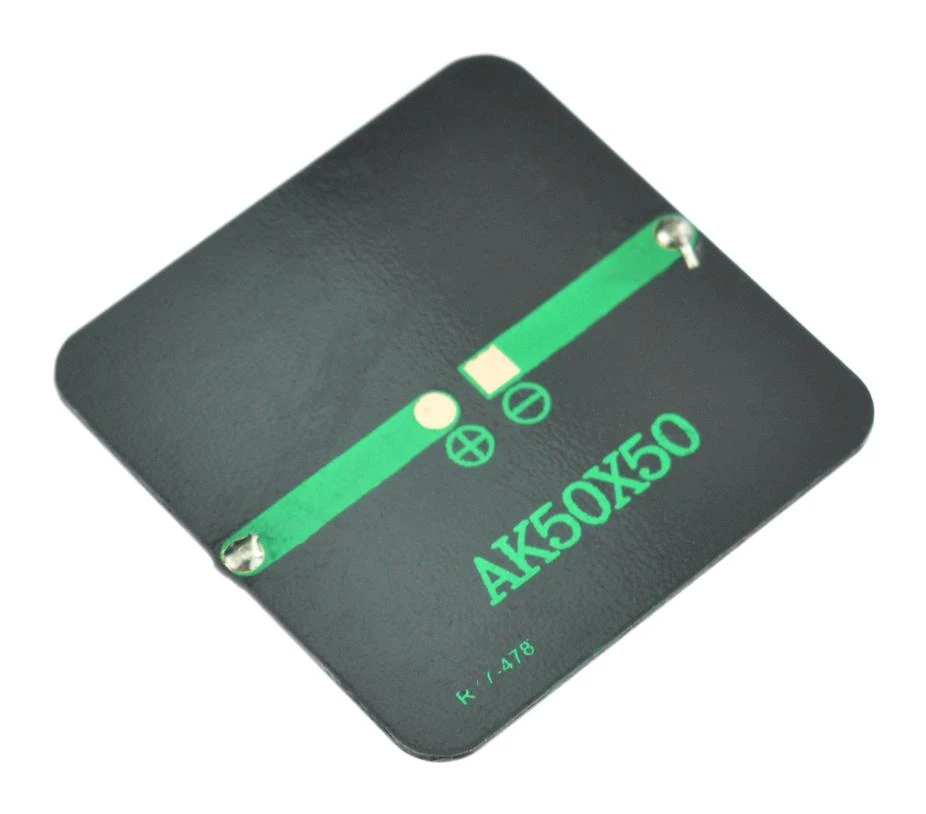

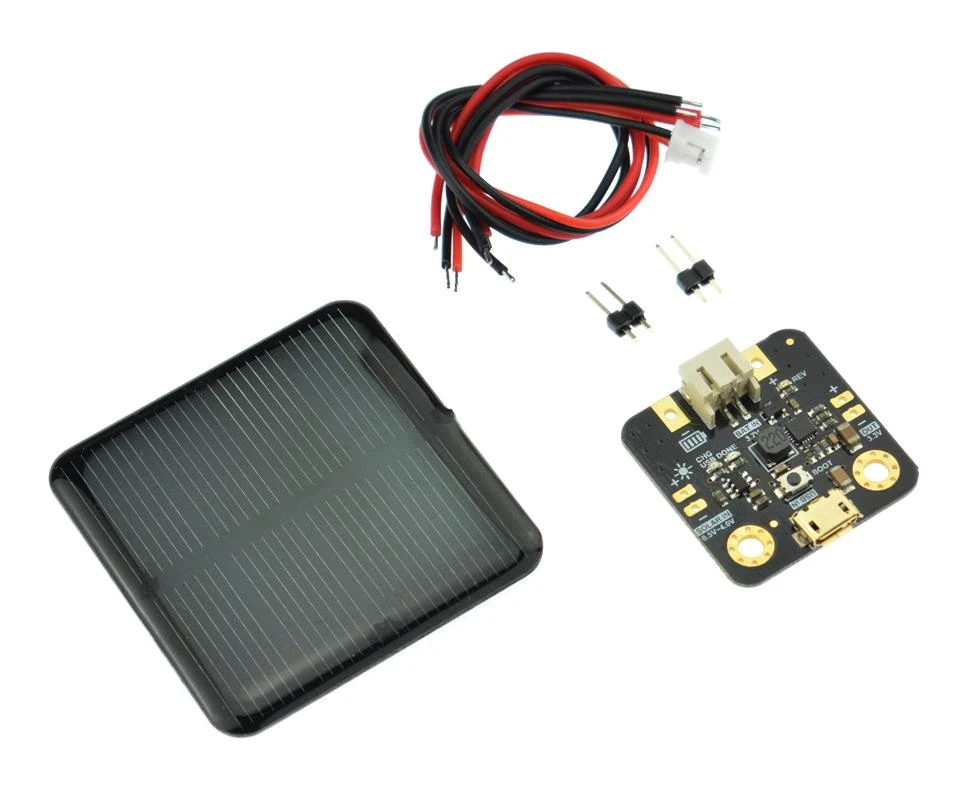

Solar power manager micro x 1, Monocrystalline silicon solar panel 2V 160mA 50*50mm x 1, Red single conductor wire 15cm 24AWG x 2, Black single conductor wire 15cm 24AWG x 2, PH2.0-2P male power wire 15cm x 1, XH2.54-2P header x 2.

Product details

Accessory Type	Solar Power Management Module
For Use With	Wireless Sensor Network, Bluetooth iBeacon, Solar Powered Toys
Product Range	–

Other details

Brand	DFROBOT
Part Number	DFR0579
Quantity	Each
Technical Data Sheet EN
