Dfrobot DFR0554 LCD Board 3.3 V To 5 Supply Arduino UNO R3(Dfrobot Dfr0554 Lcd Board 3 3 V To 5 Supply Arduino Uno R3)

Original price was: $18.04.Current price is: $12.63.

Elevate Your Shopping Experience

Product guarantee 100% satisfaction

The quality solution for all your needs.

Streamlined service, designed for your convenience.

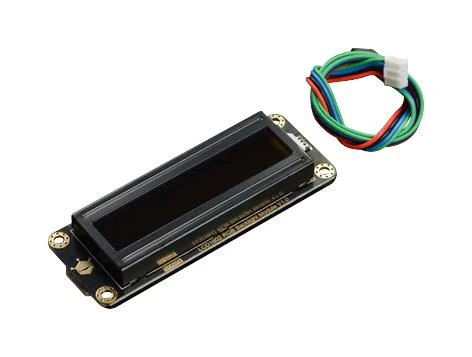

DFR0554 is a Gravity: I2C 16×2 Arduino LCD with RGB font display. DFRobot Gravity I2C 16×2 Arduino LCD with RGB font display use universal Gravity I2C interface, it means only two communication lines, you can realize communication and backlight control. The LCD screen can display 2×16 characters, support screen scrolling, cursor movement and other functions.

Operating voltage of 3.3V to 5.0V
Operating current is <=60mA
I2C communication
RGB can adjust backlight
Operating temperature range from -20 to +70Â°C

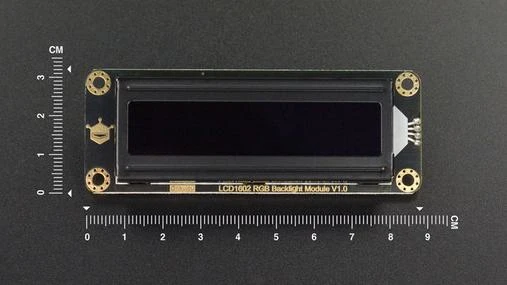

Dimension is 87.0 x 32.0 x 13.0mm/3.43 x 1.26 x 0.51in

Contents

Gravity: I2C 16×2 Arduino LCD with RGB font display x 1, Gravity I2C/UART sensor cable x 1.

Product details

Silicon Manufacturer	–
Core Architecture	–
Core Sub-Architecture	–
Silicon Core Number	–
Silicon Family Name	–
For Use With	Arduino UNO R3 Board
Kit Contents	LCD1602 Arduino LCD with RGB Font Display, I2C/UART Sensor Cable
Product Range	–

Other details

Brand	DFROBOT
Part Number	DFR0554
Quantity	Each
Technical Data Sheet EN
