Dfrobot DFR0464 DFR0464 Expansion Board Gravity I2C 16×2 Arduino LCD Dfrduino UNO R3(Dfrobot Dfr0464 Dfr0464 Expansion Board Gravity I2c 16×2 Arduino Lcd Dfrduino Uno R3)

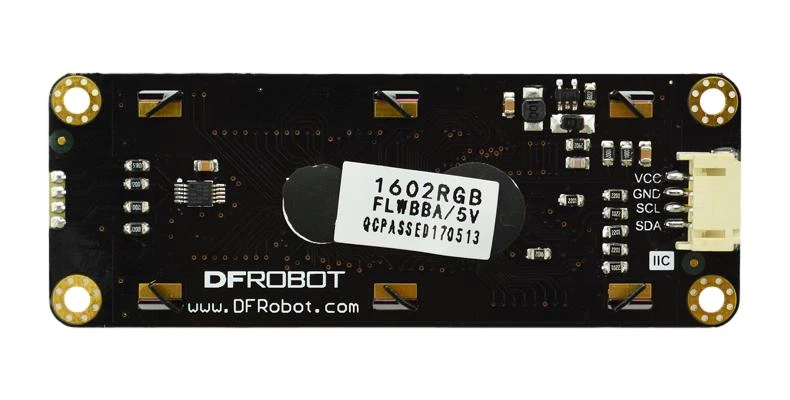

Gravity I2C 16×2 Arduino LCD with RGB backlight display module comes with RGB full colour backlight, which has 16 million kinds of colour. Usually, Arduino LCD display projects will run out of pin resources easily, especially with Arduino Uno. And it is also very complicated with the wire soldering and connection. This I2C 16×2 LCD Screen is using an I2C communication interface. It means it only needs 4 pins for the LCD display: VCC, GND, SDA, SCL. It will saves at least 4 digital / analogue pins on Arduino. And Gravity interface make it easier to use with Gravity: IO expansion shield.

• Operating voltage range from 3.3V to 5V
• Operating current is <=60mA
• 16 x 2 display
• I2C communication
• Operating temperature range from -20â�°C to 70â�°C
• Storage temperature range from -30â�°C to 80â�°C

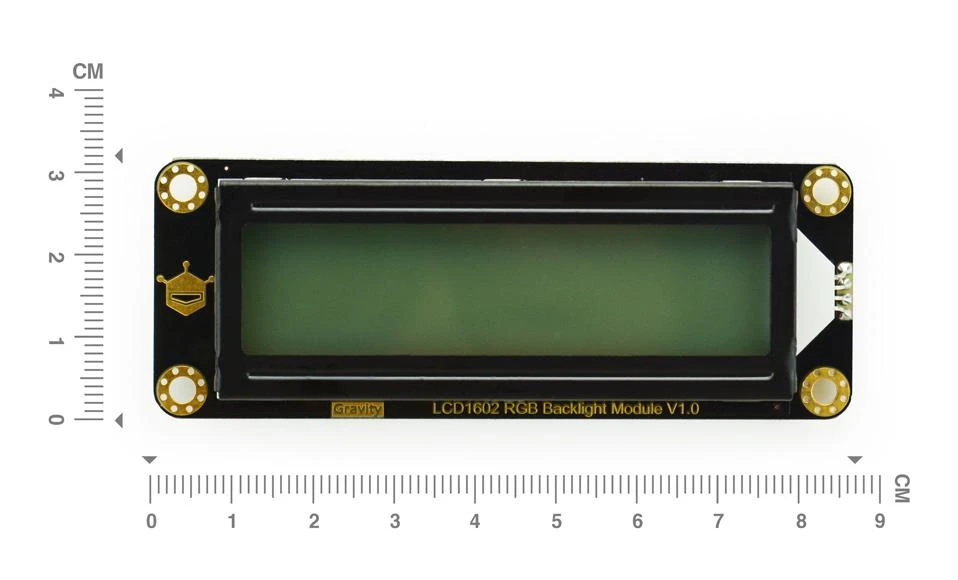

• Dimension: 87.0 * 32.0 * 13.0mm/3.42 * 1.26 * 0.51 inches

Contents

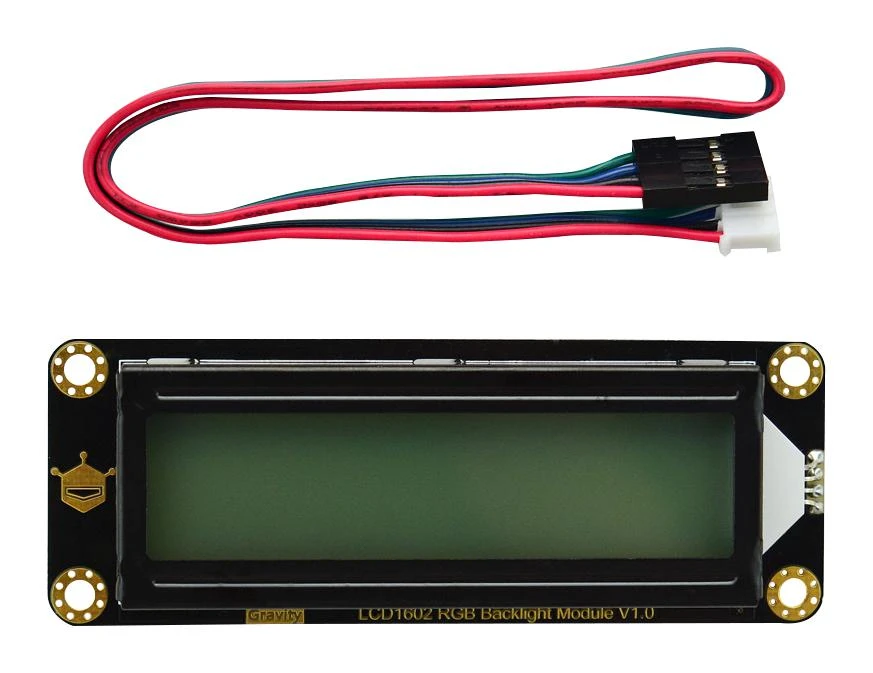

Gravity: I2C 16×2 Arduino LCD with RGB backlight display x1, Gravity 4Pin I2C/UART sensor cable x 1.

Product details

Silicon Manufacturer	–
Core Architecture	–
Core Sub-Architecture	–
Silicon Core Number	–
Silicon Family Name	–
For Use With	Arduino UNO Board
Kit Contents	Gravity I2C 16×2 Arduino LCD with RGB Backlight Display, Gravity 4Pin I2C/UART Sensor Cable
Product Range	–

Other details

Brand	DFROBOT
Part Number	DFR0464
Quantity	Each
Technical Data Sheet EN
