Dfrobot DFR0300 Development Kit Analog Electrical Conductivity Meter K=1 Arduino Gravity Series(Dfrobot Dfr0300 Development Kit Analog Electrical Conductivity Meter K 1 Arduino Gravity Series)

Comprehensive kit which allows you to measure the electrical conductivity of aqueous solutions and evaluate water quality. With a plug-and-play design, intuitive software library and support for 3.3V/5V microcontrollers (such as Arduino) it can be a simple and effective measuring solution. The software library uses a two-point calibration method, temperature compensation algorithm and can automatically identify standard buffer solution.

• 3V-5V Wide voltage input range and support for both 5V and 3.3V control boards
• Hardware based filter for the output signal reduces jitter
• Reduced polarisation to improve precision and prolong probe lifespan
• Plug and play Gravity 3-pin interface and BNC probe connector for convenience, no soldering required
• Board output voltage: 0-3.4V
• Measurement Accuracy: ±5%
• Board size: 42x32mm

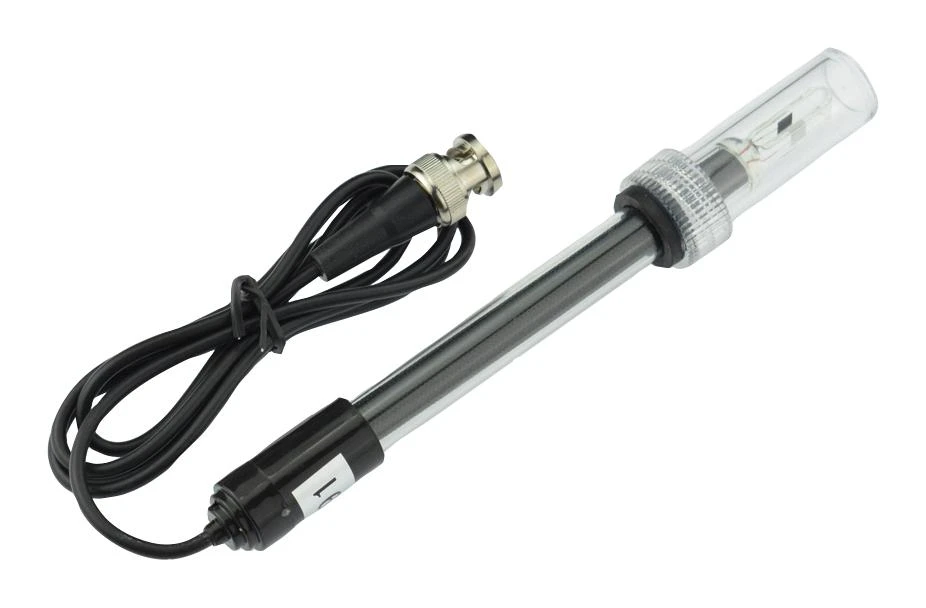

• Laboratory Grade probe
• Probe cell constant: 1.0
• Probe Detection Range: 0-20ms/cm

• Recommended Detection Range: 1-15ms/cm
• Temperature Range: 0-40°C
• Probe Life: Approx. >0.5 year (depending on frequency of use)
• Probe cable length: 1m

Applications

Embedded Design & Development, Electronics Design, IoT (Internet of Things), Hobby & Education

Contents

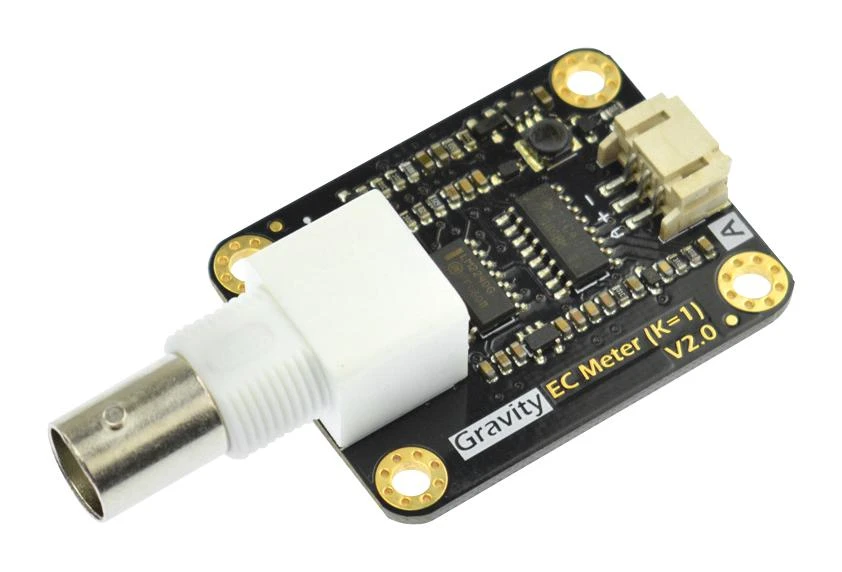

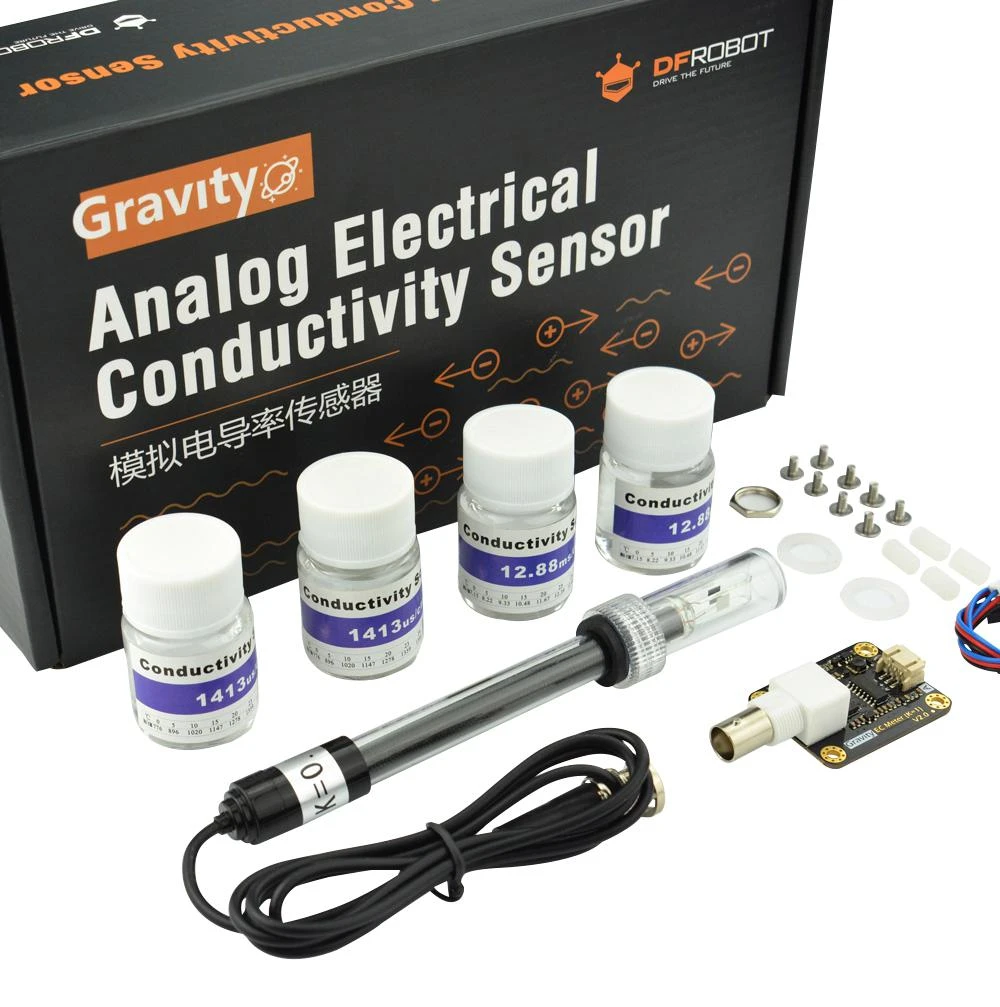

Conversion board, conductivity probe (K=1), 2x 1413us buffer solution, 2x 12.88ms buffer solution, analogue sensor cable, 2x waterproof gaskets, BNC cap, screws and standoffs

Footnotes Note: The probe is laboratory-grade; it is not designed for long periods of immersion and should be cleaned after each use.

Product details

Accessory Type	Analog Electrical Conductivity Sensor /Meter V2
For Use With	Arduino Development Boards
Product Range	Gravity Series

Other details

Brand	DFROBOT
Part Number	DFR0300
Quantity	Each
Technical Data Sheet EN
