Dfrobot DFR0063 DFR0063 Expansion Board I2C 16×2 Arduino LCD Display Module Arduino/Genuino UNO/Leonardo Boards(Dfrobot Dfr0063 Dfr0063 Expansion Board I2c 16×2 Arduino Lcd Display Module Arduino Genuino Nbsp Uno Leonardo Boards)

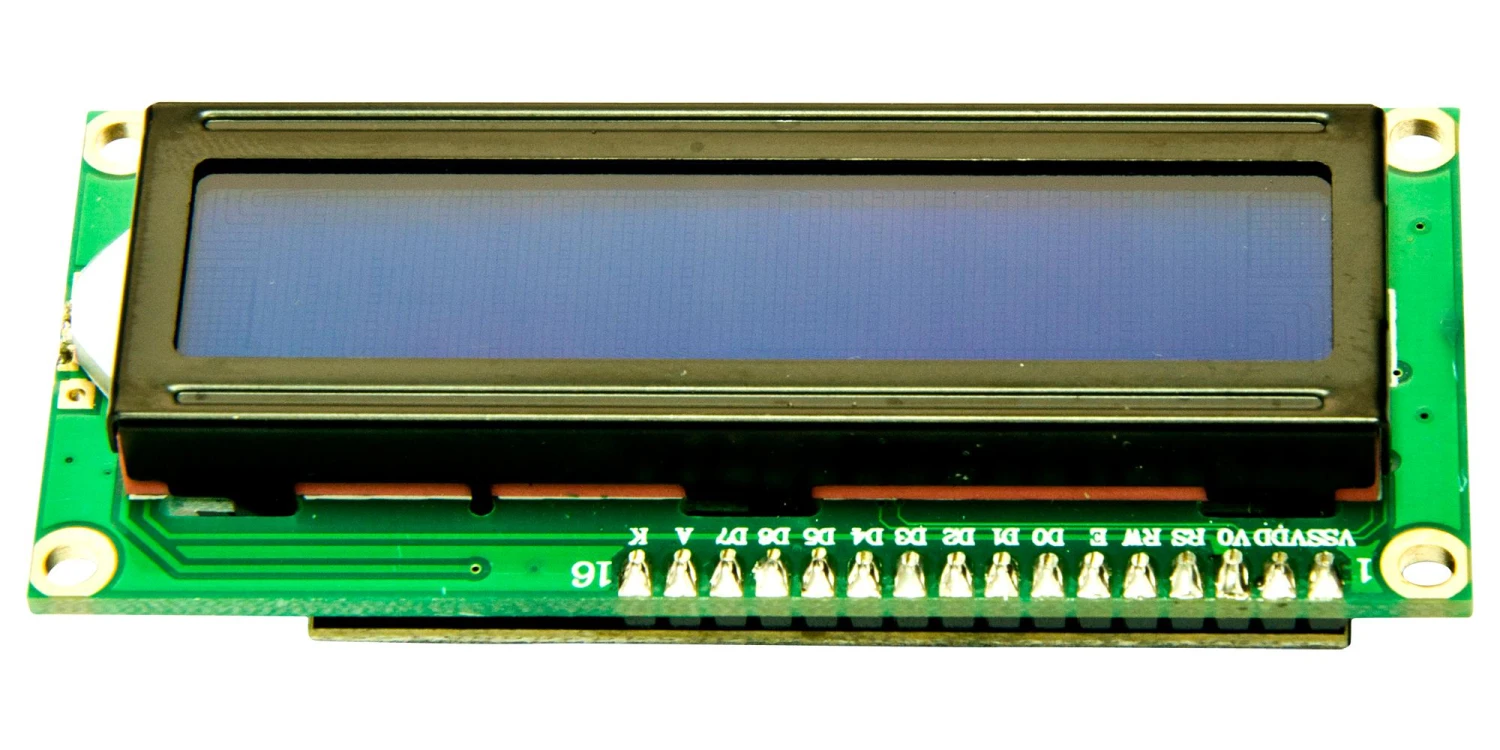

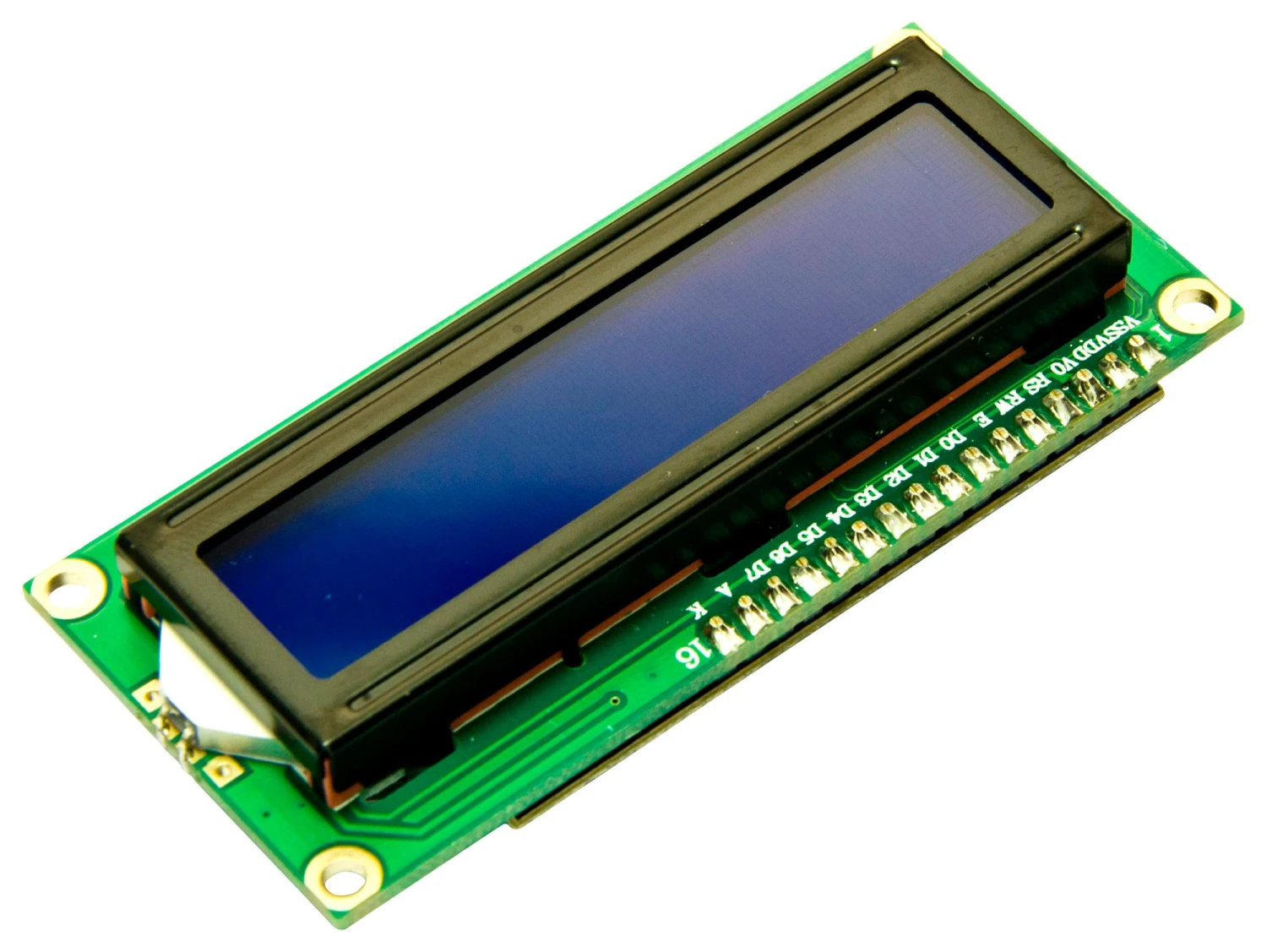

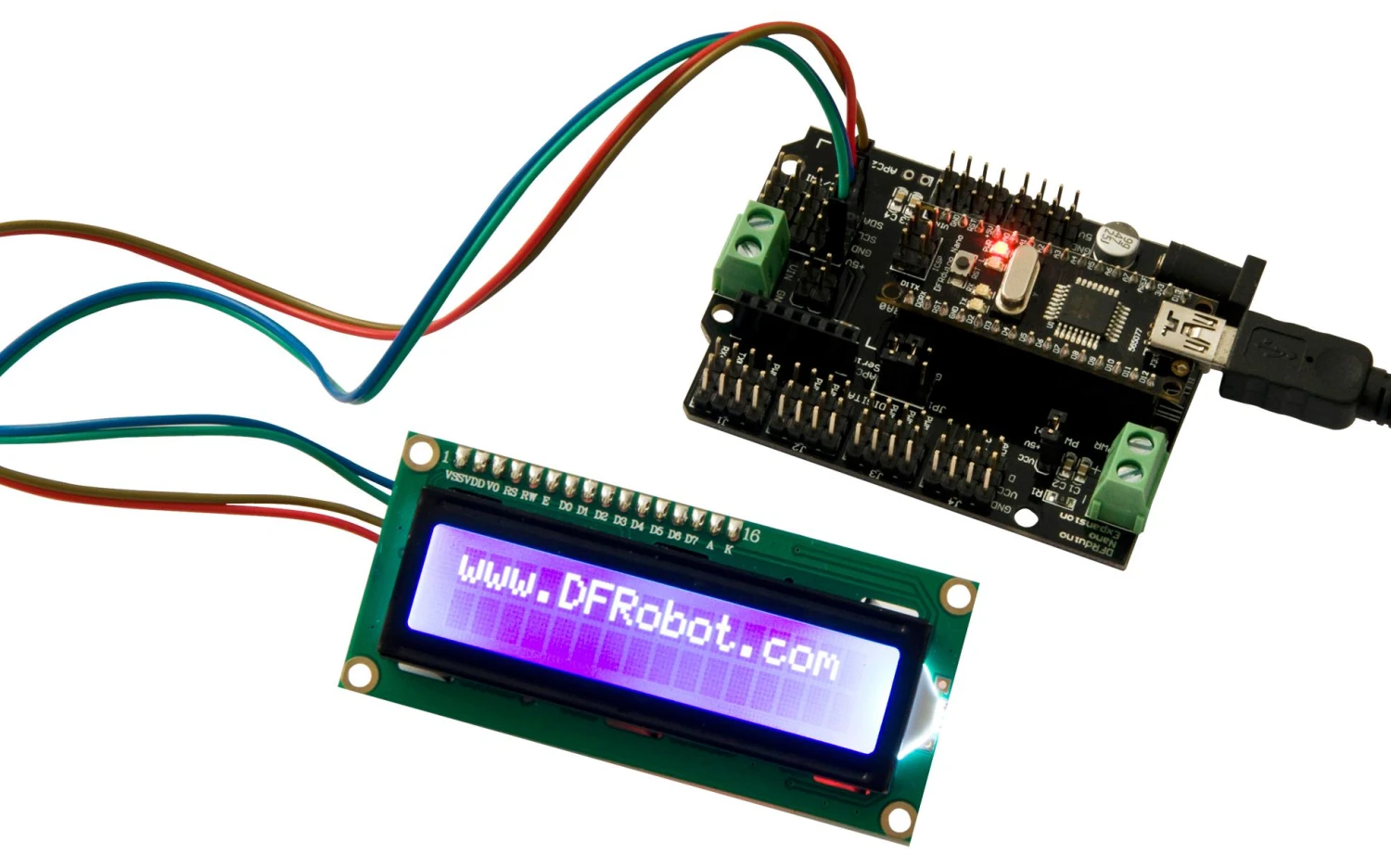

16×2 LCD display screen with I2C interface is able to display 16×2 characters on 2 lines, white characters on blue background. With limited pin resources, your project will quickly run out of resources using normal LCDs. With this I2C interface LCD module, you only need 2 lines (I2C)to display the information. If you already have I2C devices in your project, this LCD module actually cost no more resources at all. The address can be set from 0x20-0x27. Fantastic for Arduino or gadgeteer based projects.

• Compatible with Arduino/Genuino UNO, Leonardo, Mega, 101 (Intel Curie), Micro, Nano, Mini
• I2C Address:0x20-0x27(0x20 default)
• Back lit (Blue with white char colour)
• Supply voltage: 5V
• Interface:I2C/TWI x1, Gadgeteer interface x2
• Adjustable contrast
• Size: 80x36x20mmz(3.1×1.4×0.7in)

Contents

I2C 16×2 LCD screen (Arduino compatible) x1, 1.27mm ribbon IDC10 cable x 1.

Product details

Silicon Manufacturer	–
Core Architecture	–
Core Sub-Architecture	–
Silicon Core Number	–
Silicon Family Name	–
For Use With	Arduino/Genuino UNO, Leonardo, Mega, 101 (Intel Curie), Micro, Nano and Mini Boards
Kit Contents	I2C 16×2 Arduino LCD Display Module, 1.27 mm Ribbon IDC10 Cable
Product Range	–

Other details

Brand	DFROBOT
Part Number	DFR0063
Quantity	Each
Technical Data Sheet EN
