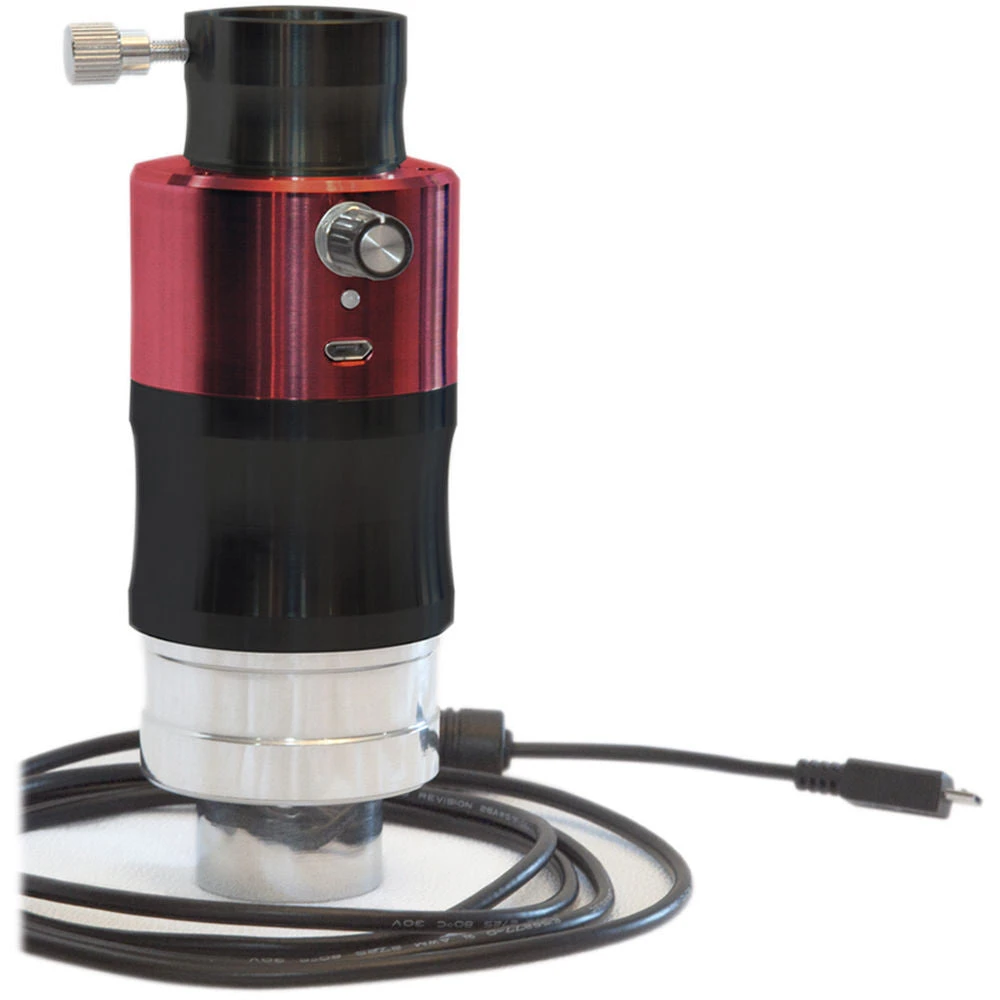

DayStar Filters QUARK H-Alpha Eyepiece Solar Filter (Chromosphere)(Daystar Filters Quark H Alpha Eyepiece Solar Filter Chromosphere)

Original price was: $346.00.Current price is: $96.99.

SKU: DGFUB 8139614864 Categories: Optics, Optics & Surveillance, Telescopes Tags: DayStar Filters DSZ4C, Optics & Outdoors, Solar Filters for Astronomical Telescopes, Solar Observing

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

656nm H-Alpha Filter with 12mm Blocking
Tuned for Chromosphere Viewing
Use Astronomical OTAs for Solar Viewing
±0.5? Wing Shift Tuning
2-Element Telecentric 4.3x Barlow Lens
Optical Coatings Tuned to H-Alpha Band
Best Performance with f/4-f/8 Refractors
No OTA Aperture Limitations
5 VDC, 1.5A micro-USB Port

Daystar Filters designed this version of the QUARK H-Alpha Eyepiece Solar Filter specifically for viewing chromosphere details. The chromosphere’s surface structure behaves differently in active regions than quiet areas, where magnetic field lines are stronger, so viewing this portion of the sun provides a constantly-changing observational experience.

This all-in-one hydrogen-alpha filter is engineered to eliminate unnecessary components which reduced the size and weight, and enabled it to fit in a compact form factor that simply inserts into 1.25″ or 2″ diagonals and accepts 1.25″ eyepieces. This design enables the use of nighttime telescopes for solar viewing. In addition to the tunable H-alpha filter, the Quark also functions as a 4.3x Barlow lens, with a 2-element lens system designed to be telecentric which flattens the field of view and reduces parallax, and optical coatings that are optimized for the 656nm H-alpha wavelength.

While there are no OTA aperture limitations, Daystar recommends the use of UV/IR cut filters or front-mount energy rejection filters on OTAs over 80mm of for long-duration solar viewing sessions. For best results, they suggest using refractor-style scopes with focal ratios between f/4-f/8, and you can enjoy full-disk viewing with focal lengths up to 450mm. The filter is powered via a micro-USB port, and Daystar includes a power cord and an AC adapter to meet the high-power requirements of 5 VDC 1.5A. To enable its use at home and abroad, a set of international outlet plugs is provided with adapters for the US, UK, EU, and Australia.

Filter Properties

Hydrogen-alpha bandpass
Integrated 12mm blocking filter
21mm clear filter aperture
Tuned to 0.5-0.3? for viewing chromosphere details
Tuning knob allows for ±0.5? wing shift for Doppler-shift compensation
Markers at every 0.1? for reference and repeatability
LED indicators for power, warming, ready, and fault

Optics

Integrated 4.3x Barlow lens
Lens and optical coatings designed specifically for 656nm H-alpha wavelength
Two-element telecentric lens design keeps light waves parallel to flatten the field of view and reduce parallax as magnification increases

Recommended OTA Specifications

No aperture limitation
Best performance with f/4-f/8 refractors
Full-disk viewing on refractors up to 450mm focal length
For apertures over 80mm (3.1″), or for long-duration solar viewing, an UV/IR cut filter should be used for energy rejection
Not suited for off-axis applications

Power

5 VDC, 1.5A micro-USB port
90-240 VAC wall adapter
Set of international outlet plugs for US, UK, EU, and Australia

UPC: 702730990728

Type	Hydrogen-Alpha
Filter Factor	0.5 – 0.3 ?
Application	Chromosphere viewing
Size	Drawtube side: 1.25″/2″ Eyepiece holder: 1.25″
Multi-Coated	Yes
Power Requirement	5 VDC, 1.5 A
Construction	Aluminum alloy
Dimensions	5.7 x 2.8 x 2.2″ / 14.6 x 7.1 x 5.5 cm

Packaging Info
Package Weight	2.25 lb
Box Dimensions (LxWxH)	10.8 x 4.3 x 4.1″

In the Box

DayStar Filters QUARK H-Alpha Eyepiece Solar Filter (Chromosphere)

Plastic Case
USB Power Cord
Wall Outlet Power Adapter
Set of International Plug Adapters
Limited 10-Year Warranty
