Dahua Technology Pro Series X82B2A 8-Channel 8MP Pentabrid HD-CVI DVR With 4TB HDD(Dahua Technology Pro Series X82b2a 8 Channel 8mp Pentabrid Hd Cvi Dvr With 4tb Hdd)

Dahua Technology Pro Series X82B2A 8-Channel 8MP Pentabrid HD-CVI DVR With 4TB HDD(Dahua Technology Pro Series X82b2a 8 Channel 8mp Pentabrid Hd Cvi Dvr With 4tb Hdd)

Original price was: $333.00.Current price is: $98.99.

SKU: DGFUB 7075831644245 Categories: Optics & Surveillance, Surviellance Tags: Dahua Technology X82B2A, Surveillance, Video Recorders & Hard Drives, Video Surveillance

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

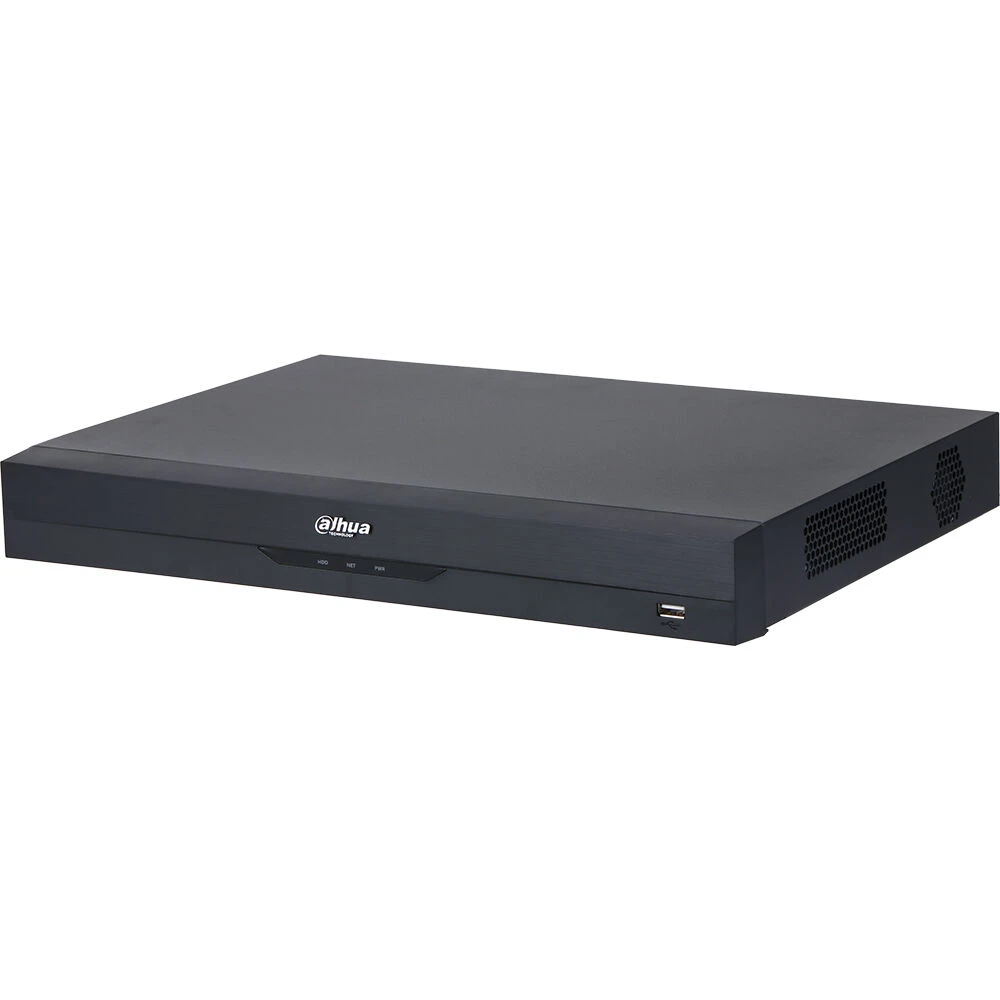

Dahua Technology X82B2A Overview

Record video from any combination of HD-CVI, HD-TVI, AHD, CVBS, or IP cameras with the Pro Series X82B2A 8-Channel 8MP Pentabrid HD-CVI DVR with 4TB HDD from Dahua Technology. This DVR allows users to record from up to 8 analog cameras via HD-CVI, HD-TVI, AHD, or CVBS inputs, and up to 8 IP camera inputs at resolutions up to 8MP. Equipped with a two SATA ports, this recorder can be configured to have an internal storage of up to 20TB (4TB preinstalled). Smart H.264+ H.264, and MJPEG video codecs ensure high-quality recording and playback.

This recorder has an RJ45 network interface and supports up to 128 users. It is compatible with iOS and Android. HDMI and VGA video outputs allows users to view footage on a monitor (available separately). ONVIF 16.12 compliance enables interoperability with other surveillance products.

Suitable for actively monitoring public venues, retail stores, transportation hubs, access ways, personal property, homes, and educational institutions

Analytics include perimeter protection and smart motion detection

Embedded processor and Linux OS

Pentabrid technology enables simultaneous recording from HD-CVI, AHD, HD-TVI, CVBS, and IP sources

Long distance transmission up to 3937′

Auto-detect and auto-configuration of HD-CVI, AHD, TVI, and CVBS inputs

Recording resolution up to 8MP

128 Mb/s maximum incoming bandwidth

Smart H.265+, H.265, Smart H.264+, and H.264 video codecs

HDMI and VGA video outputs

Spot output

1000M RJ45 port

8 alarm inputs and 3 relay outputs

RS-485 port for PTZ Control

1 x USB 2.0 and 1 x USB 3.0

Compatible with iOS and Android

UPC: 810053970034

Items Included

Dahua Technology Pro Series X82B2A 8-Channel 8MP Pentabrid HD-CVI DVR with 4TB HDD
Limited 5-Year Warranty

Additional Resources

No additional resources available

Dahua Technology X82B2A Specs

Key Specs

Number of Channels	8
Recording Resolution	4K, 1080p, 720p, 960H, 4M-N, CIF, D1, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP
IP Camera Support	8
2-Way Audio	Yes

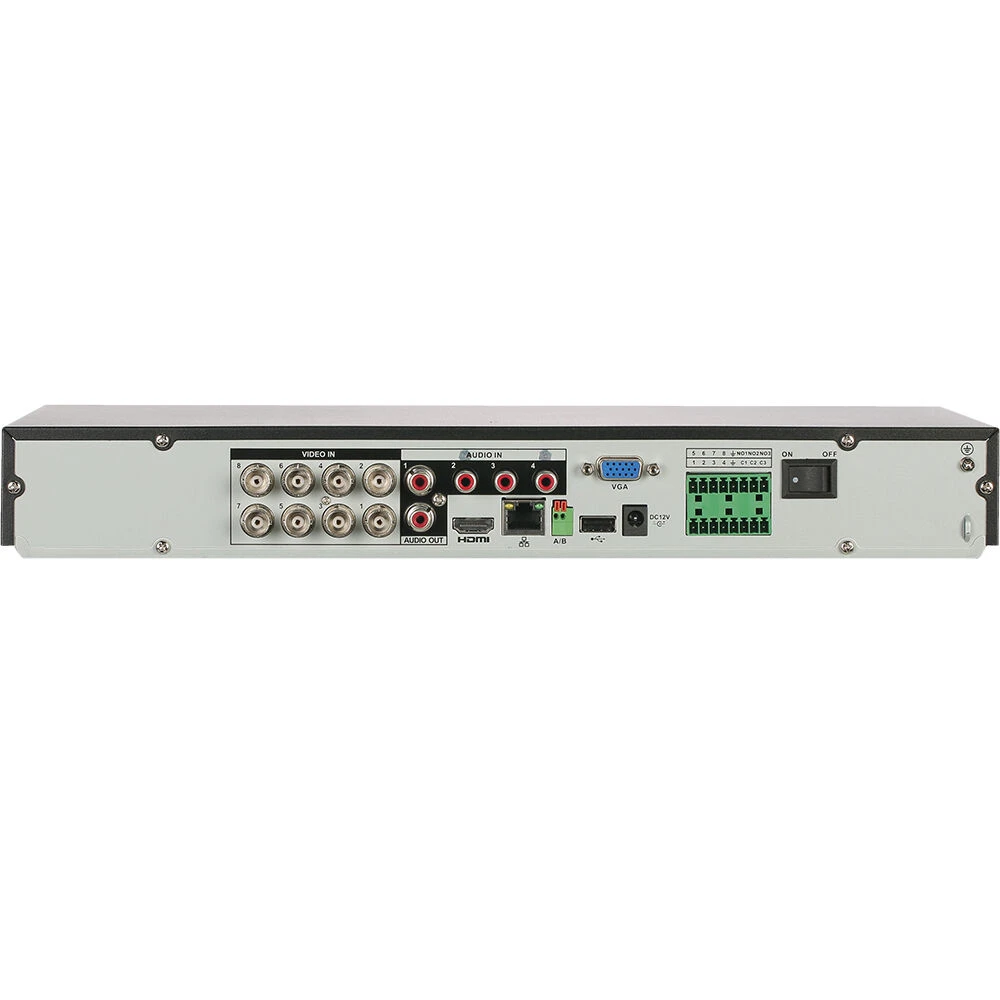

Audio/Video I/O	AHD, Analog, CVBS, HD-CVI, HD-TVI: 8 x BNC 1 x HDMI 1 x VGA 4 x RCA Audio Input 1 x RCA Audio Output
Communication I/O	1x RJ45 Gigabit Ethernet 1x RS-485 1x USB-A 2.0 1x USB-A 3.0 / 3.1/3.2 Gen 1
Audio I/O	4x Input 1x Output
Maximum User Access	128
Supported Video Codecs	H.264, H.264+, H.265, H.265+
Installed Drive	4 TB Hard Drive
Recording Modes	Alarm, Continuous, Manual, Motion, Schedule, Stop, Tampering, Video Loss
Power Consumption	Without HDD: 12 VDC at 4 A (10 W)

General

Signal	AHD, Analog, HD-CVI, HD-TVI, IP
Number of Channels	8
Playback Resolution	HD-CVI: 720p, 1080p, 8 MP, 6 MP, 5 MP, 4 MP at 30 fps 720p at 60 fps HD-TVI: 720p, 1080p, 8 MP, 5 MP, 4 MP, 3 MP at 30 fps AHD: 720p, 1080p, 8 MP, 5 MP, 4 MP, 3 MP at 30 fps CVBS: NTSC IP: 8 MP
Recording Resolution	4K, 1080p, 720p, 960H, 4M-N, CIF, D1, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP
PTZ Support	Yes
Playback Speeds	1x, 4x, 9x
Bit Rate	32 kb/s to 6144 kb/s
IP Camera Support	8
Dual Streaming	Yes
Decoding Resolution	8 Channels: 3 MP, 4 MP at 15 fps 960H, 4M-N, 1080p, 720p at 30 fps 4 Channels: 4K at 7 fps 6 MP at 10 fps 5 MP at 12 fps 960H, 4M-N, 1080p, 720p at 30 fps
2-Way Audio	Yes
Maximum Sampling Rate	8 kHz / 16-Bit

Connectivity

Audio/Video I/O	AHD, Analog, CVBS, HD-CVI, HD-TVI: 8 x BNC 1 x HDMI 1 x VGA 4 x RCA Audio Input 1 x RCA Audio Output
Communication I/O	1x RJ45 Gigabit Ethernet 1x RS-485 1x USB-A 2.0 1x USB-A 3.0 / 3.1/3.2 Gen 1
Audio I/O	4x Input 1x Output
System Connection	2x SATA
Wi-Fi	No
Maximum User Access	128
Network Protocols	DDNS, DHCP, DNS, FTP, HTTPS, IP, IP Filter, IPv4, IPv6, NTP, P2P, PPPoE, RTSP, SMTP, TCP/IP, UDP, UPnP
Transmission Distance	3937′ / 1200 m
Max Frame Rate	30 fps

Compatibility

Supported Video Codecs	H.264, H.264+, H.265, H.265+
Supported Audio Codecs	AAC, G.711A, G.711U, PCM
Backup Method	Network, USB Drive

System

Installed Drive	4 TB Hard Drive
Max Capacity Supported	10 TB (Each Drive) 20 TB (Total)
Recording Intervals	1 to 60 Minutes (Default)
Recording Modes	Alarm, Continuous, Manual, Motion, Schedule, Stop, Tampering, Video Loss
Search Modes	Alarm, Date/Time, Motion, Search
Multi-Screen Configuration	1, 4, 8, 9 (IP Extension Disabled) 1, 4, 8, 9, 16 (IP Extension Enabled)

Notifications

Alarm I/O	8x Input 3x Output
Event Trigger	Buzzer, Email, FTP, PTZ, Recording, Screen Tips, Snapshot, Tour, Video Push
Number of Motion Detection Zones	396 (22 x 18)

Electrical

Power Consumption

Without HDD: 12 VDC at 4 A (10 W)

Physical

Operating Conditions	14 to 131°F / -10 to 55°C up to 90% Humidity
Storage Conditions	-4 to 158°F / -20 to 70°C up to 90% Humidity
Built-In Display	No
Rack Form Factor	1 RU
Dimensions (W x D x H)	14.8 x 11.3 x 2.1″ / 375.0 x 287.2 x 53.0 mm
Weight	3.5 lb / 1.6 kg
