Dahua Technology N42C3P Overview

Record from and manage up to 16 cameras with the N42C3P4 16-Channel 4K UHD NVR with 4TB HDD from Dahua Technology. This NVR supports IP cameras up to 12MP. It is equipped with two SATA III ports for a maximum capacity of 20TB (4TB preinstalled). H.265+, H.265, H.264+, H.264, and MJPEG video codecs keep file sizes manageable while maintaining the best quality possible.

This NVR supports up to 128 users. An RCA audio input and output enables two-way audio. An HDMI and VGA port delivers video output to an external monitor (available separately) at up to 4K UHD resolution. Compliance with ONVIF profiles G, S, and T provides interoperability with ONVIF IP cameras.

Embedded Linux OS

160 Mb/s maximum recording bandwidth

Simultaneous HDMI and VGA output

1000M RJ45 self-adaptive Ethernet interface

16 PoE/PoE+ ports

2 x USB 2.0 ports

Four alarm inputs and two relay outputs

RS-232 port

Supports remote configuration, management of network cameras, P2P remote surveillance, and DMSS mobile app

Supported analytics alarms include; face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms

Supported cameras include; Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

UPC: 810053972076

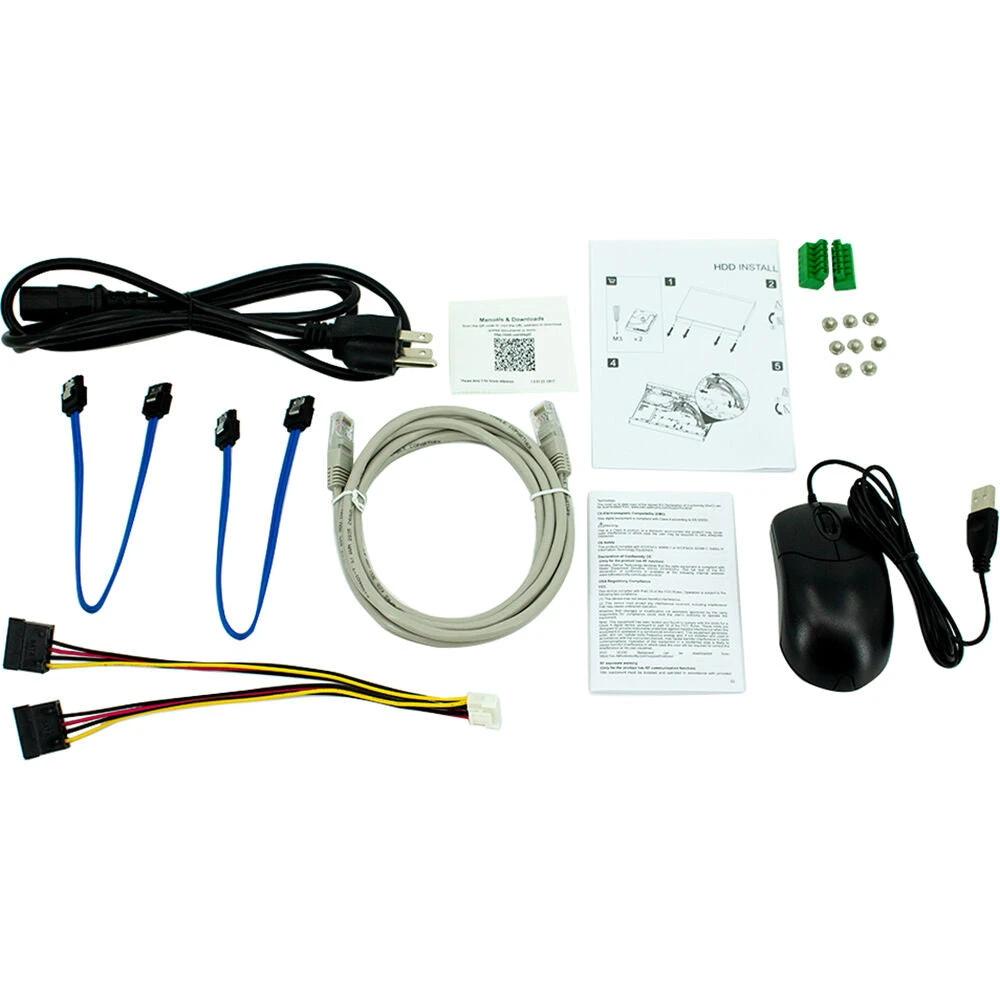

In the Box

Dahua Technology N42C3P4 16-Channel 4K UHD NVR with 4TB HDD
Limited 3-Year Warranty

Dahua Technology N42C3P Specs

General

Number of Channels	16
Playback Resolution	HDMI: 3840 x 2160 VGA: 1920 x 1080
Recording Resolution	1080p, 720p, D1, 3 MP, 4 MP, 5 MP, 6 MP, 8 MP
Playback Speeds	1x, 4x, 8x (Sync)
Throughput	160 Mb/s (Playback)
IP Camera Support	16
Decoding Resolution	2 Channels: 8 MP at 30 fps 4 Channels: 4 MP at 30 fps 8 Channels: 2 MP at 30 fps 16 Channels: 2 MP at 15 fps
2-Way Audio	Yes

Connectivity

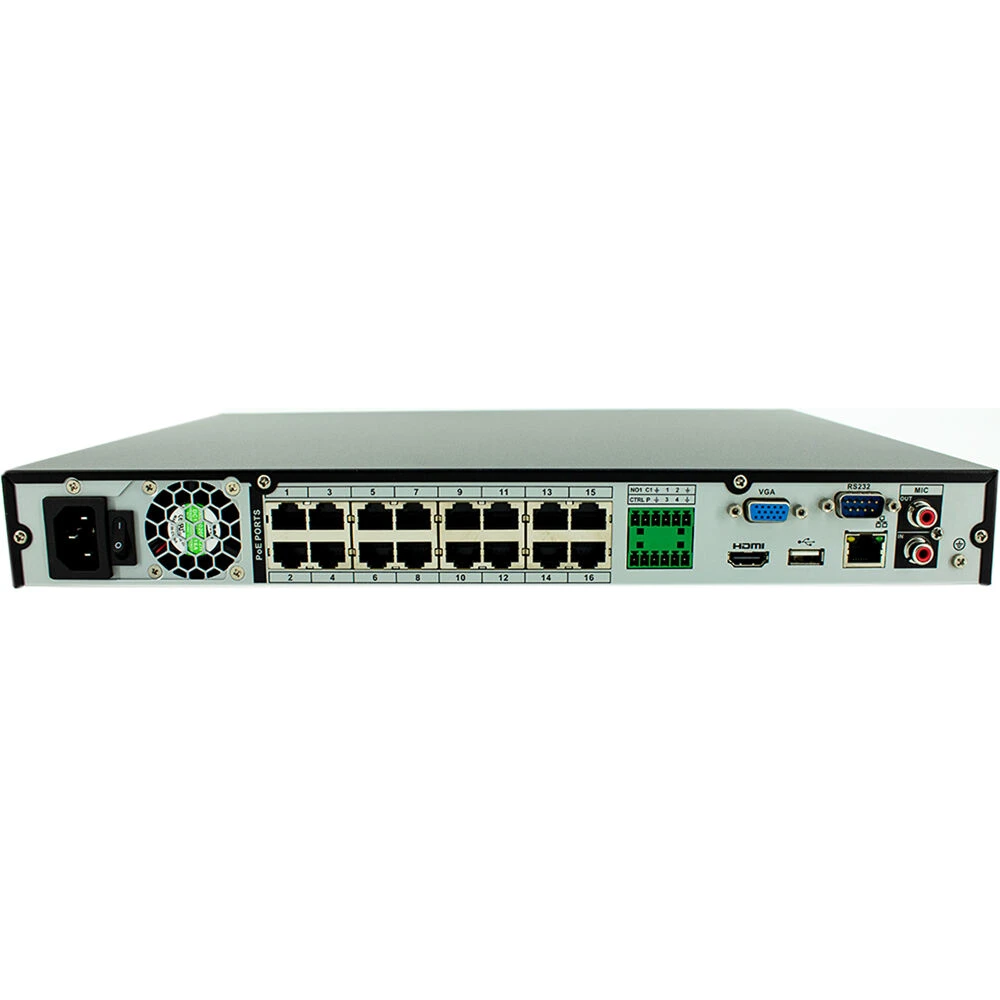

A/V Ports	1 x HDMI 1 x VGA 1 x RCA Audio Input 1 x RCA Audio Output
Communication Ports	16 x RJ45 PoE+ 1 x RJ45 Gigabit Ethernet 1 x RS-232 2 x USB Type-A USB 2.0
Audio Connections	1 Input 1 Output
Drive Interfaces	2 x SATA III
Maximum User Access	128
Network Protocols	DDNS, DHCP, DNS, FTP, HTTP, HTTPS, IP, IP Filter, IPv4, IPv6, NTP, ONVIF, P2P, RTSP, SMTP, SNMP, TCP/IP, UDP, UPnP

Compatibility

Supported Video Codecs	H.264, H.264+, H.265, H.265+, MJPEG
Supported Audio Codecs	G.711, G.711A, G.726, PCM
Backup Method	Network, USB Drive
Supported IEEE Standards	802.3af, 802.3at

Computing

Installed Operating System

Embedded Linux

System

Installed Drive	4 TB Hard Drive
Max Capacity Supported	10 TB (Each Drive) 20 TB (Total)
Number of Bays	2 x Internal

Software System Requirements

Supported Operating Systems	Linux, Android, iOS
Web Browser Support	Chrome, Internet Explorer

Notifications

Alarm Connections	4 Inputs 2 Outputs
Event Trigger	Alarm, Analytics, Disconnected, Disk Full, Drive Error, Motion, Video Loss
Notification Type	Buzzer, Email

System Functions

Search Modes	Alarm, Date/Time, Motion, Search, Smart Search
Recording Modes	Alarm, Manual, Motion, Smart
Multi-Screen Configuration	1, 4, 8, 9, 16
Fisheye Dewarping	None
Relay Outputs	2

Electrical

Power Consumption	10 W (Without HDD)
Power Supply Type	External
PoE Power Budget	117 W
PoE per Port	25.5 W
AC Input Power	100 to 240 VAC, 50 / 60 Hz at 3.5 A

Environmental

Operating Temperature	14 to 131°F / -10 to 55°C
Operating Humidity	10 to 93%
Storage Temperature	32 to 104°F / 0 to 40°C
Storage Humidity	30 to 85%

Physical

Built-In Display	None
Certifications	CAN/CSA, FCC, UL, as per Manufacturer
LED Indicators	Yes
Rack Form Factor	1 RU
Dimensions (W x D x H)	14.8 x 12.9 x 2.1″ / 375.0 x 327.9 x 53.0 mm
Weight	5.8 lb / 2.63 kg (Without HDD)

Packaging Info

Package Weight	9.62 lb
Box Dimensions (LxWxH)	17.7 x 16.5 x 6.7″
