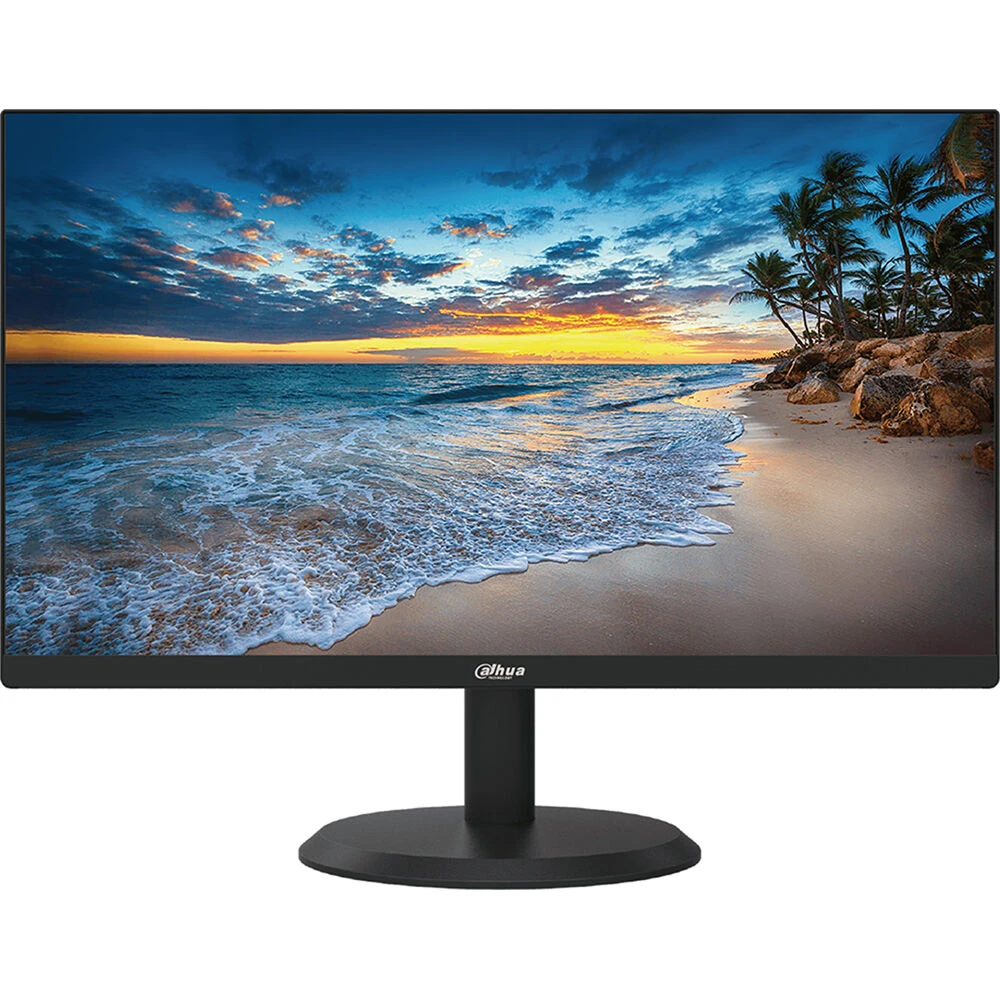

Dahua Technology DHL22-F600-S Overview
Monitor the feed from your surveillance cameras with the DHL22-F600-S 21.5″ LED-Backlit Surveillance Monitor from Dahua Technology. This unit displays video at a maximum resolution of 1920 x 1080 at 60 Hz. It features 178/178° H/V viewing angles, a 16:9 aspect ratio, and a 1000:1 contrast ratio. This monitor is equipped with built-in speakers and an audio input, along with an HDMI input and a VGA input. VESA mount compliance offers flexible installation options.
In the Box
- Dahua Technology DHL22-F600-S 21.5″ LED-Backlit Surveillance Monitor
- HDMI Cable
- Power Cable
- Pedestal
Dahua Technology DHL22-F600-S Specs
| Screen Size (Diagonal) | 21.5″ |
| Resolution | 1920 x 1080 |
| Supported Display Resolutions | Maximum: 1920 x 1080 / 60 Hz |
| Panel Type | IPS-Type LCD |
| Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) |
| Brightness | 250 cd/m² |
| Viewing Angle (H x V) | 178 x 178° |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1000:1 |
| Dynamic Contrast Ratio | 3,000,000:1 |
| Response Time | 6.5 ms |
| Refresh Rate | 60 Hz |
| Backlighting Technology | LED |
| Primary Connectivity Location | Display |
| Input Ports | 1 x HDMI Video 1 x VGA 15-Pin Video 1 x 1/8″ / 3.5 mm Audio |
| Built-In Speakers | Yes, 2 x 1.5 W |
| Speaker Configuration | 2-Channel |
| Power Consumption | Typical: 20.0 W Maximum: 24.0 W Standby: 0.5 W |
| DC Input Power | 12 VDC at 2 A |
| Power Adapter Type | External |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 85% |
| Wall Mounting | 75 x 75 mm |
| Bezel Thickness | 2.6 mm (Right/Top/Left) 16.7 mm (Bottom) |
| Dimensions | 19.4 x 11.2 x 1.5″ / 491.7 x 285.1 x 38.0 mm (without Stand) |
| Weight | 4.6 lb / 2.1 kg |
| Package Weight | 7.725 lb |
| Box Dimensions (LxWxH) | 24.4 x 15 x 4.7″ |
