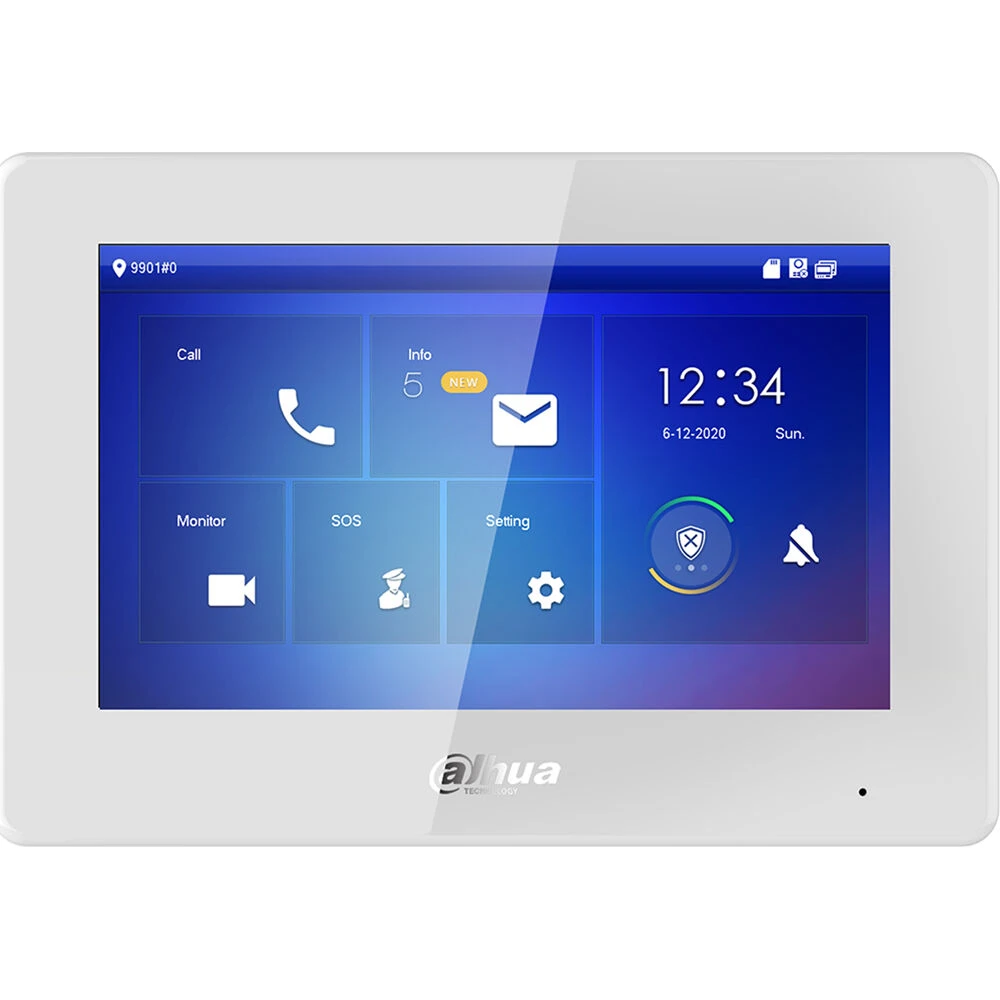

Dahua Technology DHI-VTH5422HW 7″ Two-Wire IP Color Indoor Monitor(Dahua Technology Dhi Vth5422hw 7 Two Wire Ip Color Indoor Monitor)
Original price was: $342.00.$97.99Current price is: $97.99.
- Elevate Your Shopping Experience
- Product guarantee 100% satisfaction
- The quality solution for all your needs.
- Streamlined service, designed for your convenience.
Dahua Technology DHI-VTH5422HW Overview
View and speak to your visitors from your dwelling with the DHI-VTH5422HW 7″ Two-Wire IP Color Indoor Monitor from Dahua Technology. This unit is designed to integrate into an IP surveillance system. It can monitor the surroundings from outdoor stations and IP cameras, remotely unlock doors, record call sessions, and store messages left by visitors. The DHI-VTH5422HW’s 7″ capacitive LCD touchscreen enables you to view feeds from cameras or door stations on the network, check messages, make calls, and remotely unlock an entryway.
Two-way talk is possible thanks to a built-in speaker and omnidirectional microphone. Additionally, this unit features echo suppression for the best possible audio. An onboard memory card slot supports microSD cards up to 64GB (available separately).

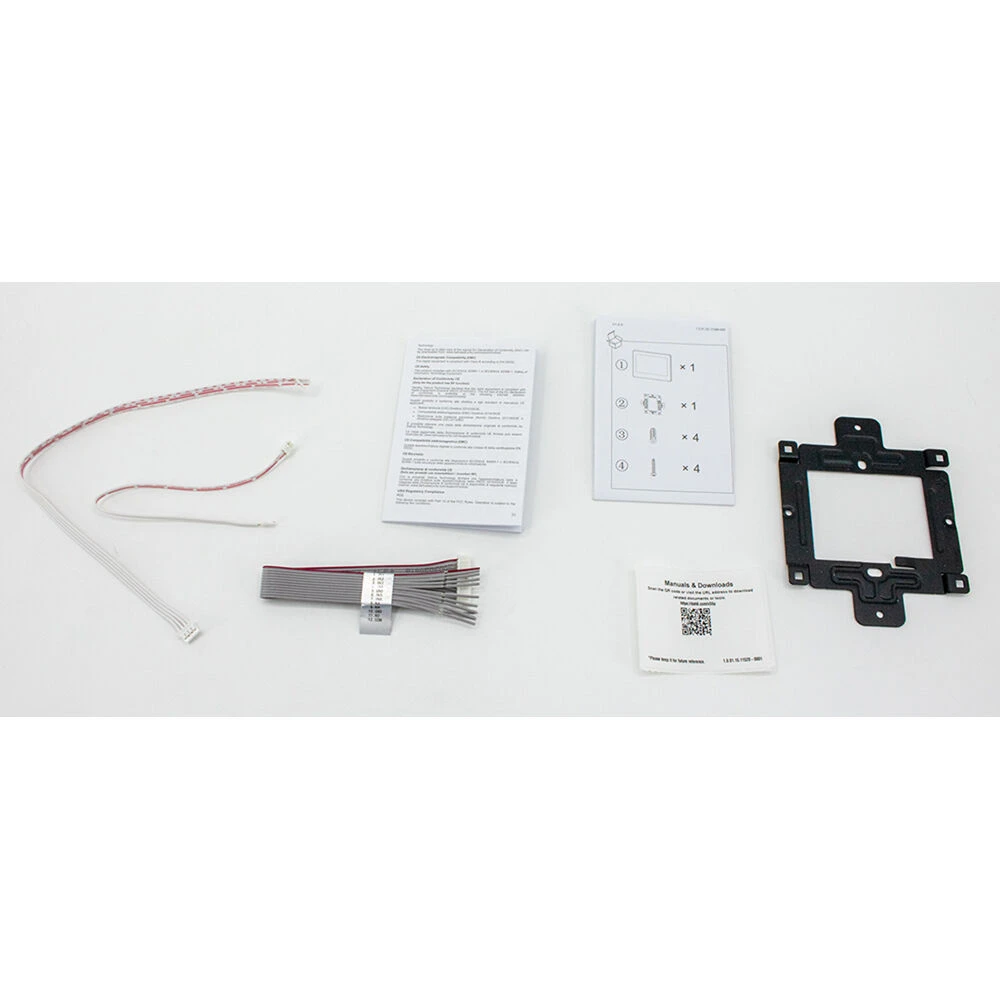

In the Box
- Dahua Technology DHI-VTH5422HW 7″ Two-Wire IP Color Indoor Monitor
- Surface Mount Bracket
- Alarm Ribbon Cable
User Manual
16.0 MB
Dahua Technology DHI-VTH5422HW Specs
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux |
| Type | TFT LCD Touchscreen |
| Size | 7″ / 17.8 cm |
| Resolution | 1024 x 600 (WVGA) |
| Alarm | Inputs: 6 Output: 1 |
| Doorbell | Use an Open Alarm Input Channel |
| RS-485 | 1 |
| Storage | Supports microSD Cards up to 64 GB |
| Video Compression | H.265, H.264 |
| Ethernet | One Two-Wire Port and One 10/100M Ethernet Port |
| Network Protocol | SIP, IPv4, RTSP, RTP, TCP, UDP |
| Compression | G.711a, G.711Mu, G.711u, PCM |
| Audio | Input: Omnidirectional Microphone Output: Built-In Speaker Two-Way Talk |
| Enhancements | Echo Suppression |
| Bit Rate | 16 kHz, 16-Bit |
| Communication Mode | Full Digital, 2-Wire |
| Information Release | Receive and View Text Information from Central Station Receive and View Images (Requires microSD Card) |
| Videos | Leave Videos: Review Video of a Visitor Leaving (Requires microSD Card) |
| Modes | DND Mode: Set Period and Mode |
| Extensions | House: 3 Apartment: 3 |
| Storage | Supports microSD Cards up to 64 GB |
| Power | DHI-VTNS2003B-2, Dahua Two-Wire Switch (Maximum Power Supply Distance 164.04′ / 50 m) PoE (802.3af, Class 0) |
| Power Consumption | Standby: ?2 W Operation: ?6 W |
| Power Output | 12 VDC, 100 mA |
| Operating Temperature | 14 to 131°F / -10 to 55°C |
| Operating Humidity | 20 to 93% (Non-Condensing) |
| Material | PC and ABS |
| Color | Black or White Bezel |
| Mount Type | Surface (Included) |
| Dimensions | 7.44 x 5.12 x 1.06″ / 189 x 130 x 26.9 mm |
| Weight | 0.86 lb / 0.39 kg |
| Package Weight | 1.305 lb |
| Box Dimensions (LxWxH) | 10 x 7.5 x 2.9″ |
