Dahua Technology IPC-PFW5849-A180-E2-ASTE Overview

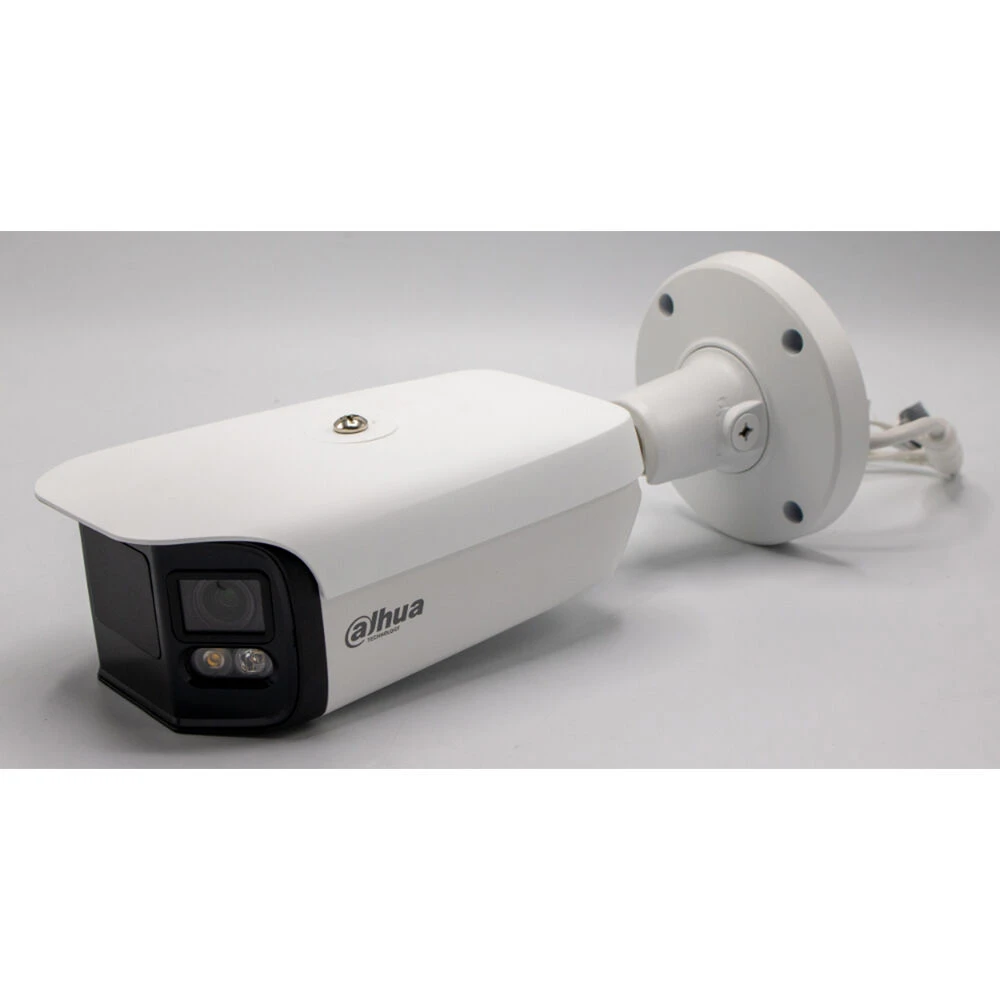

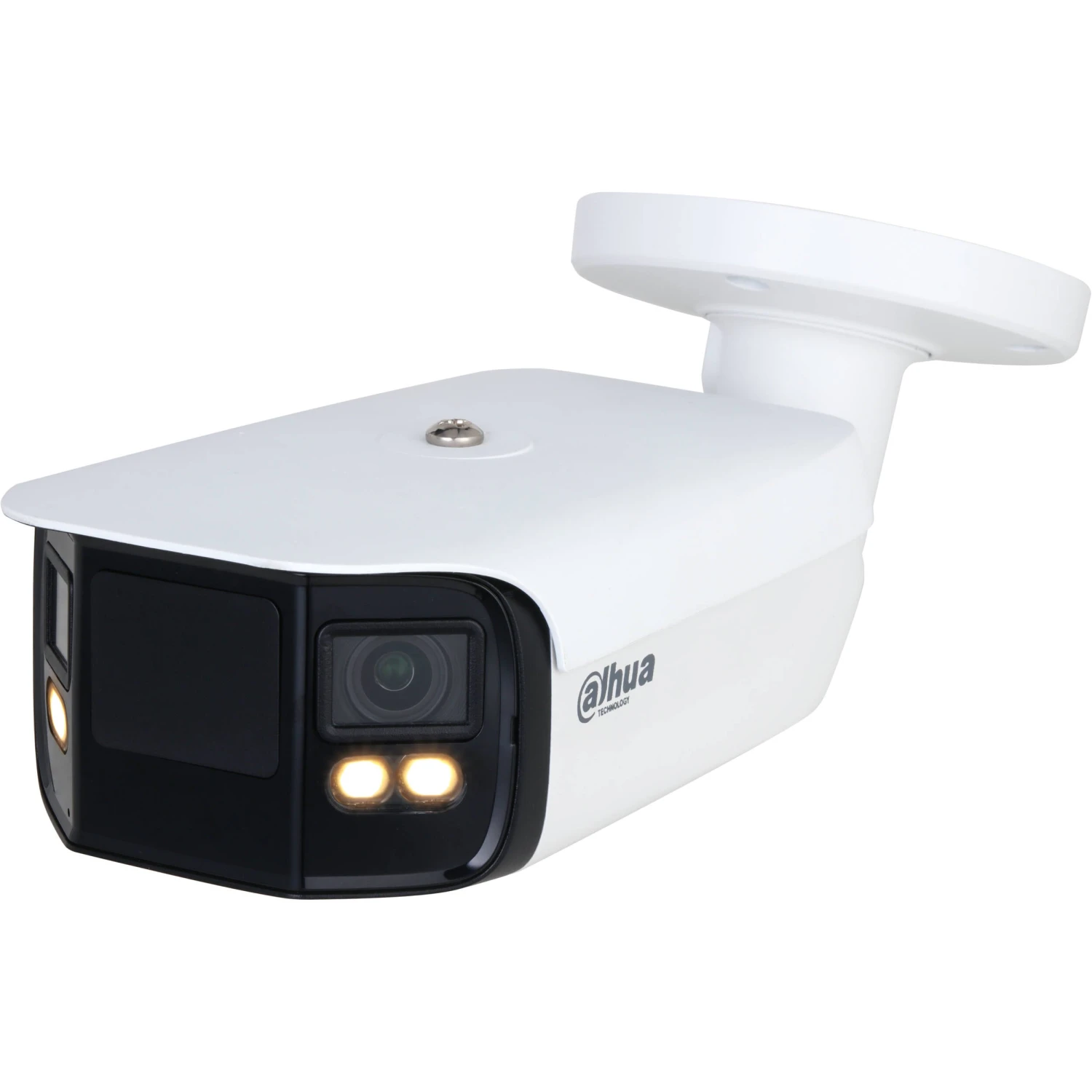

Monitor your surroundings with the DH-IPC-PFW5849-A180-E2-ASTE 8MP Outdoor Dual-Sensor ePoE Night Color Network Bullet Camera from Dahua Technology. This unit uses two 1/1.8″ 4MP progressive scan CMOS sensors to capture video at a combined resolution of 8MP at 25 fps. Four white-light LEDs provide up to 131′ of illumination to record full color video in low-light conditions. The camera’s dual 3.6mm fixed lenses deliver a 180° stitched horizontal field of view. Two-way audio is possible thanks to a built-in speaker and microphone, along with an RCA audio input and output. A memory card slot supports microSD cards up to 512GB (available separately). Integrated ePoE technology offers a cost-effective solution for transmitting power and data over long distances via Ethernet or coaxial cables when compared to running separate wires.
This dual-sensor camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated enclosure that is suitable for outdoor use.
In the Box
- Dahua Technology DH-IPC-PFW5849-A180-E2-ASTE 8MP Outdoor Dual-Sensor ePoE Night Color Network Bullet Camera
- Limited 5-Year Warranty
Dahua Technology IPC-PFW5849-A180-E2-ASTE Specs
| Sensor |
2 x 4 MP 1/1.8″ CMOS |
| Focal Length |
3.6mm |
| Lens Field of View |
Horizontal: 180° |
| Built-In Mic |
Yes |
| Power Source |
DC, PoE 802.3at (30 W) |
| Illumination |
4 x White LEDs up to 131.2′ / 40 m |
| Sensor |
2 x 4 MP 1/1.8″ CMOS |
| Lens Mount |
M16 |
| Focal Length |
3.6mm |
| Maximum Aperture |
f/1 |
| Lens Field of View |
Horizontal: 180° |
| IR Cut Filter |
Mechanical |
| Day/Night |
Yes |
| Minimum Illumination |
Color: 0.005 Lux B&W: 0.0005 Lux |
| Shutter Speed |
1/100,000 to 1/3 Seconds |
| DORI Coverage |
With 3.6mm Lens: Detect: at 230.64′ / at 70.30 m Observe: at 92.19′ / at 28.10 m Recognize: at 46.26′ / at 14.10 m Identify: at 22.97′ / at 7.00 m |
| Streaming Resolution |
4096 x 1800 at 25 fps (8.192 Mb/s ) |
| Supported Video Compression |
H.264, H.264+, H.265, H.265+, MJPEG |
| Multi-View Streaming |
Yes, 3 Streams |
| Automatic Gain Control |
Yes |
| 1- or 2-Way Audio |
Two-Way |
| Audio Formats |
AAC, G.711, G.723, G.726, PCM |
| Built-In Mic |
Yes |
| Built-In Speaker |
Yes |
| Audio I/O |
Input: 1 x RCA Output: 1 x RCA |
| Pan/Tilt |
No |
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering |
| Supported Protocols |
ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, HTTP, ICMP, IGMP, IPv4/v6, NFS, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTMP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP, syslog |
| Application Programming Interface (API) |
ONVIF Profile G, S & T, CGI, SDK, API |
| Analytics |
Tampering, Memory Card Error, Network Error, Unauthorized Access, Fast Moving, Loitering Detection, Crowd Gathering, Parking Detection, Heat Map, Perimeter Protection (Tripwire & Intrusion), Smart Object Detection, People Counting (Line Crossing, Region), Smart Motion Detection+ (Human & Vehicular) |
| OS Compatibility |
Android iOS *As of April, 2023: Check with manufacturer for the most up-to-date compatibility |
| Event Trigger |
Yes |
| Event Action |
Recording, Notification, Alarm |
| Data Streaming |
Yes |
| Alarm I/O |
1 / 1 |
| Memory |
1 GB RAM / 128 MB Flash |
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum] |
| Internal Storage |
No |
| Power Source |
DC, PoE 802.3at (30 W) |
| Power Consumption |
DC: 10.5 W PoE: 11.8 W |
| Operating Temperature |
-40 to 140°F / -40 to 60°C |
| Storage Temperature |
-40 to 140°F / -40 to 60°C |
| Operating Humidity |
0 to 95% |
| IP Rating |
IP67 |
| Inputs/Outputs |
1 x RJ45 1 x Power |
| Illumination |
4 x White LEDs up to 131.2′ / 40 m |
| Video Management Software |
SmartPSS Lite, DSS, DMSS |
| Material of Construction |
Metal (Unspecified Type), Plastic |
| Dimensions |
H: 4.7 x W: 5.0 x L: 11.9″ / H: 120.1 x W: 128.2 x L: 301.2 mm |
| Weight |
3.13 lb / 1.42 kg |
| Package Weight |
4.05 lb |
| Box Dimensions (LxWxH) |
14.6 x 8 x 7″ |
