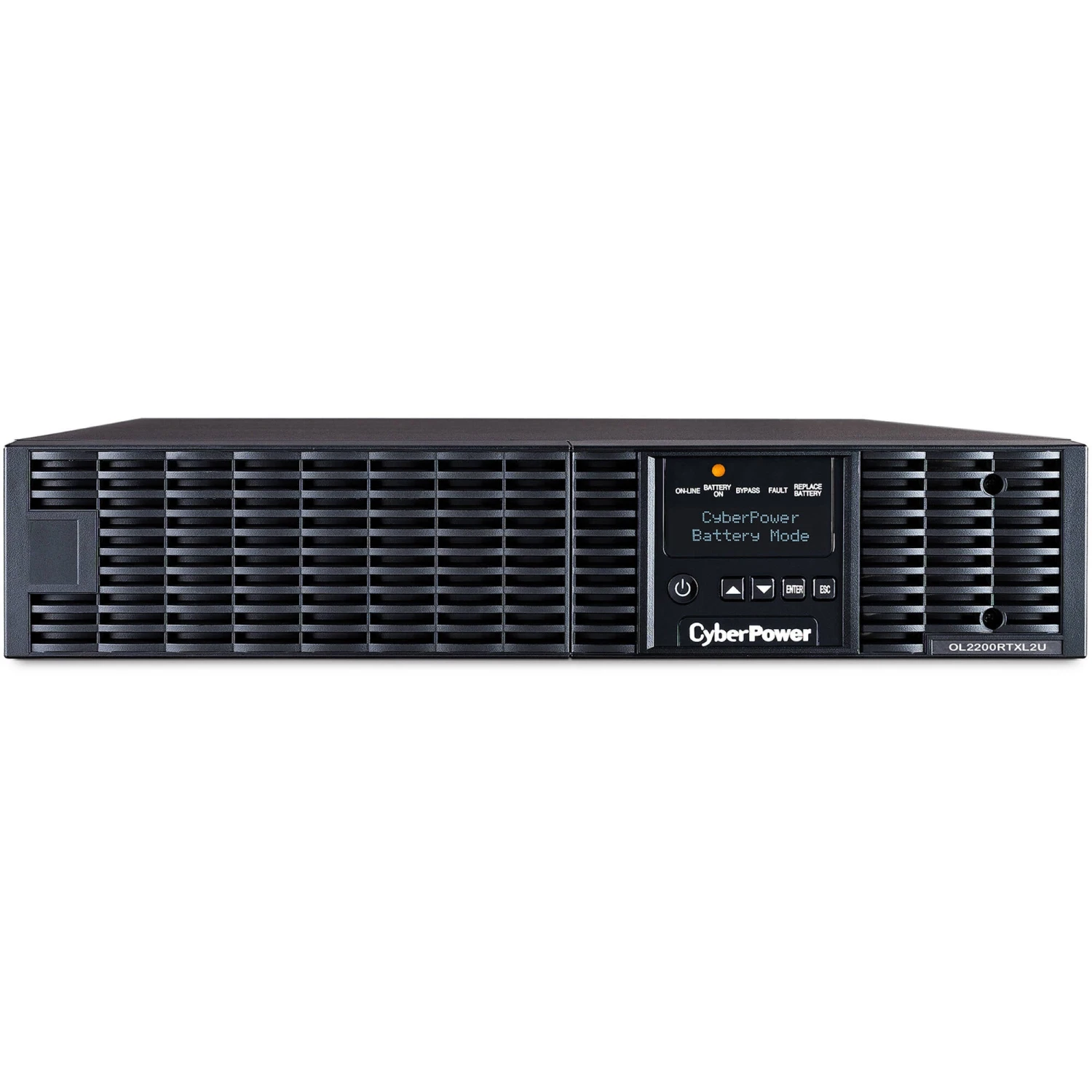

CyberPower Smart App Online OL2200RTXL2U UPS(Cyberpower Smart App Online Ol2200rtxl2u Ups)

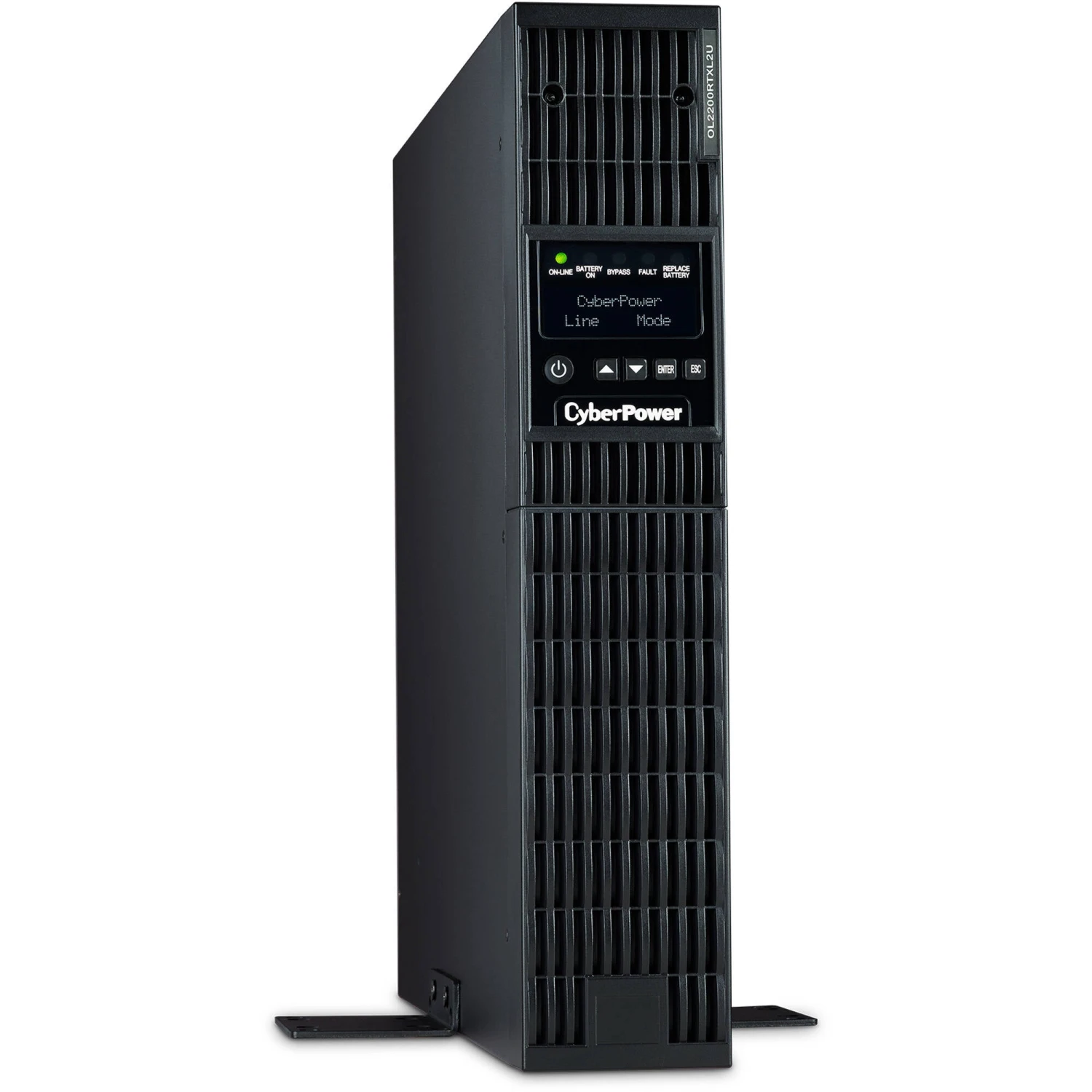

CyberPower Smart App Online OL2200RTXL2U UPS(Cyberpower Smart App Online Ol2200rtxl2u Ups) - Image 2

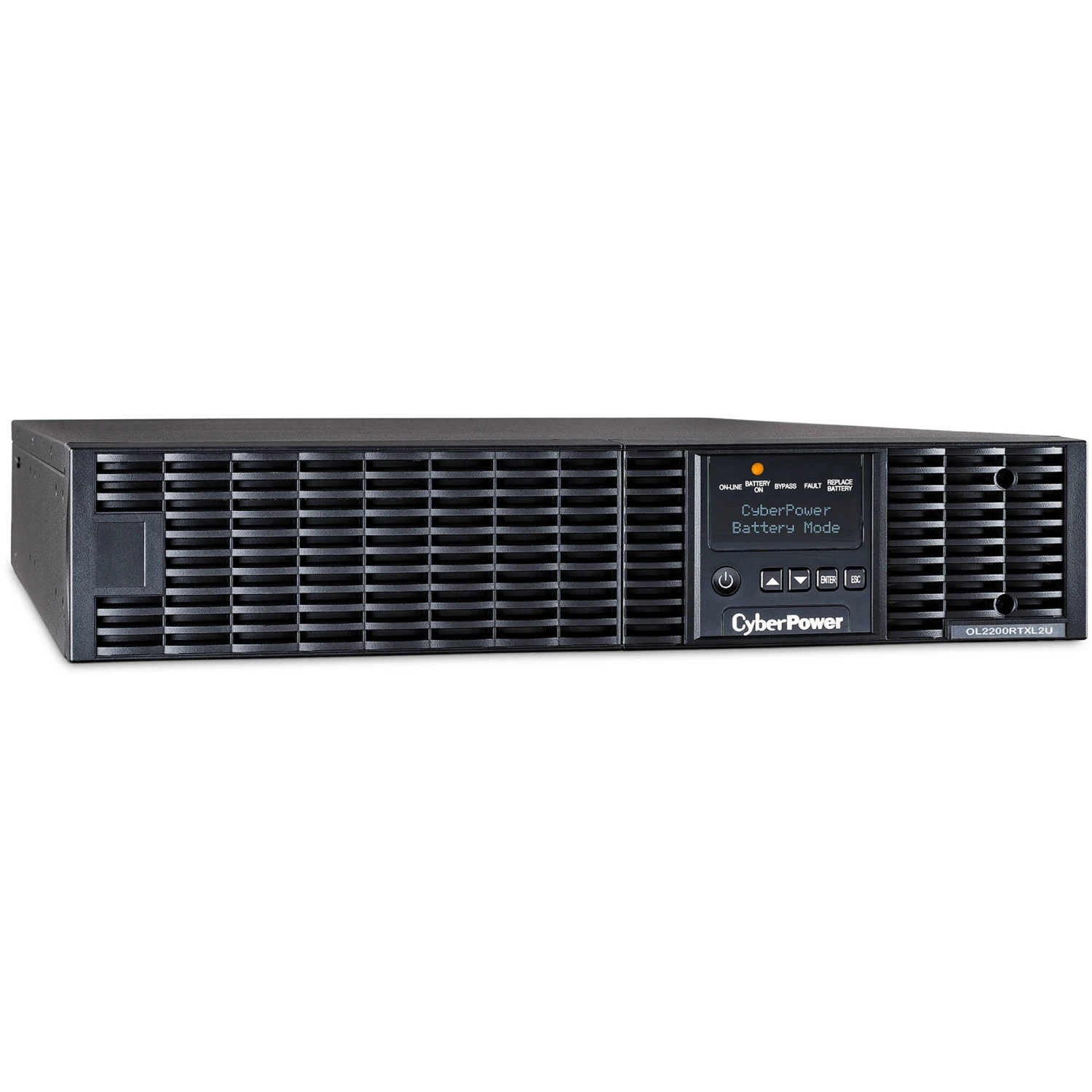

CyberPower Smart App Online OL2200RTXL2U UPS(Cyberpower Smart App Online Ol2200rtxl2u Ups) - Image 3

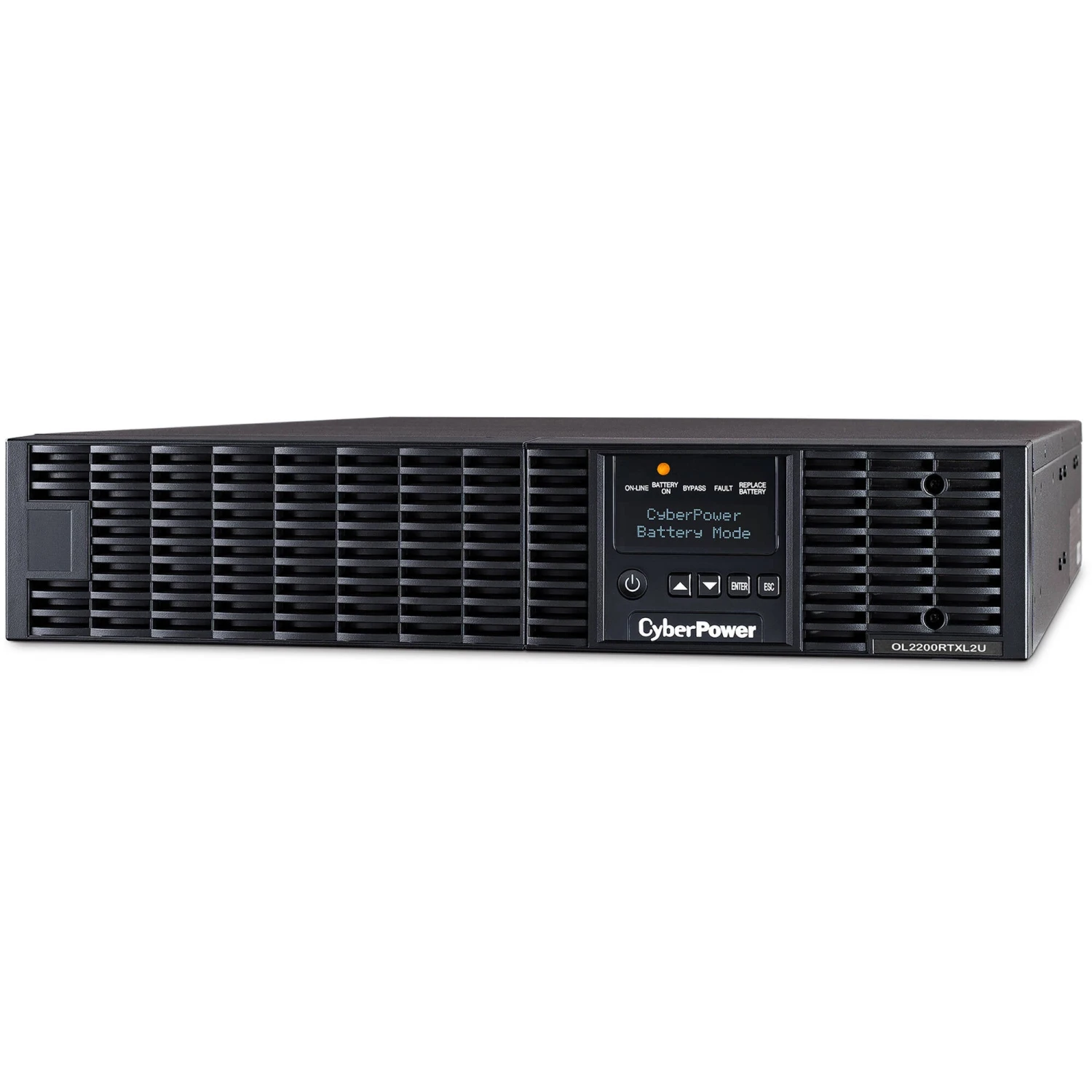

CyberPower Smart App Online OL2200RTXL2U UPS(Cyberpower Smart App Online Ol2200rtxl2u Ups) - Image 4

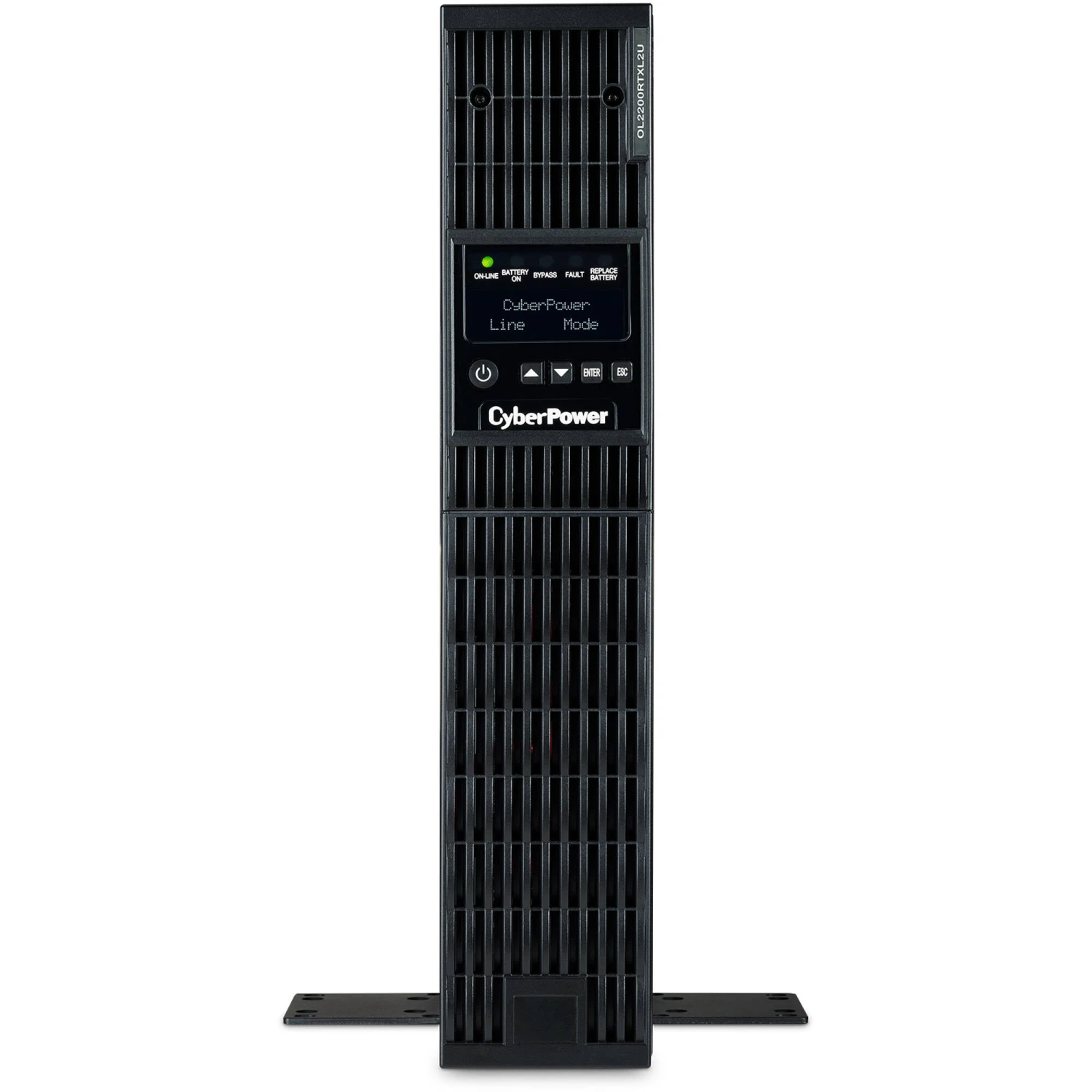

CyberPower Smart App Online OL2200RTXL2U UPS(Cyberpower Smart App Online Ol2200rtxl2u Ups) - Image 5

CyberPower Smart App Online OL2200RTXL2U UPS(Cyberpower Smart App Online Ol2200rtxl2u Ups) - Image 6

CyberPower Smart App Online OL2200RTXL2U UPS(Cyberpower Smart App Online Ol2200rtxl2u Ups)

Original price was: $392.00.Current price is: $95.99.

SKU: DGFUB 6839905648725 Categories: Computer & Presentation, Computer Solutions, Power Accessories Tags: Computers, Power Accessories, UPS & Accessories, UPS Backup

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

CyberPower OL2200RTXL2UN Overview

1Description
2Double-Conversion Topology
3Sine-Wave Output
4PowerPanel Business Edition Software
5RMCARD205 Option
6LCD Control Panel
7Extended Battery Module (EBM)
8Fast Charge Technology
9Smart Battery Management (SBM)
10GreenPower UPS ECO Mode
11Hot-Swappable Batteries
12Upgradeable UPS firmware
13Critical and Non-Critical Loads
14Generator Compatible
15Converter Mode
16USB and Serial Connectivity
17EMI/RFI Filters
18Data Line Surge Protection
19Audible Alarms
20Resettable Circuit Breaker
21LED Status Lights
22Rack/Tower Versatility

Keep critical components online with the Smart App Online OL2200RTXL2U UPS from CyberPower. Designed for servers and other network equipment, this uninterruptible power supply features one NEMA L5-20R and six NEMA 5-20R outlets. In addition to an output of 1800W and 2200VA of apparent power, the output voltage can be configured from 100 to 125V. This UPS is compatible with 120V input via a 10′ cable with a NEMA 5-20P plug.

Power follows a true sine wave for smooth power, while active power-factor correction allows for compatibility with simulated sine-wave devices. Double-conversion topology provides consistent power regardless of input condition, and an integrated 20A circuit breaker safeguards connected equipment. In the event of a power overage, a 0 ms transfer time ensures connected devices smoothly transition to battery power. In addition to using hot-swappable batteries, this UPS is compatible with extended battery modules as well as generator power.

The CyberPower Smart App Online OL2200RTXL2U UPS utilizes a metal construction and can be deployed as a tower or installed in a server rack. An LCD screen and LED indicators keep you informed of changing status conditions, and USB Type-B and serial ports allow for communication with host computers. Ready to manage remotely? Install an optional RMCARD205 to control the UPS via a web browser, command line interface, or network management system. The CyberPower OL2200RTXL2U comes with hardware for installing in a server rack, as well as a USB communication and serial management cable.

Double-Conversion Topology

Provides consistent and clean power, regardless of the condition of the incoming power. With the conversion to DC power, the UPS has a 0 ms transfer time to battery power when utility power is lost. Designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.

Sine-Wave Output

Keeps sensitive equipment with Active PFC working by preventing unnecessary shutdowns caused by gaps from simulated sine waves.

PowerPanel Business Edition Software

Provides tools for easy remote monitoring and management of the UPS and automates shutdown of multiple devices when needed.

RMCARD205 Option

The optional RMCARD205 allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS).

LCD Control Panel

Displays UPS status data and configures operating settings from up to 10′ away with the DB26 cable, available separately. The LCD control panel displays and allows configuration of IP address settings when an RMCARD205 is installed.

Extended Battery Module (EBM)

Extends runtime by adding up to 10 EBMs.

Fast Charge Technology

Allows UPS batteries to return to full capacity more rapidly by utilizing a built-in charger. Restores charge within from 0 to 90% within 4 hours regardless of the number of EBMs.

Smart Battery Management (SBM)

Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.

GreenPower UPS ECO Mode

Improves UPS efficiency up to 95%; saves on electrical and cooling costs.

Hot-Swappable Batteries

Keep equipment running by eliminating downtime during UPS battery replacement.

Upgradeable UPS firmware

The UPS firmware that manages the unit’s features and functions is field upgradeable. UPS firmware upgrades require the optional RMCARD205 to be installed in the UPS and are done via the web management interface.

Critical and Non-Critical Loads

Maximize the output of the UPS by setting non-critical loads to shut off, allowing additional runtime for critical load outlets.

Generator Compatible

Provides stable sine-wave output free of harmonics and distortion without switching to battery mode when running on generator input power.

Converter Mode

Provides the flexibility to set the output frequency, regardless of the input frequency, to match connected equipment by selecting 50- or 60-Hz output on the LCD control panel.

USB and Serial Connectivity

Enables full integration with built-in power management and auto shutdown features on Windows, Linux, and VMware systems through a HID-compliant USB port and Serial port.

EMI/RFI Filters

Prevent electromagnetic and radio frequency interference to ensure clean power for connected equipment.

Data Line Surge Protection

Prevents power surges that travel through telephone and Ethernet lines from causing damage to your equipment

Audible Alarms

Identify when the model is running on battery power, overloaded, or has a low battery.

Resettable Circuit Breaker

Interrupts an electric current in a circuit when the current becomes too high.

LED Status Lights

LEDs indicate Power On, Line Mode, Battery Mode, Bypass Mode, Fault, and Replace Battery statuses.

Rack/Tower Versatility

Allows for horizontal rack or vertical tower installation.

UPC: 649532604883

In the Box

CyberPower Smart App Online OL2200RTXL2U UPS
2 x Rackmount Rails
2 x Hanging Brackets
USB Communication Cable
Serial RS-232 Interface Cable
8 x M5XL7 Black Flat-Head Screws
12 x M5X12L Black Pan-Head Screws
6 x M5X6L Silver Pan Head Screws
8 x Plastic Washers
12 x Screw Hole Dust Covers
12 x Rubber Pads
PowerPanel Business Edition Software Download Card
Limited 3-Year Warranty

CyberPower OL2200RTXL2UN Specs

General

Total Outlets	6 x NEMA 5-15R 1 x NEMA L5-20R
Plug Type	NEMA 5-20P
USB Charging Ports	None
Coax Protection	None
Data Line Protection	RJ11
Communications	Serial via DE-9/DB-9 USB via Type-B
Emergency Power Off (EPO) Support	Yes
Topology	Double Conversion
Transfer Time	0 ms

Power

Surge Energy Rating	1335 Joules
Maximum Wattage	1800 W
Nominal Input Voltage	120 VAC
Input Voltage Range	100 to 125 VAC
Input Voltage Adjustable Range	60 to 150 VAC
Input Frequency	50/60 Hz ± 10 Hz
Output Voltage Range	100 to 125 VAC
Output Frequency	50/60 Hz ± 0.1% (Auto Sensing, Configurable)
Load Capacity	2200 VA
Thermal Dissipation	541 BTU/Hour
Crest Factor	3:1
Power Factor Correction	0.99
Waveform	Sine Wave

Battery

Battery Capacity	108 VAh
Chemistry	Lead-Acid
Full-Load Runtime	6.5 Minutes
Half-Load Runtime	20 Minutes
Recharge Time	4 Hours
Replacement Battery	RB1290X6A
Hot-Swap Support	Yes

Environmental

Operating Temperature	32 to 104°F / 0 to 40°C
Operating Humidity	0 to 90%
Storage Temperature	-4 to 113°F / -20 to 45°C
Storage Humidity	0 to 95%
Operating Altitude	10,000′ / 3000 m
Storage Altitude	50,000′ / 15,000 m
Certifications	CSA, FCC, RoHS, UL *as per Manufacturer

Physical

Cable Length	10′ / 3 m
Material of Construction	Metal
