CyberPower CP1000AVRLCD Intelligent LCD UPS(Cyberpower Cp1000avrlcd Intelligent Lcd Ups)

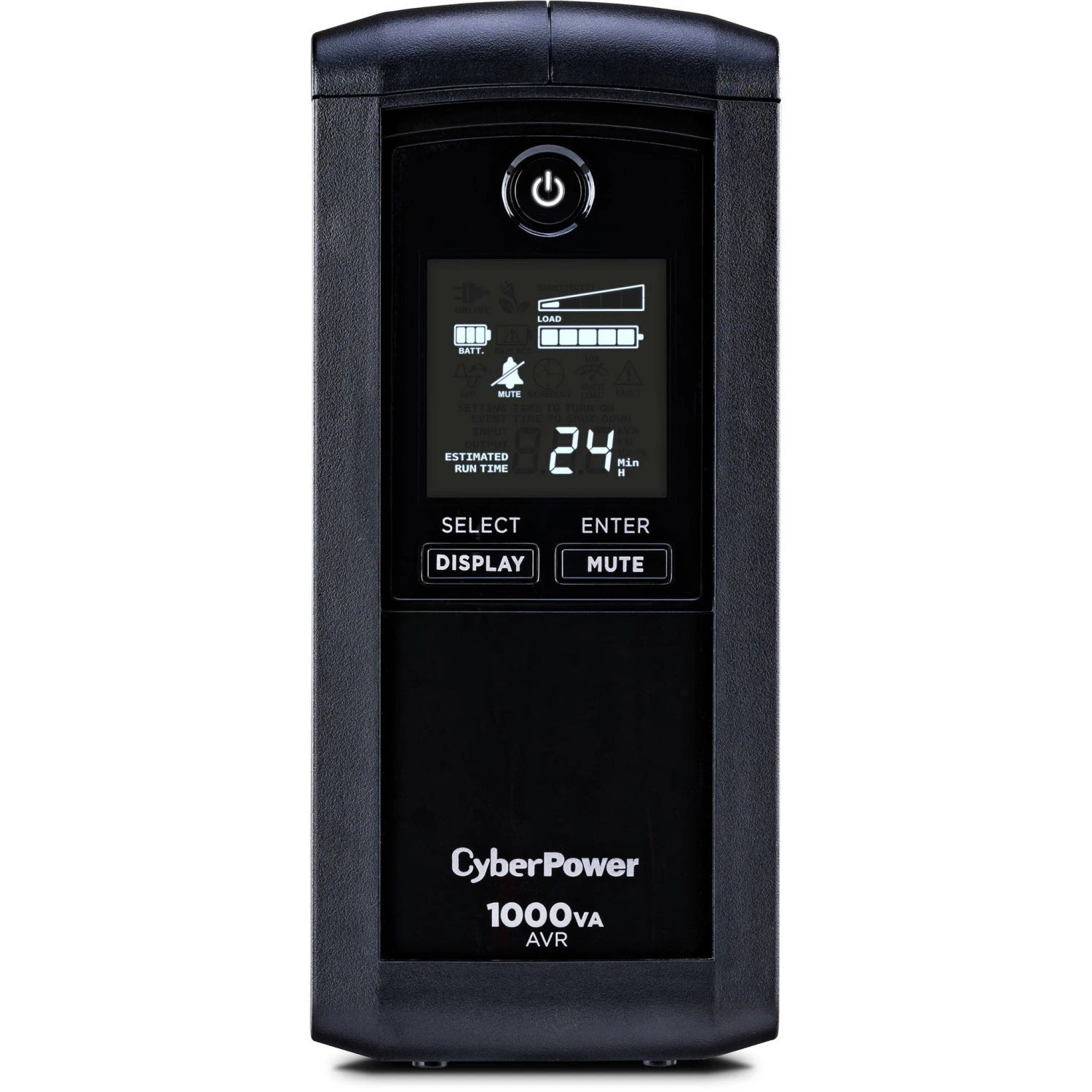

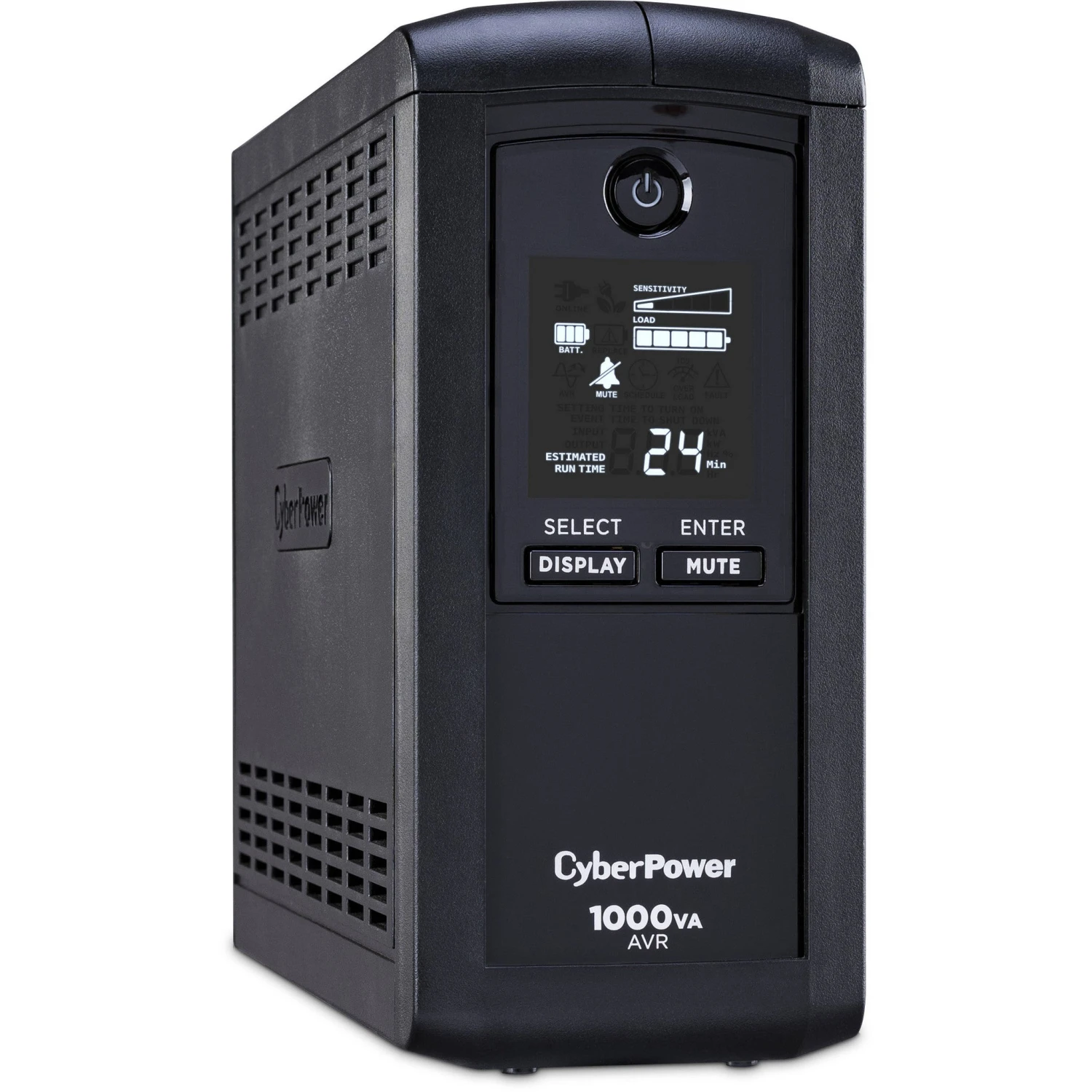

The CP1000AVRLCD Intelligent LCD UPS from CyberPower comes equipped with an output capacity of 1000 VA / 600W that delivers power for up to nine electronic devices. This power supply features Automatic Voltage Regulation which provides consistent and clean AC power to all your connected equipment such as desktop computers, workstations, networking devices, home entertainment systems, and more. Furthermore, it has integrated circuitry for EMI/RFI filters. The Intelligent LCD UPS provides an integrated panel for displaying real-time UPS vitals, such as load capacity %, battery charge %, input/output voltage and frequency, estimated runtime, and more.

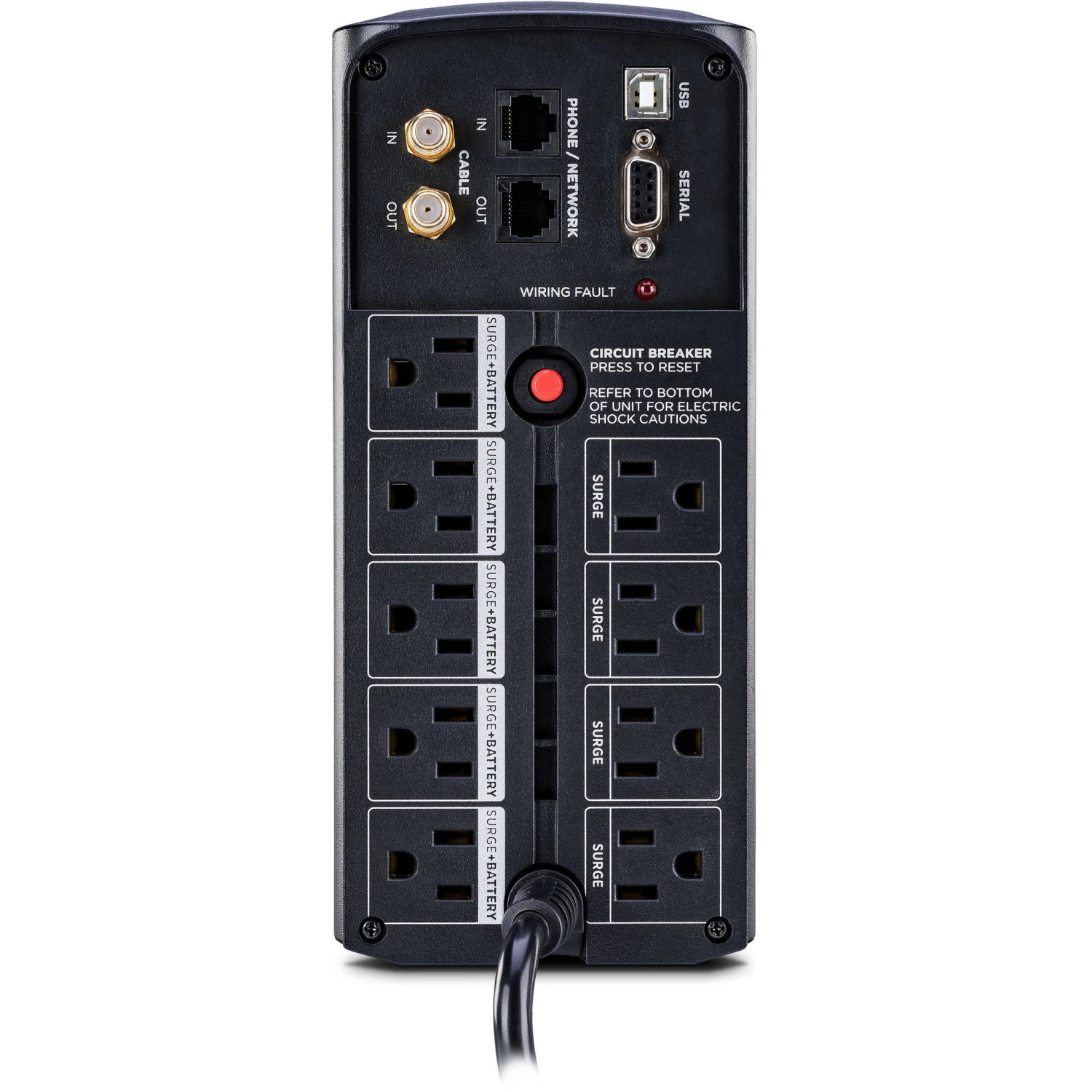

This mini-tower power supply offers nine total outlets that are capable of absorbing up to 1,080 joules for keeping your devices safe against surges and spikes. To keep your devices powered during blackouts and brownouts, five of the NEMA 5-15R outlets are battery and surge protected using internal circuitry limiting and a circuit breaker, while the other four just provide surge protection. Other connections offered are serial, USB Type-B, Ethernet RJ45, Phone RJ11, and Coax RG6 ports.

This power supply is Energy Star qualified with GreenPower UPS Bypass technology for reducing energy consumption and heat buildup to help save energy costs. Included with the power supply is the PowerPanel Personal Edition UPS management software for Windows systems. This software requires minimal system resources and monitors the status of the UPS to ensure it is working properly. When a power outage does occur, this software automatically saves open files and powers down the system into hibernation mode. When your PC is running in hibernation mode, the power supply will offer a longer runtime. This CyberPower UPS provides a lifetime connected equipment guarantee of up to $350,000.

Typical Applications

Desktop Computers

Home Networking/VoIP

Personal Electronics

Home Theater Device

Features

Capacity: 1000 VA / 600W

Topology: Line Interactive

Waveform: Simulated Sine Wave

Output: 120 VAC ± 5%

Runtime (half/full): 9 minutes / 2 minutes

Plug type & cord: NEMA 5-15P, 6′ cord

Outlets: 9 (4 surge, 5 surge + battery backup)

Communication: USB, Serial

Data line protection: Telephone, Ethernet, Coaxial

Management software: PowerPanel Personal Edition

ENERGY STAR qualified: Yes

Lifetime $350,000 Connected Equipment Guarantee

General
UPS Topology	Line Interactive
Energy Saving	GreenPower UPS Bypass Technology

Input
Voltage	Nominal 120 V
Automatic Voltage Regulation	Yes – Single Boost (10%)
Input Voltage Range	90 – 142 VAC
Frequency	60 Hz ± 3 Hz
Plug Type	NEMA 5-15P
Plug Style	45° Offset Right
Cord Length	6.0′ / 1.8 m

Output
VA	1,000
Watts	600
On Battery Voltage	120 VAC ± 5%
On Battery Frequency	60 Hz ± 1%
On Battery Waveform	Simulated Sine Wave
Outlet Type	NEMA 5-15R
Outlets – Total	9
Outlets – Battery & Surge Protected	5
Overload Protection	Internal circuitry limiting / circuit breaker
Transfer Time	4 ms

Battery
Runtime at Half Load	9 minutes
Runtime at Full Load	2 minutes
Battery Voltage	12 V
Battery Capacity	9 Ah
User Replaceable	Yes
Hot Swappable	Yes
Typical Recharge Time	8 hours
Replacement Battery	RB1290
Battery Quantity	1

Protections
Surge Suppression	1,080 joules
EMI/RFI Filtration	Yes
Phone RJ11 / Ethernet RJ45	1-In, 1-Out (Combo 10 / 100)
Coax Protection RG6	1-In, 1-Out

Management & Communications
LCD Backlight	Black
Intelligent Multifunction LCD Interface	Displays: Load Capacity %, Load Capacity Absolute, Battery Charge %, Input / Output Voltage, Input/ Output Frequency, Estimated Runtime, AVR, On Battery, Overload, Schedule, Silence, Fault
HID Compliant USB Port	Yes
Serial Port	Yes (Dry Contact)
Management Cable	USB Cable
LED Indicators	Power On, Wiring Fault
Audible Alarms	On Battery, Low Battery, Overload, Fault
Software	PowerPanel Personal Edition (free download)
SNMP/HTTP Remote Monitoring	No

Environmental
Operating Temperature	32 to 104°F / 0 to 40°C
Operating Relative Humidity	0 – 90% (non-condensing)
Operating Elevation	10,000′ / 3,048 m
Storage Temperature	5 to 113°F / -15 to 45°C
Storage Relative Humidity	0 – 95% (non-condensing)
Storage Elevation	50,000′ / 15,240 m

Certifications
Safety	UL1778, cUL 107 5th, FCC Class B

Physical
Form Factor	Mini-Tower
Dimensions	3.9 x 9.0 x 10.2″ / 9.9 x 22.9 x 25.9 cm
Weight	15.0 lb / 6.8 kg

Packaging Info
Package Weight	17.45 lb
Box Dimensions (LxWxH)	15.0 x 12.5 x 7.1″
