Crestron TSS-1070-W-S-LB 10″ Touchscreen Room Scheduling Monitor With Light Bar Kit (White)(Crestron Tss 1070 W S Lb 10 Touchscreen Room Scheduling Monitor With Light Bar Kit White)

Crestron Room Scheduling App

The native Crestron Scheduling app helps organizations to maximize productivity and manage usage for every meeting space. If desired, the room can be reserved on the spot for an ad hoc meeting. A CEN-ODT-C-POE occupancy sensor (sold separately) can also be paired to the touch screen, allowing for occupancy status to be reported instantly to the scheduling app for no-shows and unscheduled room usage.

Running the Crestron Scheduling App, the TSS-1070 integrates directly with Crestron Fusion software, Microsoft Exchange Server software (for users of Outlook software and Office 365 software), the Google Calendar calendaring app (including G Suite software), CollegeNET 25Live scheduling software, or Ad Astra software. IBM Notes software is also supported through a Crestron Fusion on-premises server.

Third-Party Scheduling Apps

The TSS-1070 includes support for various third-party scheduling applications. New providers are made available via firmware updates. Whatever provider you choose, setup is as simple as connecting the touch screen to the network and choosing an app from the web-based setup menu or built-in setup screens. The selected app downloads from the cloud and installs on the touch screen without any programming or control system required.

Built for Enterprise Scheduling Applications

The TSS-1070 is engineered to meet the demands of a corporate office, conference center, or education environment. It is a compact unit for scheduling applications that mounts over a standard electrical box or cutout. It is purpose-built for permanent installation and years of reliable 24/7 operation in a commercial environment. To ensure the latest features are available, the TSS-1070 checks nightly for app updates and loads the latest version automatically.

Network Connectivity for Power, Data & Control

The TSS-1070 offers high-speed Ethernet and PoE/PoE+ connectivity, or, for deployments without access to Ethernet, it can be connected to the network over Wi-Fi communications via a local wireless access point. The TSS-1070 features cloud-based provisioning and management, which streamlines configuring, monitoring, and updating the touch screen on the network. The TSS-1070 also supports SNMP, so it can be monitored by your IT administrator.

Light bar Indicator

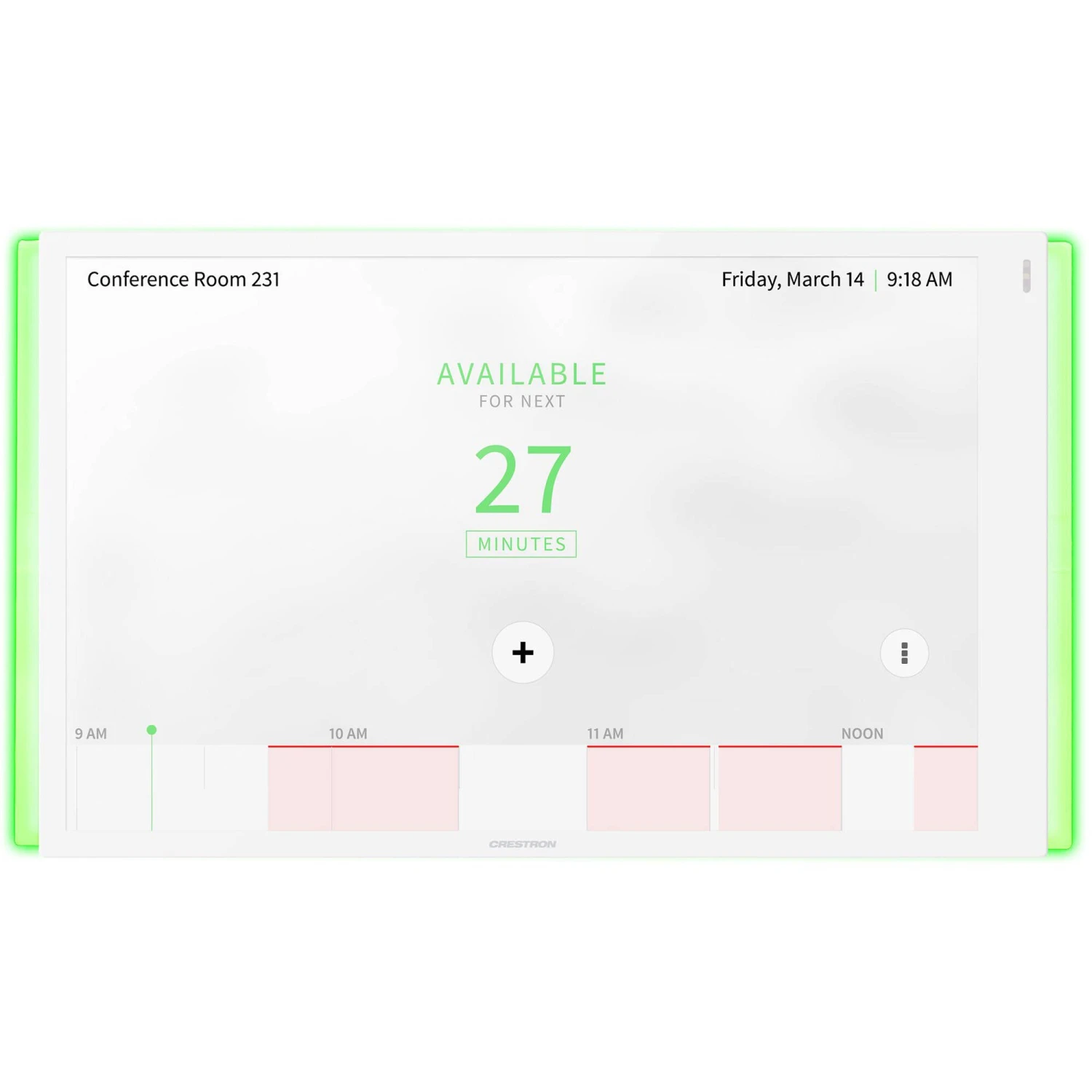

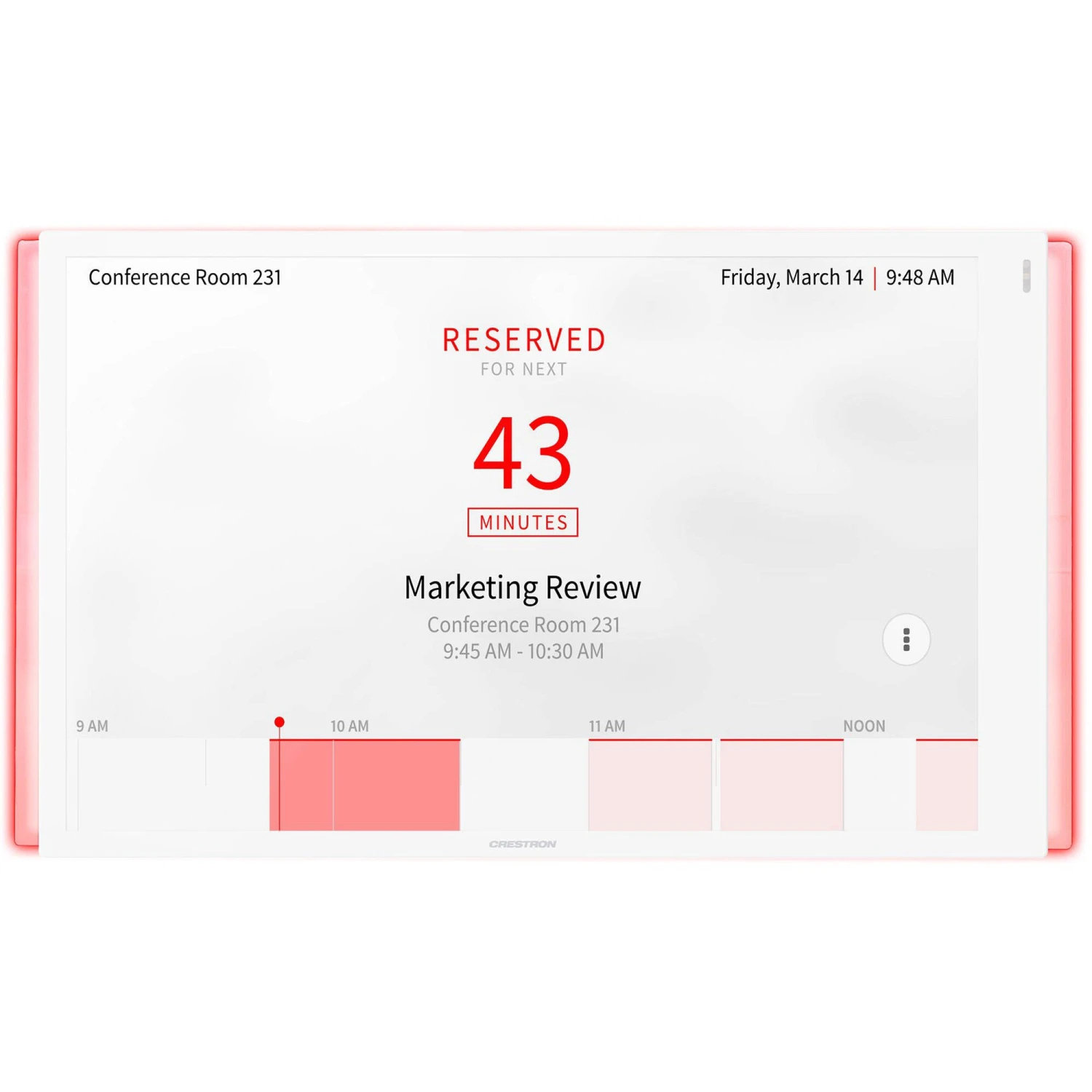

The included TSW-1070-LB series light bar provides a 180° visual indication of a room�s availability status, illuminating green if the room is available and red when reserved, with options for custom color mixing and programming.

Bluetooth Beacon

The built-in Bluetooth proximity detection beacon works with the Crestron Go App and Crestron App to determine when a mobile device is in or near the same room as the beacon, and signals the mobile app to automatically display the appropriate controls and information for the room.

Additional Features

• Drywall, masonry, glass, mullions, and other surface mounts available separately
• Secure with 802.1X authentication, TLS encryption, HTTPS connectivity, and Active Directory service integration
• Proximity sensor and automatic brightness controls
• Dual USB 2.0 ports for room availability accessories
• Compatible with XiO Cloud service

Crestron TSS-1070 Specs

Display Size	10.1″
Panel Type	TFT LCD
Native Resolution	1920 x 1200
Maximum Brightness	400 nits / cd/m2
HDR Support	No
Touchscreen	Yes, Projected Capacitive
Outputs	No
USB I/O	2x USB-A 2.0

Display Size	10.1″
Panel Type	TFT LCD
Aspect Ratio	16:10
Native Resolution	1920 x 1200
Maximum Brightness	400 nits / cd/m2
HDR Support	No
Contrast Ratio	1000:1
Refresh Rate	60 Hz
Variable Refresh Technology	No
Color Support	16.7 Million Colors (8-Bit)
Viewing Angle (H x V)	160 x 160°

Touchscreen

Yes, Projected Capacitive

Outputs	No
HDCP Support	No
Wireless	Wi-Fi / Bluetooth
USB I/O	2x USB-A 2.0
Ethernet I/O	1x RJ45

Built-In Speakers

Yes

Power Adapter Type

External

Operating Conditions	41 to 104°F / 5 to 40°C at 10 to 90% Humidity
Certifications	CE, FCC Part 15 Class B, IC
Lock Slot	No
Dimensions	10.2 x 5.9 x 2.3″ / 259 x 149 x 58 mm
Weight	1.61 lb / 0.73 kg
