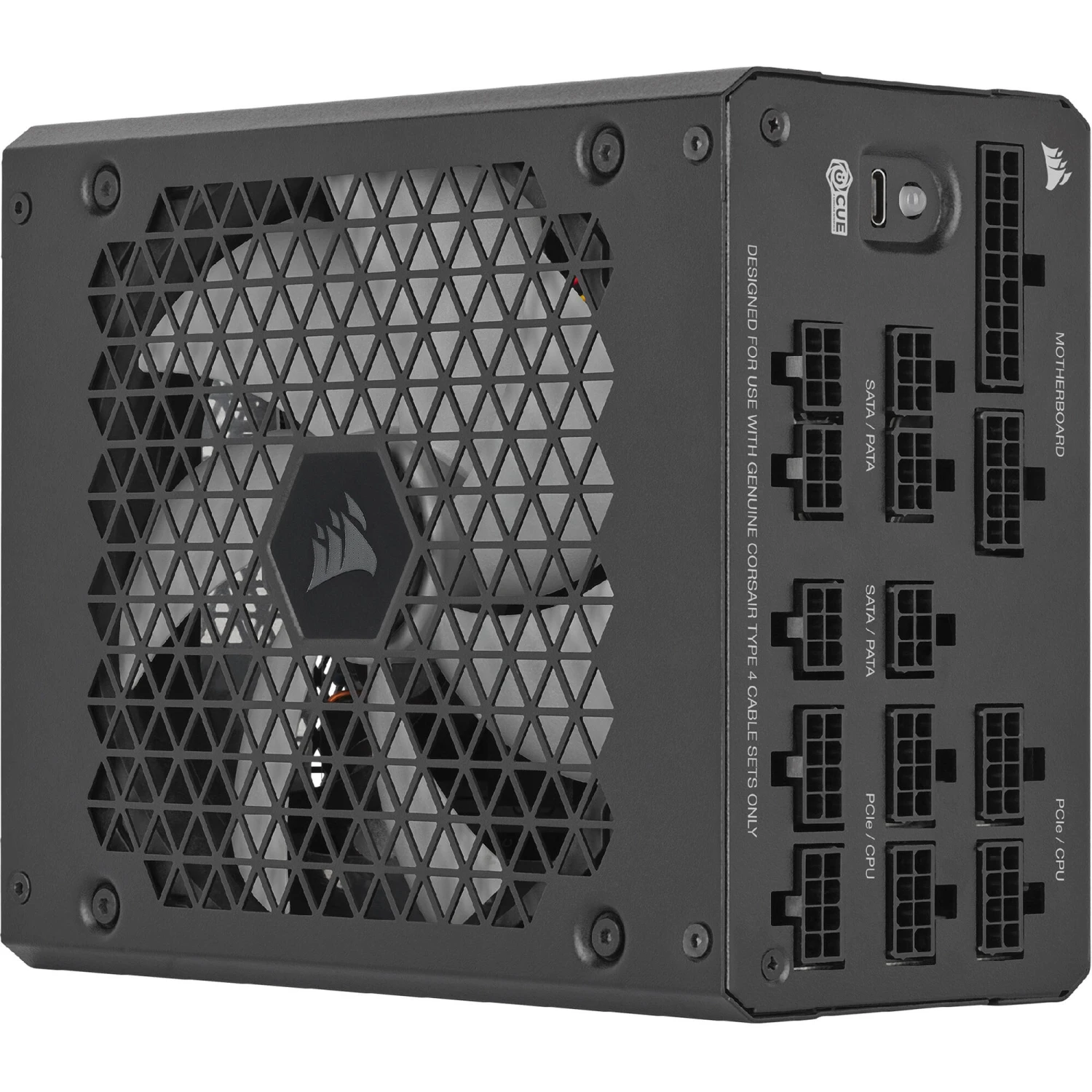

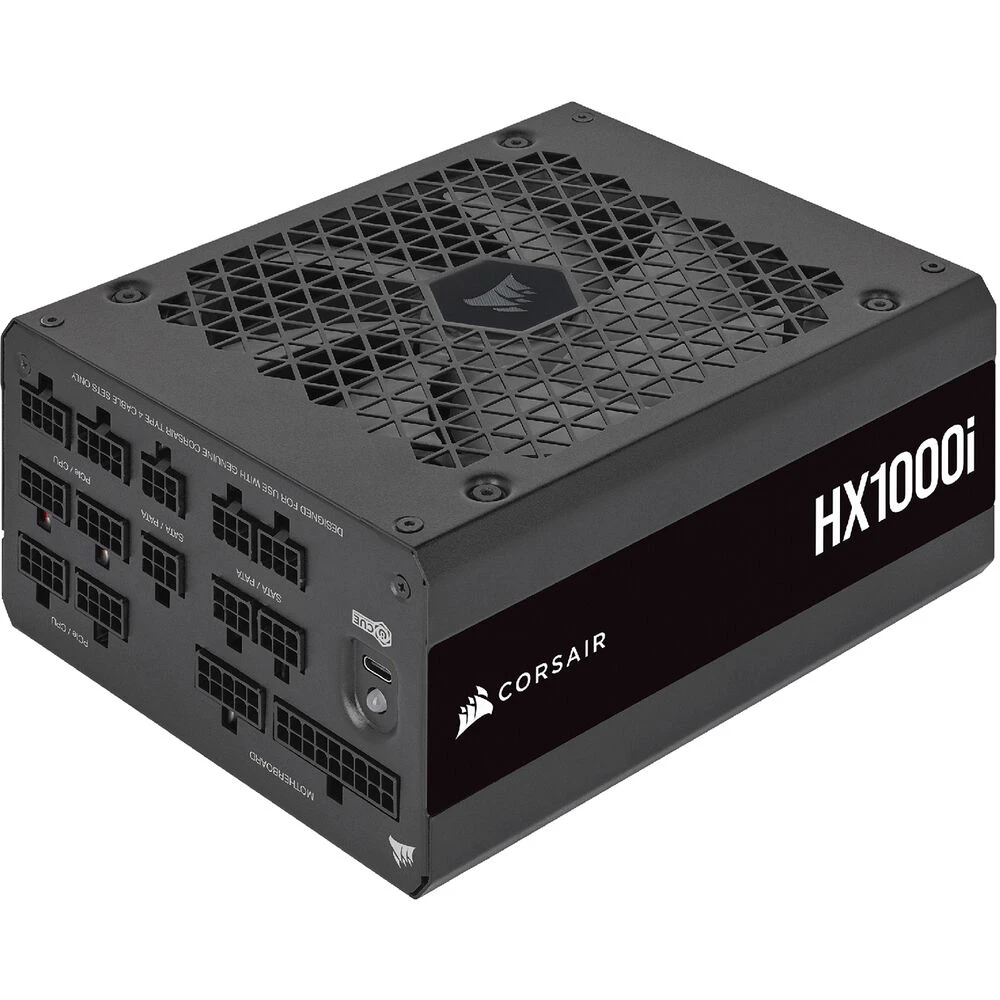

Corsair HX1000i Specs
| Total Connectors |
1x 24-Pin ATX Motherboard 2x 4+4-Pin EPS CPU 4x 6+2-Pin PCIe 1x 16-Pin PCIe (12VHPWR) 8x 15-Pin SATA 8x 4-Pin Peripheral / Molex Show More |
| Cable Design |
Flat, Modular, Sleeved |
| Total Wattage |
1000 W |
| Number of +12 V Rails |
1 |
| Efficiency Rating |
80 PLUS Platinum |
| Form Factor |
ATX |
| Total Connectors |
1x 24-Pin ATX Motherboard 2x 4+4-Pin EPS CPU 4x 6+2-Pin PCIe 1x 16-Pin PCIe (12VHPWR) 8x 15-Pin SATA 8x 4-Pin Peripheral / Molex |
| Cable Design |
Flat, Modular, Sleeved |
| PCIe Connector Distances |
25.6″ / 650 mm 26.6″ / 675 mm 30.5″ / 775 mm |
| SATA Connector Distances |
17.9″ / 455 mm 22.4″ / 570 mm 27″ / 685 mm 31.5″ / 800 mm |
| Peripheral Connector Distances |
17.7″ / 450 mm 21.7″ / 550 mm 25.6″ / 650 mm 29.5″ / 750 mm |
| ATX Connector Distance |
24″ / 610 mm |
| EPS Connector Distances |
25.6″ / 650 mm |
| Total Wattage |
1000 W |
| Number of +12 V Rails |
1 |
| Combined Power for +12 V |
999.6 W |
| Max Load for +12 V |
83.3 A |
| Combined Power for +3.3/+5 V |
150 W |
| Max Load for +3.3 V |
25 A |
| Max Load for +5 V |
25 A |
| Max Power for +5 Vsb |
15 W |
| Max Load for +5 Vsb |
3 A |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz at 6.5 to 13 A |
| Efficiency Rating |
80 PLUS Platinum |
| Active Power Factor Correction |
Yes |

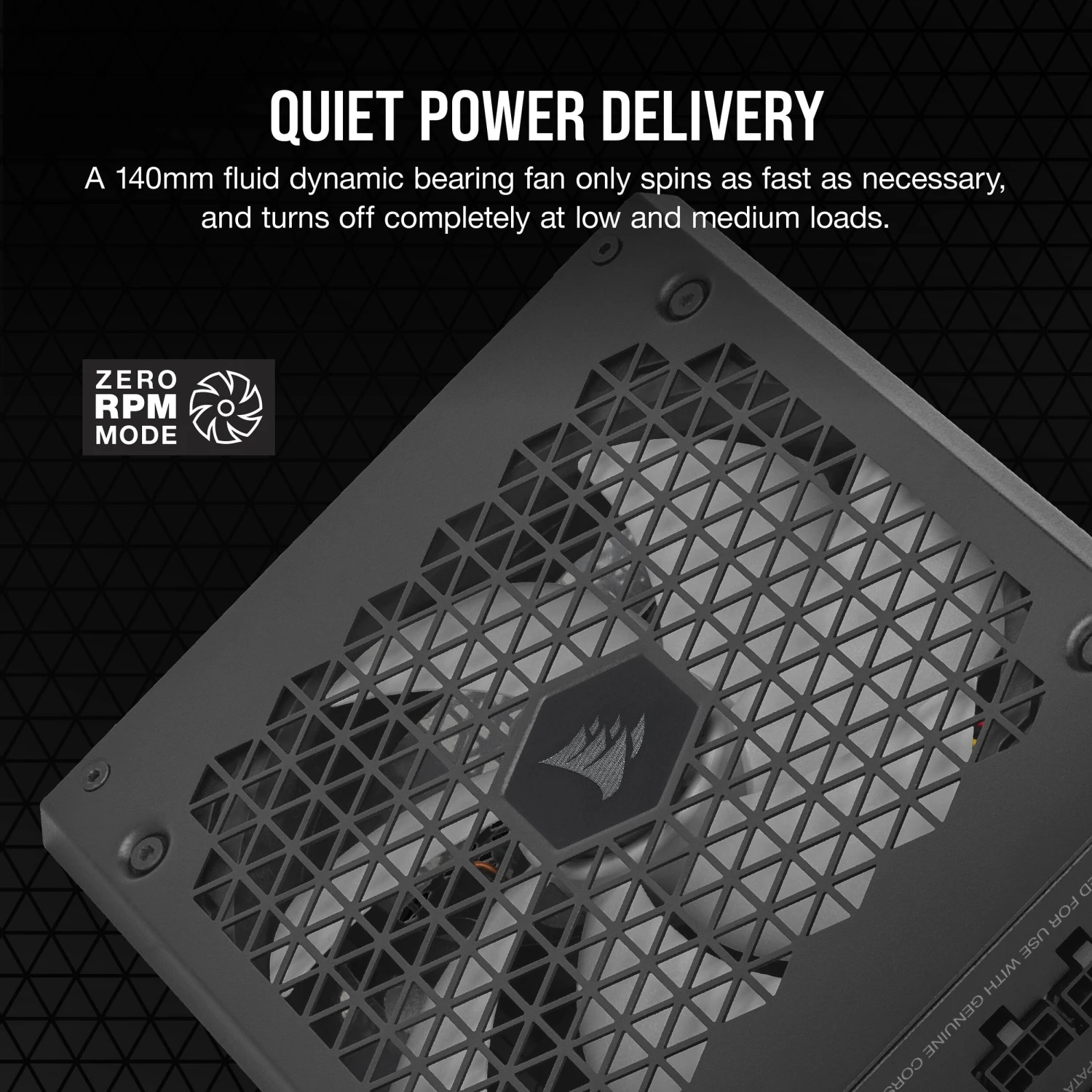

| Fan Size |
140 mm |
| Bearing Type |
Fluid Dynamic Bearings (FDB) |
| Form Factor |
ATX |
| Compliance |
ATX 12 V v3.0 |
| Mean Time Between Failures (MTBF) |
100,000 Hours |
