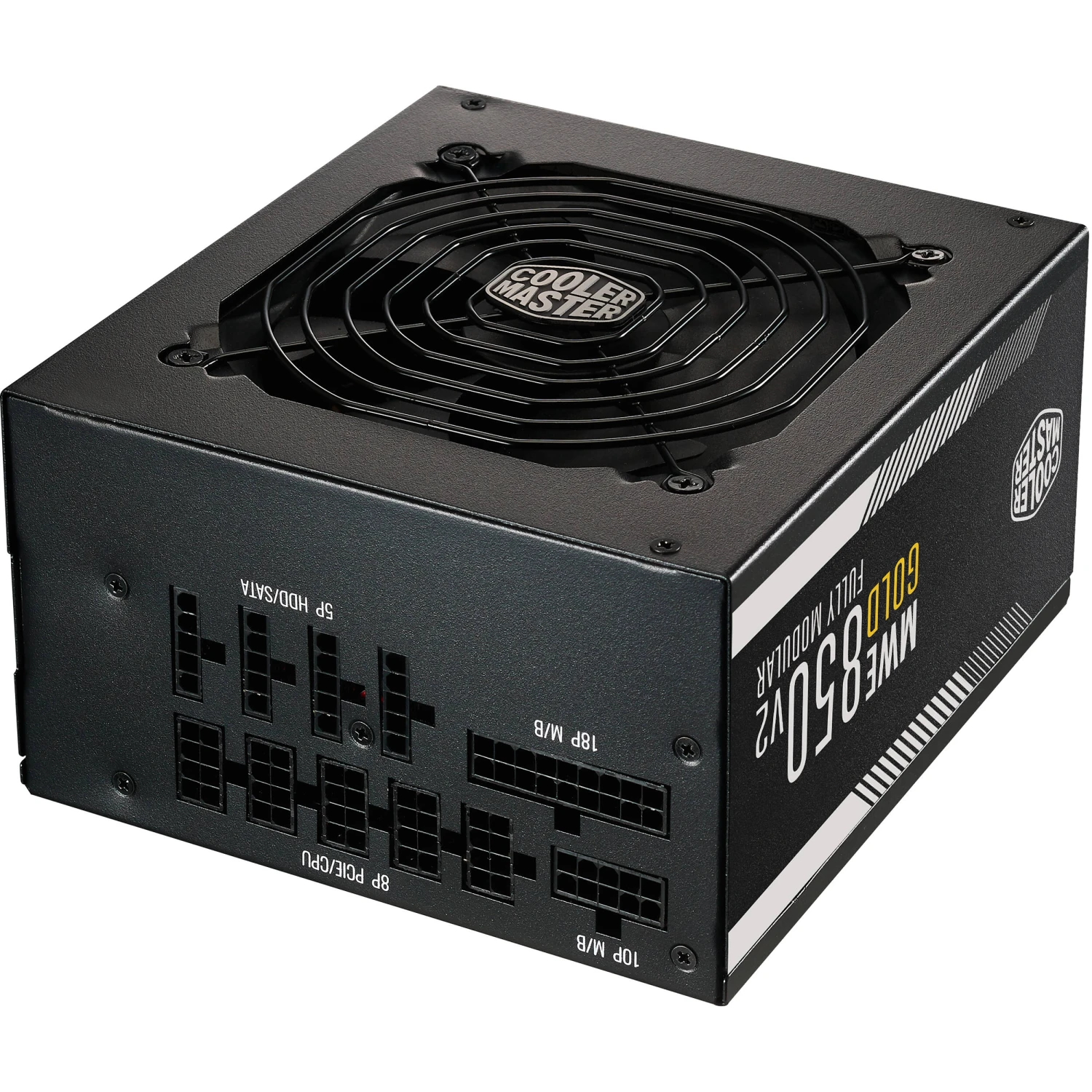

Cooler Master MWE Gold V2 850W 80 PLUS Gold Modular Power Supply(Cooler Master Mwe Gold V2 850w 80 Plus Gold Modular Power Supply)

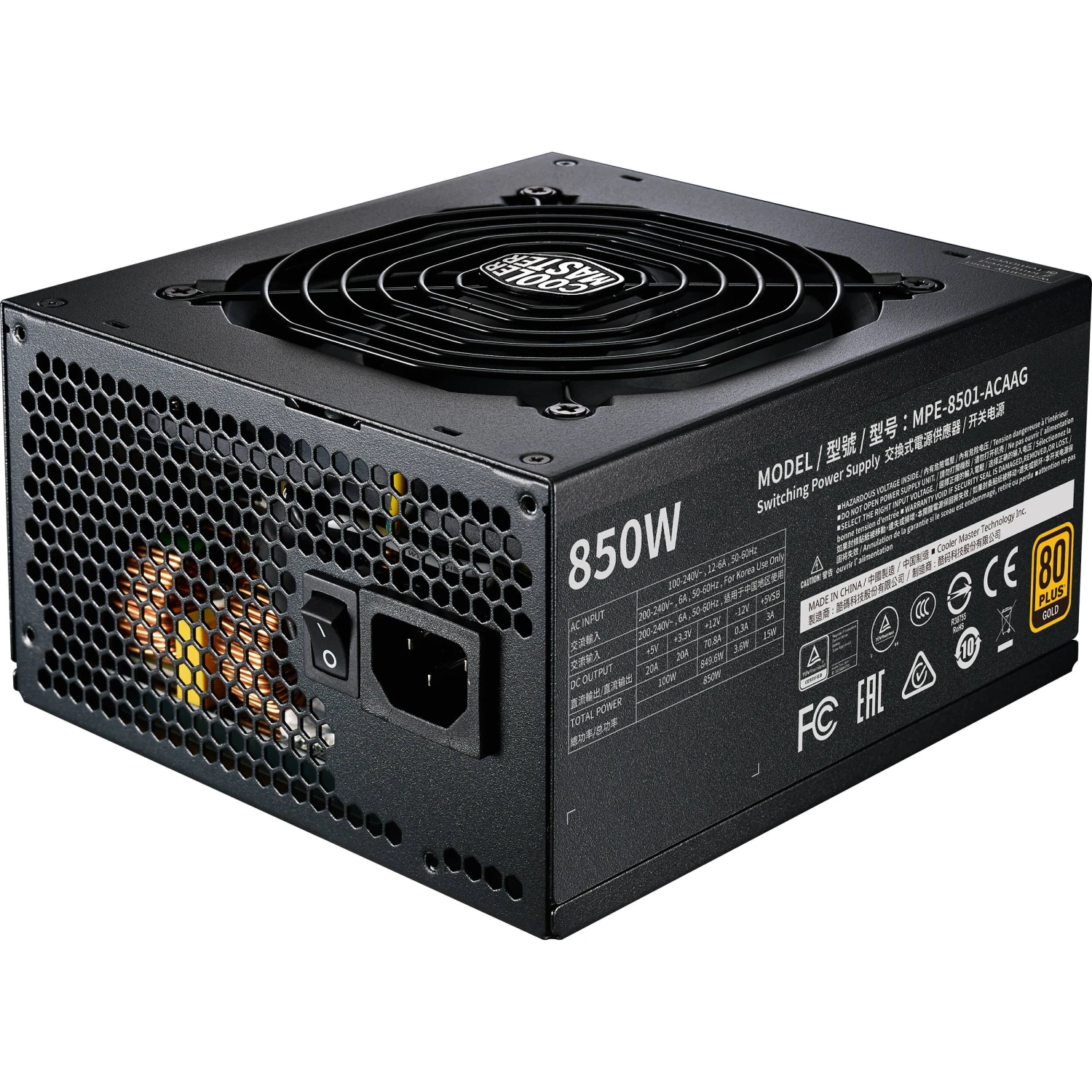

Cooler Master MWE Gold V2 850W 80 PLUS Gold Modular Power Supply(Cooler Master Mwe Gold V2 850w 80 Plus Gold Modular Power Supply) - Image 2

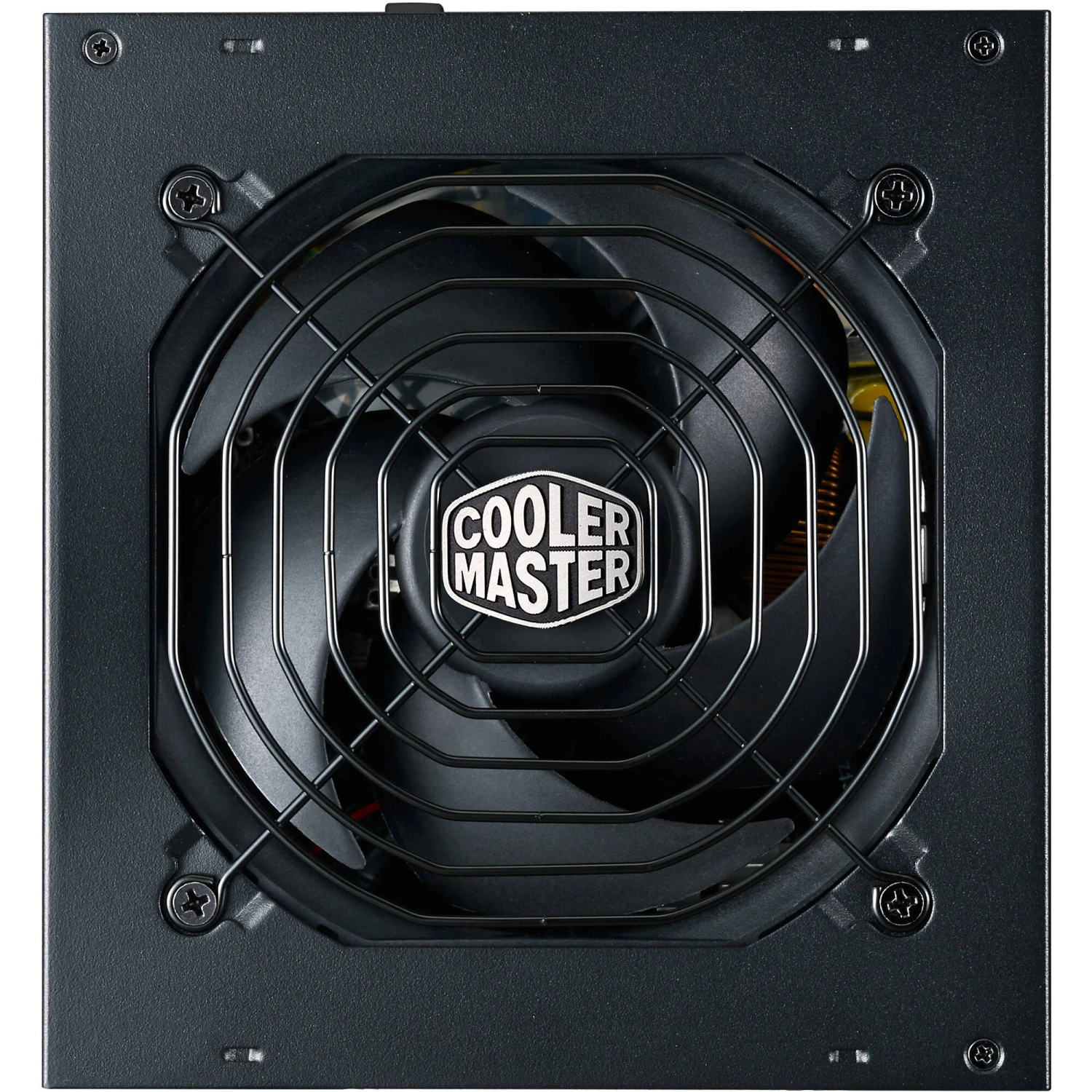

Cooler Master MWE Gold V2 850W 80 PLUS Gold Modular Power Supply(Cooler Master Mwe Gold V2 850w 80 Plus Gold Modular Power Supply) - Image 3

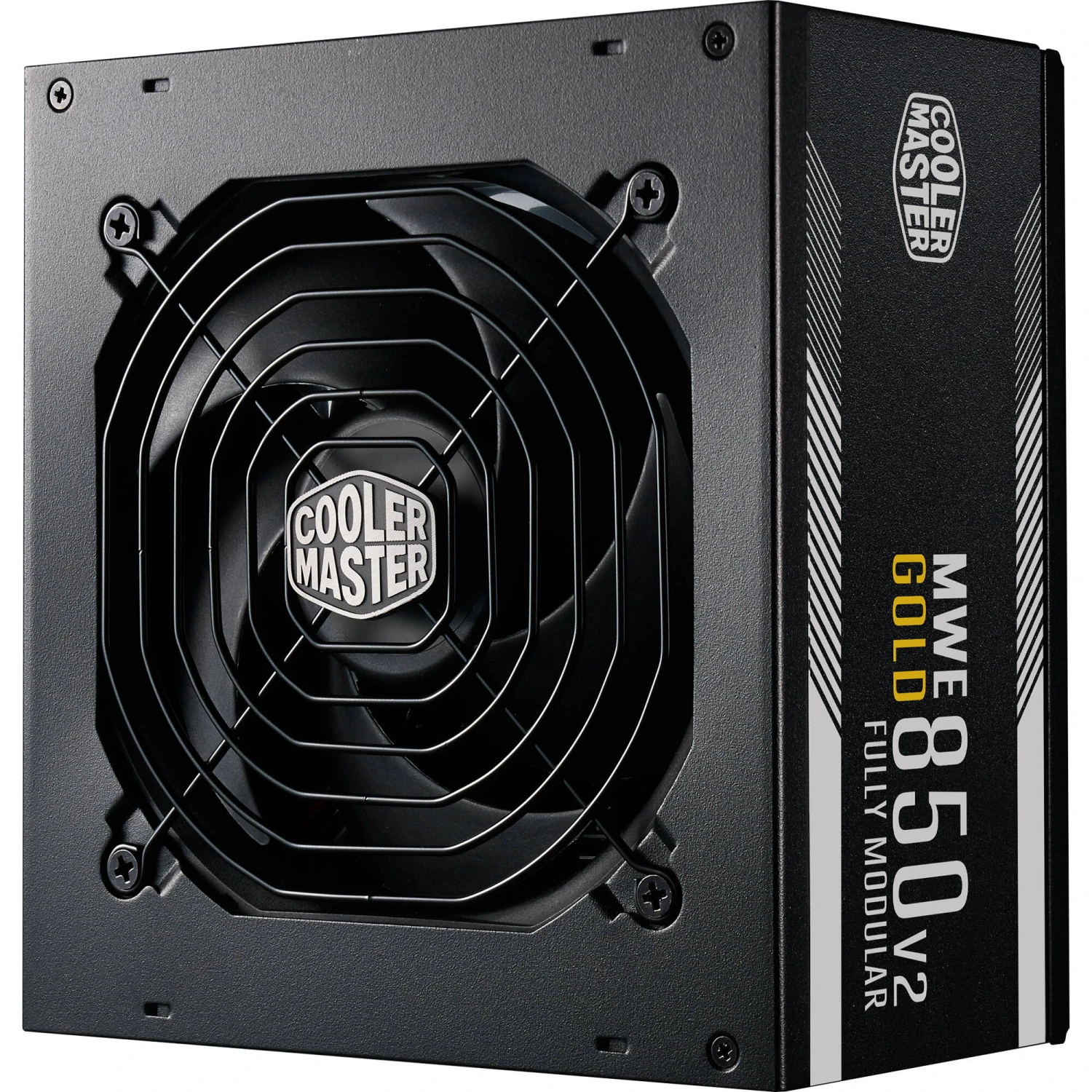

Cooler Master MWE Gold V2 850W 80 PLUS Gold Modular Power Supply(Cooler Master Mwe Gold V2 850w 80 Plus Gold Modular Power Supply) - Image 4

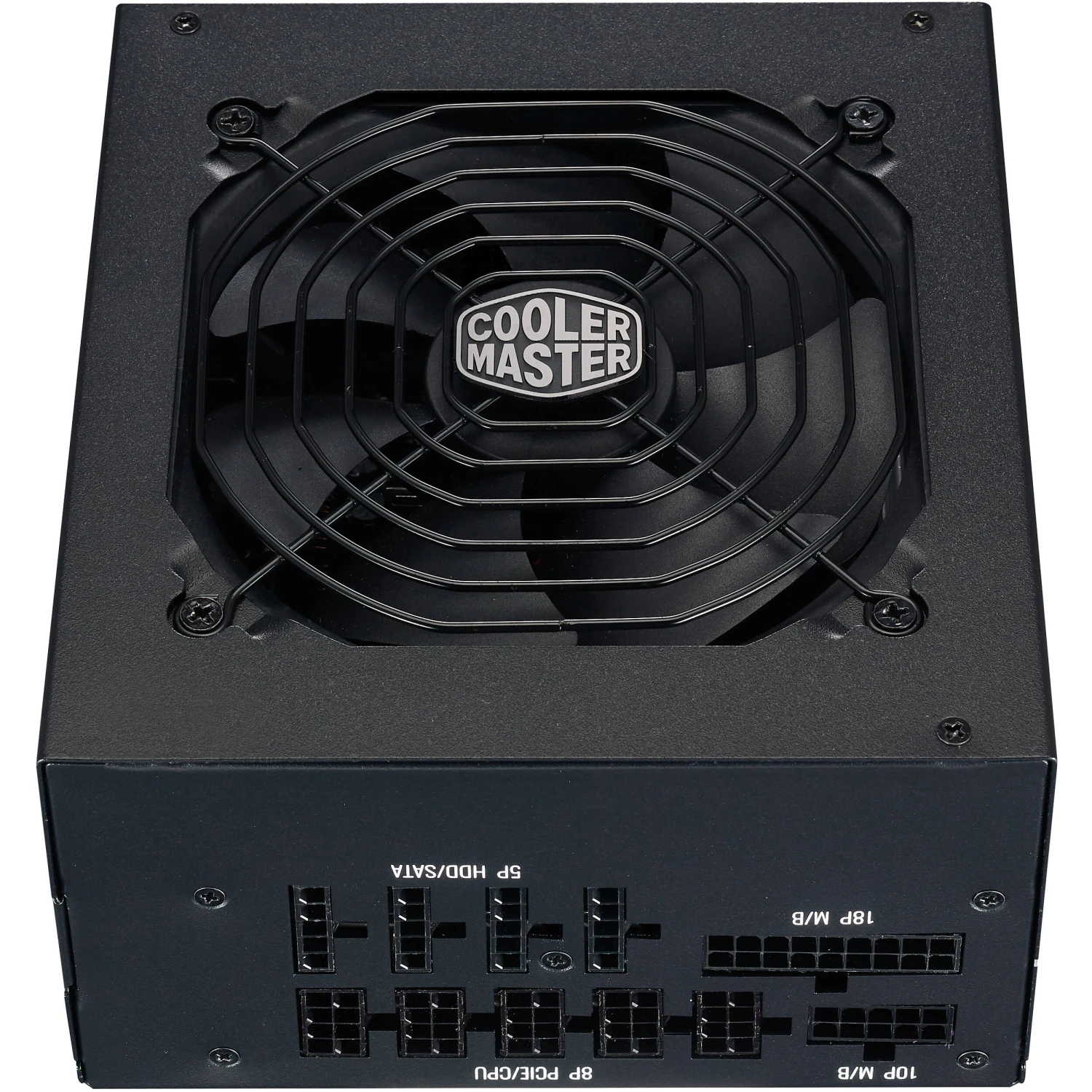

Cooler Master MWE Gold V2 850W 80 PLUS Gold Modular Power Supply(Cooler Master Mwe Gold V2 850w 80 Plus Gold Modular Power Supply) - Image 5

Cooler Master MWE Gold V2 850W 80 PLUS Gold Modular Power Supply(Cooler Master Mwe Gold V2 850w 80 Plus Gold Modular Power Supply) - Image 6

Cooler Master MWE Gold V2 850W 80 PLUS Gold Modular Power Supply(Cooler Master Mwe Gold V2 850w 80 Plus Gold Modular Power Supply)

Original price was: $200.97.Current price is: $98.99.

SKU: DGFUB 6750870503509 Categories: Computer & Presentation, Computer Components, Computer Solutions Tags: Computers, Cooler Master MWE Gold, Desktop Components, Power Supplies

Elevate Your Shopping Experience
Product guarantee 100% satisfaction
The quality solution for all your needs.
Streamlined service, designed for your convenience.

Description
Reviews (0)

Cooler Master MWE Gold Overview

1Description
2Power Up
380 PLUS Gold Certified
4Two EPS Connectors
5Quiet Cooling
6High Temperature Resilience
7Fully Modular Cabling

Get efficient power with the MWE Gold V2 850W 80 PLUS Gold Modular Power Supply from Cooler Master. Sporting a single +12V rail that provides up to 850W of power, this 80 PLUS Gold PSU typically delivers up to 90% efficiency. Featuring flat modular cabling, the MWE Gold V2 has a 24-pin motherboard connector, as well as two EPS, 12 SATA, four PCIe, and four peripheral 4-pin connectors. Designed for quiet operation, this PSU features a maximum noise level of 25.9 or 17.8 dBA at 100% or 50% load, respectively. If running at 20% load or lower, this PSU is capable of silent operation. A 120mm hydraulic dynamic bearing fan ensures efficient cooling, and the Cooler Master MWE Gold V2 features a mean time between failure (MTBF) of 100,000 hours.

Power Up

Improving upon the original MWE Gold power supply, V2 is designed for efficient operation and modular connectivity.

80 PLUS Gold Certified

Efficiency has always been one of the most important factors for users when choosing their power supply unit. The MWE Gold V2 delivers an 80 PLUS Gold certification, guaranteeing a typical minimum efficiency of 90%.

Two EPS Connectors

The MWE Gold V2 comes with two EPS connectors to ensure universal compatibility with modern motherboards so you never have to worry about connectivity.

Quiet Cooling

The MWE Gold V2 has been upgraded with a Hydraulic Dynamic Bearing (HDB) fan to deliver quiet and effective cooling with a long lifespan, allowing users to get the most out of their PSU. Furthermore, a number of measures have been applied to the MWE Gold V2 design to reduce sound output and ripple noise for a quieter user experience.

High Temperature Resilience

Designed to operate in higher temperatures than its predecessor, the V2 allows users to safely push their power supply to 122°F. This threshold improves what is possible with your PSU and your system in general, including overclocking and other high-intensity applications.

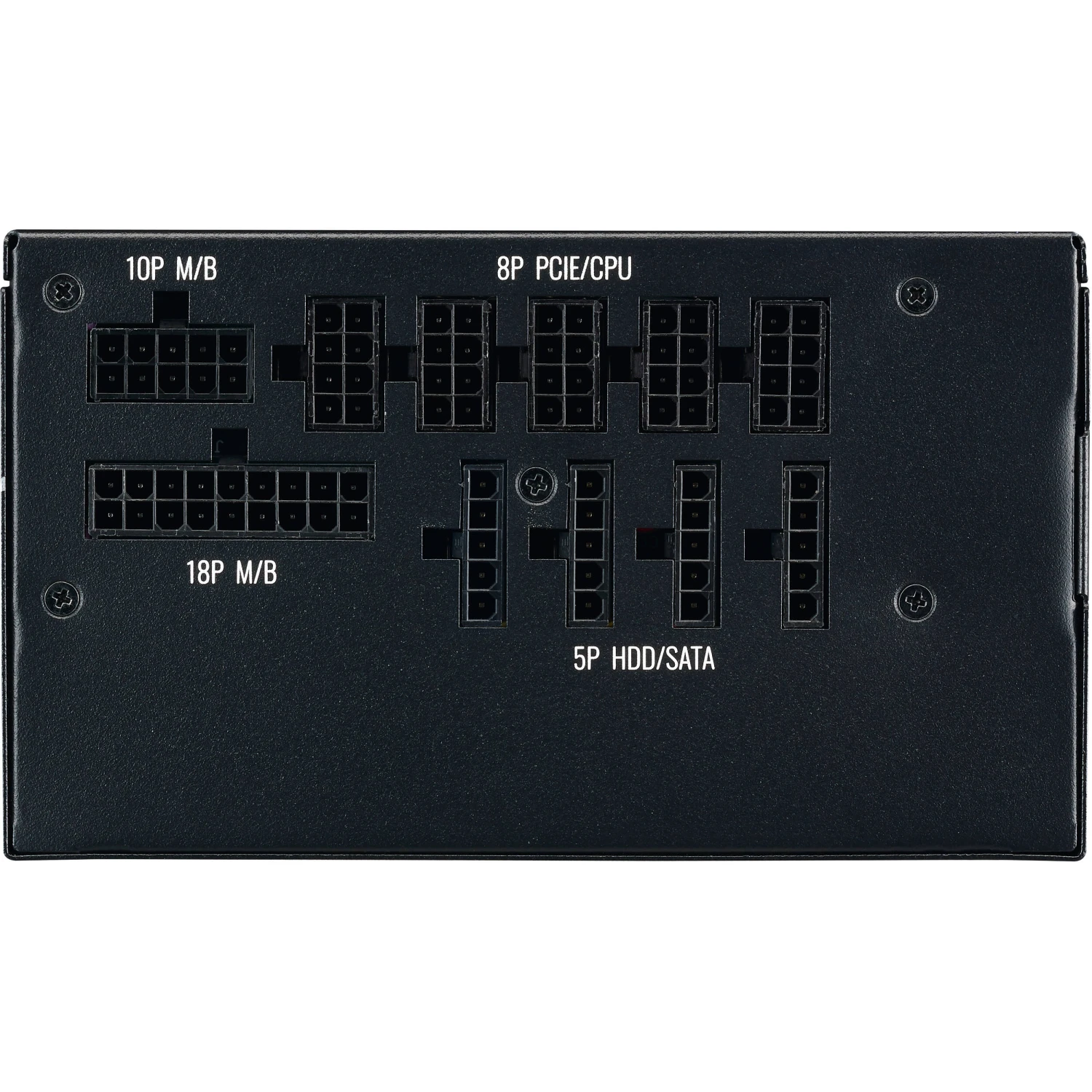

Fully Modular Cabling

The fully modular design of the MWE Gold V2 features flat black cables that can be customized to each user’s individual needs. By using only the cables you need, you can cut down on chassis clutter while streamlining airflow and improving your system’s overall cooling.

UPC: 884102078590

In the Box

Cooler Master MWE Gold V2 850W 80 PLUS Gold Modular Power Supply
Limited 5-Year Warranty

Table of Contents

Description
Power Up
80 PLUS Gold Certified
Two EPS Connectors
Quiet Cooling
High Temperature Resilience
Fully Modular Cabling

Cooler Master MWE Gold Specs

Connectivity

Total Connectors	1 x 24-Pin ATX Motherboard 1 x 4+4-Pin EPS CPU 1 x 8-Pin EPS CPU 12 x 15-Pin SATA 4 x 4-Pin Peripheral / Molex 4 x 6+2-Pin PCIe
Cable Design	Modular
PCIe Connector Distances	21.7″ / 550 mm 4.7″ / 120 mm
SATA Connector Distances	19.7″ / 500 mm 4.7″ / 120 mm 4.7″ / 120 mm 4.7″ / 120 mm
Peripheral Connector Distances	19.7″ / 500 mm 4.7″ / 120 mm 4.7″ / 120 mm 4.7″ / 120 mm
ATX Connector Distance	24″ / 610 mm
EPS Connector Distances	23.6″ / 600 mm 25.6″ / 650 mm

Electrical

Total Wattage	850 W
Number of +12 V Rails	1
Combined Power for +12 V	849.6 W
Max Load for +12 V	70.8 A
Combined Power for +3.3/+5 V	100 W
Max Load for +3.3 V	20 A
Max Load for +5 V	20 A
Max Power for +5 Vsb	15 W
Max Load for +5 Vsb	3 A
Max Power for -12 V	3.6 W
Max Load for -12 V	0.3 A
AC Input Power	100 to 240 VAC, 50 / 60 Hz at 12 to 6 A

General

Efficiency Rating	80 PLUS Gold
Active Power Factor Correction	Yes
Efficiency	90%
Hold up Time	16 ms at 100% Load
Power-Good Signal	100 to 150 ms

Cooling

Fan Size	120 mm
Fan Speed	1500 rpm
Bearing Type	Hydraulic
Noise Level	0 to 25.9 dBA

Environmental

Operating Temperature

32 to 122°F / 0 to 50°C

Physical

Form Factor	ATX
Compliance	ATX 12 V
Protection	Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
Certifications	BSMI, CCC, CE, EAC, FCC, RCM, TUV, cTUVus, as per Manufacturer
Mean Time Between Failures (MTBF)	100,000 Hours

Packaging Info

Package Weight	6.08 lb
Box Dimensions (LxWxH)	12.3 x 7.8 x 4.9″
