Christie DWU880A-GS 9500-Lumen WUXGA Laser DLP Projector (Black, No Lens, TAA Compliant)(Christie Dwu880a Gs 9500 Lumen Wuxga Laser Dlp Projector Black No Lens Taa Compliant)

Laser Light Source

Avoid downtime and reduce maintenance with Christie’s high-efficiency laser illumination. The GS Series of projectors eliminates the need for lamp and filter replacements, providing 20,000 hours of life. For extra peace of mind, the light source is covered by Christie’s warranty for five years or 20,000 hours, whichever comes first.

24/7 Durability

Capable of running 24 hours a day, 7 days a week in a compact footprint with quiet operation, the GS Series offers great performance and reliability in high-demand, high-use environments.

Flexible Connectivity

The DW880A-GS includes two HDMI 2.0 inputs as well as DVI-D. For long distances, a 3G-SDI BNC input is available. Additionally, there is an RJ45 HDBaseT input to deliver Full HD video, audio, network, and control commands on a single Ethernet cable. This projector also features an HDMI output for daisy-chaining the signal to other projectors.

Built-In Christie Twist and Compatible with Christie Mystique

Built-in Christie Twist allows you to seamlessly edge-blend and stack multiple projected images on any 2D or 3D surface and precisely control the geometry of each projector through an easy-to-use grid-point, mesh interface. Working in conjunction with Twist, Christie Mystique automates multi-projector warping and blending. With the click of a mouse, the camera-based software automatically aligns, stacks, and blends multi-projector systems in minutes. For simple 2D setups using up to 3 projectors in a single horizontal array on a flat screen or surface, you can download Mystique Lite at no additional cost and purchase an inexpensive supported webcam to get started.

Motorized Interchangeable Lenses

Featuring powered zoom, focus, and offset using the remote control, the compatible Christie lenses (sold separately) include:

• Ultra-Short 140-133108-XX / Throw ratio: 0.36:1
• Ultra-Short Zoom 900-300383-XX / Throw Ratio: 0.37-0.4:1
• Short Zoom 140-143109-XX / Throw ratio: 0.65 to 0.75:1
• Short Zoom 140-119102-XX / Throw ratio: 0.75 to 0.95
• Standard Zoom 140-101103-XX / Throw ratio: 0.95 to 1.22:1
• Standard Zoom 140-131106-XX / Throw ratio: 1.22 to 1.52:1
• Standard Zoom 140-102104-XX / Throw ratio: 1.52 to 2.89:1
• Long Zoom 140-107109-XX / Throw ratio: 2.90 to 5.50:1

Other Features

• Omnidirectional orientation
• Full HD 3D support
• Eco mode
• Picture-in-picture
• Picture-by-picture
• DICOM simulation mode
• TAA compliant

Christie DWU880A Specs

Display System	1-Chip 0.67″ DMD DLP
Native Resolution	1920 x 1200
Maximum Brightness	9500 Lumens (ISO) 8000 Lumens (ANSI)
HDR Support	Yes

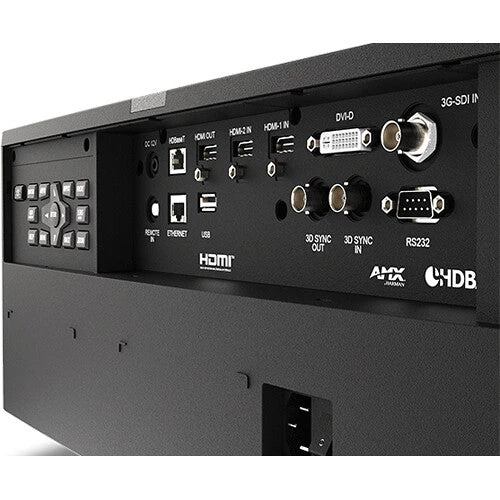

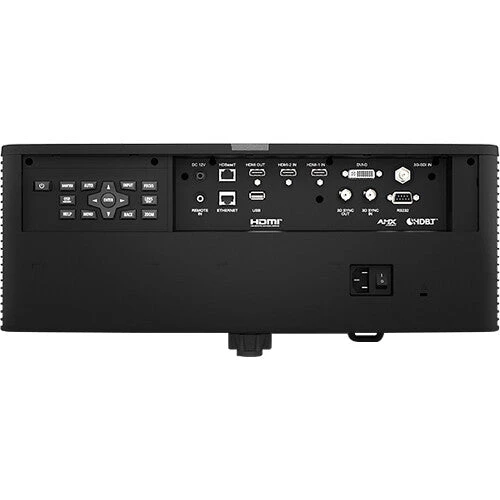

Inputs/Outputs	2x HDMI 2.0 Video Input 1x DVI-D Video Input 1x RJ45 (HDBaseT) Audio, Control, Remote, Video Input 1x BNC (3G-SDI) Video Input 1x USB-A Control, Remote Input 1x HDMI Video Output 1x RJ45 (Ethernet) LAN Input/Output 1x 12 V Trigger Control Input 1x DE-9/DB-9 (RS-232) Control Input 1x BNC (VESA 3D Sync) Control, Data Input 1x BNC (VESA 3D Sync) Control, Data Output
Light Source	Laser Phosphor

Display System	1-Chip 0.67″ DMD DLP
Native Resolution	1920 x 1200
Supported Resolutions	Maximum: 4096 x 2160 @ 60 Hz
Maximum Brightness	9500 Lumens (ISO) 8000 Lumens (ANSI)
Aspect Ratio	Native: 16:10
Contrast Ratio	1100:1
Dynamic Contrast Ratio	6000:1
DLP Link 3D	Yes
Supported 3D Formats	Frame Packing (up to 1080p) Side by Side (up to 1080p) Top Bottom (up to 1080p)
Color Wheel	4-Segment (RGBY)
Scan	Horizontal: 15 to 91kHz Vertical: 24 to 120Hz
Includes Lens	No

Keystone Correction	Manual to Vertical: Manual to Horizontal:
HDR Support	Yes
Multi-Input Support (PIP/PBP)	Yes, Picture-in-Picture (PIP), Picture-by-Picture (PBP)
Ceiling Mountable	Yes
Rear Screen Projection	Yes
Built-In Speaker	No
Projection Tilt Option	Yes

Inputs/Outputs	2x HDMI 2.0 Video Input 1x DVI-D Video Input 1x RJ45 (HDBaseT) Audio, Control, Remote, Video Input 1x BNC (3G-SDI) Video Input 1x USB-A Control, Remote Input 1x HDMI Video Output 1x RJ45 (Ethernet) LAN Input/Output 1x 12 V Trigger Control Input 1x DE-9/DB-9 (RS-232) Control Input 1x BNC (VESA 3D Sync) Control, Data Input 1x BNC (VESA 3D Sync) Control, Data Output
HDCP Support	Yes, Version 2.2
Media/Memory Card Slot	No
Mobile App Compatible	Yes: Android & iOS App Name: Christie Virtual Remote Functionality: Remote Control
Wireless LAN / Wi-Fi	No
Bluetooth	No

Light Source	Laser Phosphor
Expected Lamp Life	Full Brightness: 20,000 Hours
Fan Noise	Full Brightness: 38 dB Low Brightness: 36 dB
Security	Cable Lock Slot
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Consumption	Full Brightness: < 620 W
Certifications	BIS, BSMI, CCC, CE, CSA, FCC Class A, IEC, PSE, RCM, REACH, RoHS, UL, VCCI, WEEE
Operating Conditions	32 to 104°F / 0 to 40°C at 10 to 85% Humidity
Storage Conditions	14 to 140°F / -10 to 60°C at 5 to 90% Humidity
Dimensions (W x H x D)	18.9 x 7.5 x 21.9″ / 480.1 x 190.5 x 556.3 mm (without Feet or Lens)
Weight	41.9 lb / 19 kg
